DID chain kit for Ducati Monster 1100 2009 525 ZVM-X2 chain kit

DID chain set for Ducati Monster 1100 2009 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

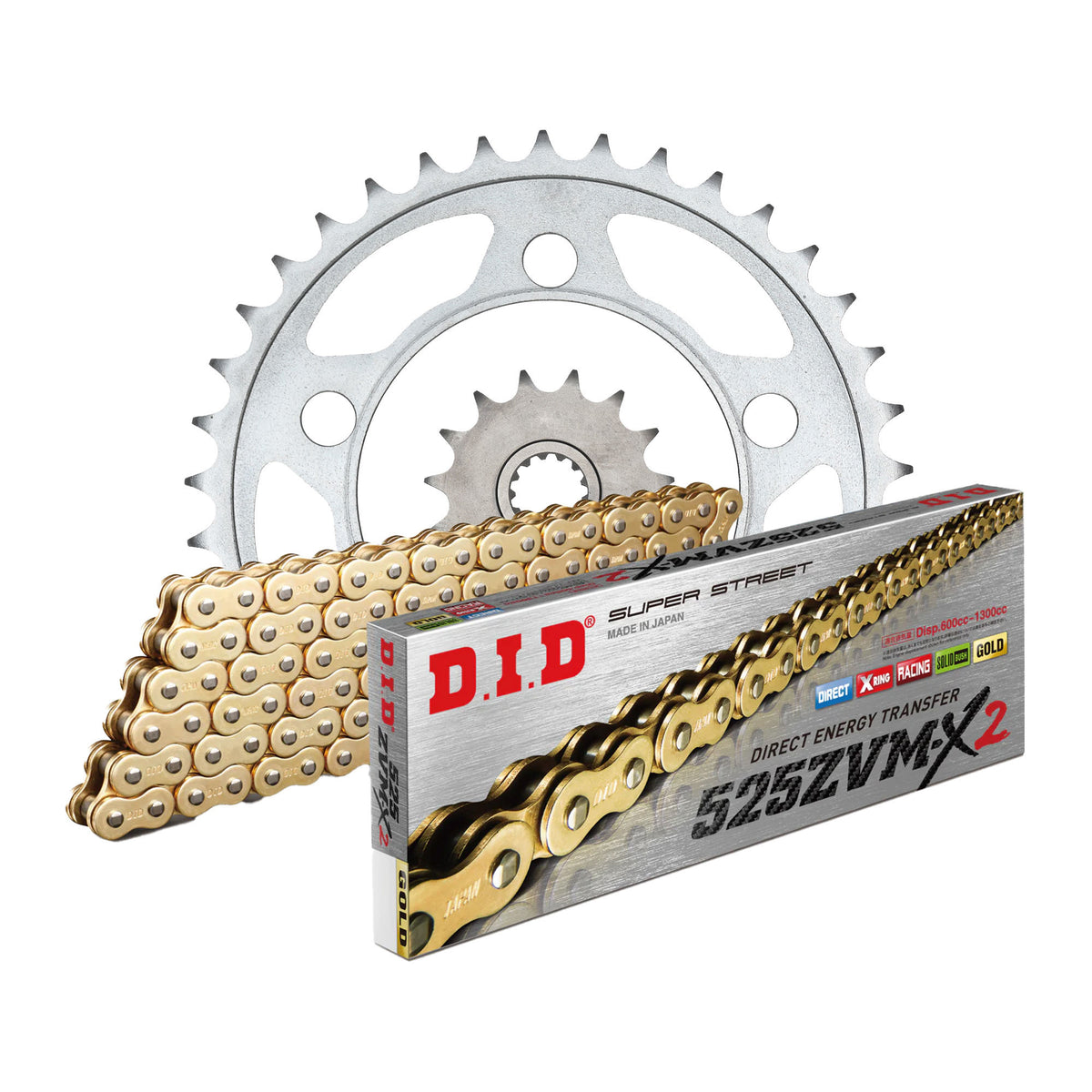

Components of the chain kit Ducati Monster 1100 M5 2009-2009 conversion #525 for PCD2 sprocket adapter

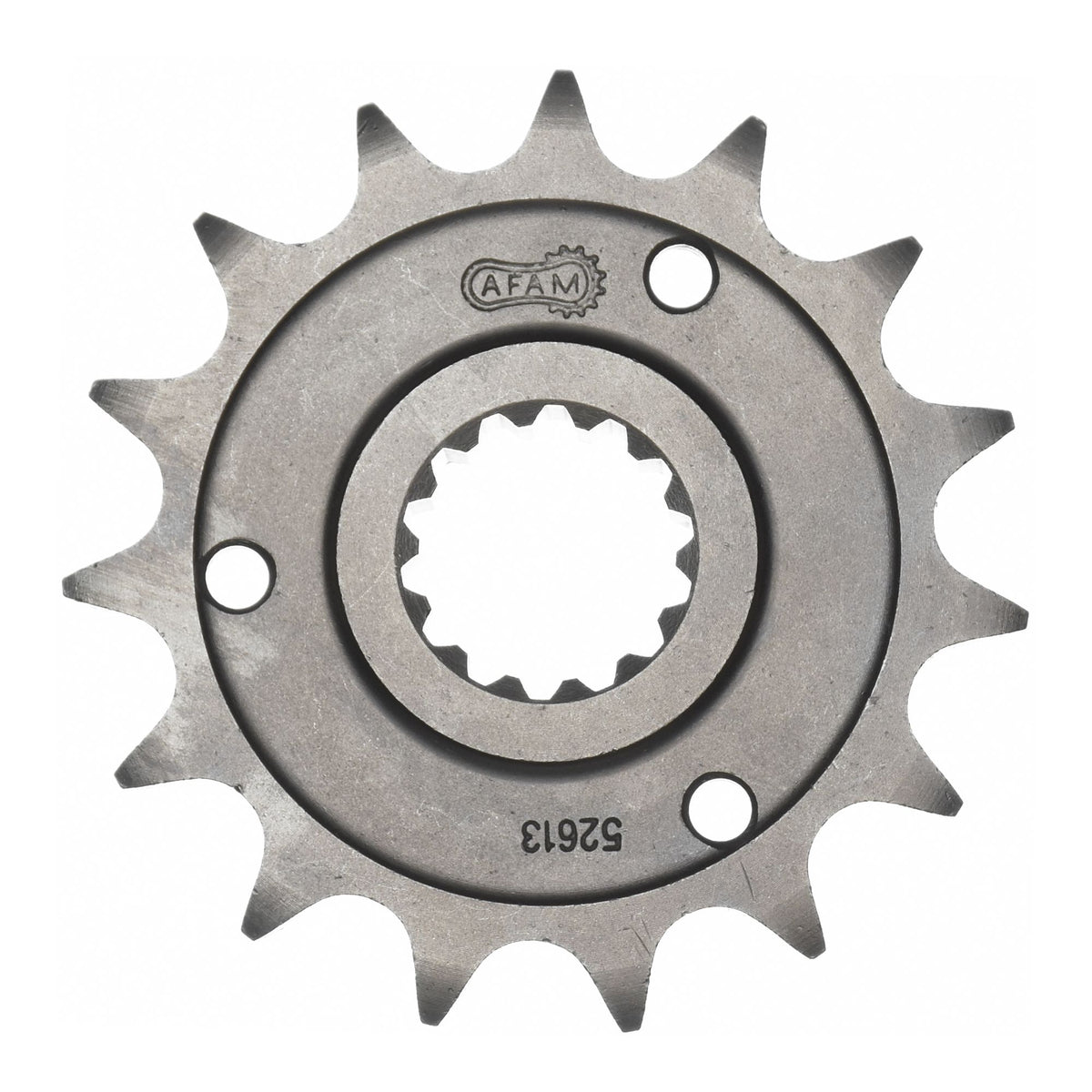

• Sprocket: AFAM sprocket #525 Sport 15 teeth - a52613.15
• Chain: DID chain 525 ZVM-X2 G&G 104 with rivet link - d525zvmx2.gg.104

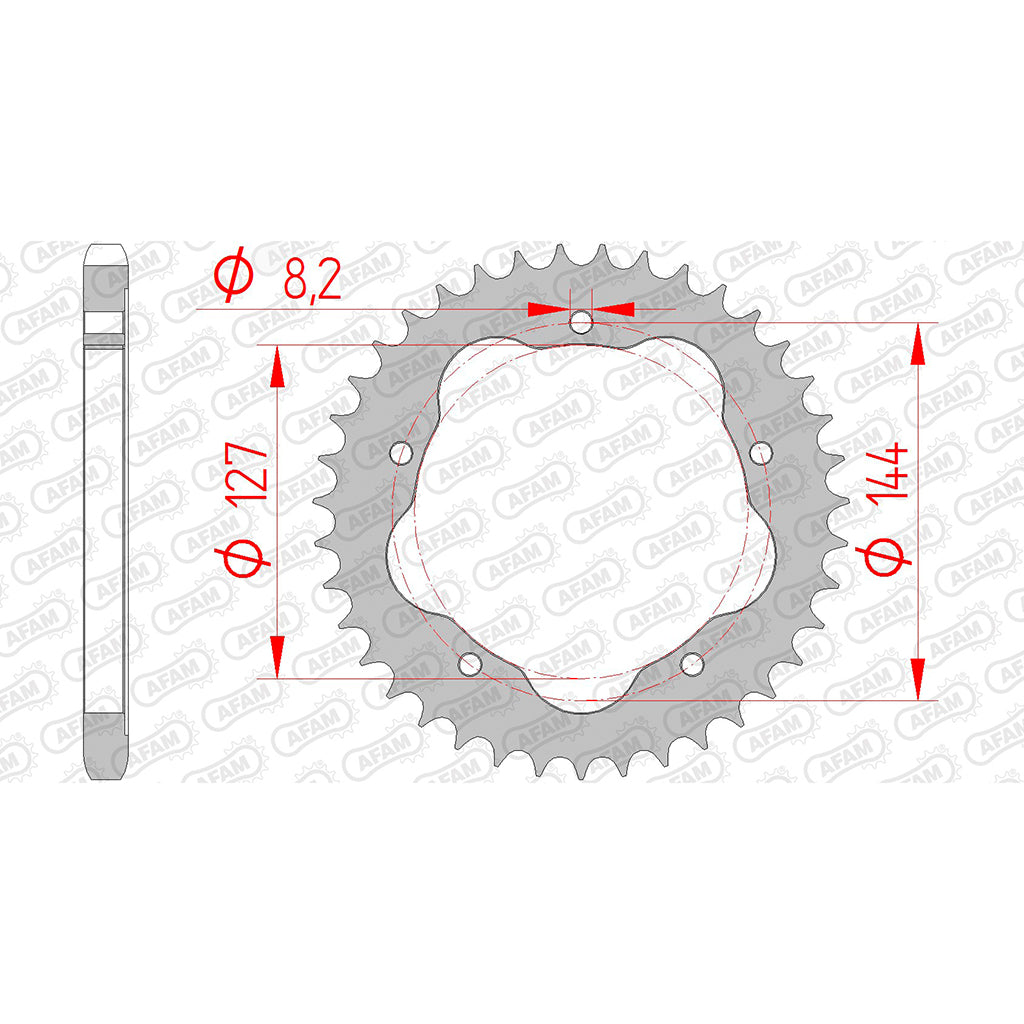

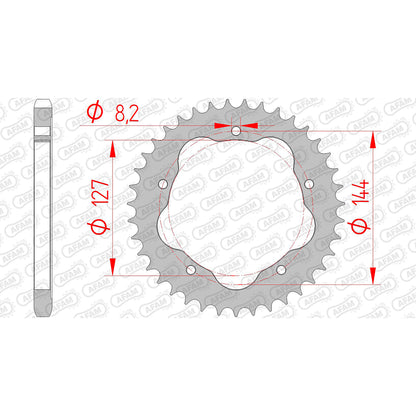

• Chain wheel: AFAM chain wheel STEEL #525 PCD 39 teeth - a50608k.39sc
• Gear ratio sprocket-chain-chain wheel: 15-104-39 conversion #525 for PCD2 sprocket adapter

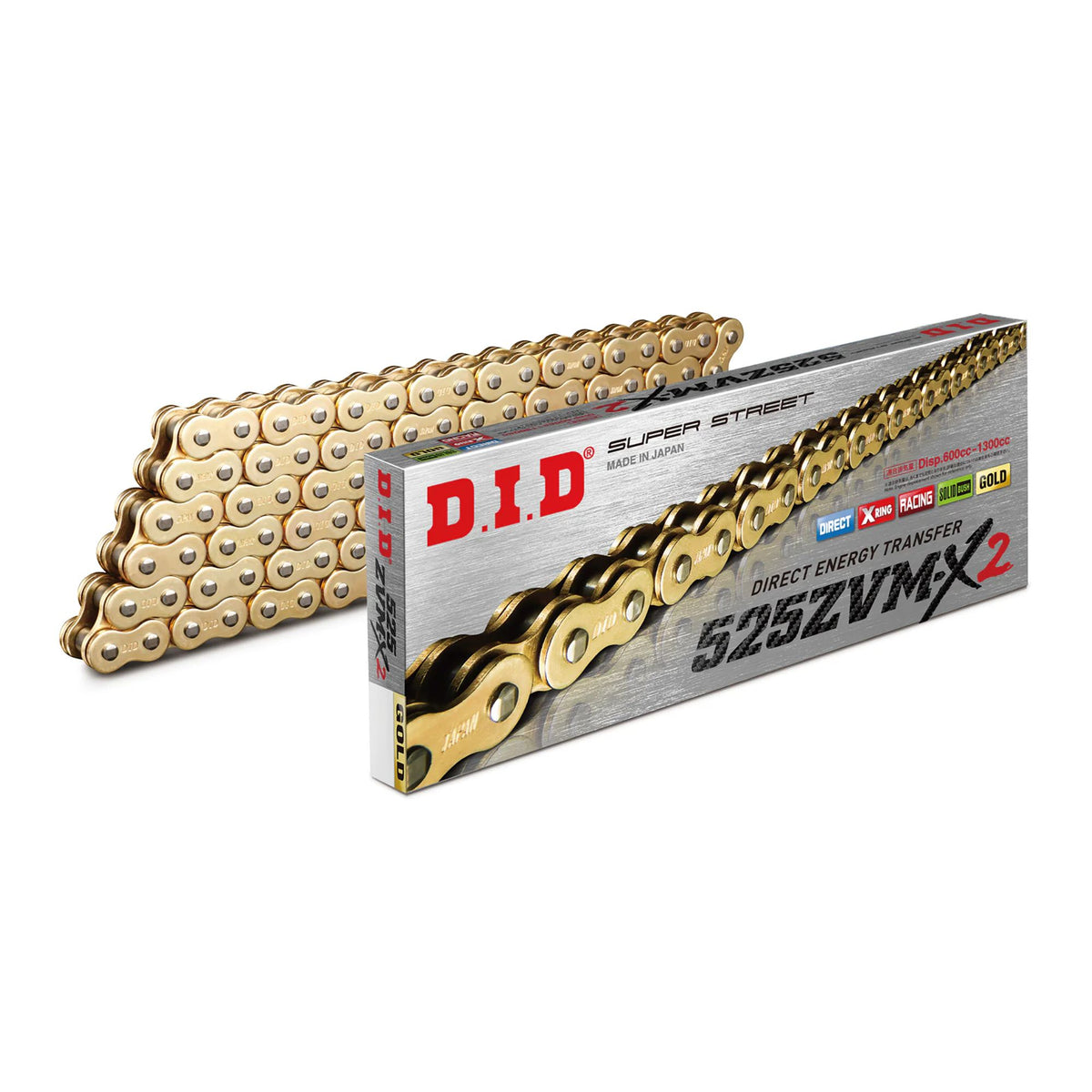

DID 525 ZVM-X2

Extra reinforced chain, versatile area of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-77778

Fits

Ducati over 1001 cc Monster 1100 M5 2009
