DID chain set for Ducati Monster S4R 996 2004 525 ZVM-X2 chain kit

DID chain set for Ducati Monster S4R 996 2004 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

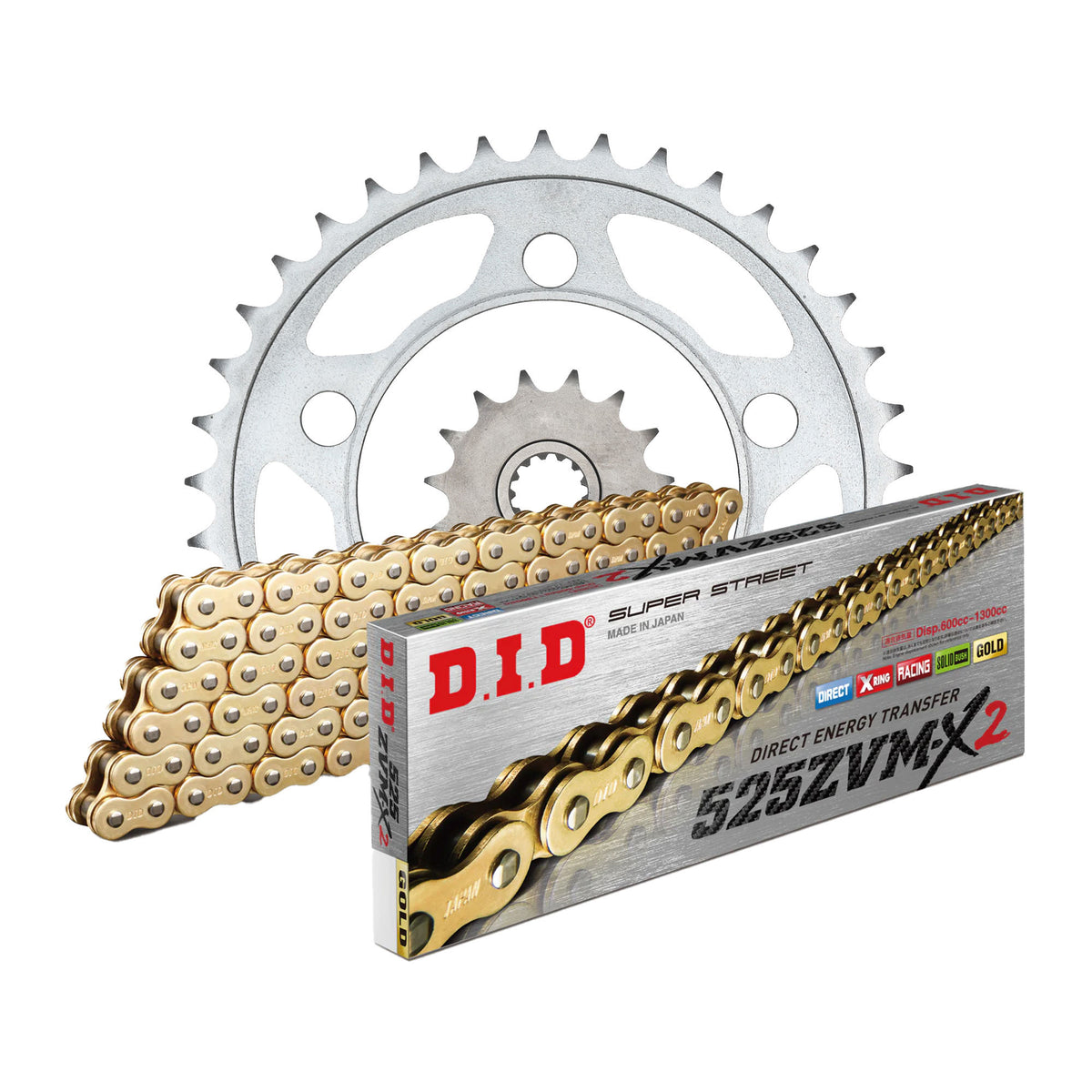

Components of the chain kit Ducati Monster S4R 996 M4 2004-2004 conversion #525 for PCD2 sprocket carrier

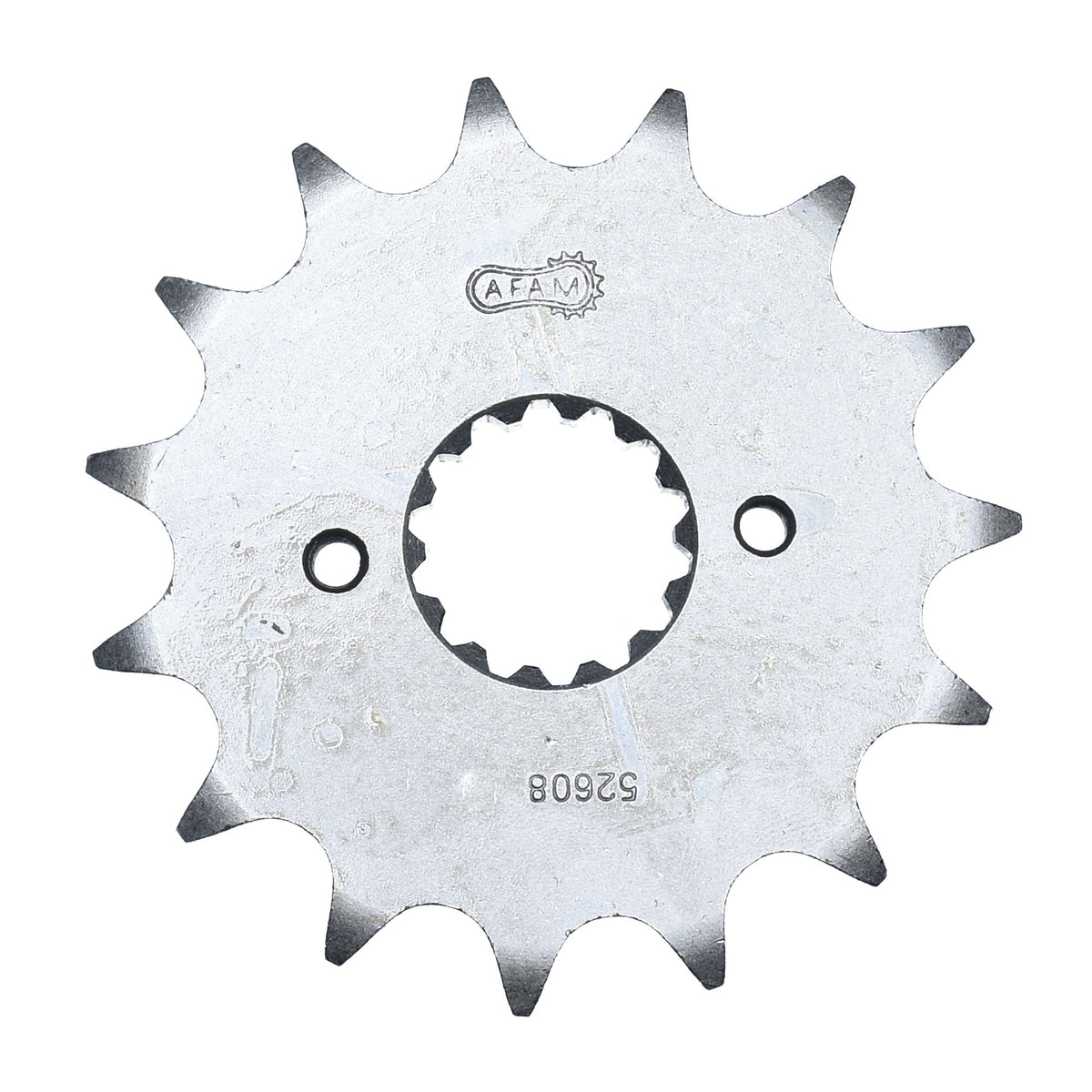

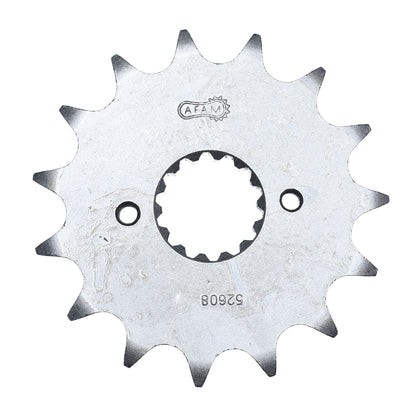

• Sprocket: AFAM sprocket #525 15 teeth - a52608.15

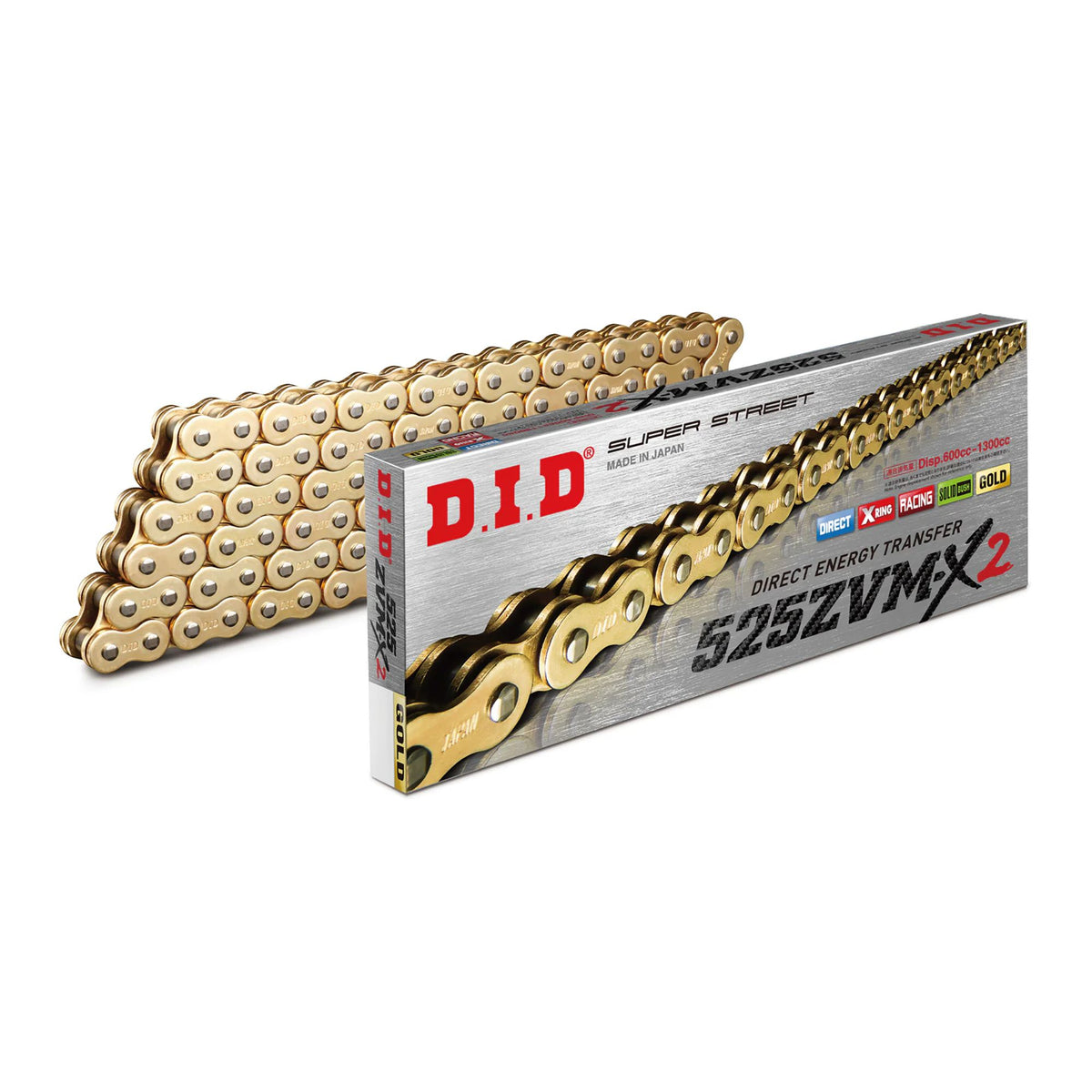

• Chain: DID chain 525 ZVM-X2 G&G 104 w/ rivet link - d525zvmx2.gg.104
• Rear sprocket: AFAM rear sprocket ALU #525 PCD 42 teeth - a51608.42
• Gear ratio sprocket-chain-rear sprocket: 15-104-42 conversion #525 for PCD2 sprocket carrier

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical specifications:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-77779

Fits

Ducati 751 - 1000 cc Monster S4R 996 M4 2004
