DID chain set for Ducati Panigale 1199 2012 525 VX3 chain kit

DID Chain kit for Ducati Panigale 1199 2012 525 VX3 chain kit

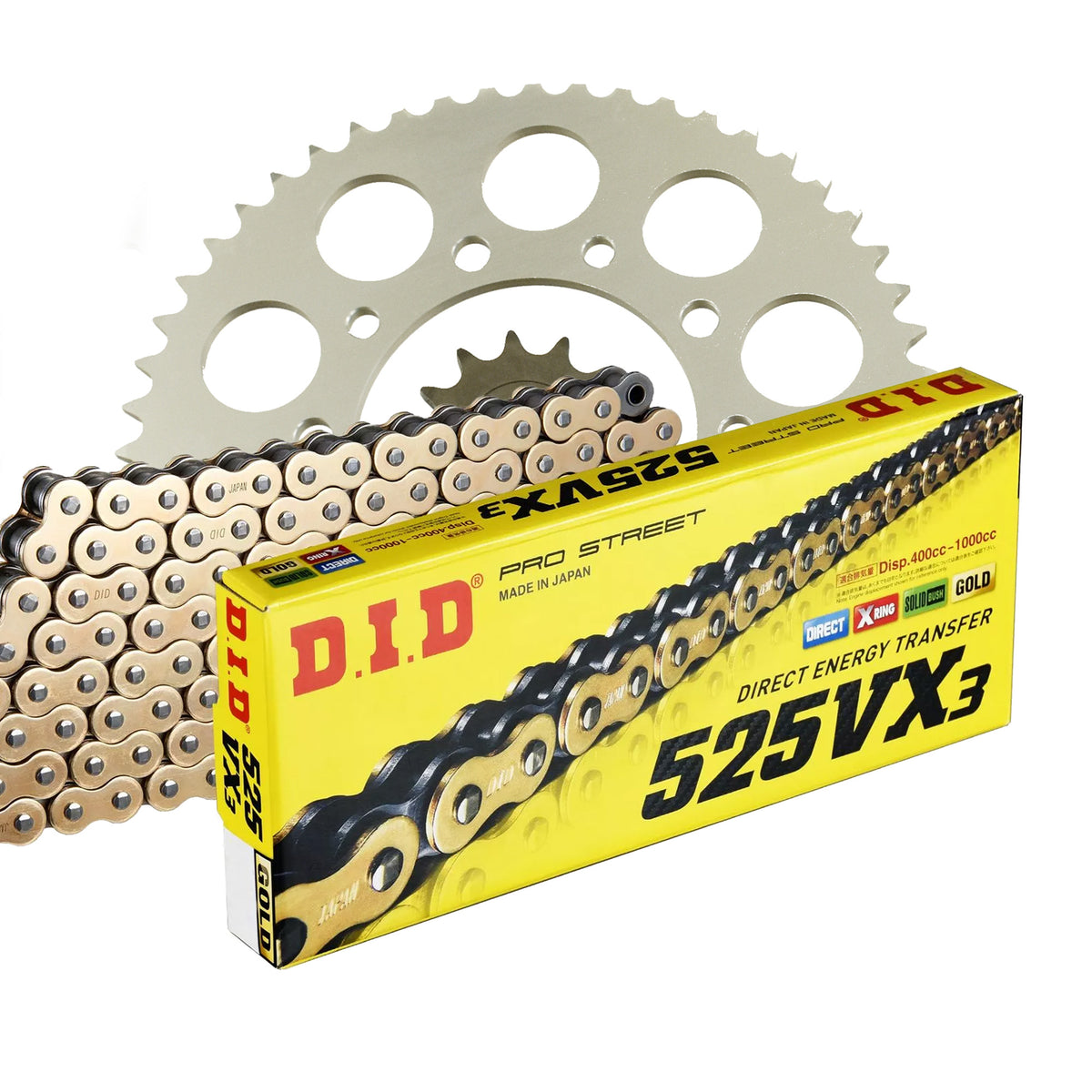

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Ducati Panigale 1199 H8 2012-2012 conversion for PCD4 sprocket adapter

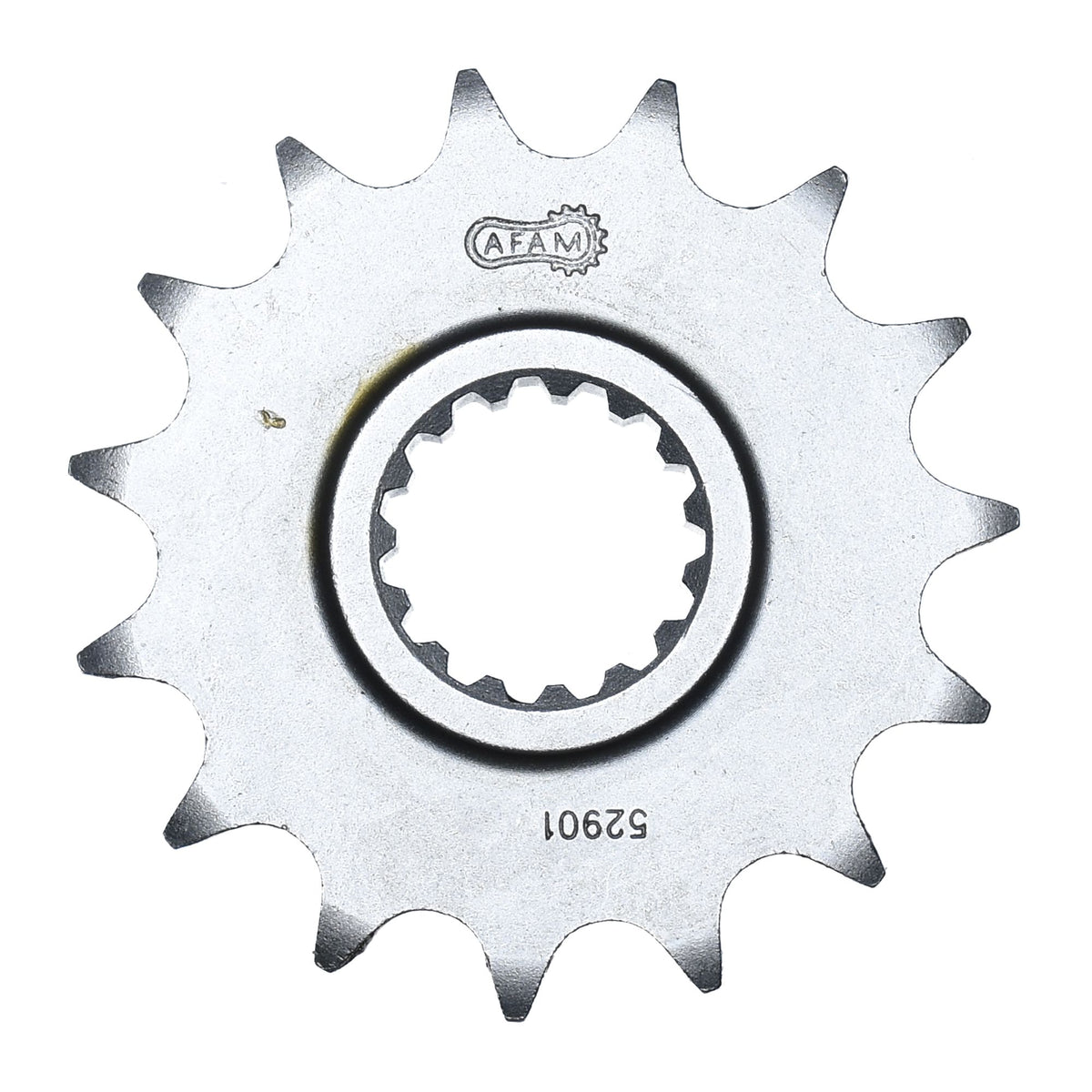

• Front sprocket: AFAM front sprocket #525 15 teeth - a52901.15

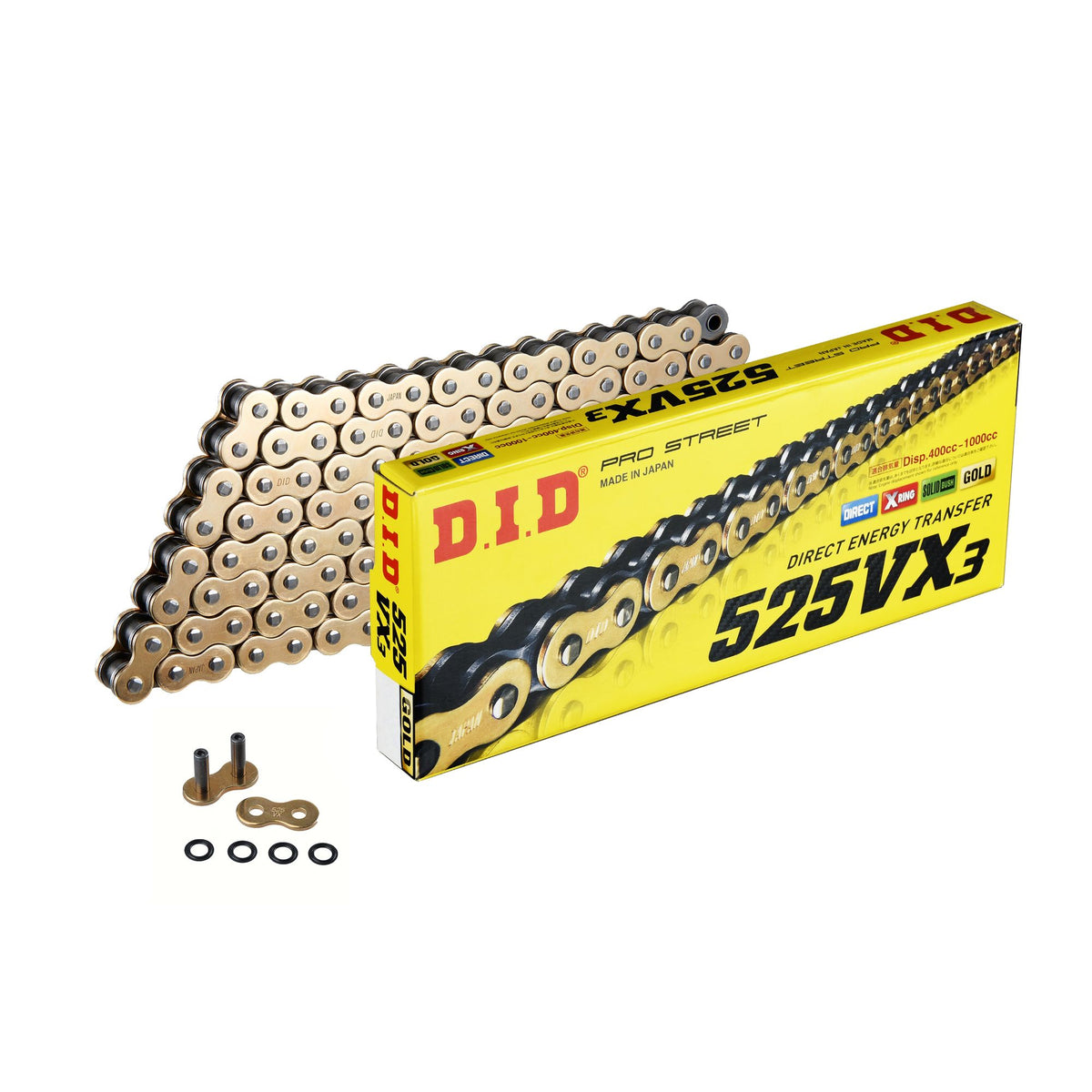

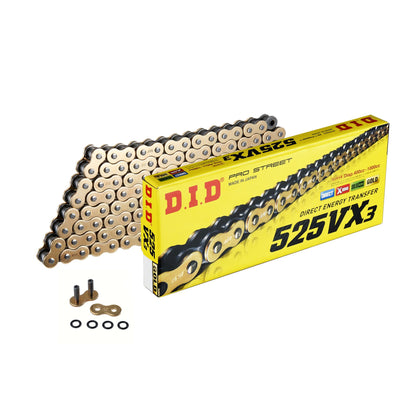

• Chain: DID chain 525 VX3 G&B 104 with rivet link - d525vx3.g-104

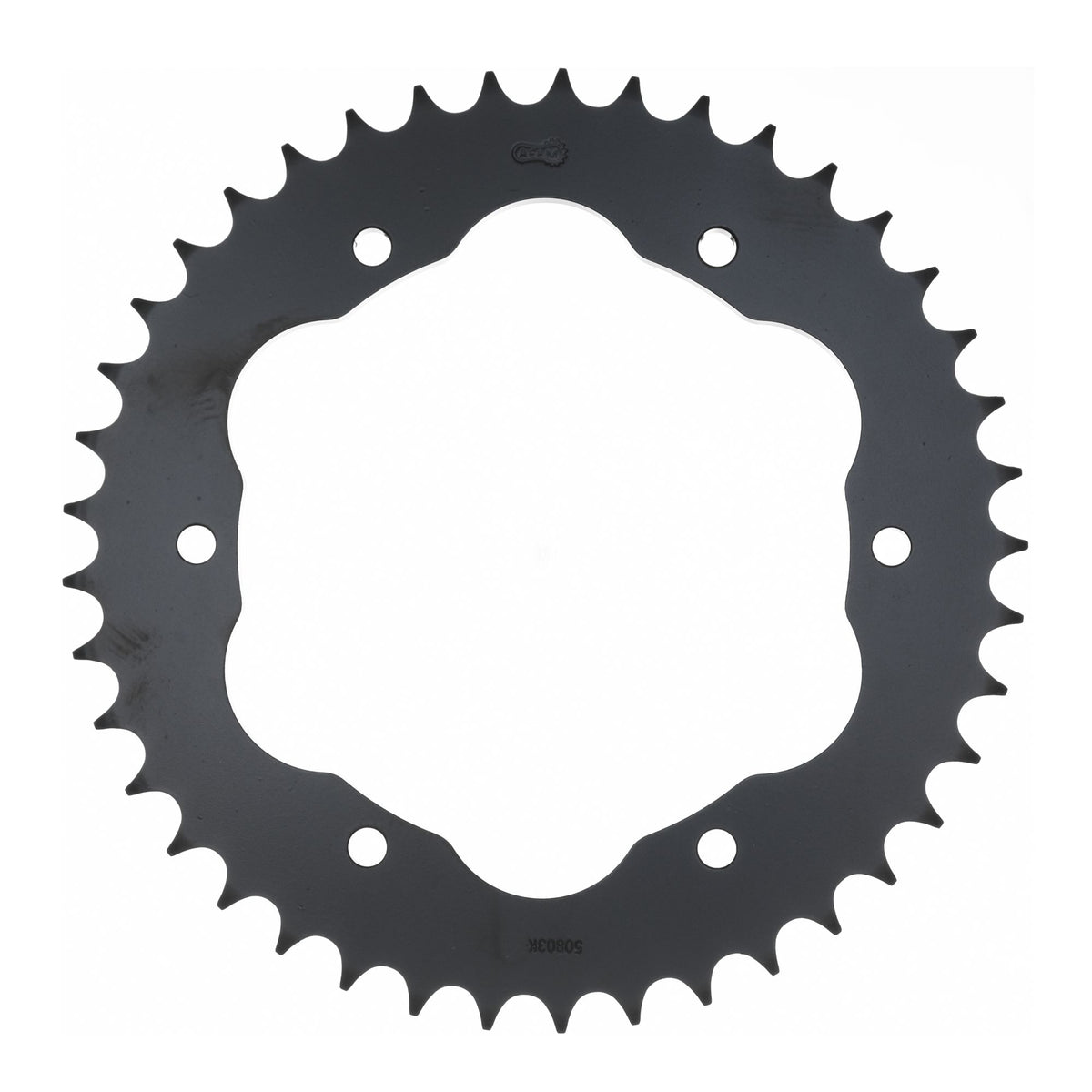

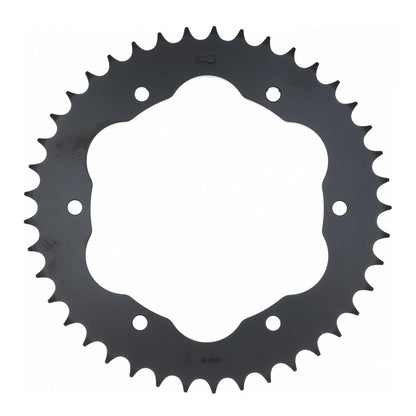

• Rear sprocket: AFAM STEEL sprocket #525 PCD 39 teeth - a50803k.39
• Gear ratio front sprocket-chain-rear sprocket: 15-104-39 conversion for PCD4 sprocket adapter

DID 525 VX3

Successor to the proven 525 VX
X-Ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical specifications:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-77862

Suitable for

Ducati over 1001 cc Panigale 1199 H8 2012
