DID chain kit for Ducati Panigale Corse 959 ABS 18-19 520 ZVMX chain kit

DID chain kit for Ducati Panigale Corse 959 ABS 18-19 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

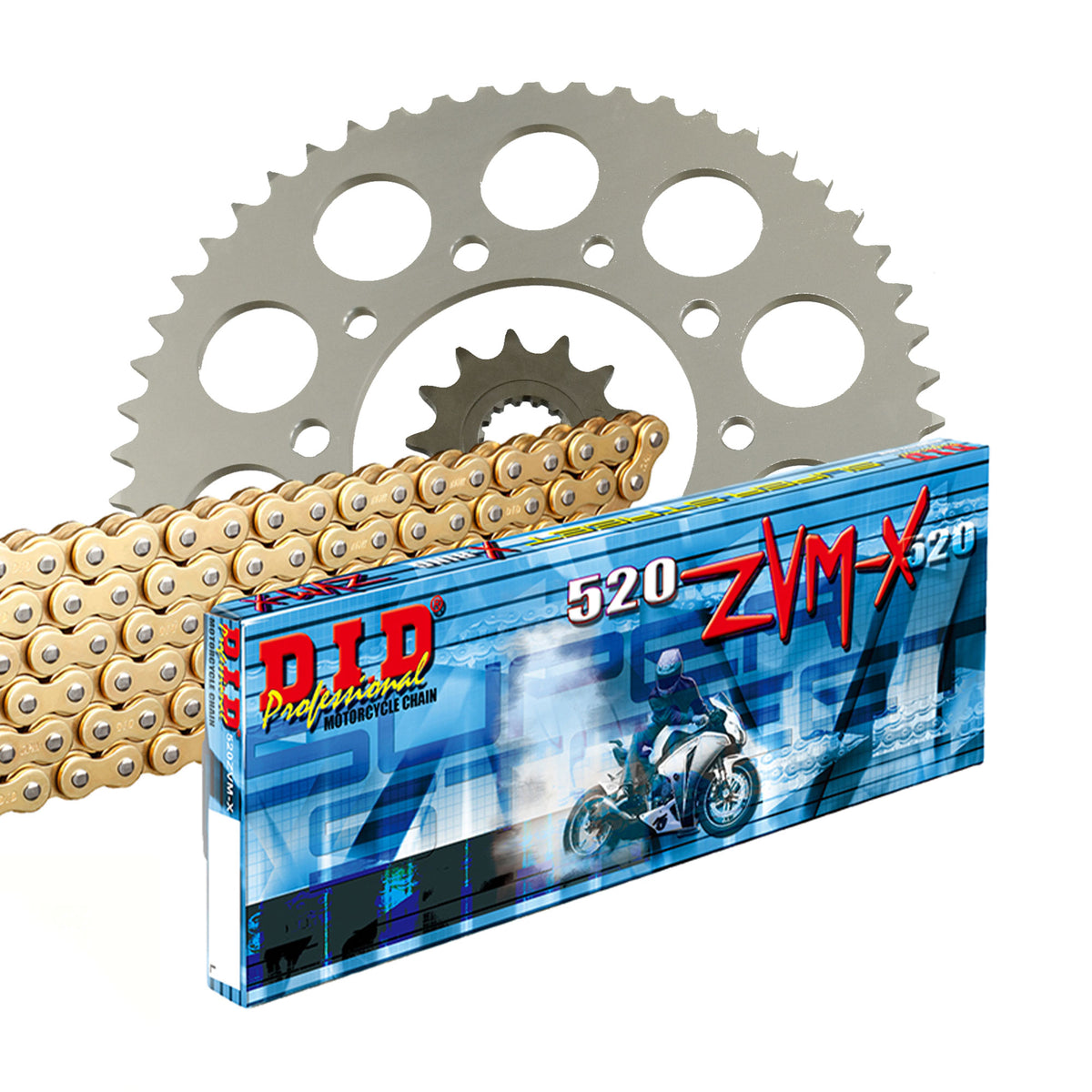

Components of the chain kit Ducati Panigale Corse 959 ABS HA 2018-2019

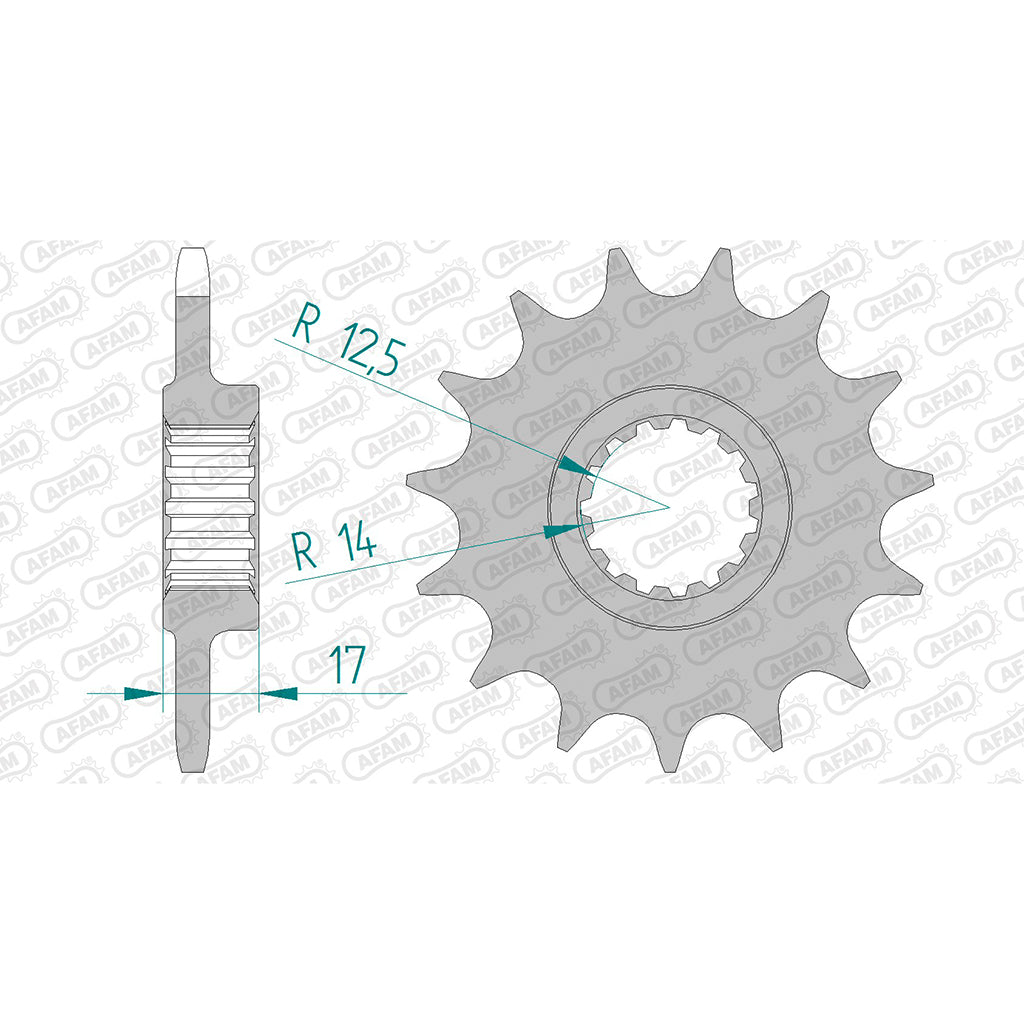

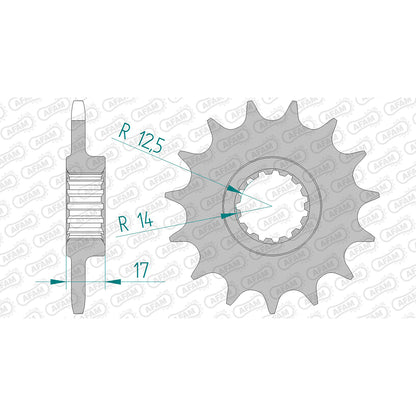

• Front sprocket: AFAM front sprocket #520 - a52618.15

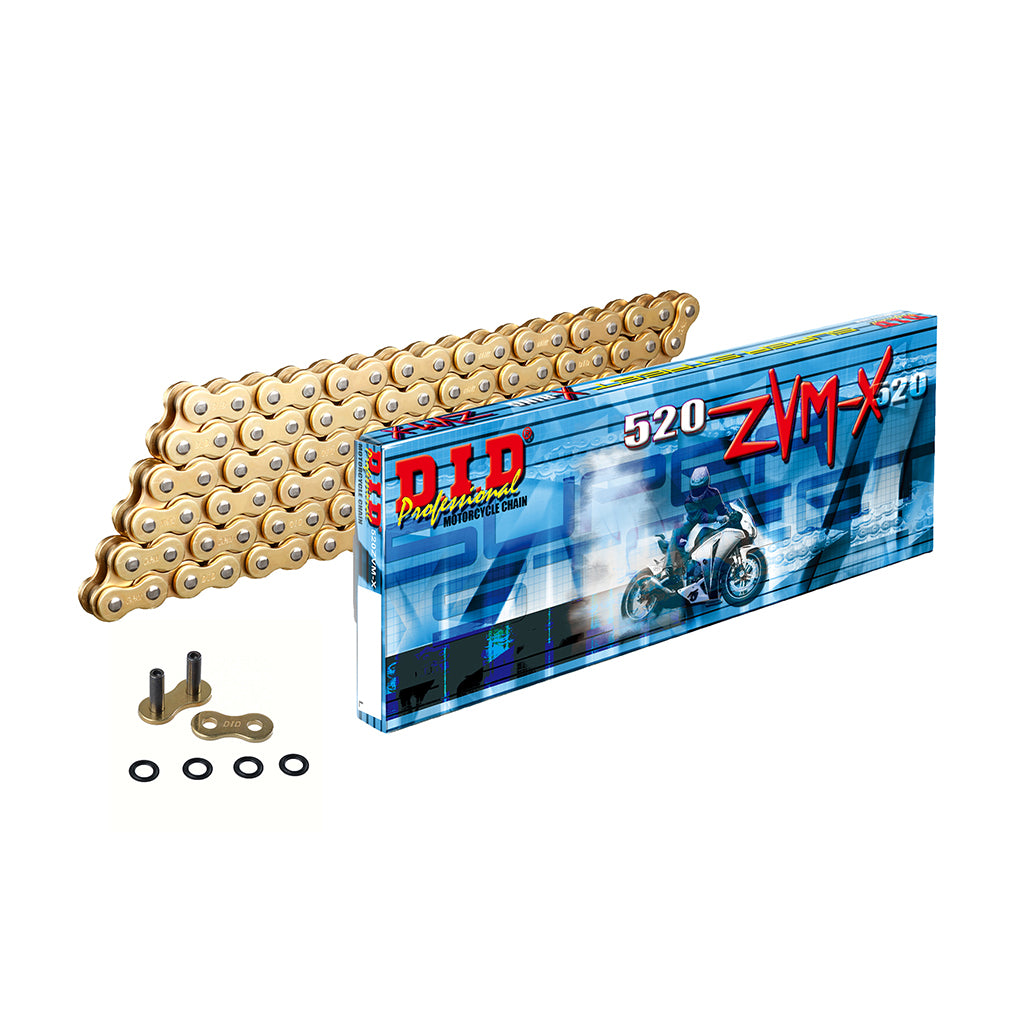

• Chain: DID chain 520 ZVM-X G&G 106 w. rivet link - d6252029106

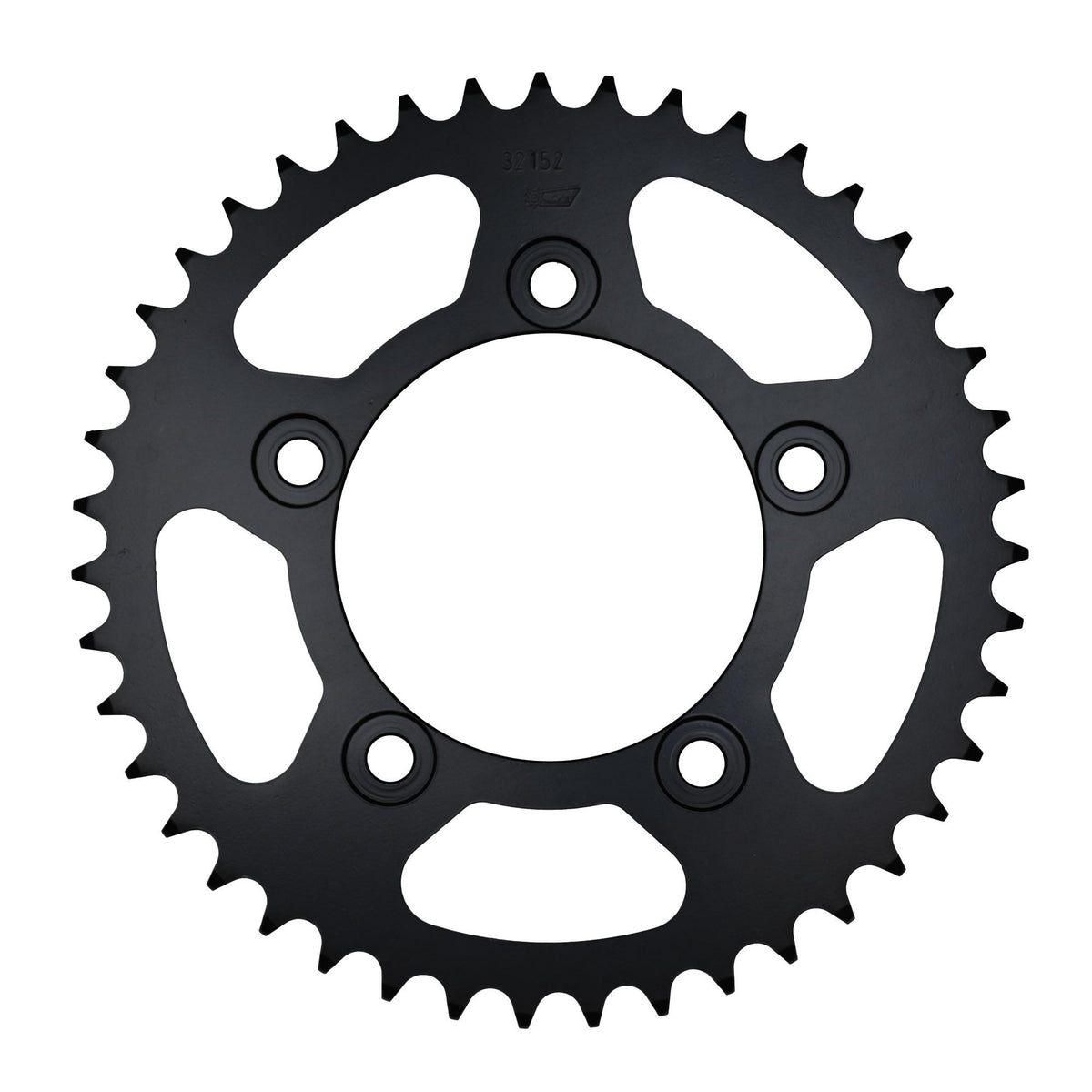

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a50613.43
• Gear ratio front sprocket-chain-rear sprocket: 15-106-43

DID 520 ZVM-X

Extra reinforced chain, versatile area of application
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-77754

Fits

Ducati 751 - 1000 cc Panigale Corse 959 ABS HA 2018
Ducati 751 - 1000 cc Panigale Corse 959 ABS HA 2019
