DID chain set for Ducati Paso Sports 906 90-92 520 VX3 chain kit

DID chain set for Ducati Paso Sports 906 90-92 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit for Ducati Paso Sports 906 1990-1992

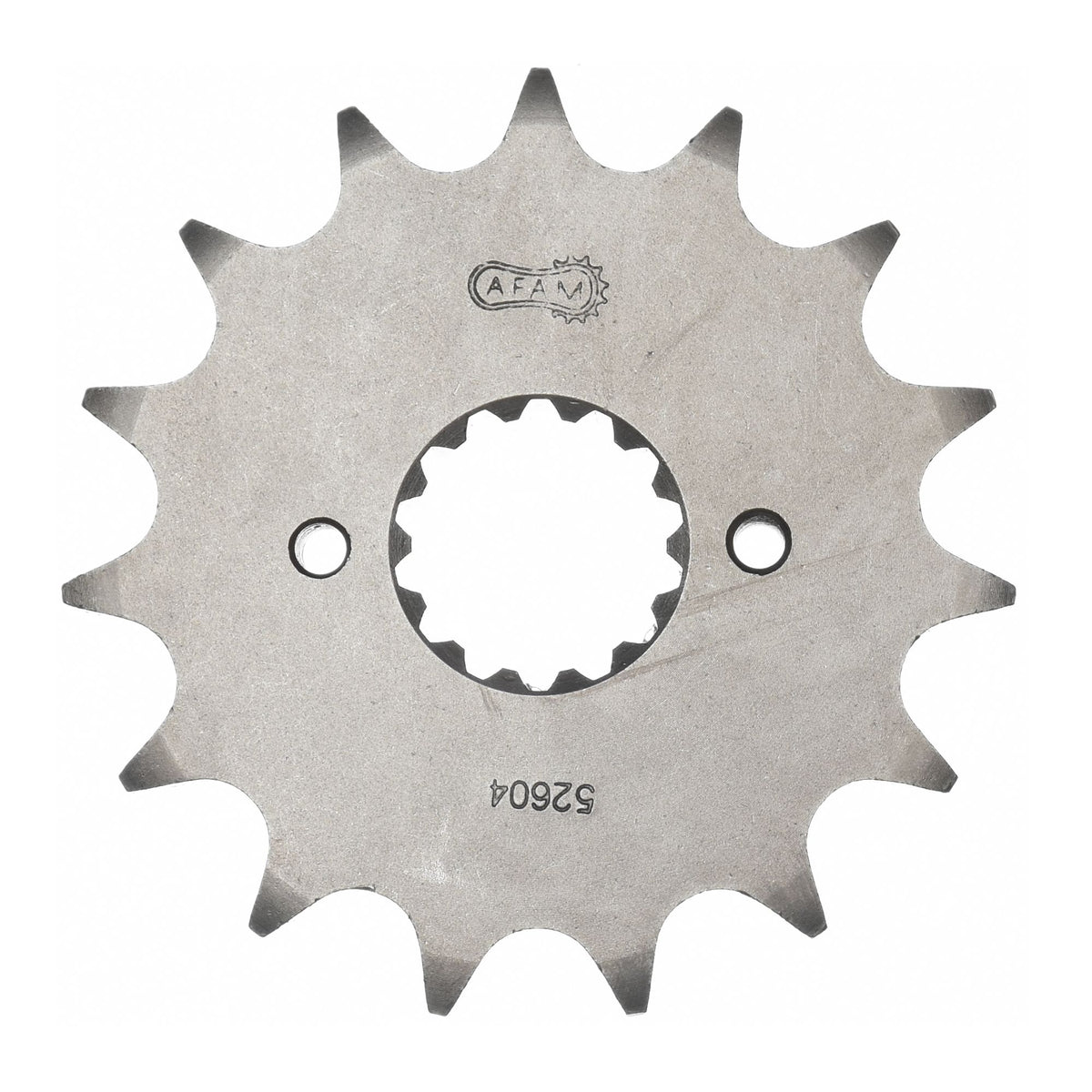

• Sprocket: AFAM sprocket #520 15 teeth - a52604.15
• Chain: DID chain 520 VX3 G&B 106 with rivet link - d520vx3-106

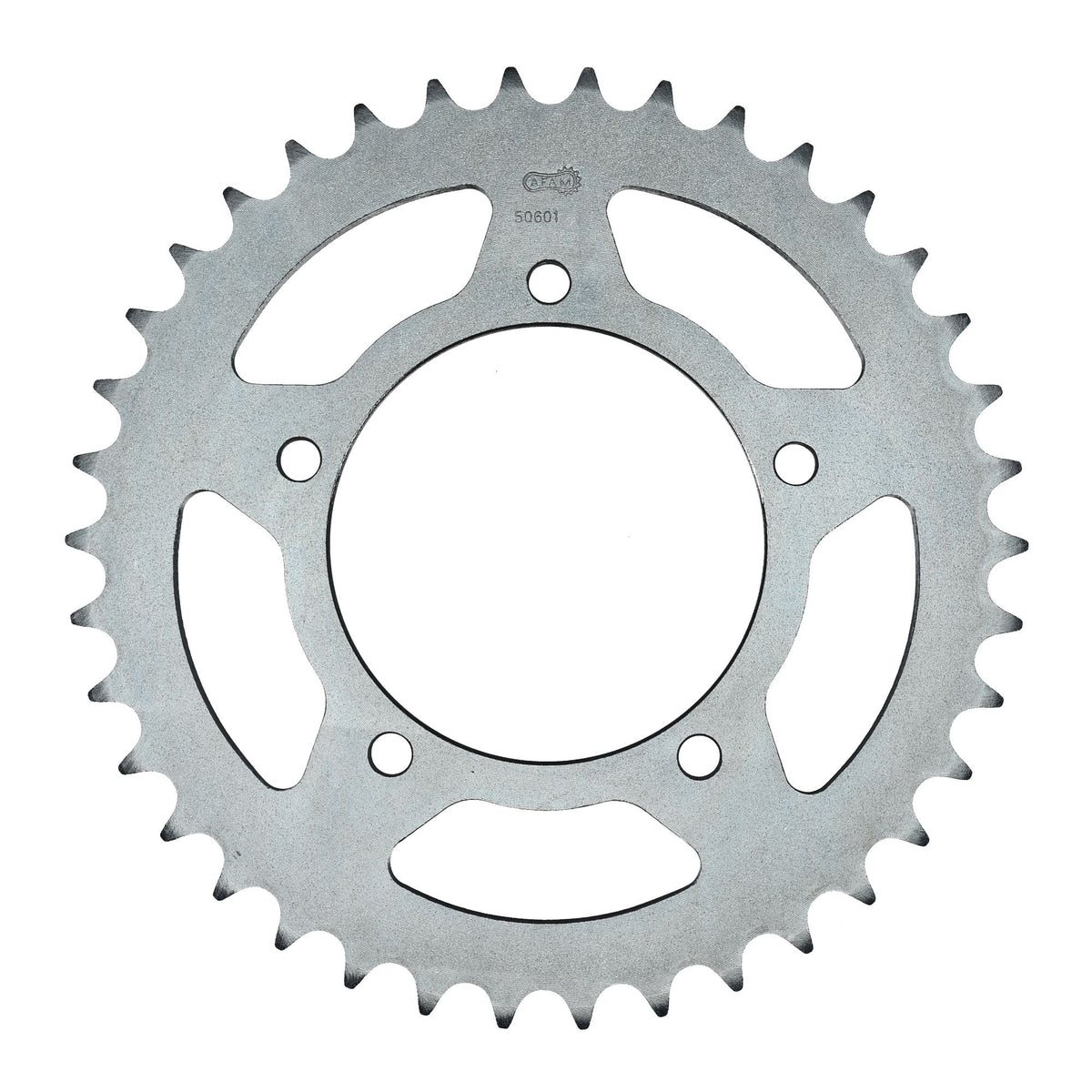

• Chain wheel: AFAM chain wheel STEEL #520 38 teeth - a50601.38
• Gear ratio sprocket-chain-chain wheel: 15-106-38

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear life index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-75424

Suitable for

Ducati 751 - 1000 ccm Paso Sports 906 1990
Ducati 751 - 1000 ccm Paso Sports 906 1991
Ducati 751 - 1000 ccm Paso Sports 906 1992
