DID chain kit for Ducati Scrambler Icon 800 2024 520 ZVMX chain kit

DID Chain Kit for Ducati Scrambler Icon 800 2024 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit for Ducati Scrambler Icon 800 7K00 2024-2024

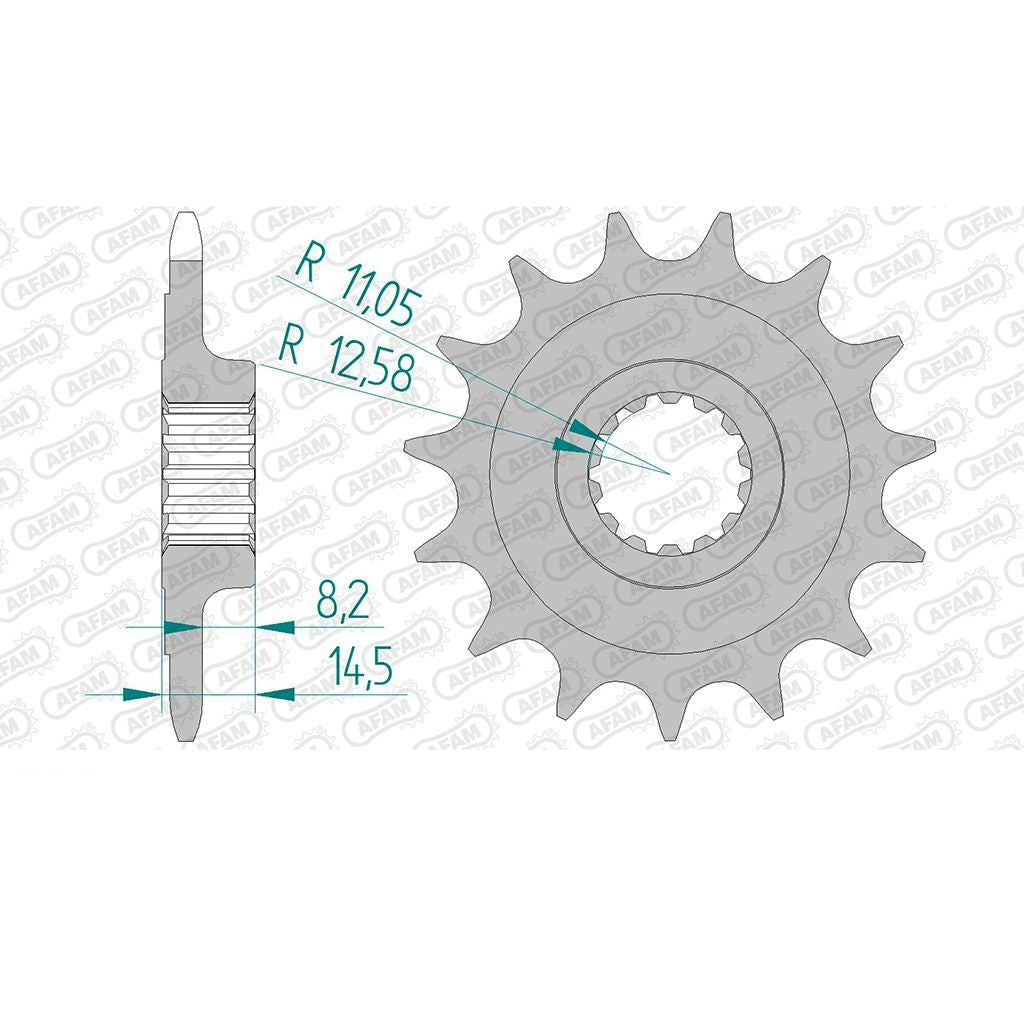

• Sprocket: AFAM sprocket #520 15 teeth - a52619.15
• Chain: DID chain 520 ZVM-X G&G 104 with rivet link - d6252029104

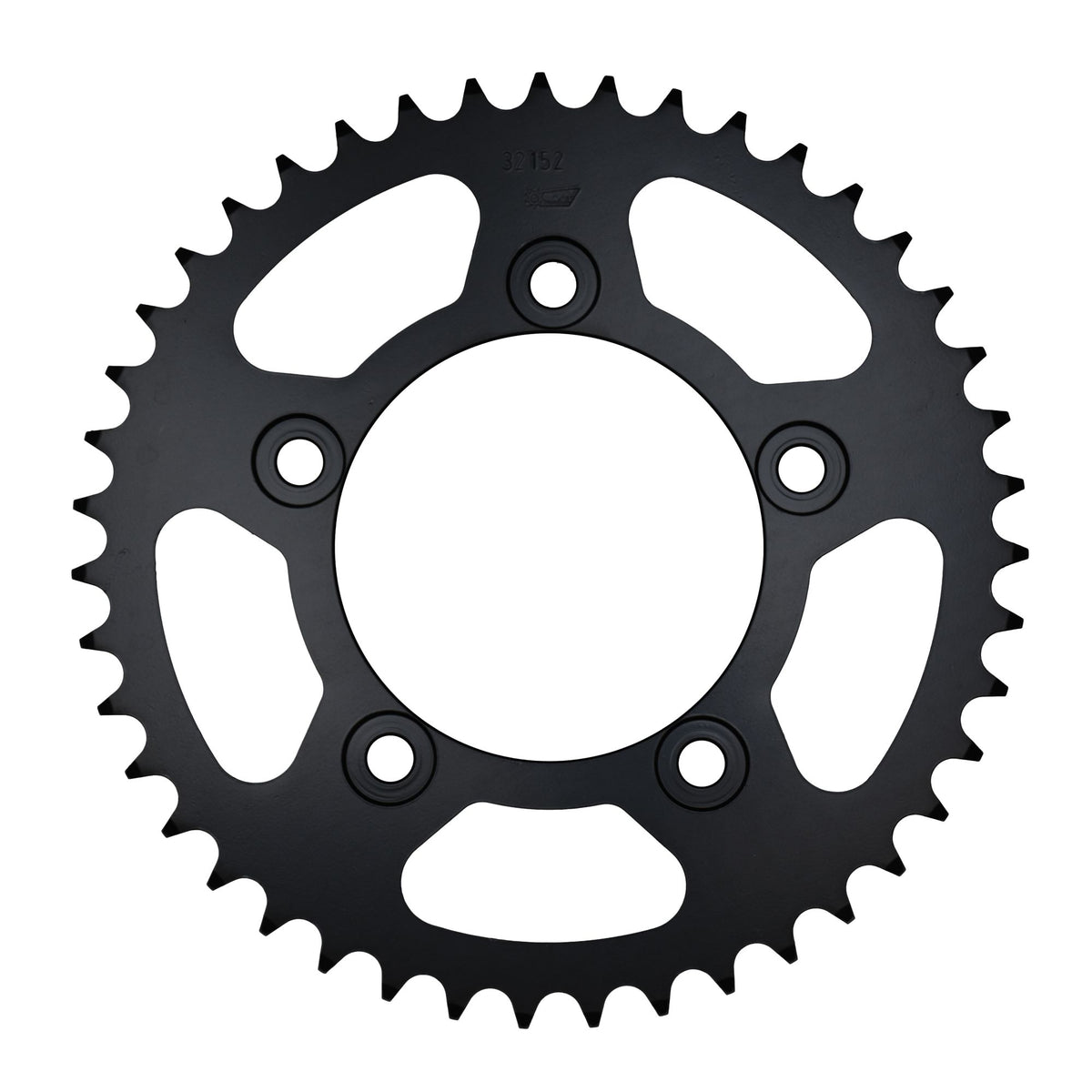

• Chain wheel: AFAM chain wheel STEEL #520 46 teeth - a50613.46
• Gear ratio sprocket-chain-chain wheel: 15-104-46

DID 520 ZVM-X

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by engine capacity: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78719

Suitable for

Ducati 751 - 1000 cc Scrambler Icon 800 7K00 2024
