DID chain kit for Ducati Scrambler Nightshift 800 23-24 520 VX3 chain kit

DID chain kit for Ducati Scrambler Nightshift 800 23-24 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

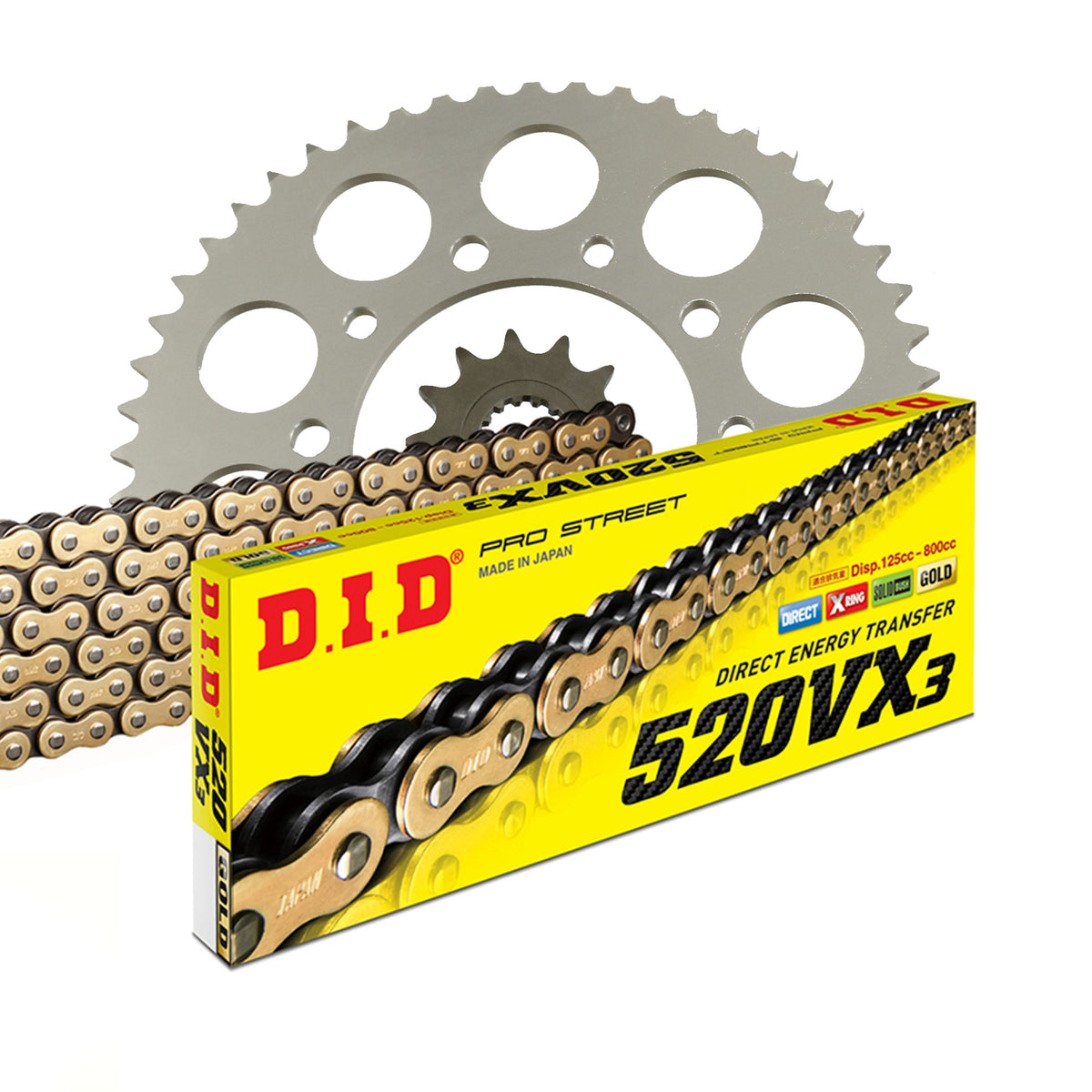

Components of the chain kit for Ducati Scrambler Nightshift 800 7K00 2023-2024

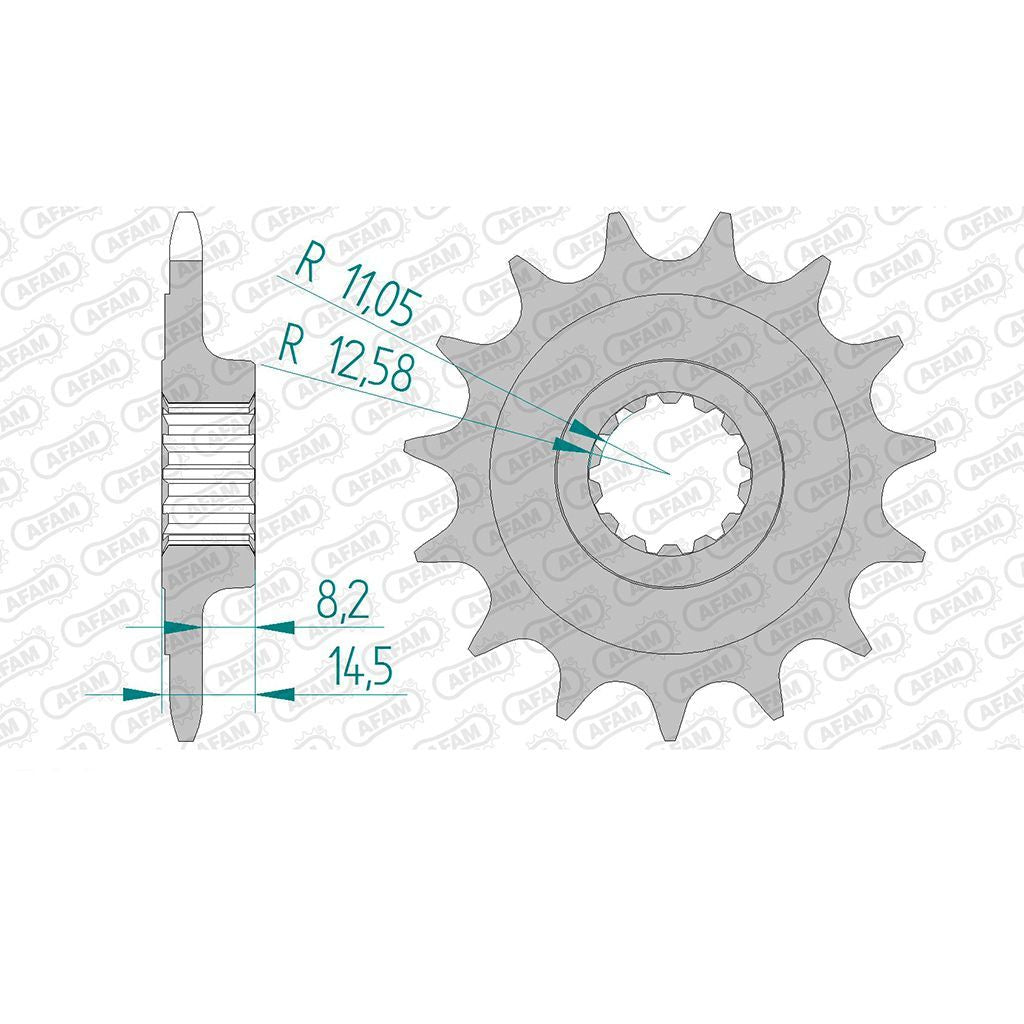

• Sprocket: AFAM sprocket #520 15 teeth - a52619.15

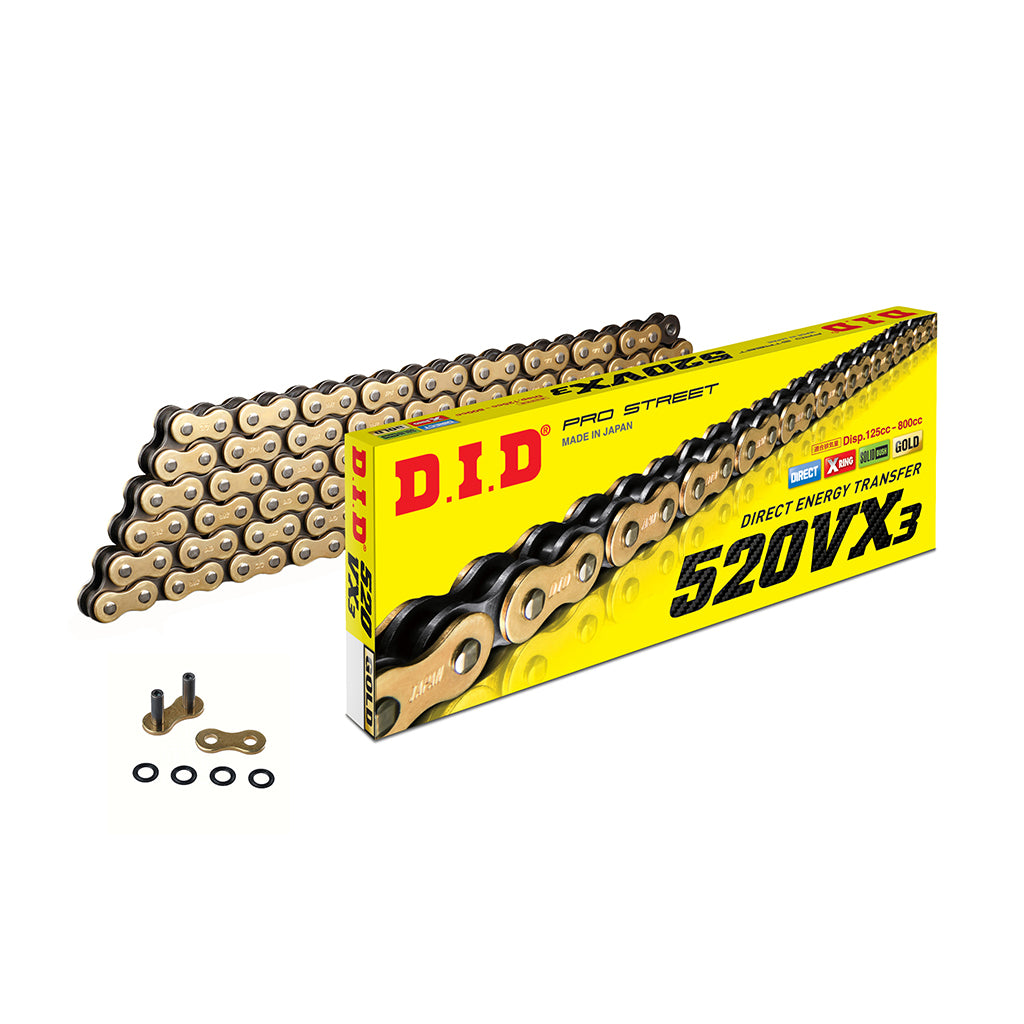

• Chain: DID chain 520 VX3 G&B 104 with rivet link - d520vx3-104

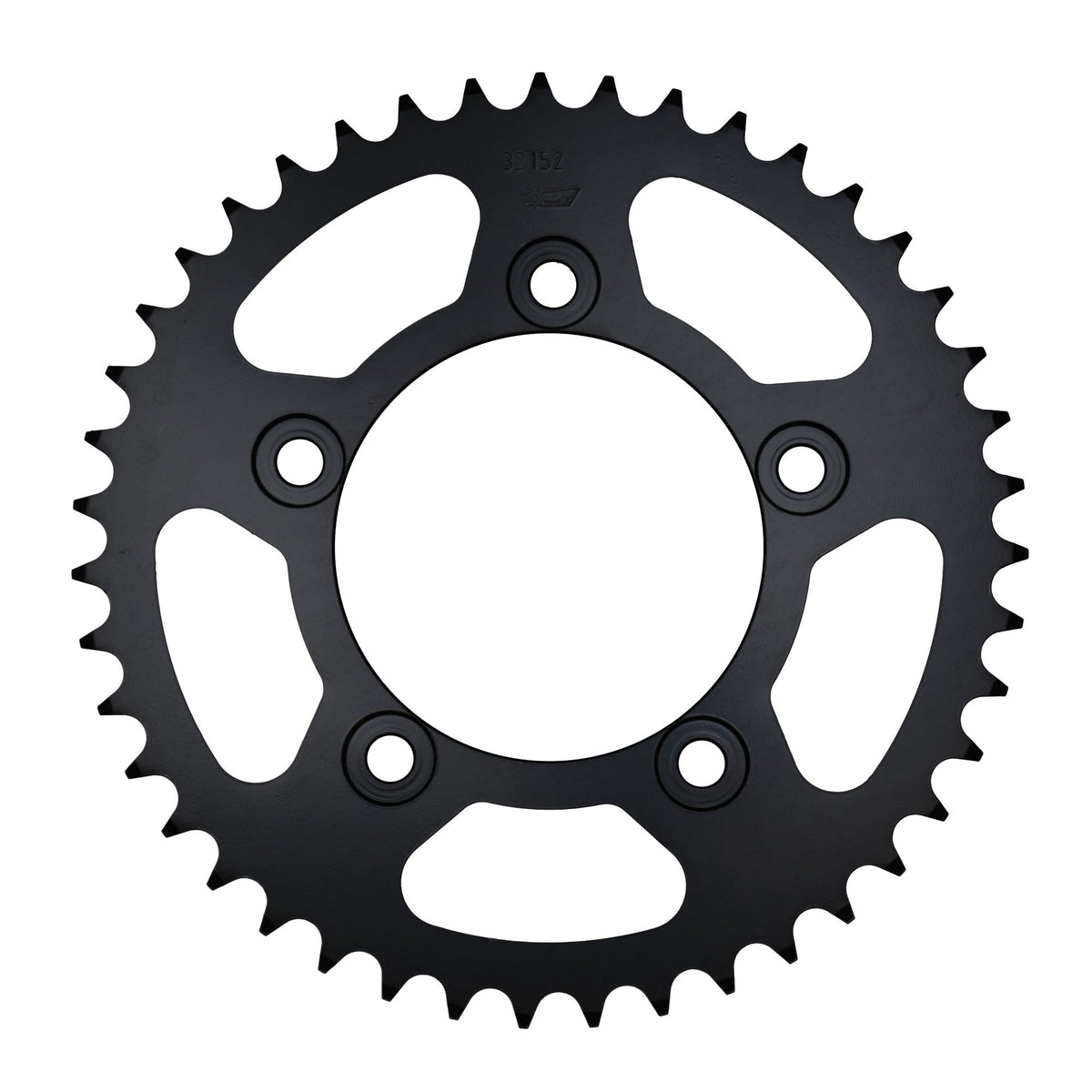

• Rear sprocket: AFAM rear sprocket STEEL #520 46 teeth - a50613.46
• Gear ratio sprocket-chain-rear sprocket: 15-104-46

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78722

Fits

Ducati 751 - 1000 cc Scrambler Nightshift 800 7K00 2023
Ducati 751 - 1000 cc Scrambler Nightshift 800 7K00 2024
