DID chain set for Ducati Streetfighter 1098 2009 525 VX3 chain kit

DID chain set for Ducati Streetfighter 1098 2009 525 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit Ducati Streetfighter 1098 F1 2009-2009 conversion #525 for PCD3 sprocket adapter

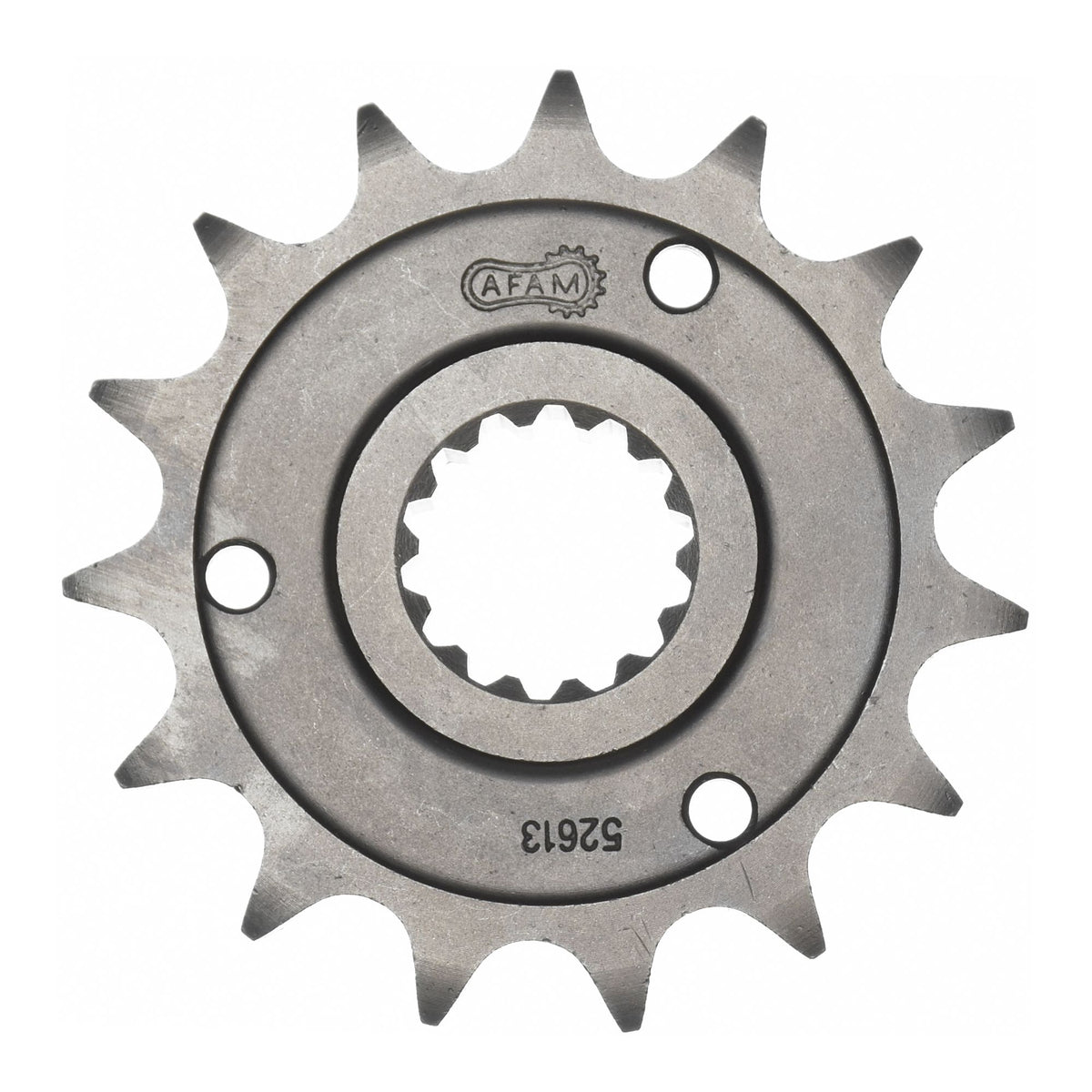

• Front sprocket: AFAM front sprocket #525 Sport 15 teeth - a52613.15
• Chain: DID chain 525 VX3 G&B 102 with rivet link - d525vx3.g-102

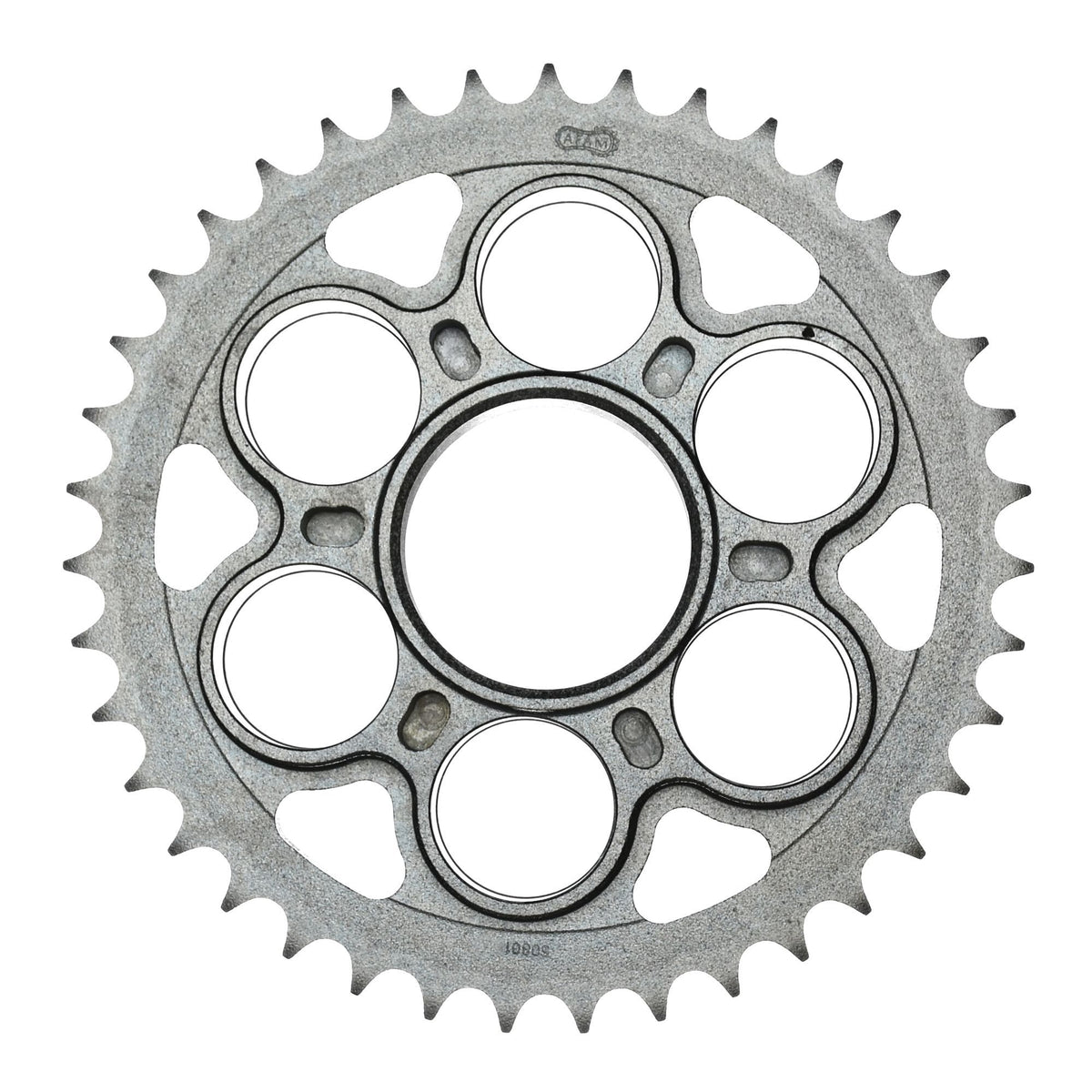

• Sprocket: AFAM sprocket STEEL #525 38 teeth - a50801.38
• Gear ratio front sprocket-chain-sprocket: 15-102-38 conversion #525 for PCD3 sprocket adapter

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-77825

Suitable for

Ducati over 1001 cc Streetfighter 1098 F1 2009
