DID chain kit for Gas Gas EC 200 03-11 520 ZVMX chain kit

DID chain kit for Gas Gas EC 200 03-11 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

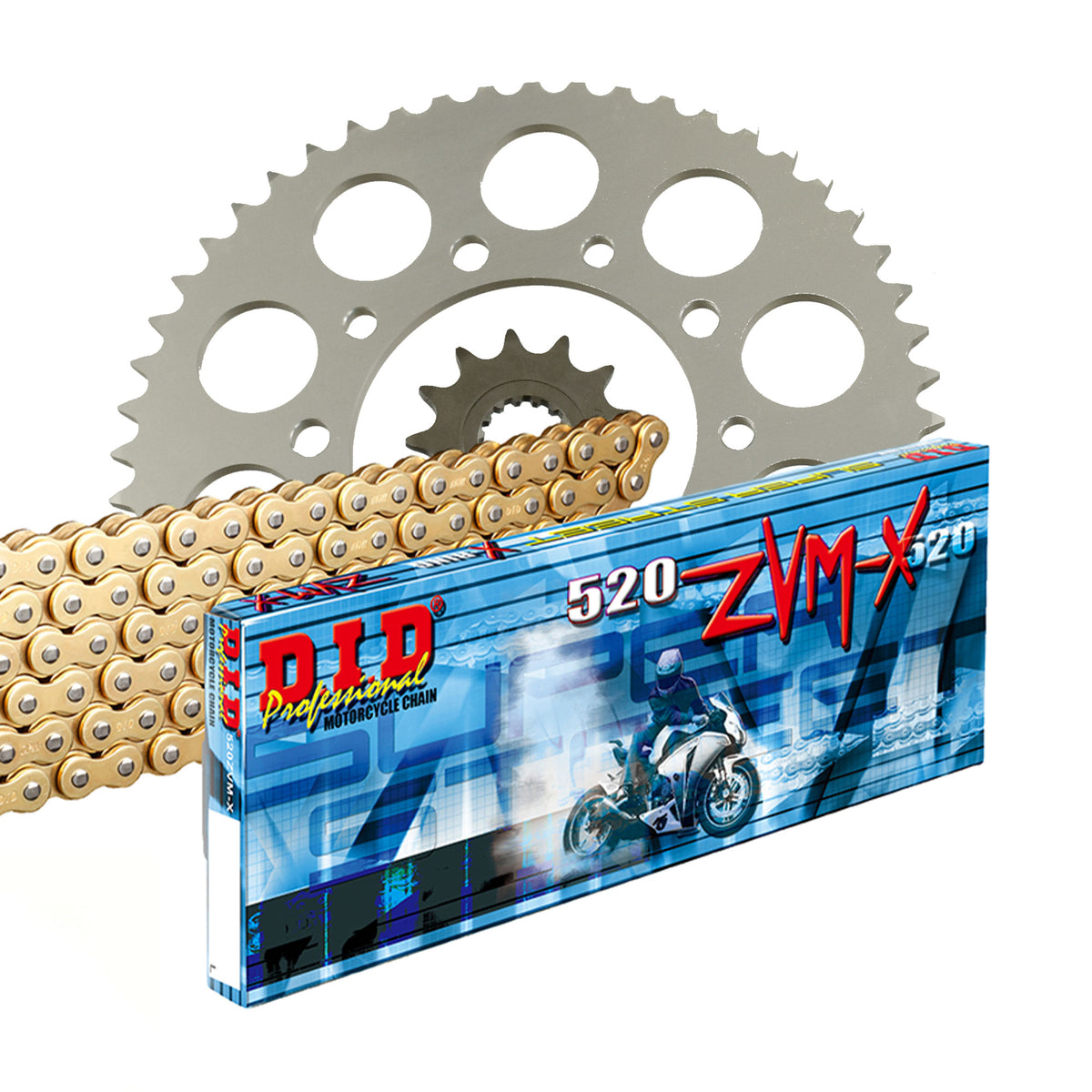

Components of the chain kit Gas Gas EC 200 2003-2011

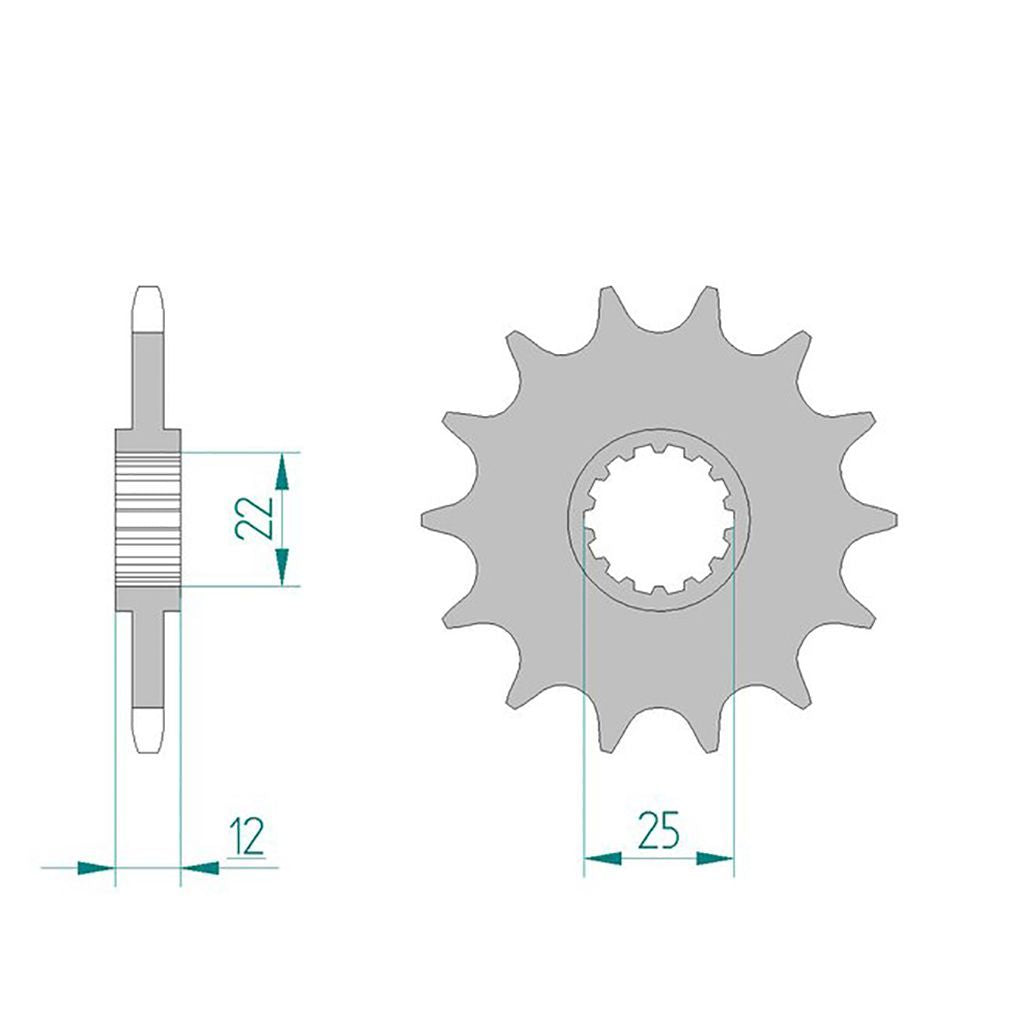

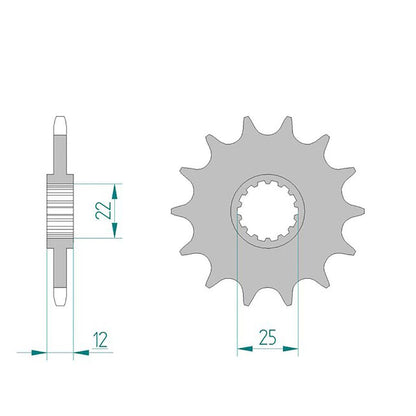

• Front sprocket: AFAM front sprocket #520 12 teeth - a94313.12

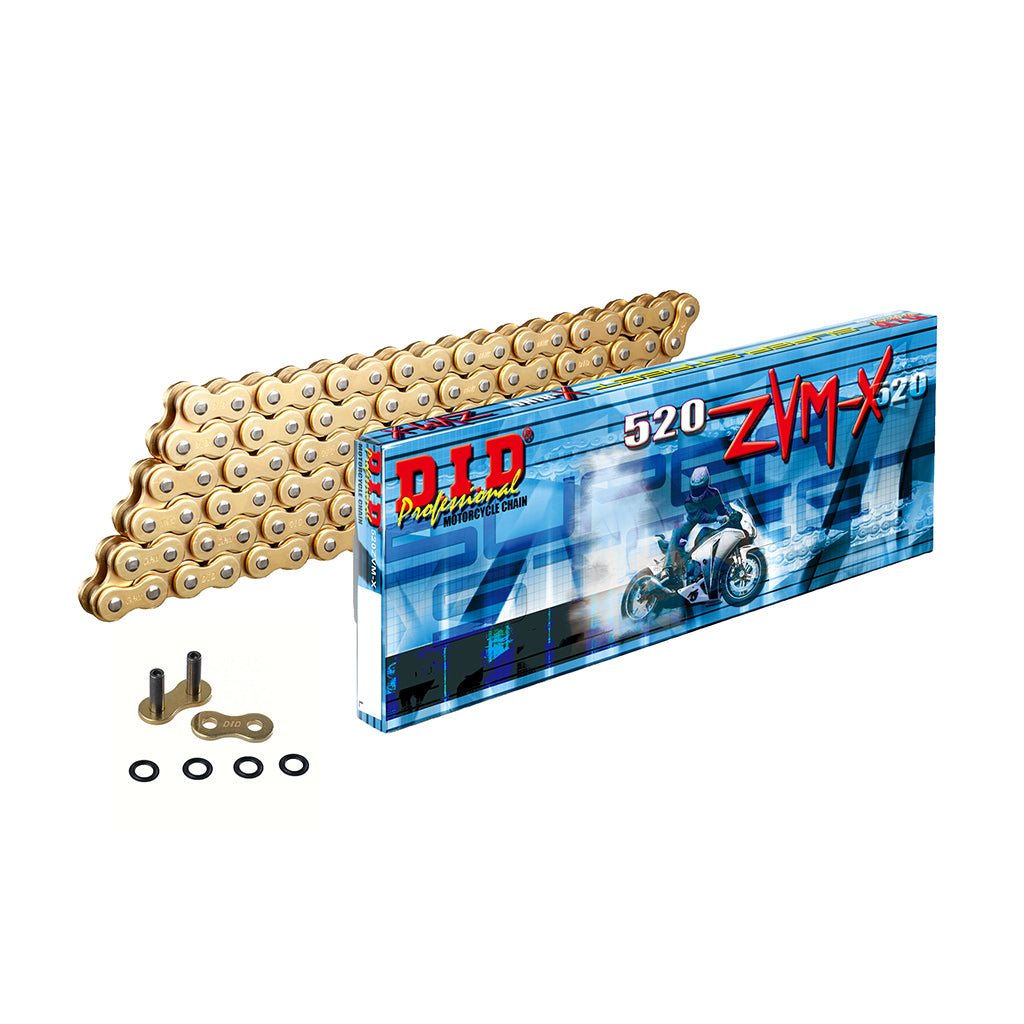

• Chain: DID chain 520 ZVM-X G&G 114 with rivet link - d6252029114

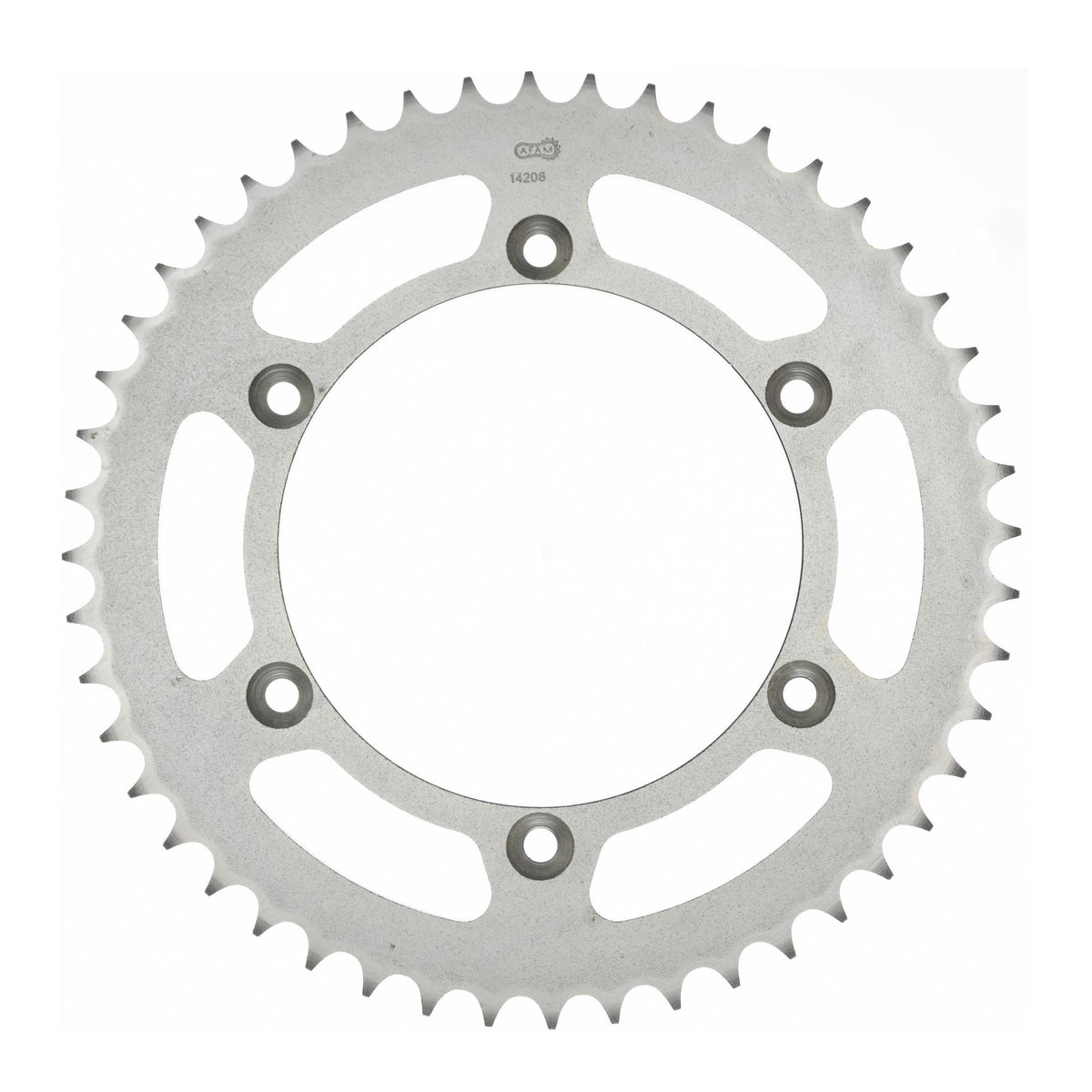

• Rear sprocket: AFAM rear sprocket STEEL #520 48 teeth - a14206.48
• Gear ratio front sprocket-chain-rear sprocket: 12-114-48

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-79007

Fits

Gas Gas 126 - 250 cc EC 200 2003
Gas Gas 126 - 250 cc EC 200 2004
Gas Gas 126 - 250 cc EC 200 2005
Gas Gas 126 - 250 cc EC 200 2006
Gas Gas 126 - 250 cc EC 200 2007
Gas Gas 126 - 250 cc EC 200 2008
Gas Gas 126 - 250 cc EC 200 2009
Gas Gas 126 - 250 cc EC 200 2010
Gas Gas 126 - 250 cc EC 200 2011
