DID chain set for Gas Gas EC 250 01-13 520 NZ chain kit

DID Chain Kit for Gas Gas EC 250 01-13 520 NZ Chain Kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Gas Gas EC 250 2001-2013

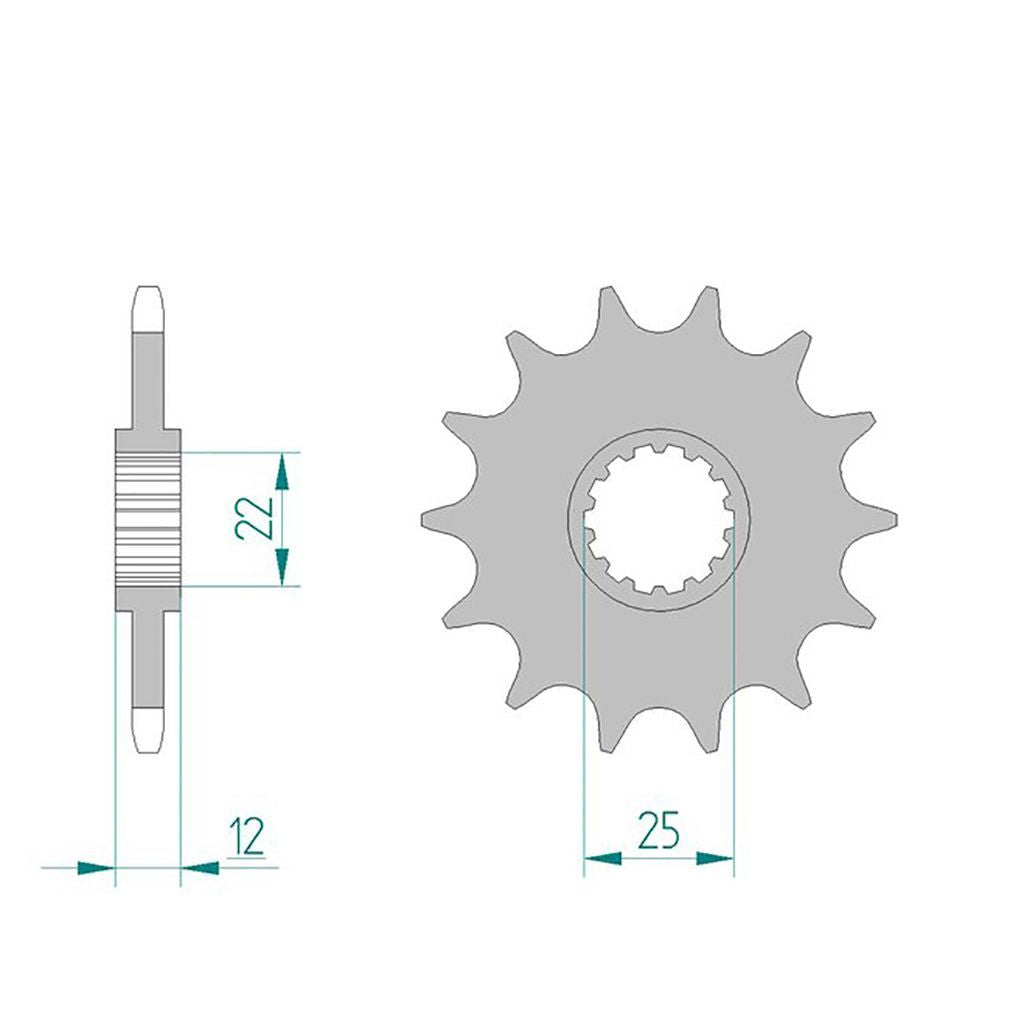

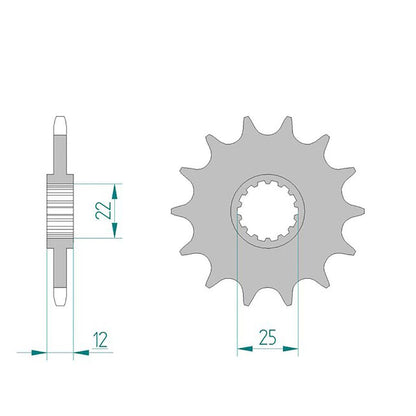

• Sprocket: AFAM sprocket #520 13 teeth - a94313.13
• Chain: DID chain 520 NZ 112 with clip-type connecting link - d6252001112

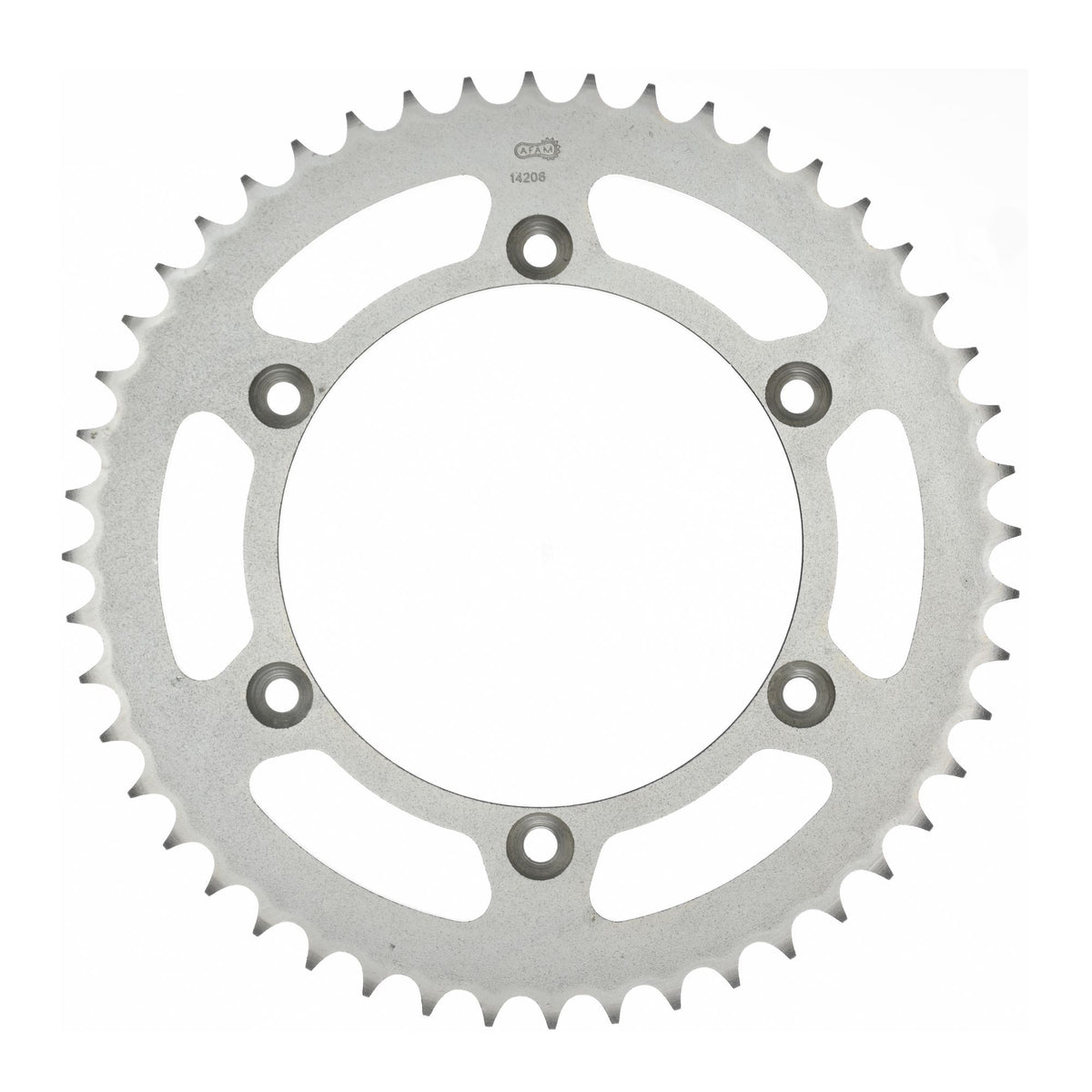

• Rear sprocket: AFAM STEEL rear sprocket #520 48 teeth - a14206.48
• Gear ratio sprocket-chain-rear sprocket: 13-112-48

DID 520 NZ

Extra reinforced chain
Non-sealed
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78980

Suitable for

Gas Gas 126 - 250 cc EC 250 2001
Gas Gas 126 - 250 cc EC 250 2002
Gas Gas 126 - 250 cc EC 250 2003
Gas Gas 126 - 250 cc EC 250 2004
Gas Gas 126 - 250 cc EC 250 2005
Gas Gas 126 - 250 cc EC 250 2006
Gas Gas 126 - 250 cc EC 250 2007
Gas Gas 126 - 250 cc EC 250 2008
Gas Gas 126 - 250 cc EC 250 2009
Gas Gas 126 - 250 cc EC 250 2010
Gas Gas 126 - 250 cc EC 250 2011
Gas Gas 126 - 250 cc EC 250 2012
Gas Gas 126 - 250 cc EC 250 2013
