DID chain kit for Gas Gas EC 250 Racing 08-13 520 NZ chain kit

DID chain kit for Gas Gas EC 250 Racing 08-13 520 NZ chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

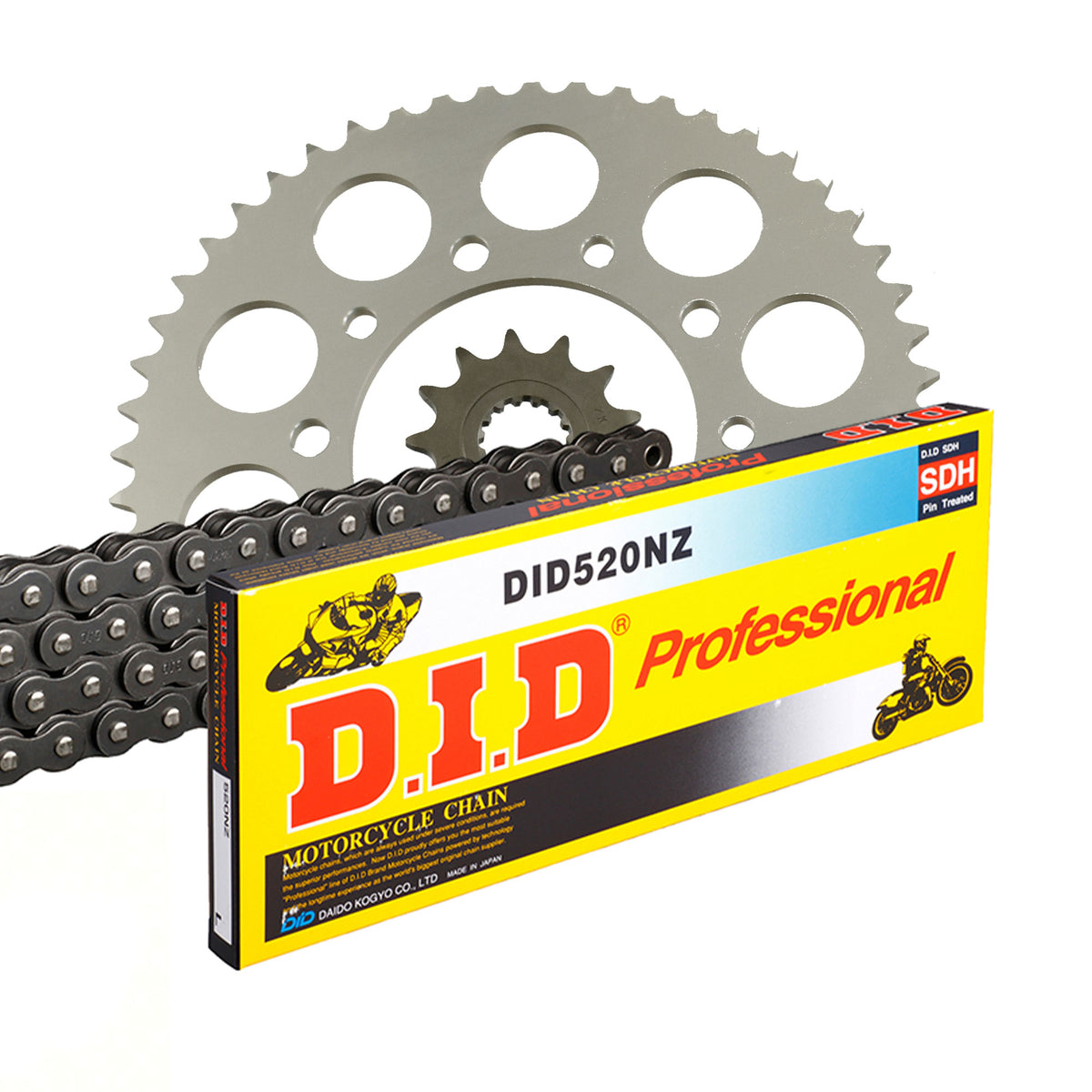

Components of the chain kit Gas Gas EC 250 Racing 2008-2013

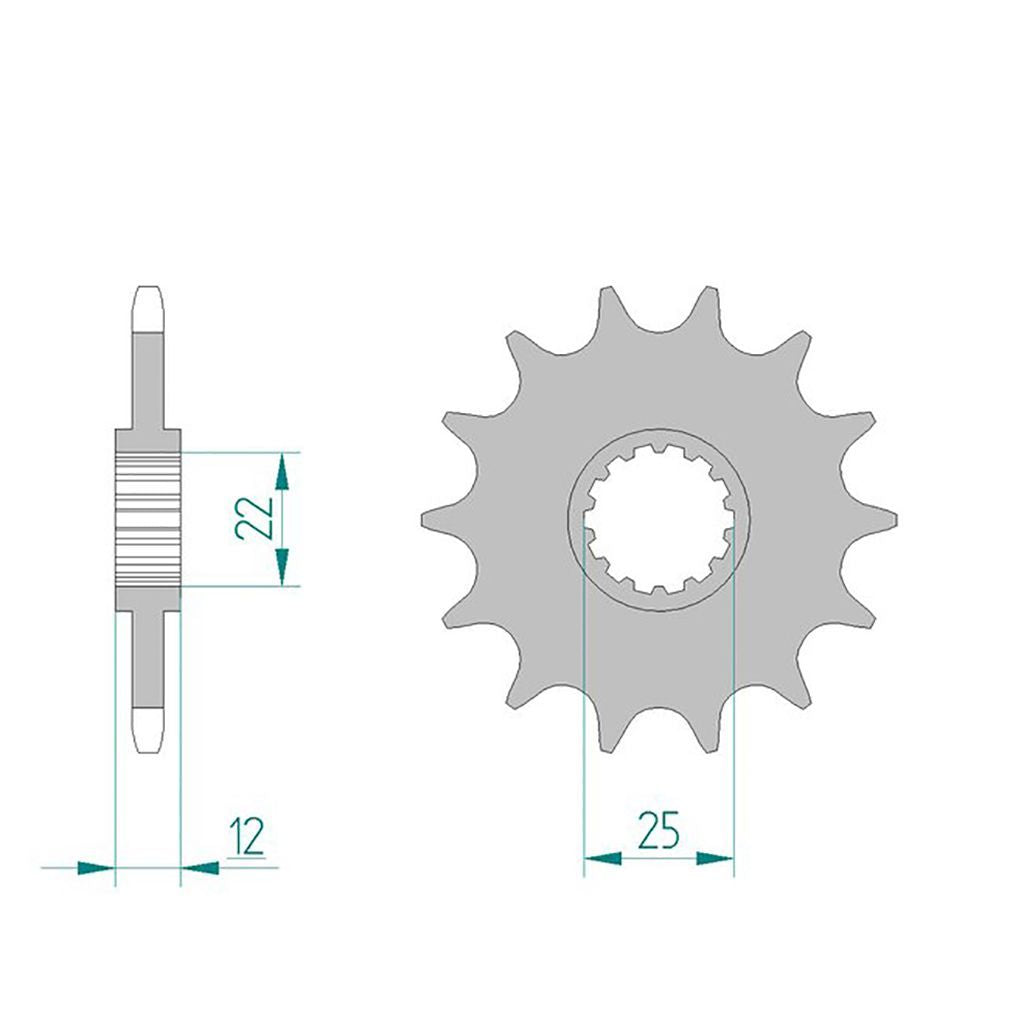

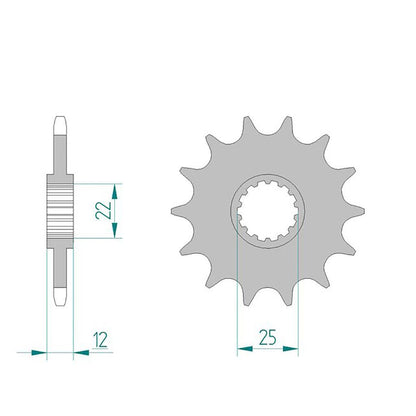

• Front sprocket: AFAM front sprocket #520 13 teeth - a94313.13
• Chain: DID chain 520 NZ 112 with clip connecting link - d6252001112

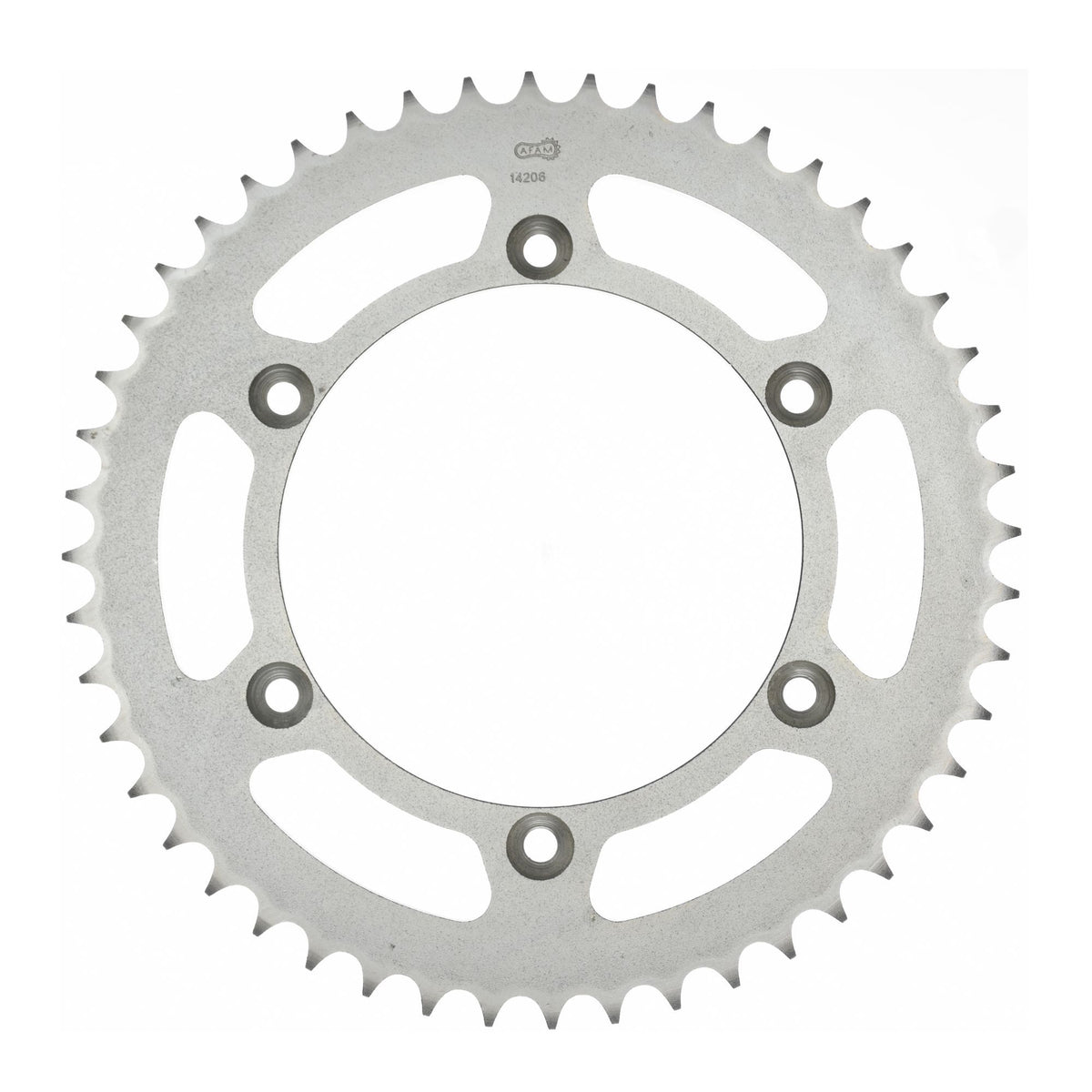

• Rear sprocket: AFAM rear sprocket STEEL #520 48 teeth - a14206.48
• Gear ratio front sprocket-chain-rear sprocket: 13-112-48

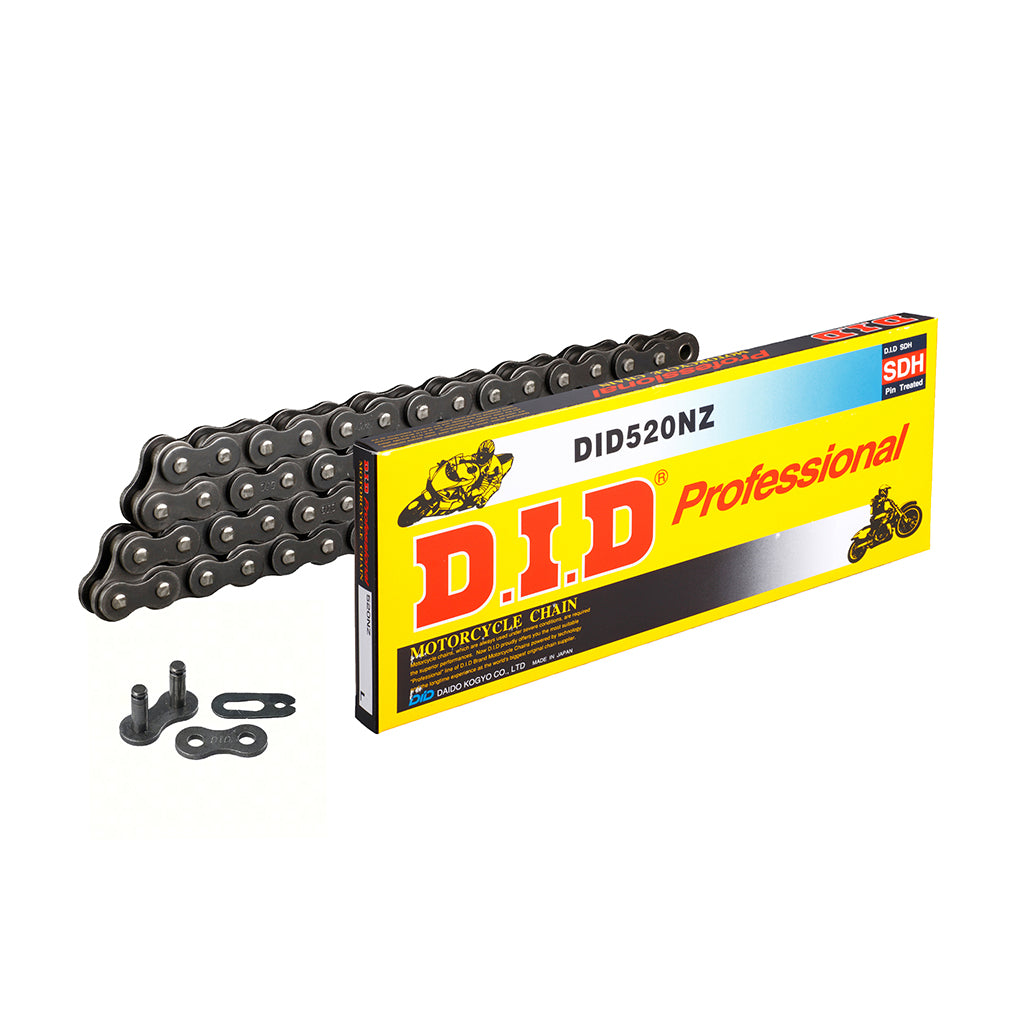

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical specifications:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78893

Suitable for

Gas Gas 126 - 250 cc EC 250 Racing 2008
Gas Gas 126 - 250 cc EC 250 Racing 2009
Gas Gas 126 - 250 cc EC 250 Racing 2010
Gas Gas 126 - 250 cc EC 250 Racing 2011
Gas Gas 126 - 250 cc EC 250 Racing 2012
Gas Gas 126 - 250 cc EC 250 Racing 2013
