DID chain kit for Honda CBR 1000 RR Fireblade 04-05 530 ZVM-X2 chain kit

DID chain set for Honda CBR 1000 RR Fireblade 04-05 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Honda CBR 1000 RR Fireblade SC57 2004-2005

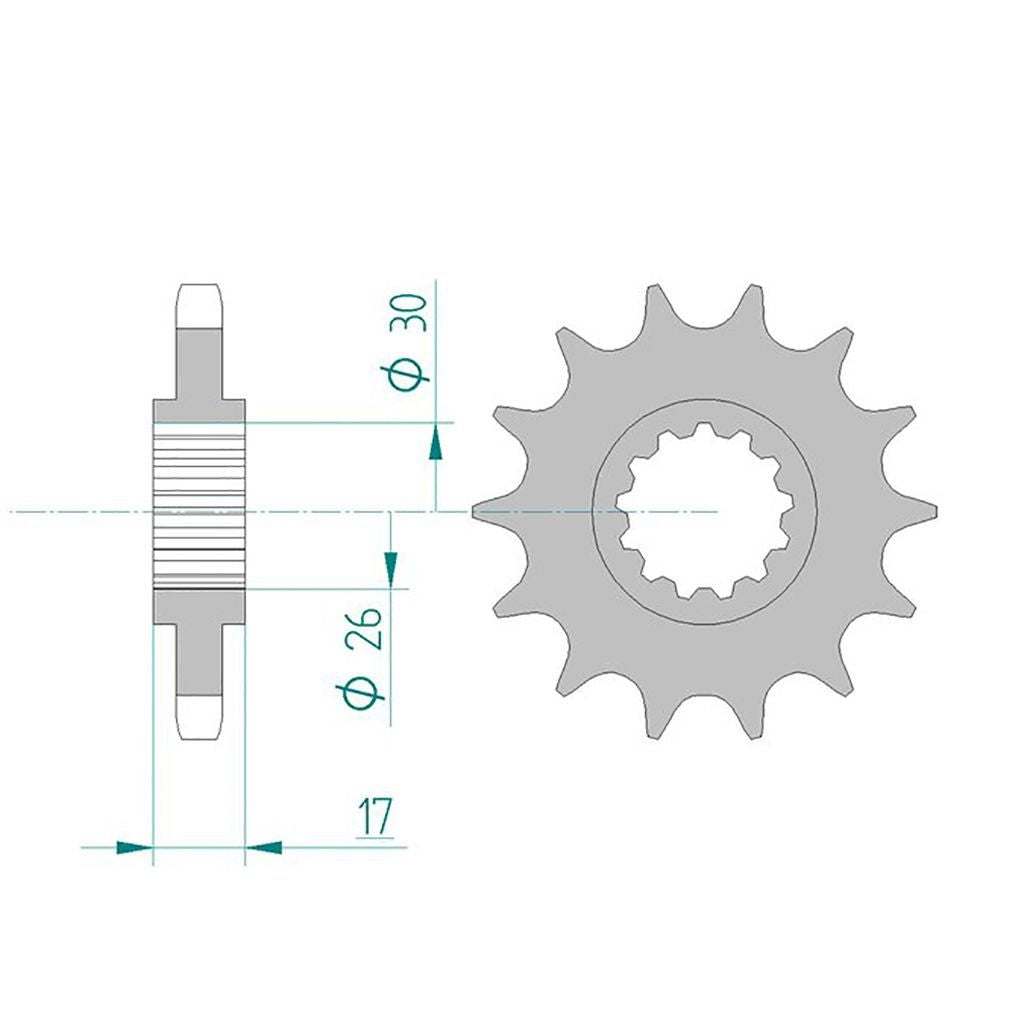

• Front sprocket: AFAM front sprocket #530 16 teeth - a20603.16
• Chain: DID chain 530 ZVM-X2 G&G 114 w. rivet link - d530zvmx2.gg.114

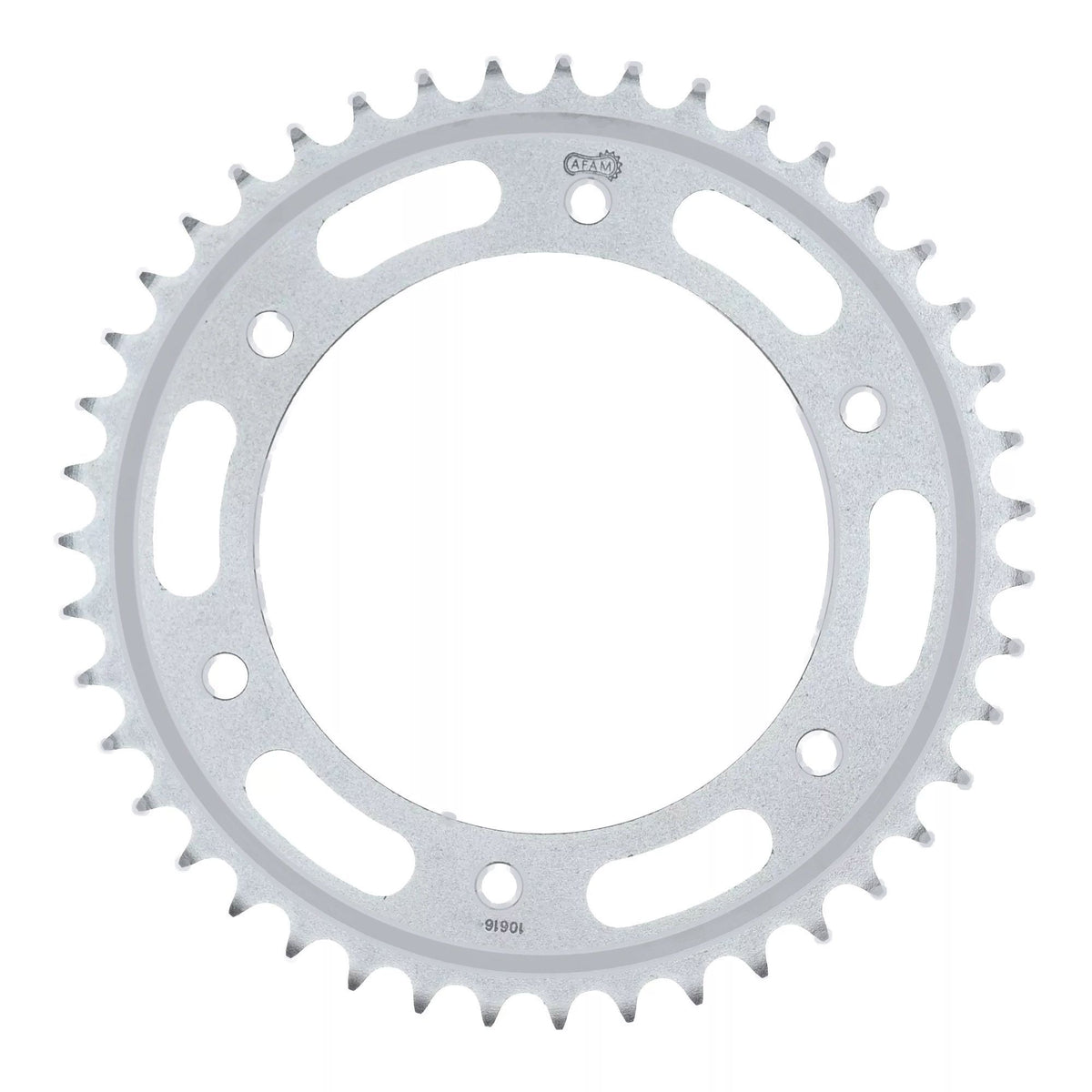

• Rear sprocket: AFAM rear sprocket STEEL #530 40 teeth - a10616.40
• Gear ratio front sprocket-chain-rear sprocket: 16-114-40

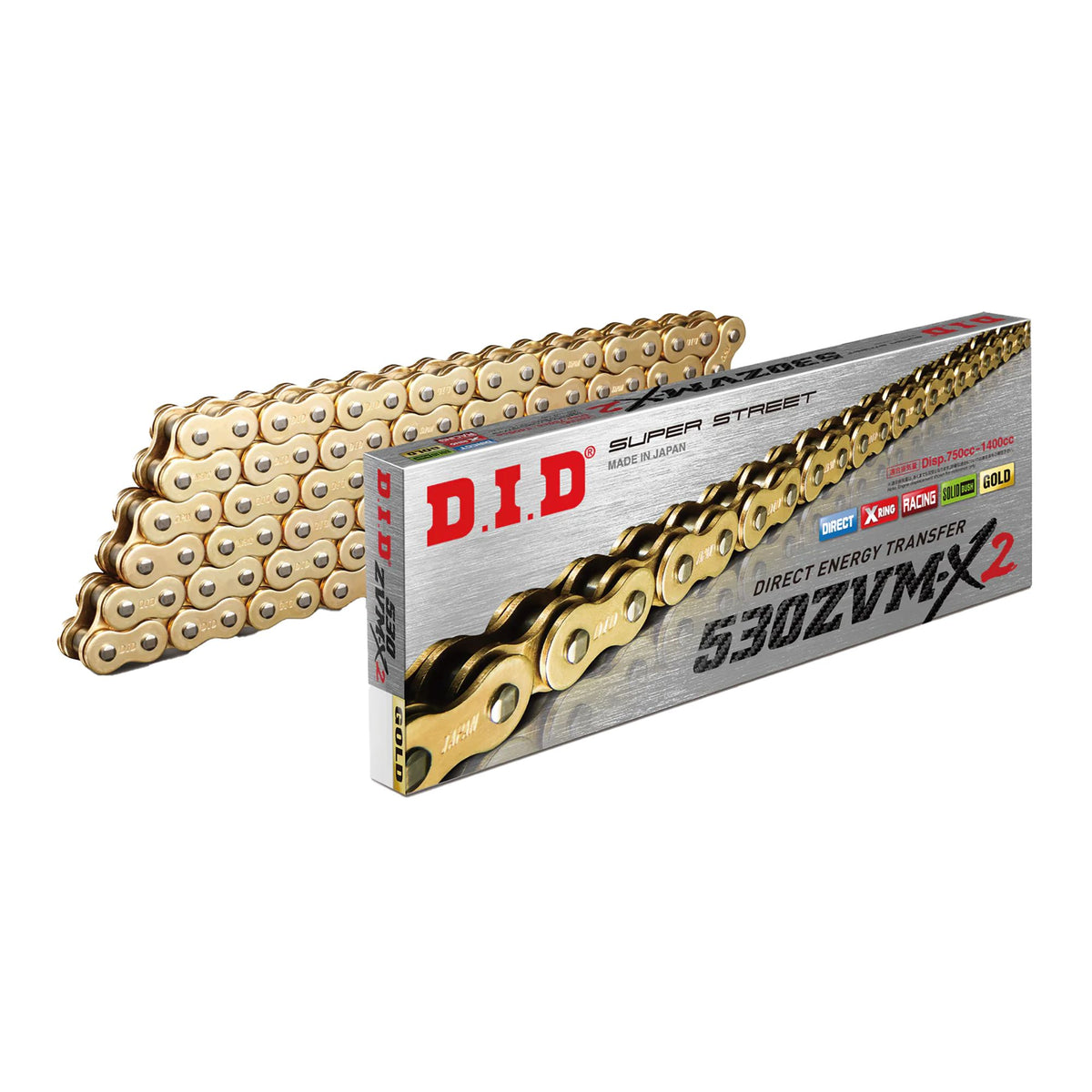

DID 530 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-62060

Suitable for

Honda 751 - 1000 cc CBR 1000 RR Fireblade SC57 2004
Honda 751 - 1000 cc CBR 1000 RR Fireblade SC57 2005
