DID chain kit for Honda CBR 1000 RR Fireblade ABS 09-13 530 ZVM-X2 chain kit

DID chain kit for Honda CBR 1000 RR Fireblade ABS 09-13 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Honda CBR 1000 RR Fireblade ABS SC59 2009-2013

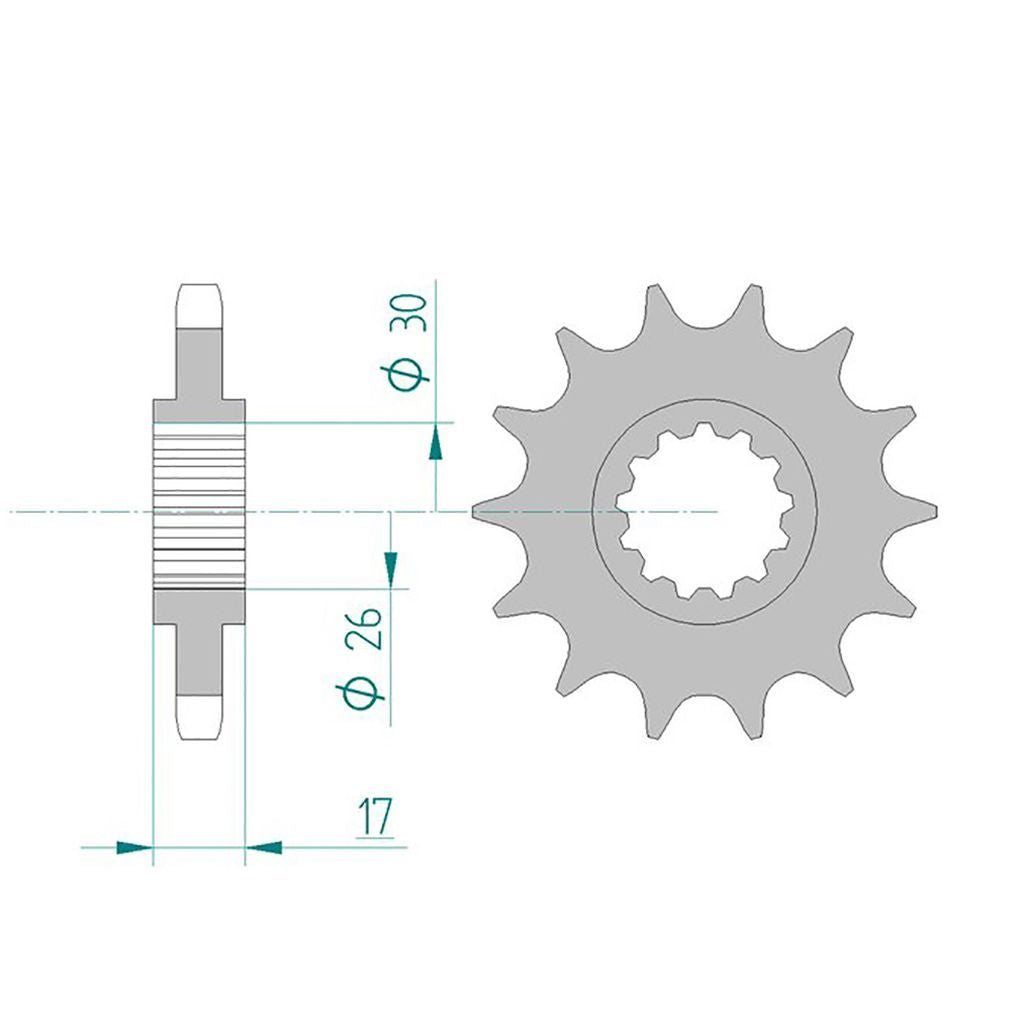

• Front sprocket: AFAM sprocket #530 16 teeth - a20603.16

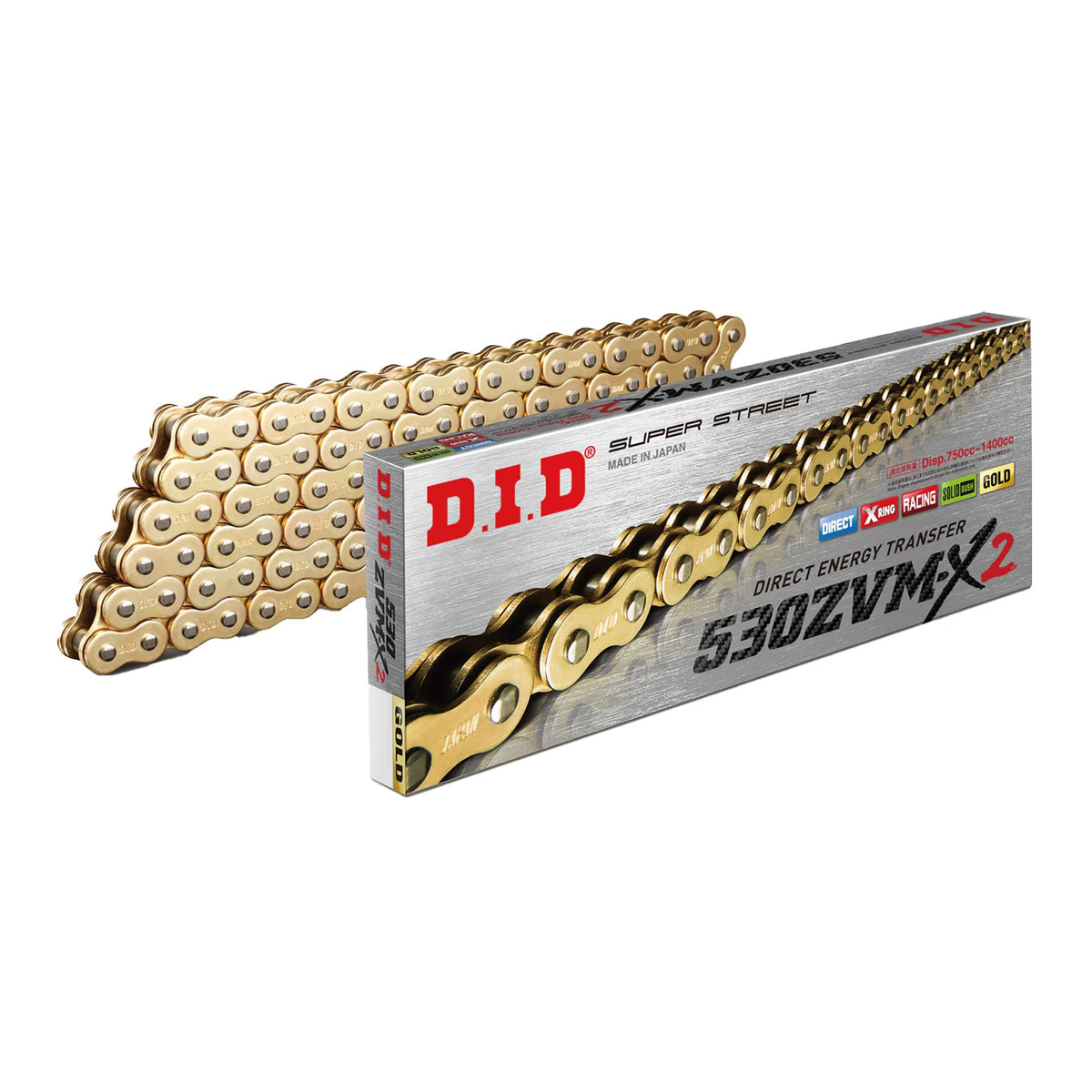

• Chain: DID chain 530 ZVM-X2 G&G 116 with rivet link - d530zvmx2.gg.116

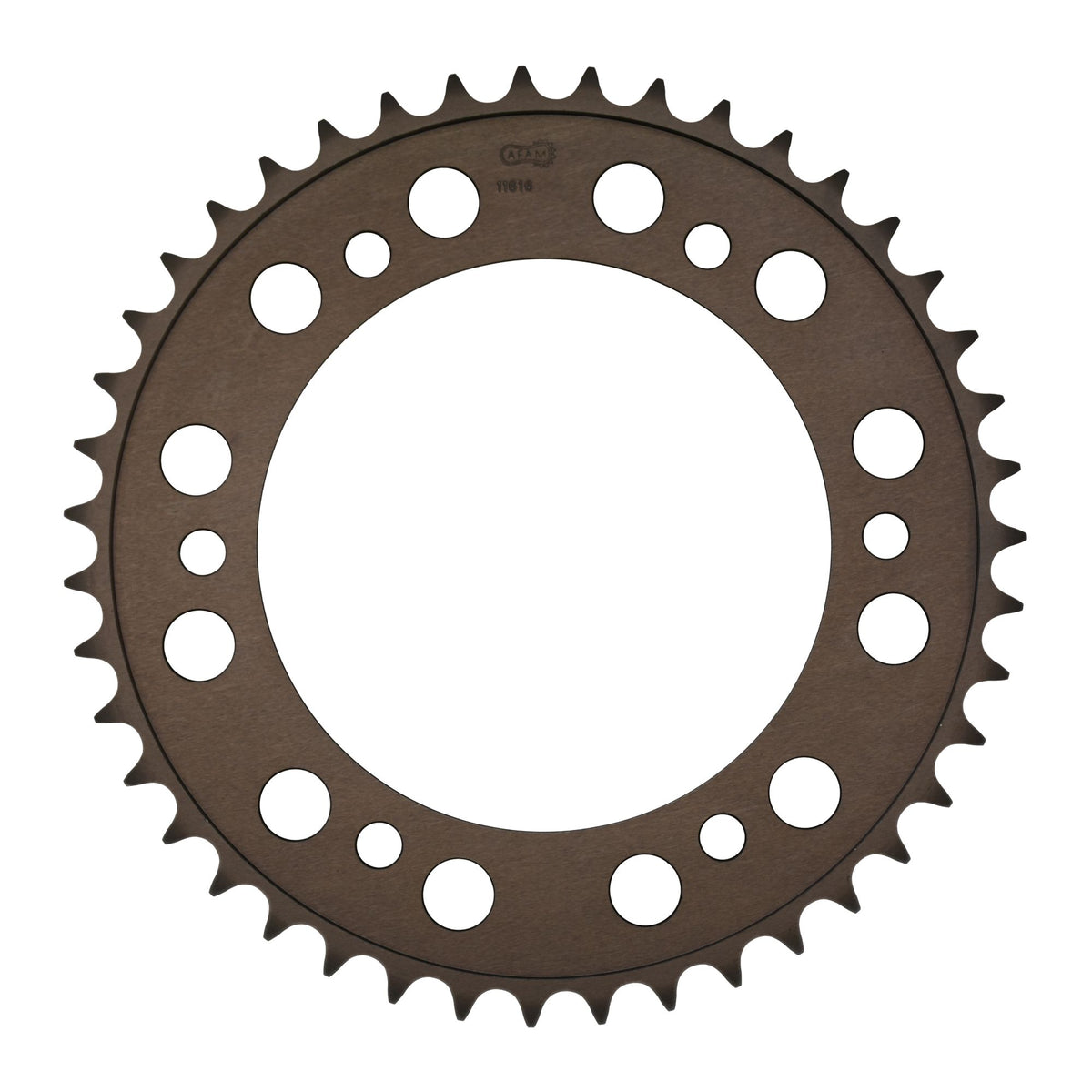

• Rear sprocket: AFAM sprocket ALU #530 42 teeth - a11616.42
• Gear ratio sprocket-chain-rear sprocket: 16-116-42

DID 530 ZVM-X2

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-62073

Suitable for

Honda 751 - 1000 cc CBR 1000 RR Fireblade ABS SC59 2009
Honda 751 - 1000 cc CBR 1000 RR Fireblade ABS SC59 2010
Honda 751 - 1000 cc CBR 1000 RR Fireblade ABS SC59 2011
Honda 751 - 1000 cc CBR 1000 RR Fireblade ABS SC59 2012
Honda 751 - 1000 cc CBR 1000 RR Fireblade ABS SC59 2013
