DID chain kit for Honda CBR 600 F 97-98 525 VX3 chain kit

DID Chain Kit for Honda CBR 600 F 97-98 525 VX3 Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Honda CBR 600 F PC31 1997-1998

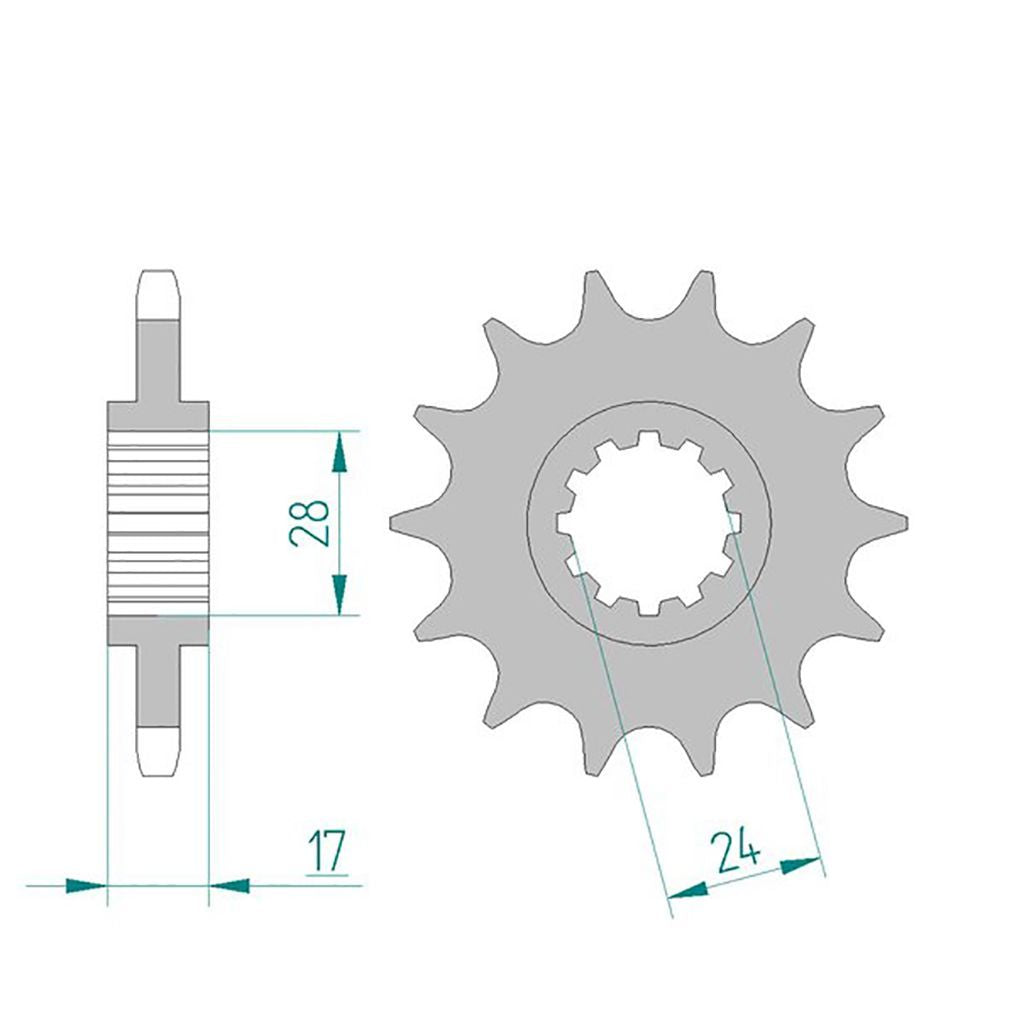

• Sprocket: AFAM sprocket #525 15 teeth - a20515.15
• Chain: DID chain 525 VX3 G&B 108 with rivet link - d525vx3.g-108

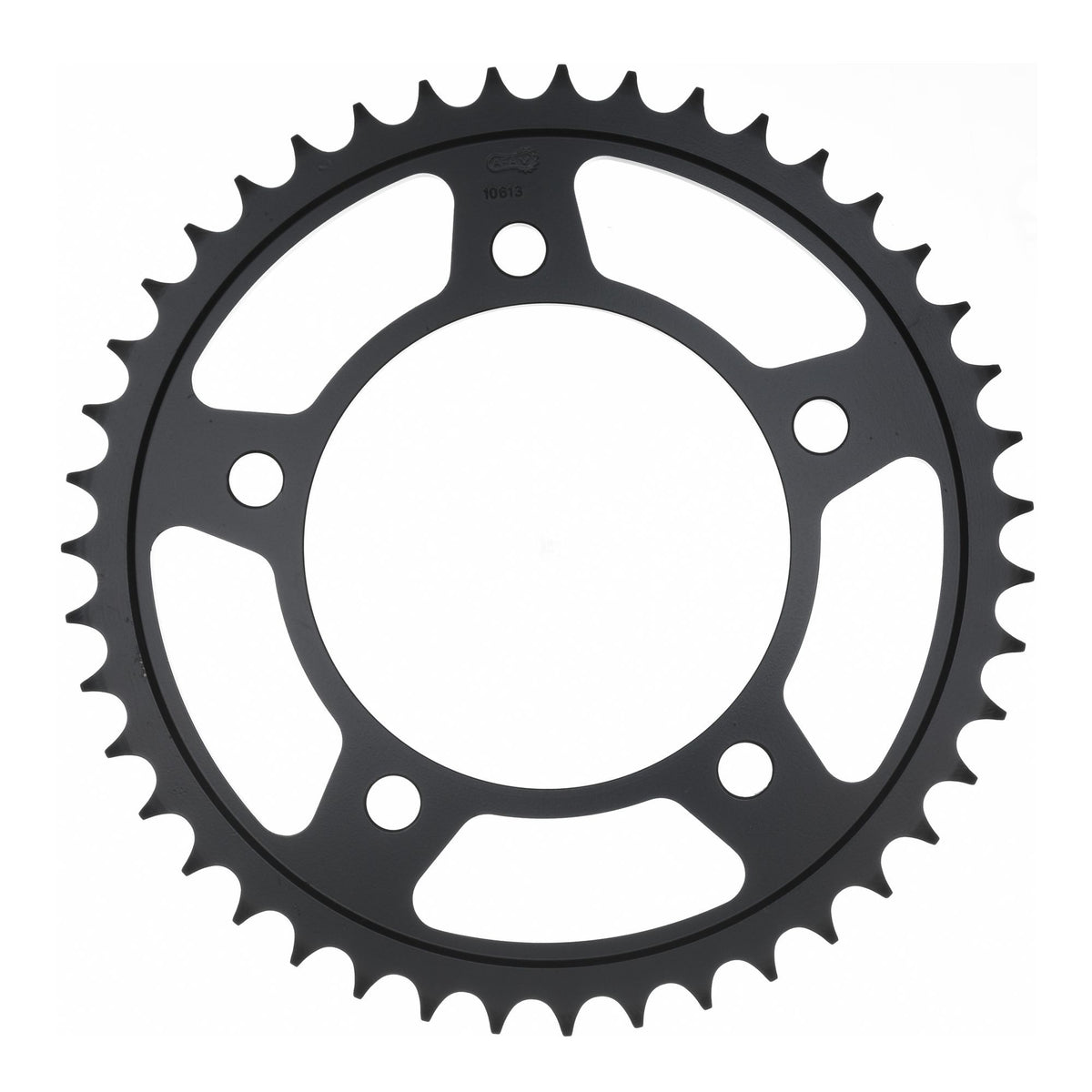

• Chain wheel: AFAM chain wheel STEEL #525 43 teeth - a10613.43
• Transmission ratio sprocket-chain-chain wheel: 15-108-43

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-54871

Suitable for

Honda 501 - 750 cc CBR 600 F PC31 1997
Honda 501 - 750 cc CBR 600 F PC31 1998
