DID chain kit for Honda CR 125 R 00-03 520 VX3 chain kit

DID chain kit for Honda CR 125 R 00-03 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Honda CR 125 R JE01 2000-2003

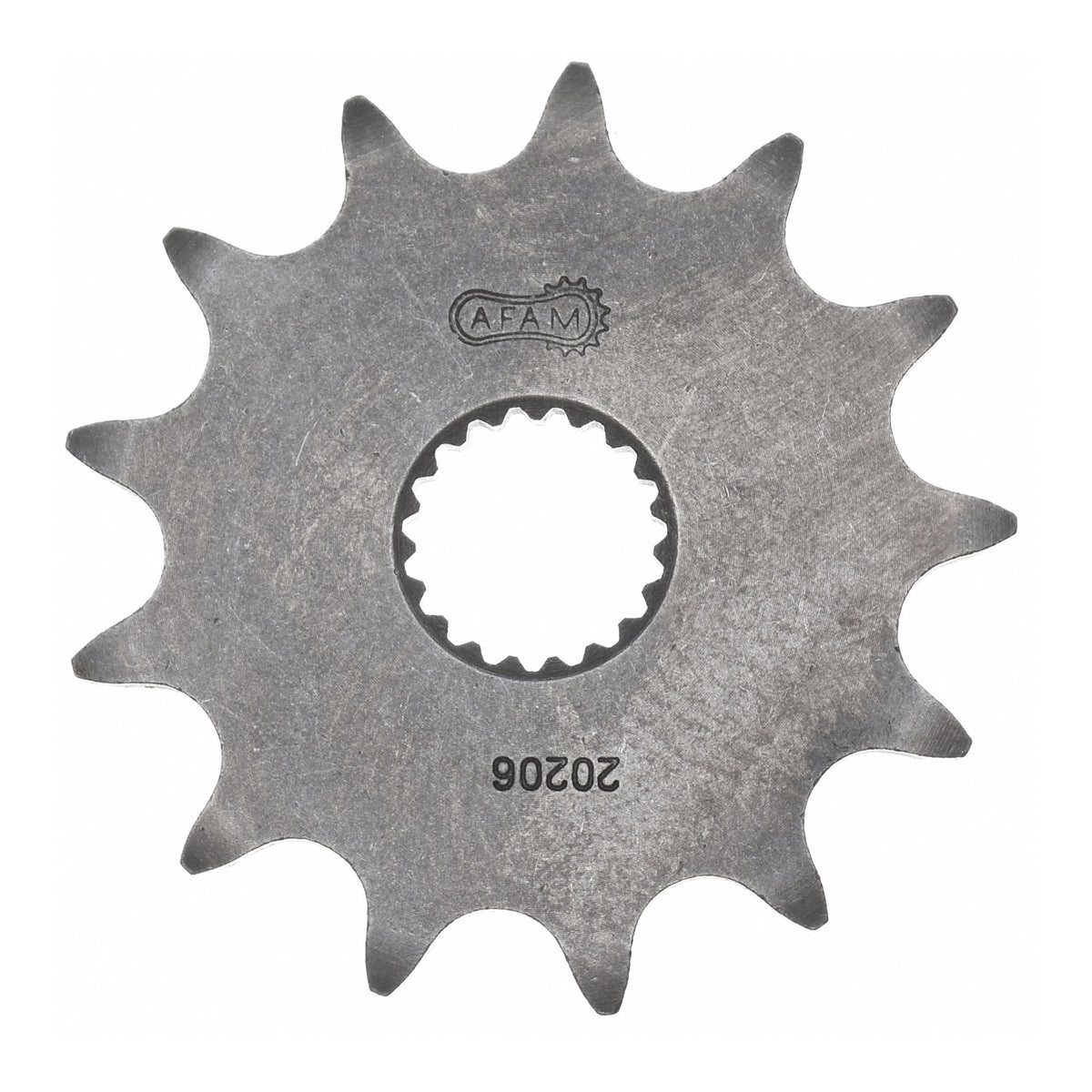

• Front sprocket: AFAM front sprocket #520 f. CR125 87-03 13 teeth - a20206.13
• Chain: DID chain 520 VX3 G&B 116 with rivet link - d520vx3-116

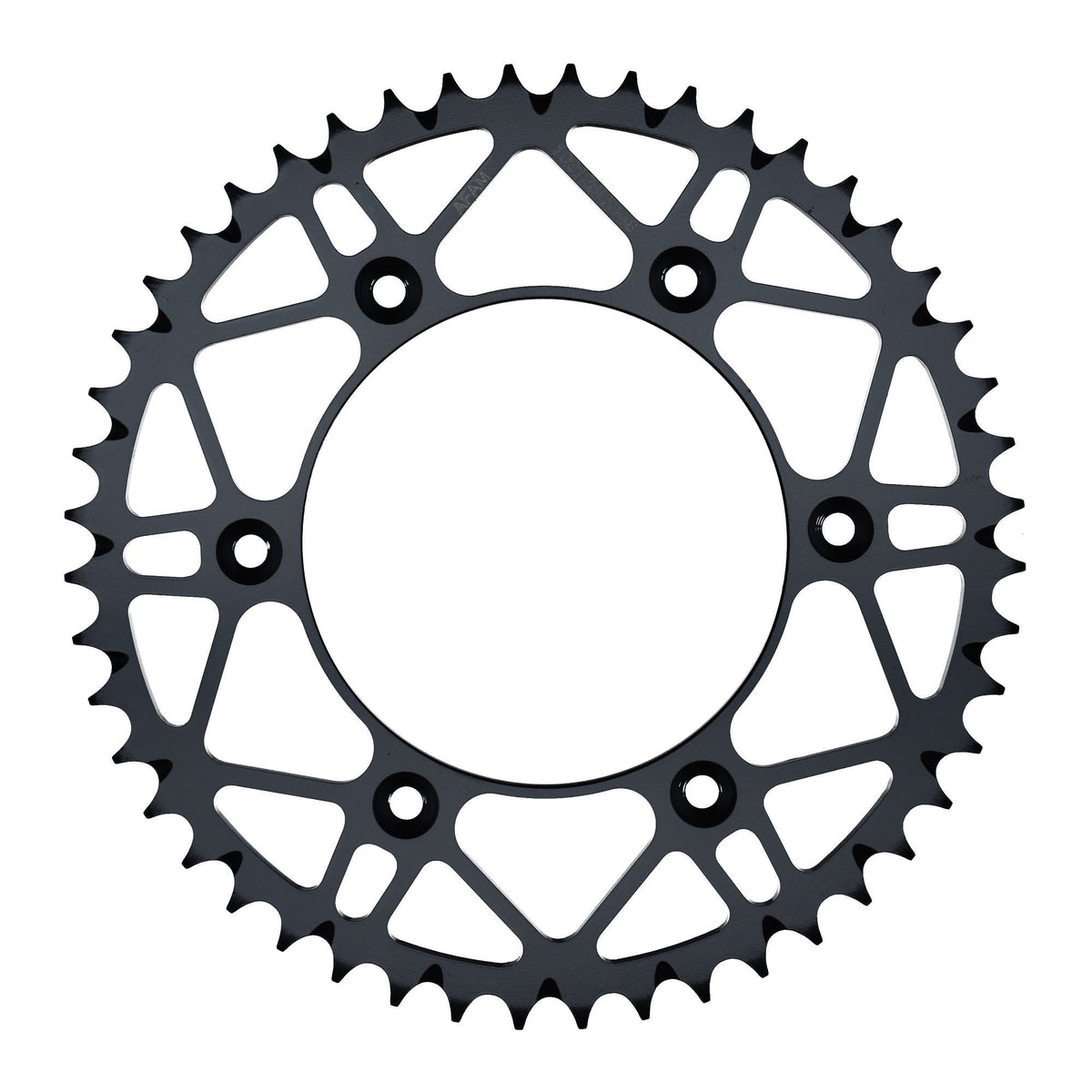

• Rear sprocket: AFAM rear sprocket steel #520 with mud grooves 52 T - a10212slk.52
• Gear ratio front sprocket-chain-rear sprocket: 13-116-52

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-18830

Suitable for

Honda 101 - 125 cc CR 125 R JE01 2000
Honda 101 - 125 cc CR 125 R JE01 2001
Honda 101 - 125 cc CR 125 R JE01 2002
Honda 101 - 125 cc CR 125 R JE01 2003
