DID chain kit for Honda CR 250 R 2002 520 ZVMX chain kit

DID Chain Kit for Honda CR 250 R 2002 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Honda CR 250 R ME03 2002-2002

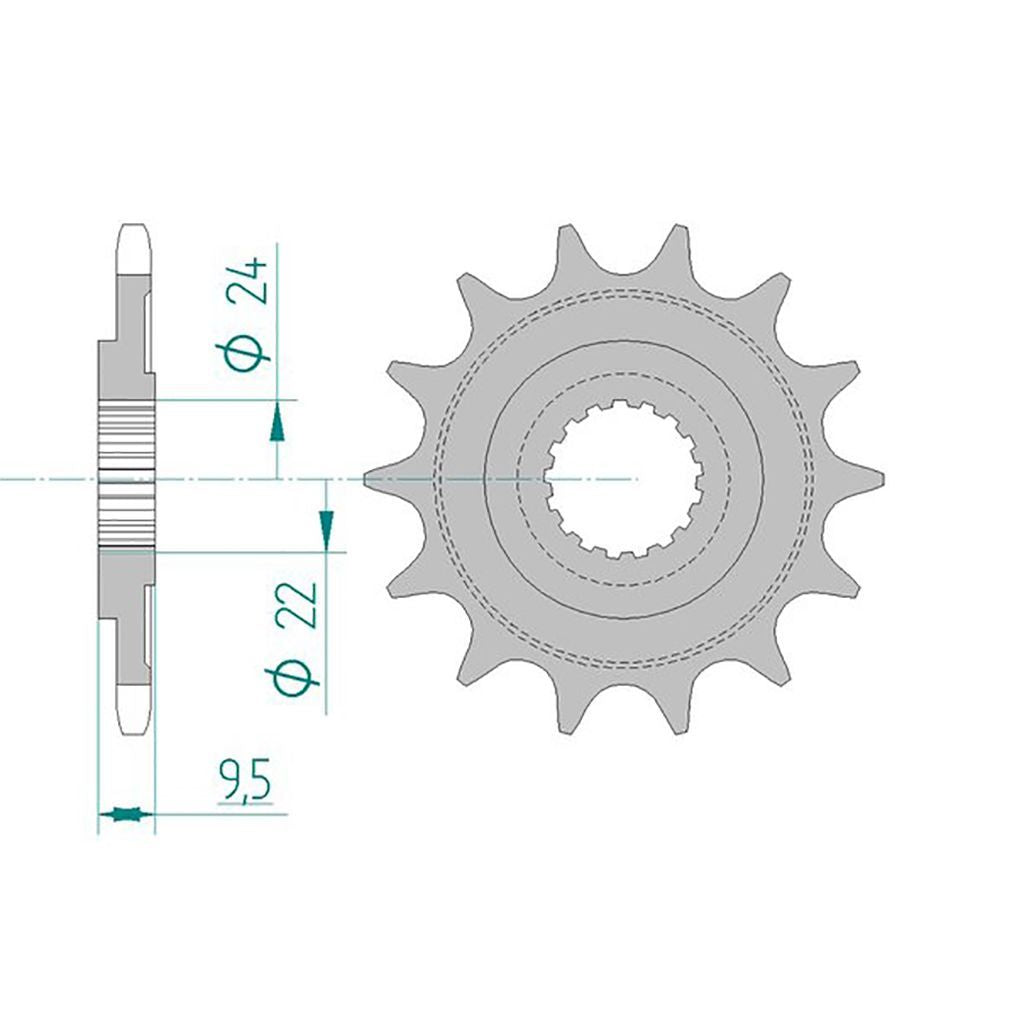

• Front sprocket: AFAM front sprocket #520 f. CR-F450 02 14 teeth - a20311.14
• Chain: DID chain 520 ZVM-X G&G 114 w. rivet link - d6252029114

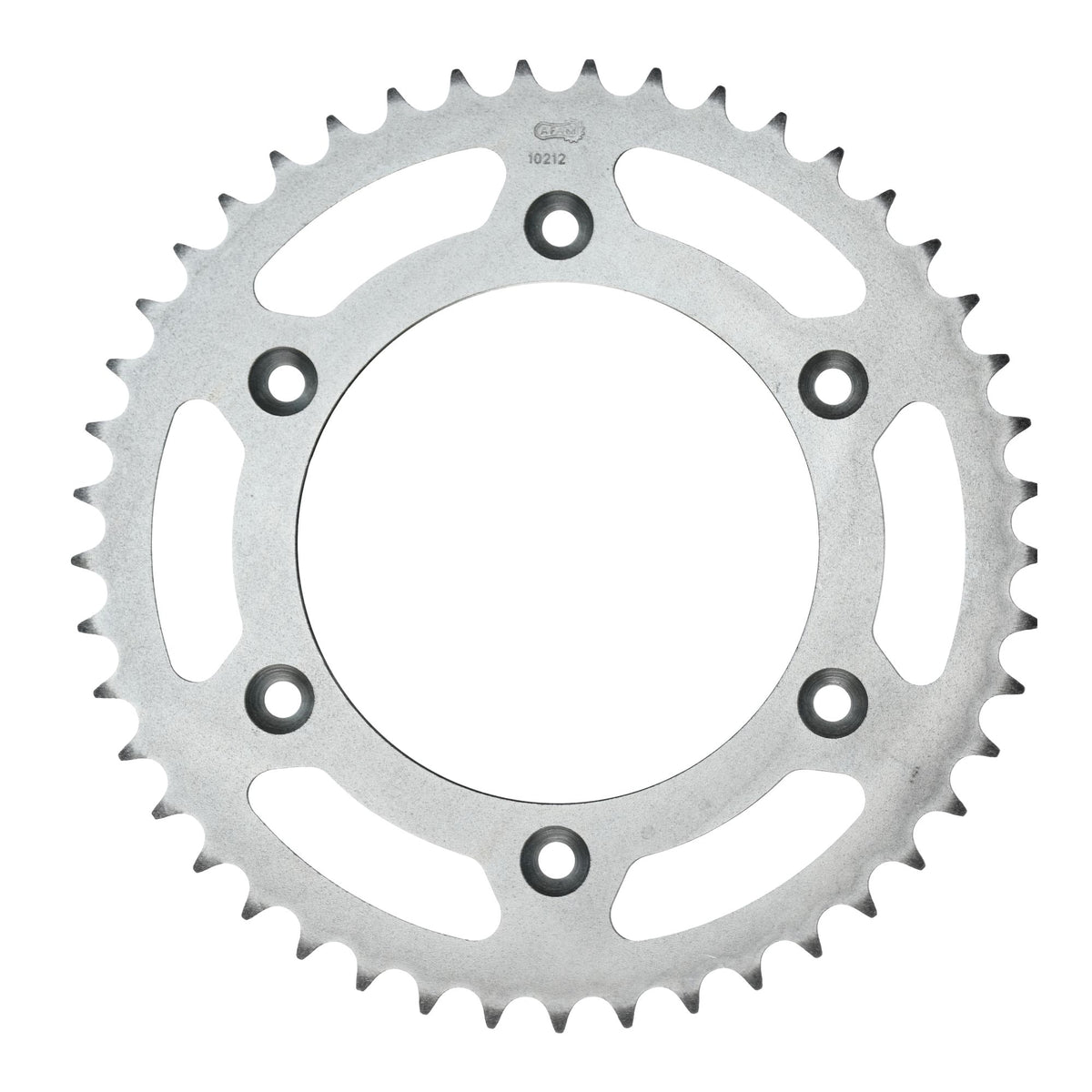

• Rear sprocket: AFAM rear sprocket STEEL #520 48 teeth - a10212.48
• Gear ratio front sprocket-chain-rear sprocket: 14-114-48

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-23773

Suitable for

Honda 126 - 250 cc CR 250 R ME03 2002
