DID chain set for Honda CR-F 250 R 2021 520 ZVMX chain kit

DID chain kit for Honda CR-F 250 R 2021 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

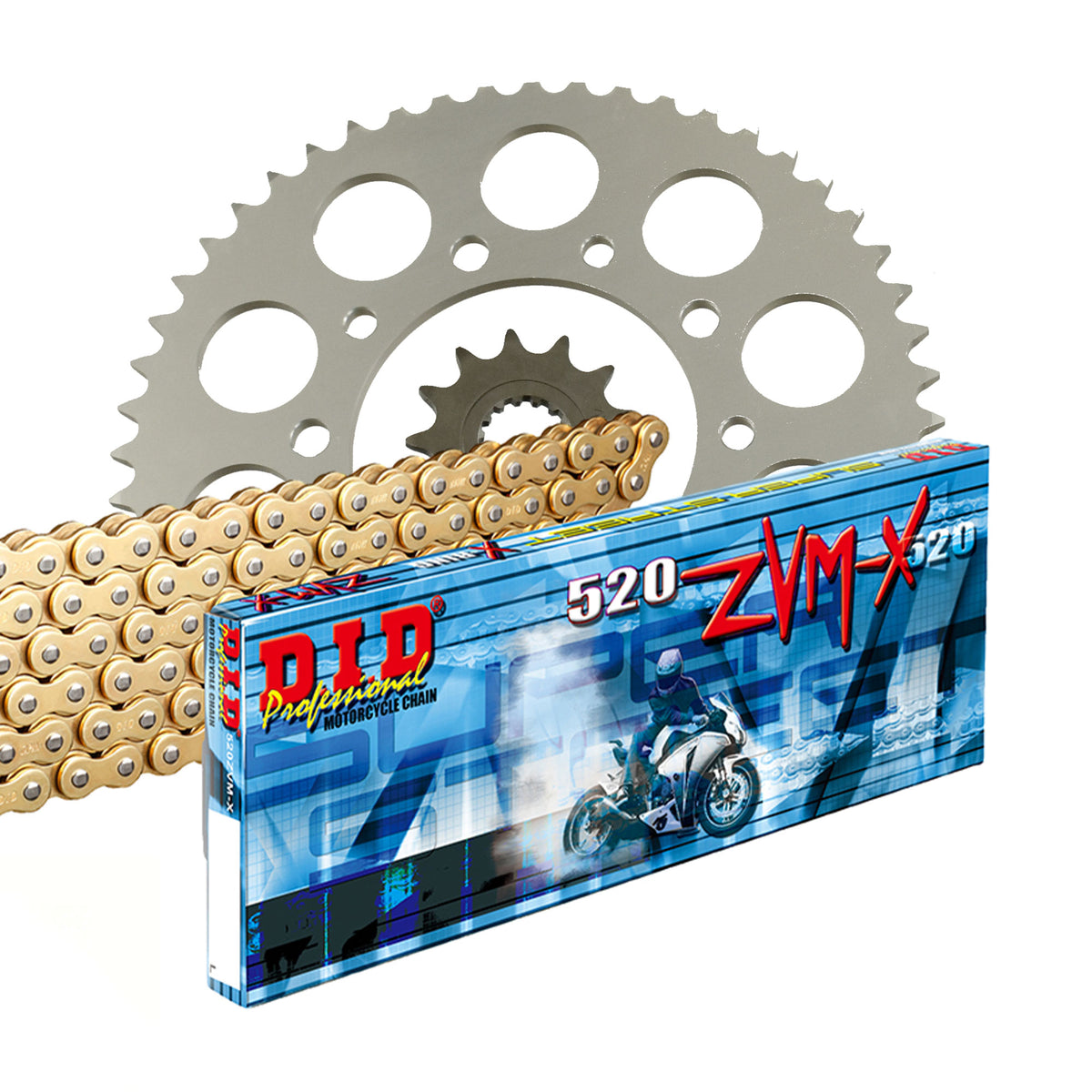

Components of the chain kit Honda CR-F 250 R ME12 2021-2021

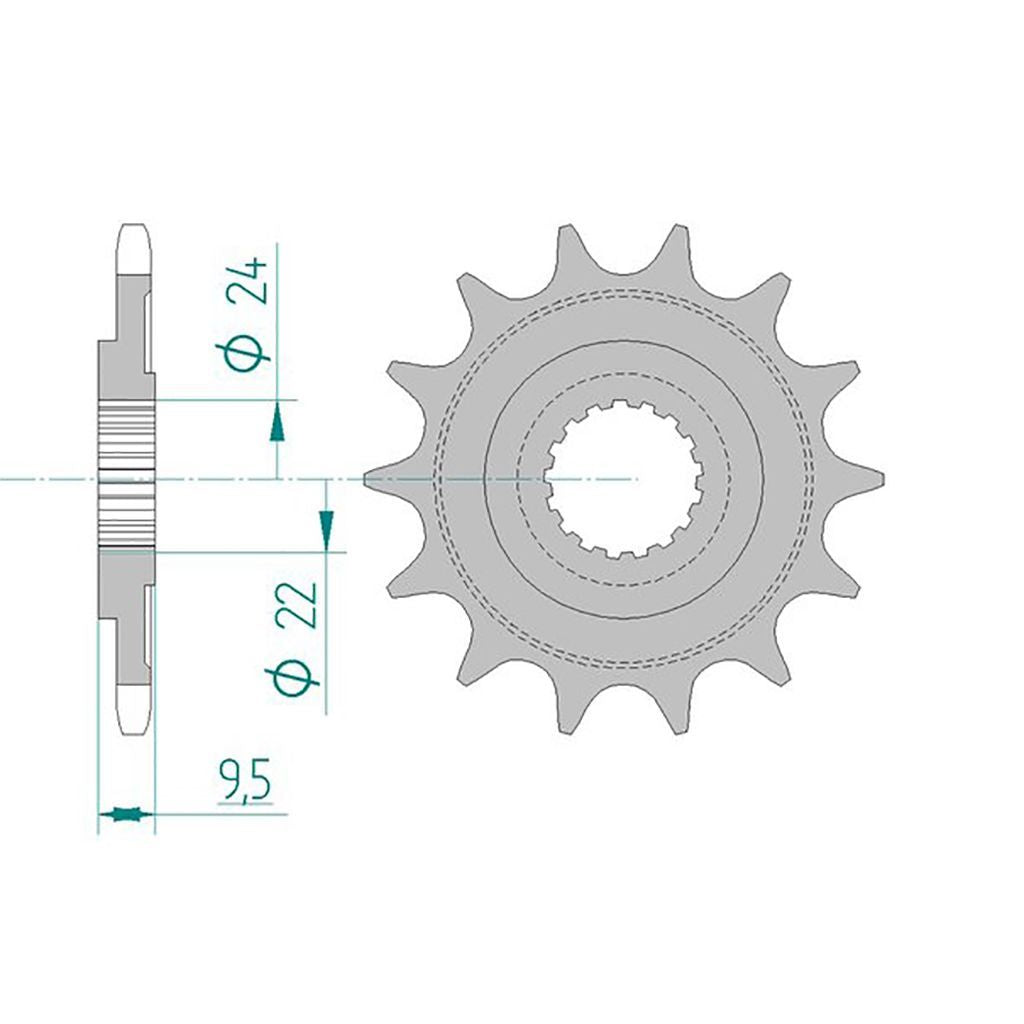

• Front sprocket: AFAM front sprocket #520 f. CR-F450 02 13 teeth - a20311.13

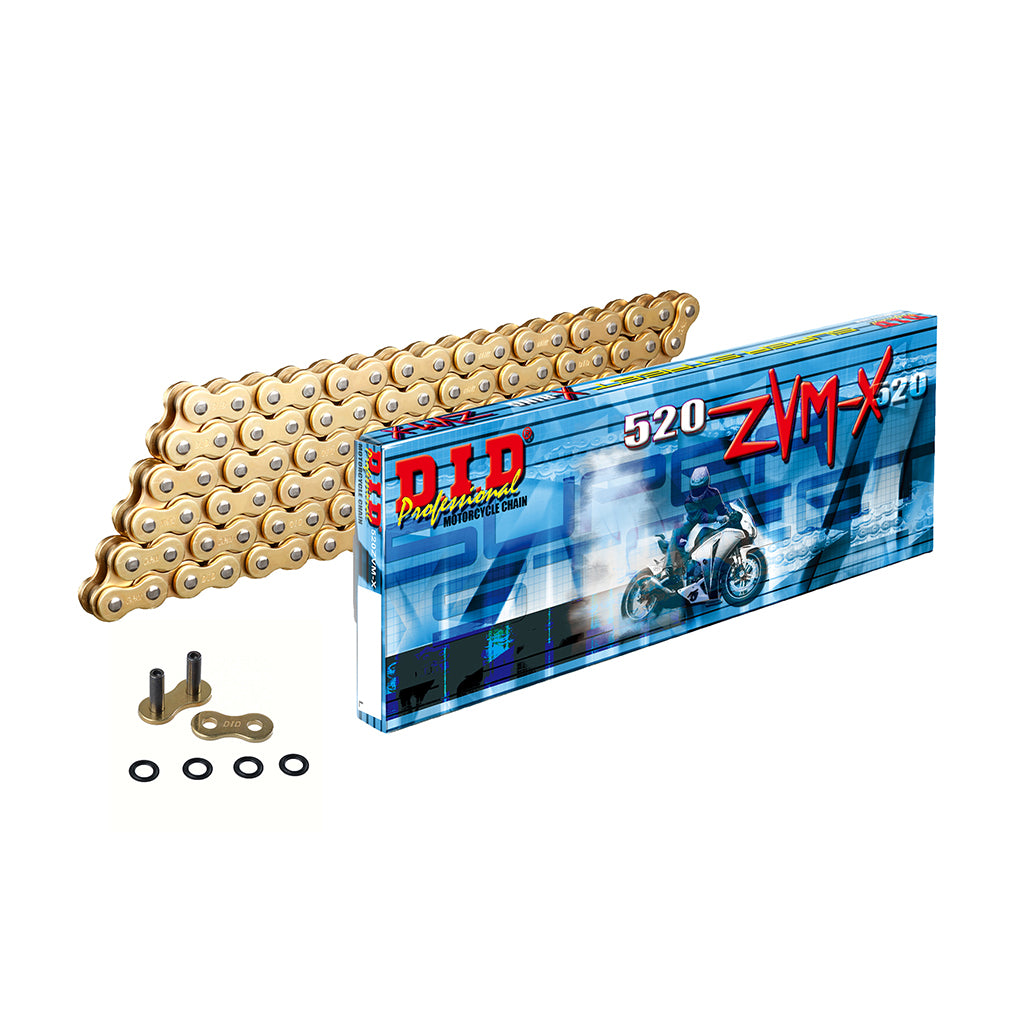

• Chain: DID chain 520 ZVM-X G&G 114 w. rivet link - d6252029114

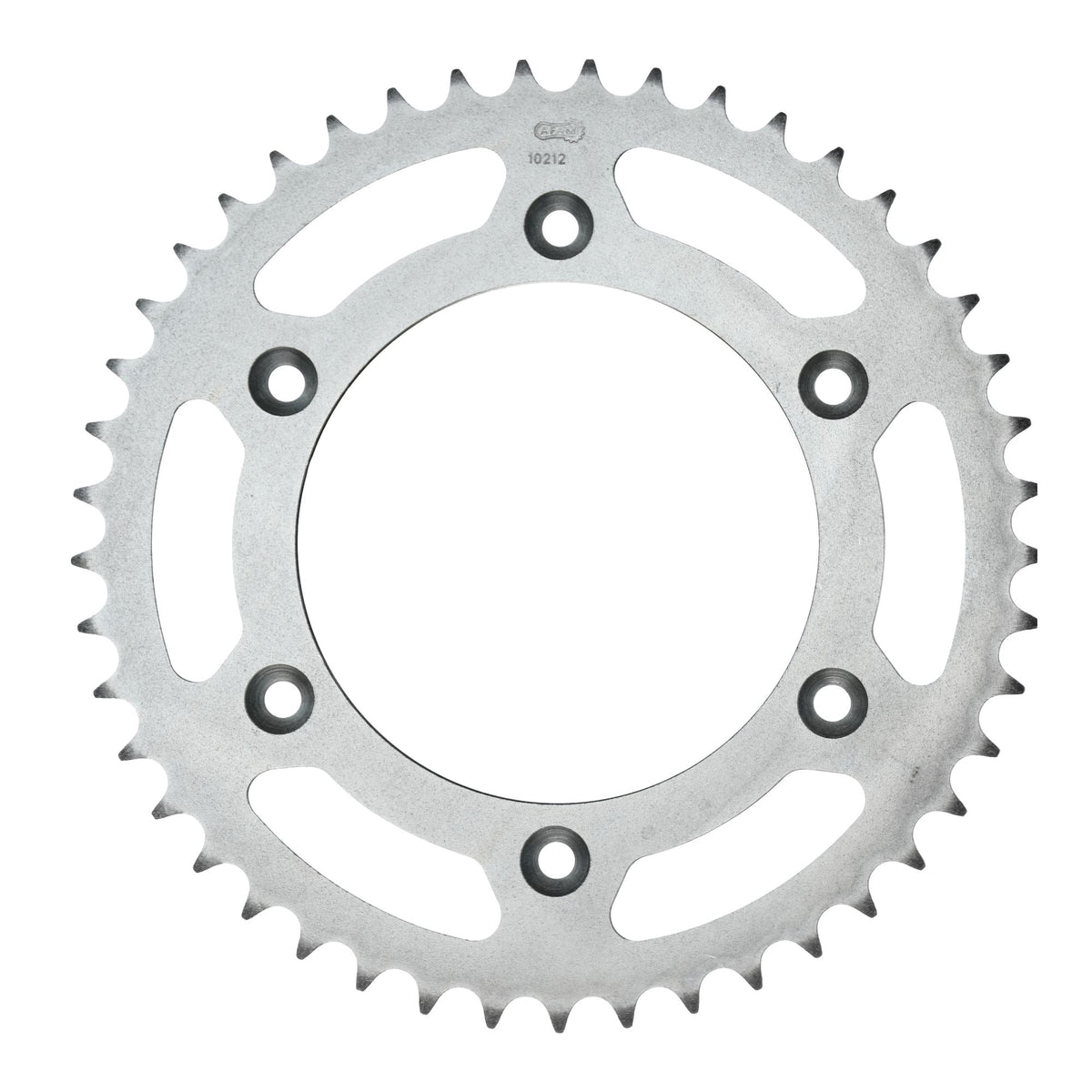

• Rear sprocket: AFAM rear sprocket STEEL #520 48 teeth - a10212.48
• Transmission ratio front sprocket-chain-rear sprocket: 13-114-48

DID 520 ZVM-X

Extra reinforced chain, versatile range of applications
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear life index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-70007

Suitable for

Honda 126 - 250 cc CR-F 250 R ME12 2021
