DID chain set for Honda CR-F 250 R 2022 520 ERT3 chain kit

DID chain kit for Honda CR-F 250 R 2022 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Honda CR-F 250 R ME12 2022-2022

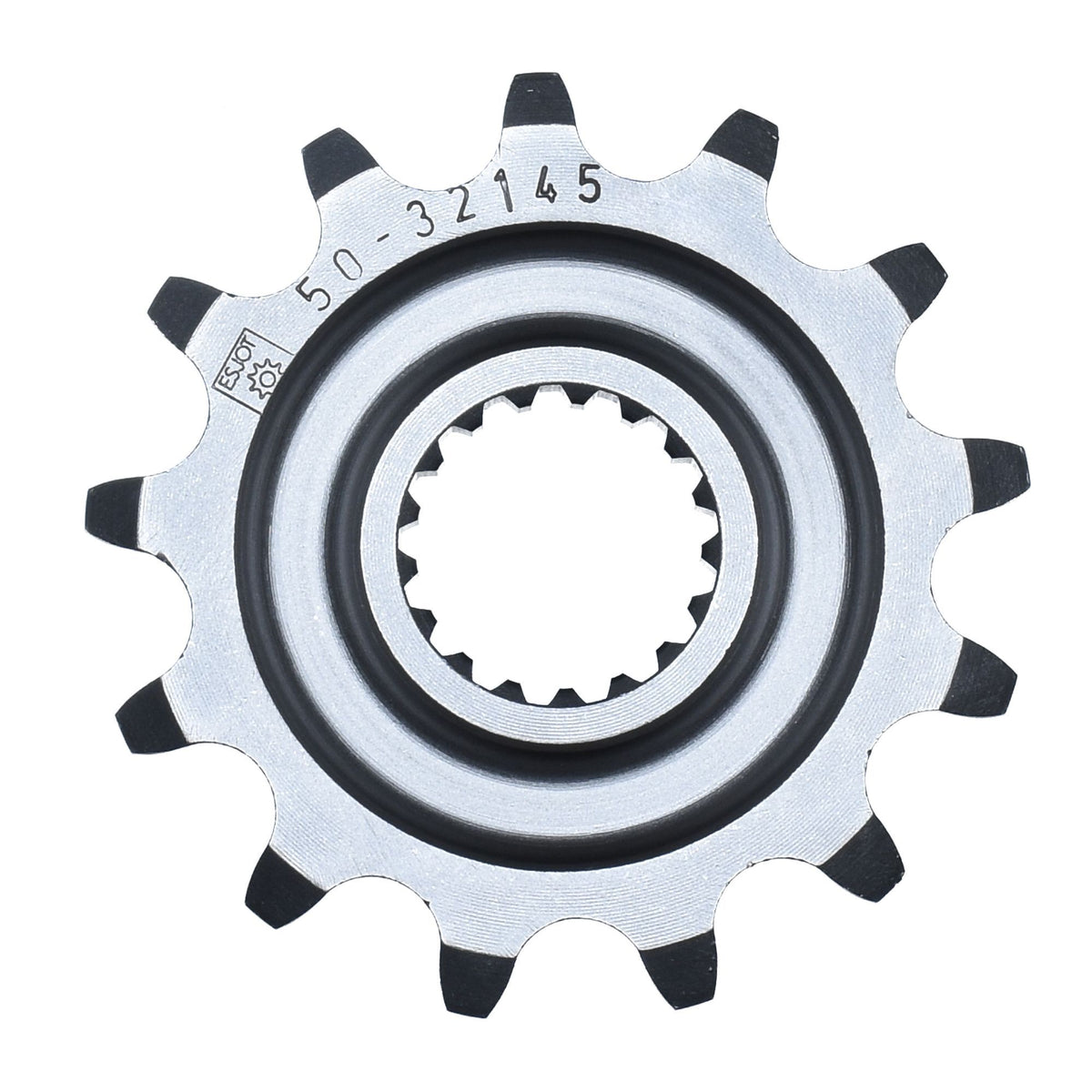

• Front sprocket: Esjot front sprocket 20311-13 #520 for CR-F450 02 13 teeth - a20311s.13
• Chain: DID chain 520 ERT3 G&G 114 with clip master link - d520ert3-114

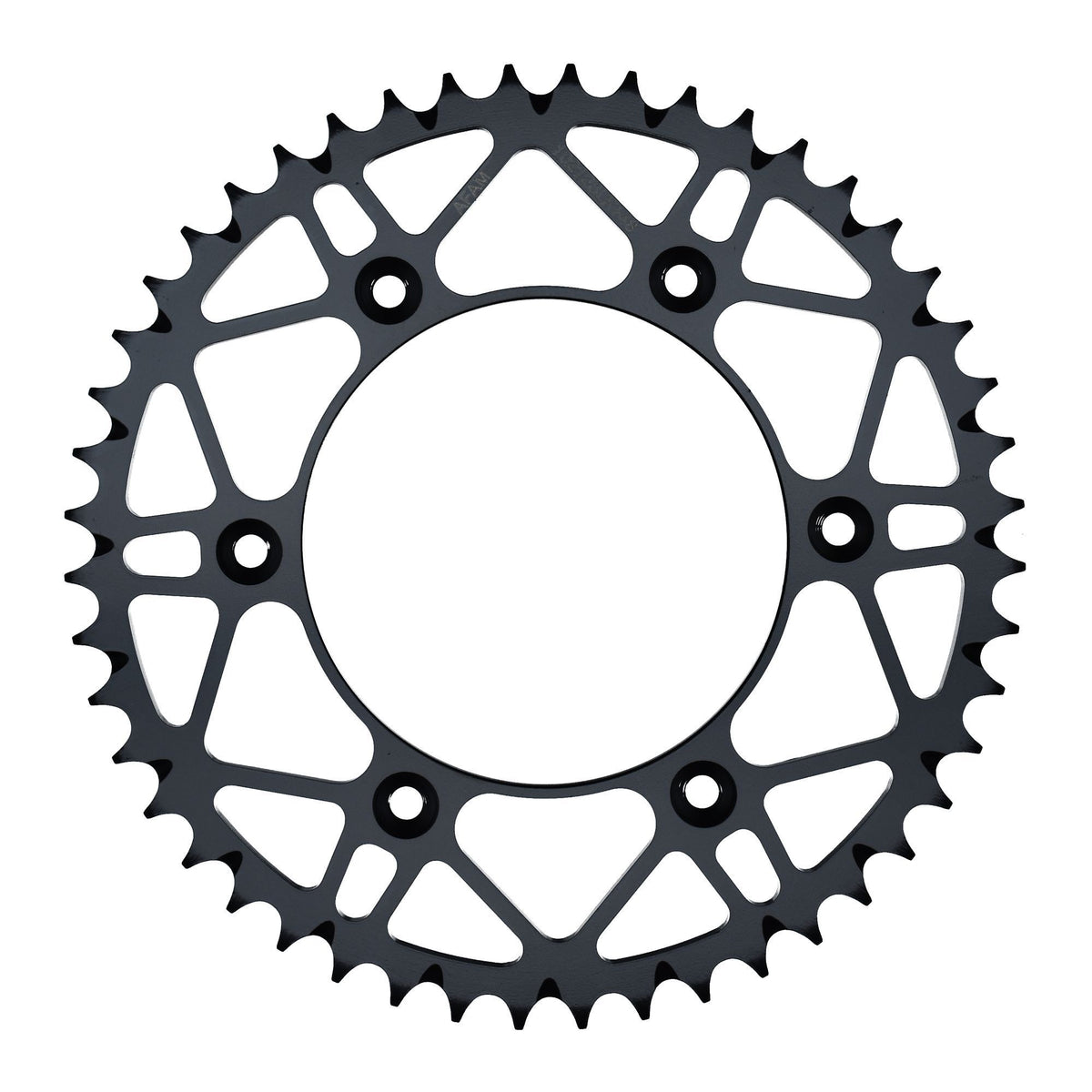

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 49T - a10212slk.49
• Gear ratio front sprocket-chain-rear sprocket: 13-114-49

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-68904

Suitable for

Honda 126 - 250 cc CR-F 250 R ME12 2022
