DID chain kit for Honda RVF 750 R 94-98 525 VX3 chain kit

DID chain kit for Honda RVF 750 R 94-98 525 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Honda RVF 750 R RC45 1994-1998

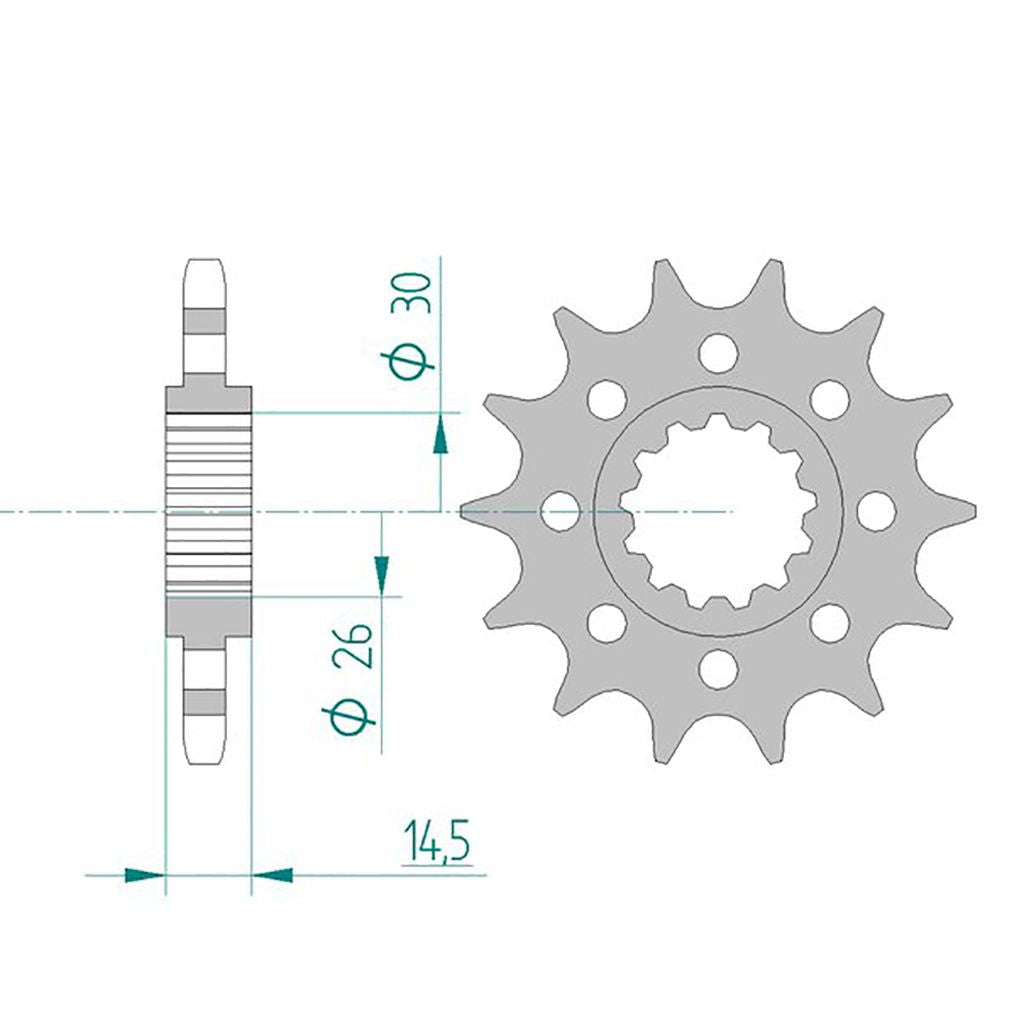

• Front sprocket: AFAM front sprocket #525 17 teeth - a20609.17
• Chain: DID chain 525 VX3 G&B 108 with rivet link - d525vx3.g-108

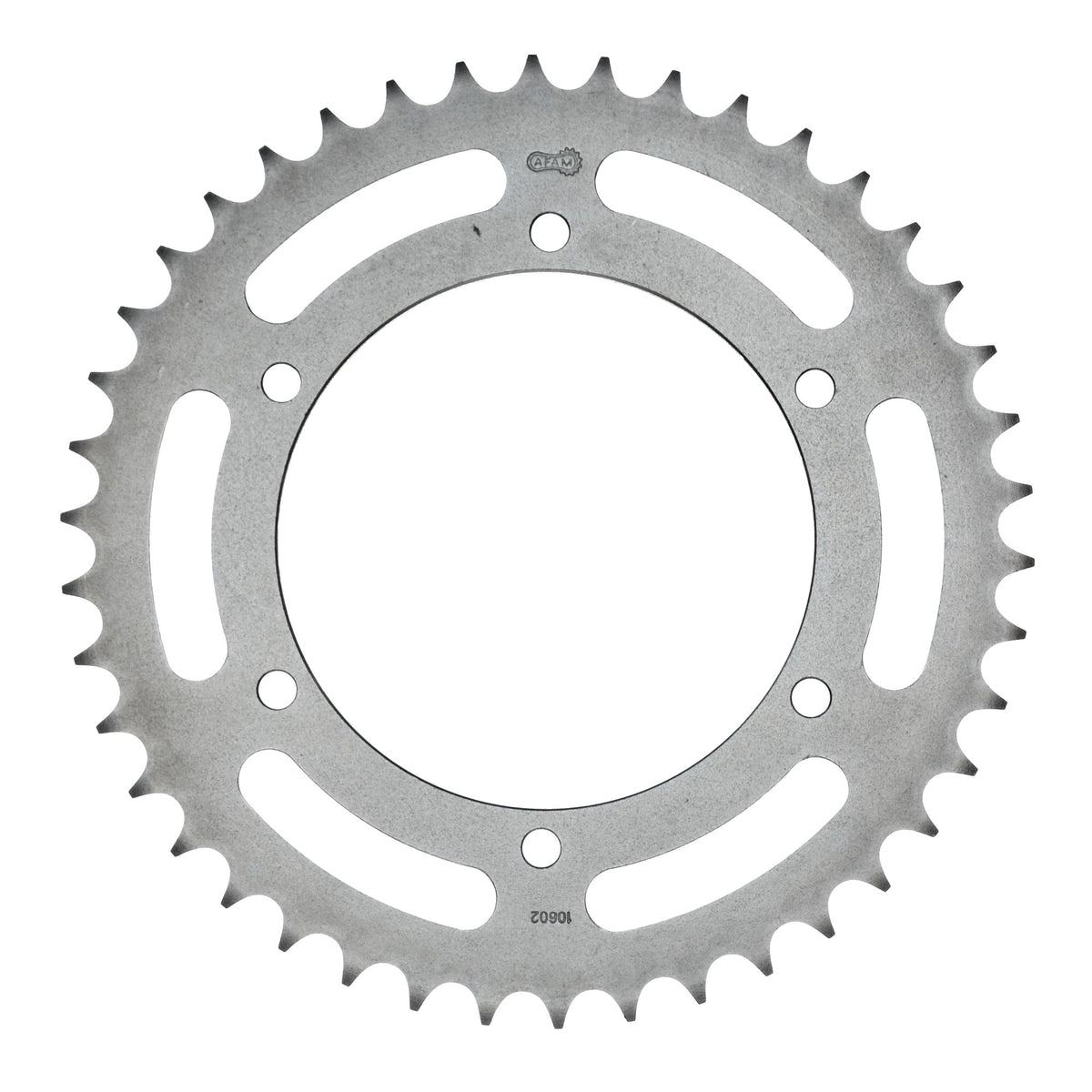

• Rear sprocket: AFAM rear sprocket STEEL #525 40 teeth - a10602.40
• Gear ratio front sprocket-chain-rear sprocket: 17-108-40

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-30668

Fits

Honda 501 - 750 cc RVF 750 R RC45 1994
Honda 501 - 750 cc RVF 750 R RC45 1995
Honda 501 - 750 cc RVF 750 R RC45 1996
Honda 501 - 750 cc RVF 750 R RC45 1997
Honda 501 - 750 cc RVF 750 R RC45 1998
