DID chain kit for Honda ST 125 DAX ABS 2025 420 NZ3 chain kit

DID chain kit for Honda ST 125 DAX ABS 2025 420 NZ3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

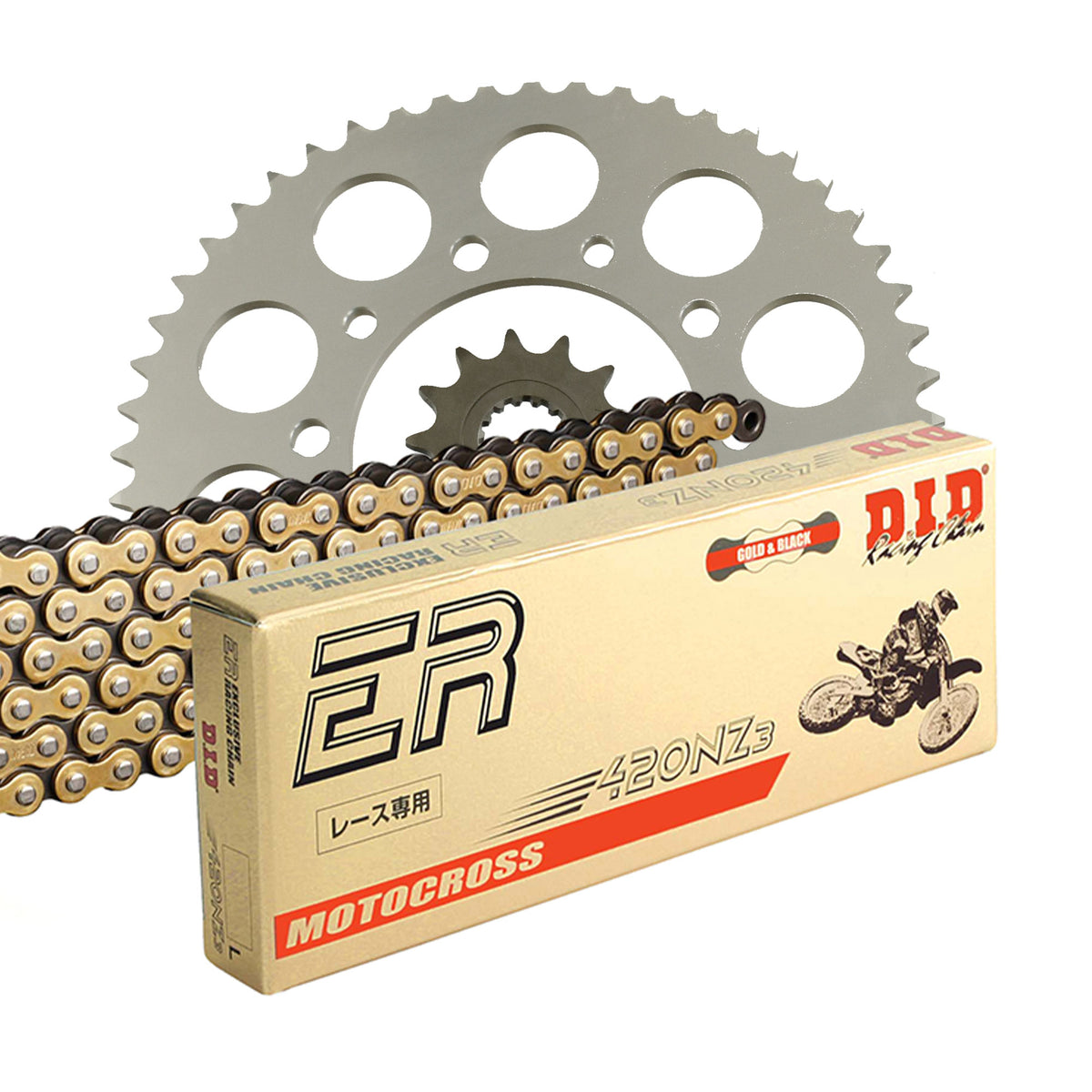

Components of the chain kit Honda ST 125 DAX ABS JB06 2025-2025

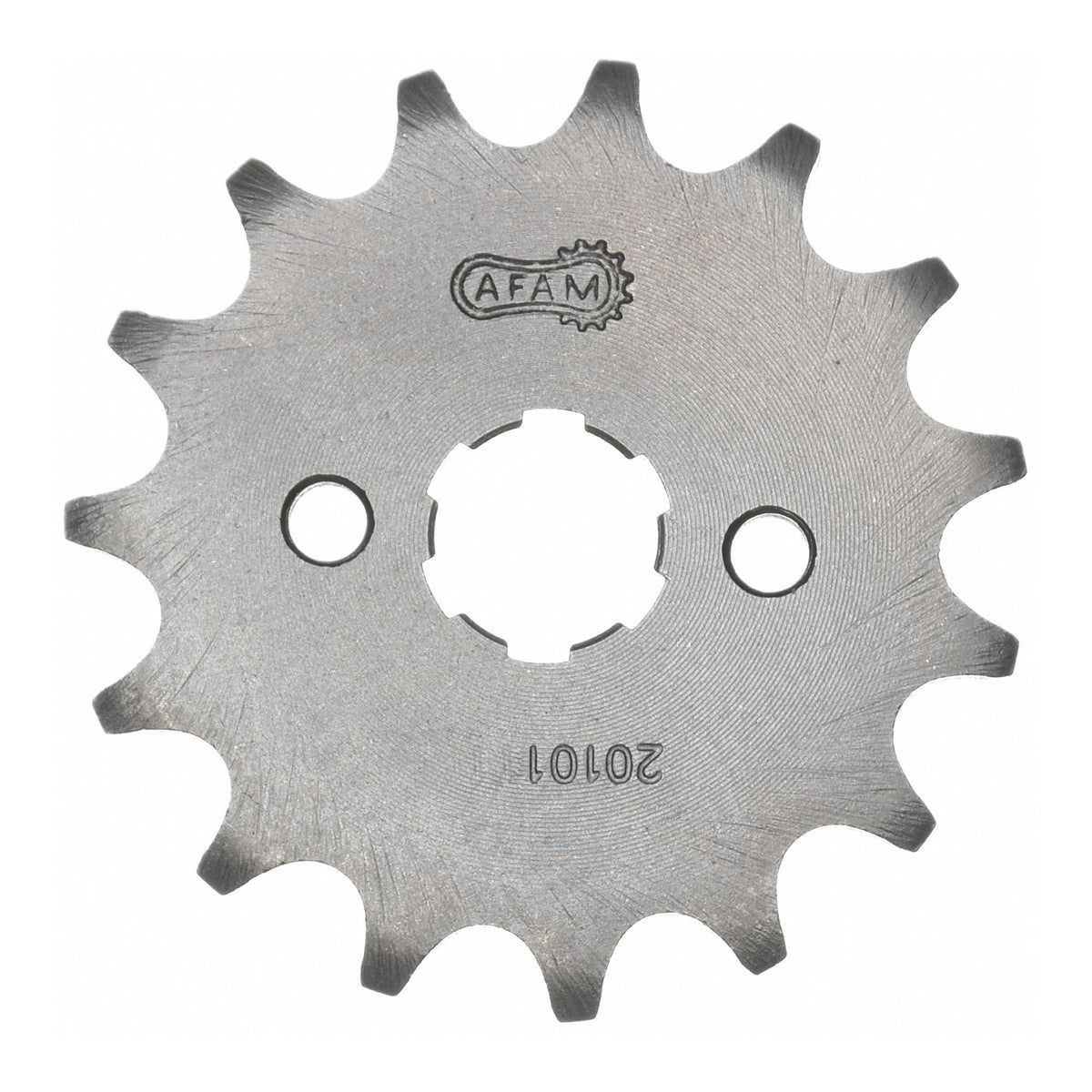

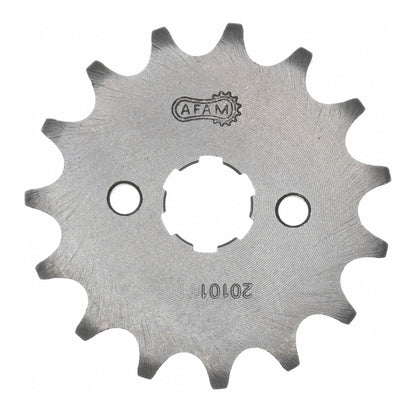

• Front sprocket: AFAM front sprocket #420 15 teeth - a20101.15
• Chain: DID chain 420 NZ3 G&B 106 with clip-type master link - d6242002106

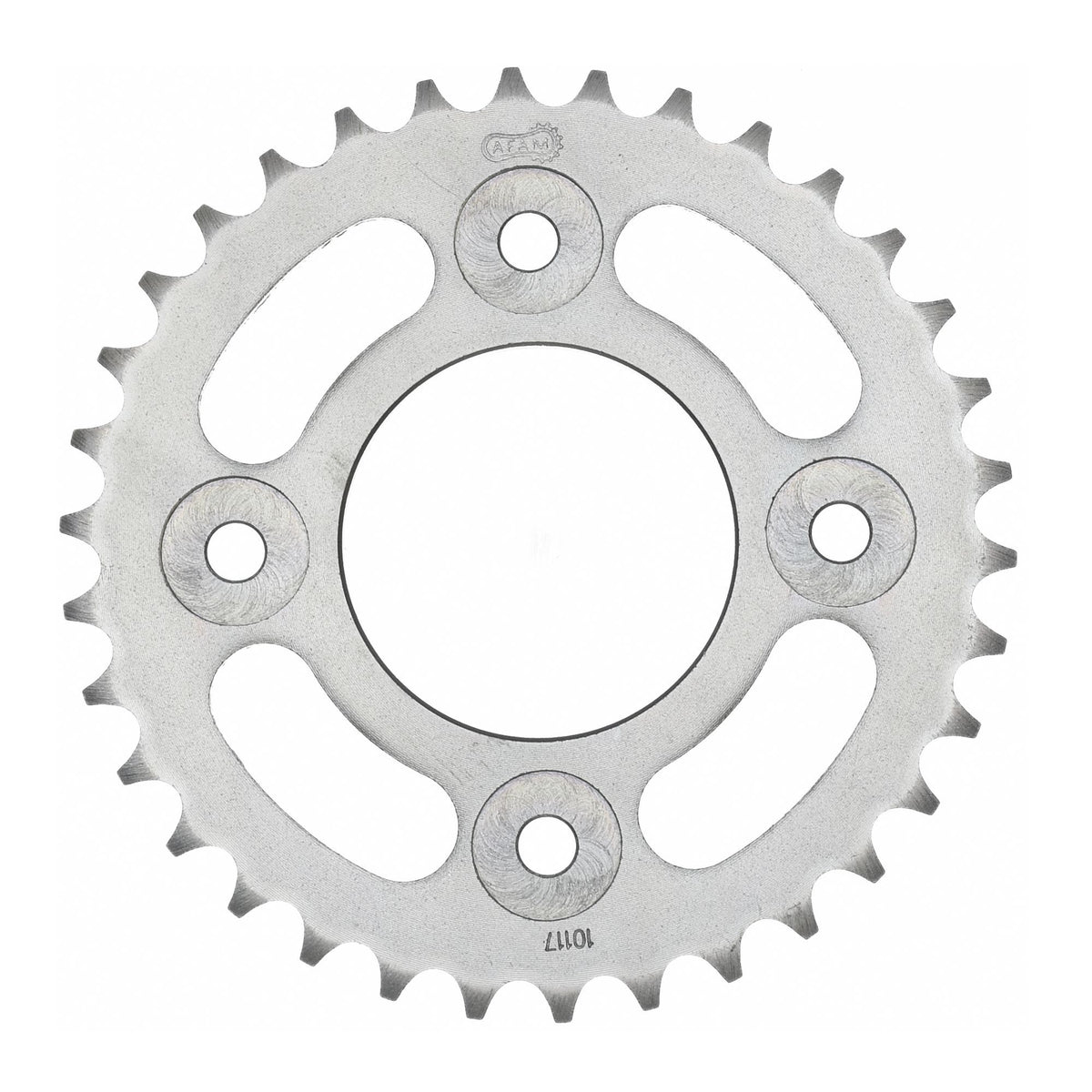

• Rear sprocket: AFAM rear sprocket STEEL #420 34 teeth - a10117.34
• Gear ratio sprocket-chain-rear sprocket: 15-106-34

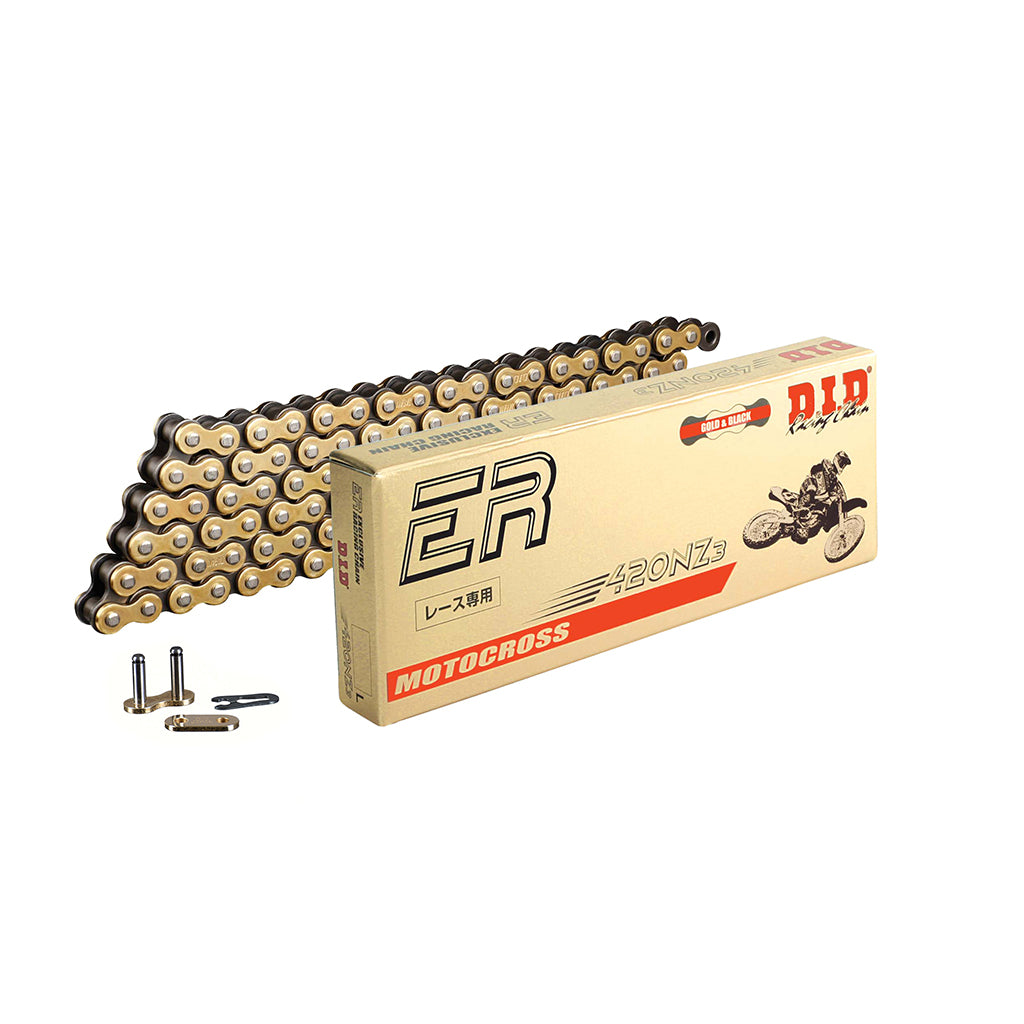

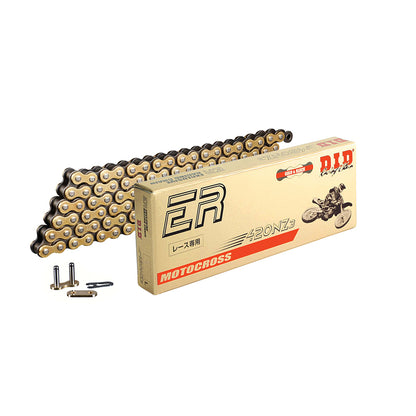

DID 420 NZ3

Extra reinforced chain
Without O-rings
Color: Gold/Black
Application by displacement: up to 150 cc

Technical specifications:
Pitch: 420
Pin length: 16.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.8 mm
Outer plate thickness: 1.8 mm
Wear resistance index: 410
Tensile strength: 21.90 kN
Weight per 100 links: 0.82 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-74056

Suitable for

Honda 101 - 125 cc ST 125 DAX ABS JB06 2025
