DID chain set for Husqvarna Enduro 701 ABS 22-24 520 ZVMX chain kit

DID chain kit for Husqvarna Enduro 701 ABS 22-24 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Husqvarna Enduro 701 ABS 4T 2022-2024 chain kit

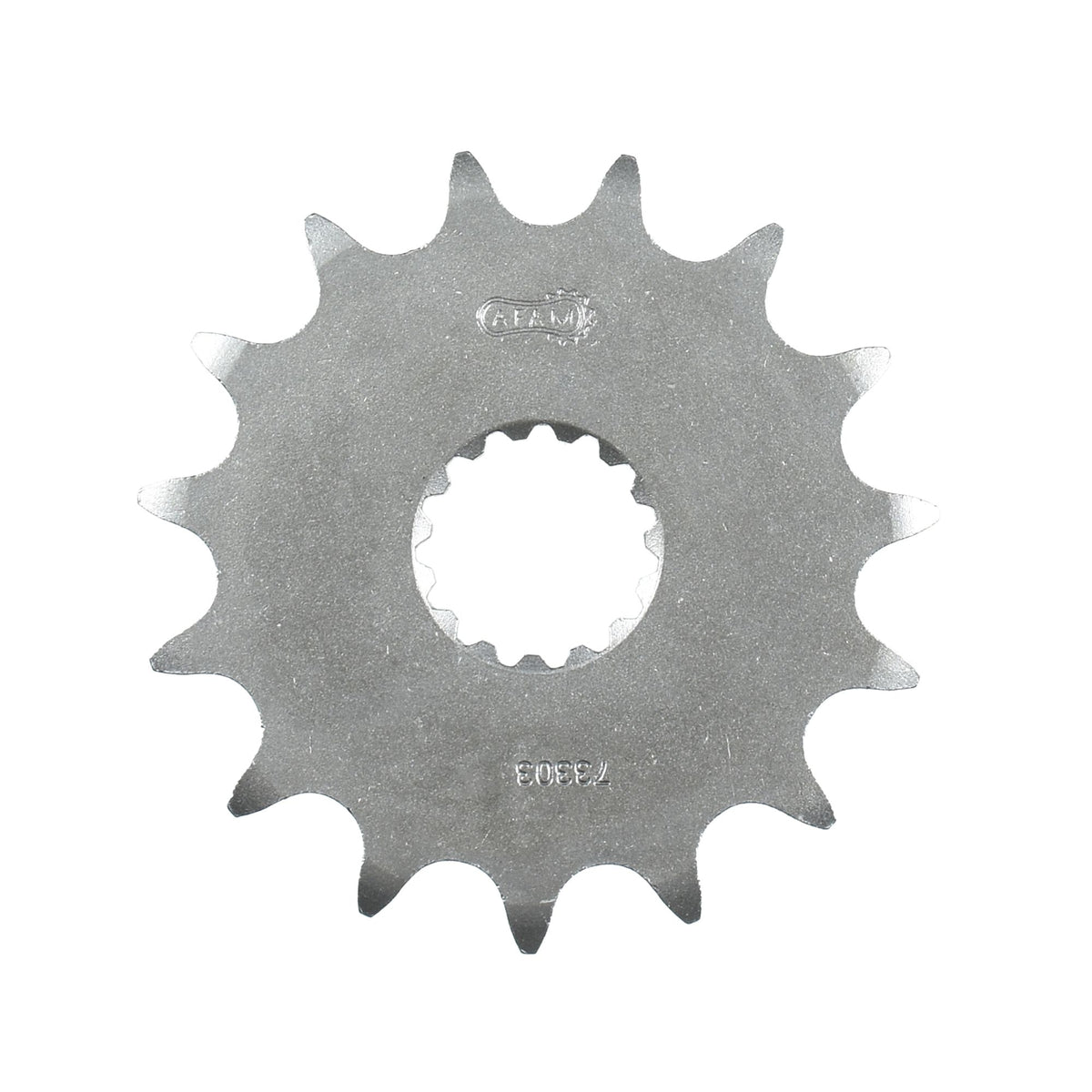

• Front sprocket: AFAM sprocket #520 15 teeth - a73303.15
• Chain: DID chain 520 ZVM-X G&G 118 with rivet link - d6252029118
• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a71304.45
• Gear ratio sprocket-chain-rear sprocket: 15-118-45

DID 520 ZVM-X

Extra reinforced chain, versatile area of application
X-Ring chain
Color: Gold/Gold
Application by engine displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-78714

Fits

Husqvarna 501 - 750 cc Enduro 701 ABS 4T 2022
Husqvarna 501 - 750 cc Enduro 701 ABS 4T 2023
Husqvarna 501 - 750 cc Enduro 701 ABS 4T 2024
