DID chain kit for Husqvarna FC 350 4T 23-25 520 VX3 chain kit

DID Chain Kit for Husqvarna FC 350 4T 23-25 520 VX3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

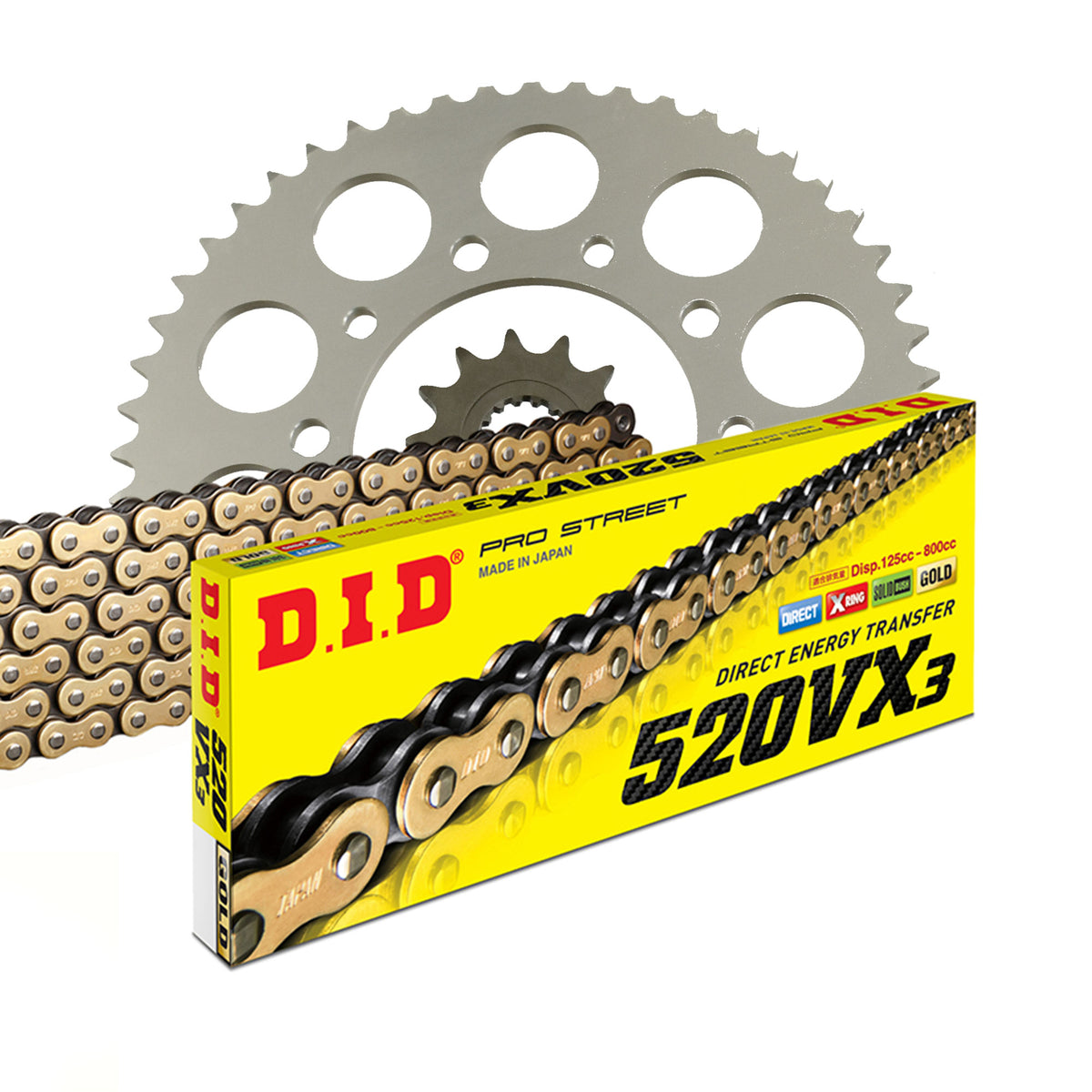

Components of the Husqvarna FC 350 4T 2023-2025 Chain Kit

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118

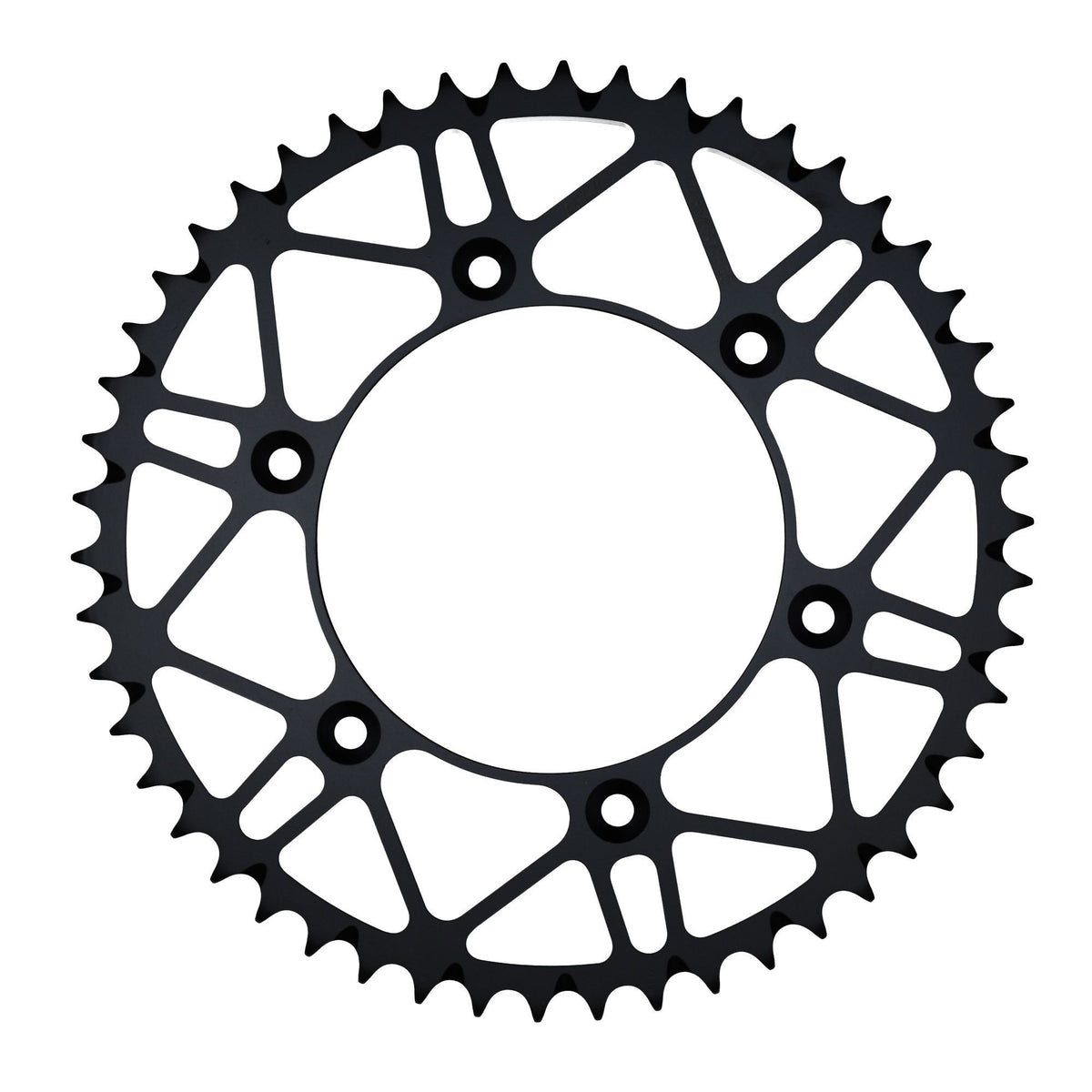

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 52 T - a71304slk.52
• Gear ratio sprocket-chain-rear sprocket: 14-118-52

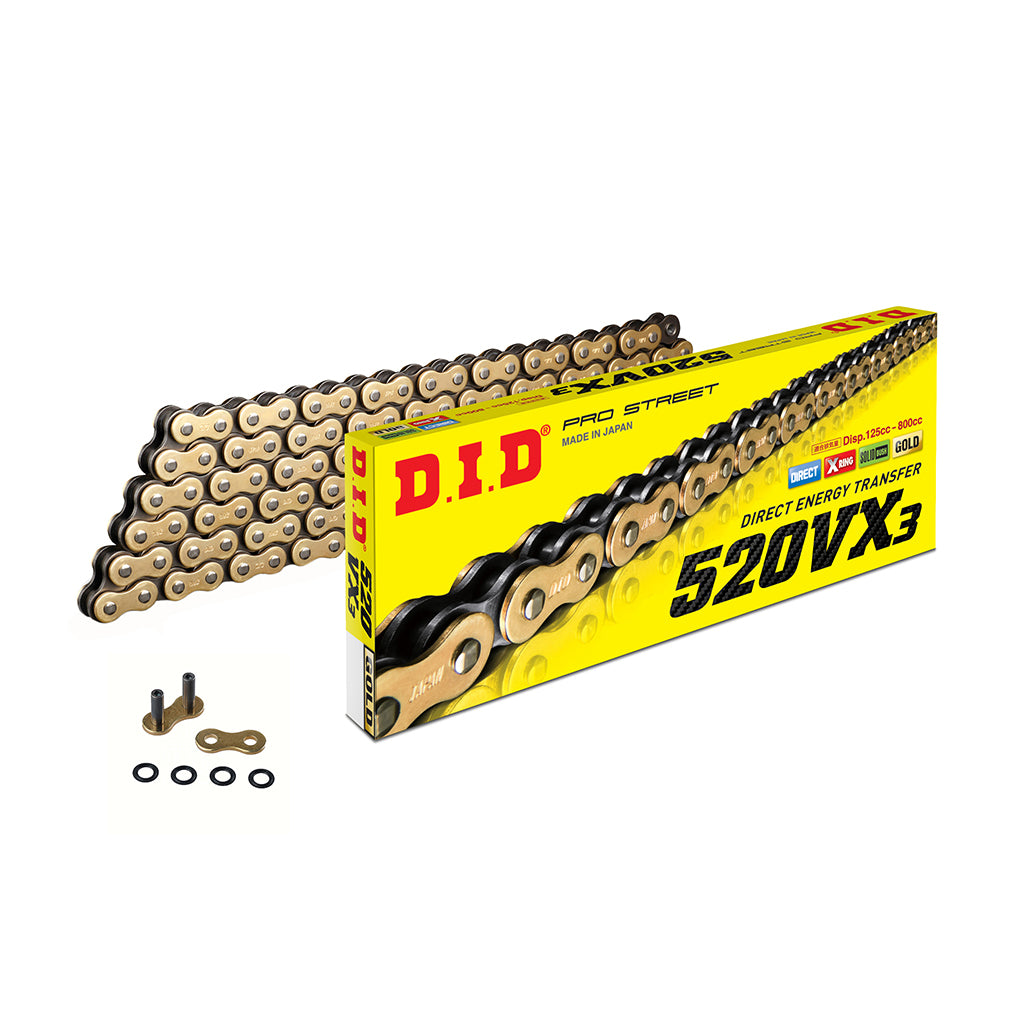

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-67969

Fits

Husqvarna 251 - 500 cc FC 350 4T 2023
Husqvarna 251 - 500 cc FC 350 4T 2024
Husqvarna 251 - 500 cc FC 350 4T 2025
