DID chain kit for Husqvarna FE 501 4T 23-24 520 ERT3 chain kit

DID Chain Kit for Husqvarna FE 501 4T 23-24 520 ERT3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Husqvarna FE 501 4T 2023-2024

• Front sprocket: AFAM sprocket #520 SC 13 teeth - a73301.13sc
• Chain: DID chain 520 ERT3 G&G 116 with clip link - d520ert3-116

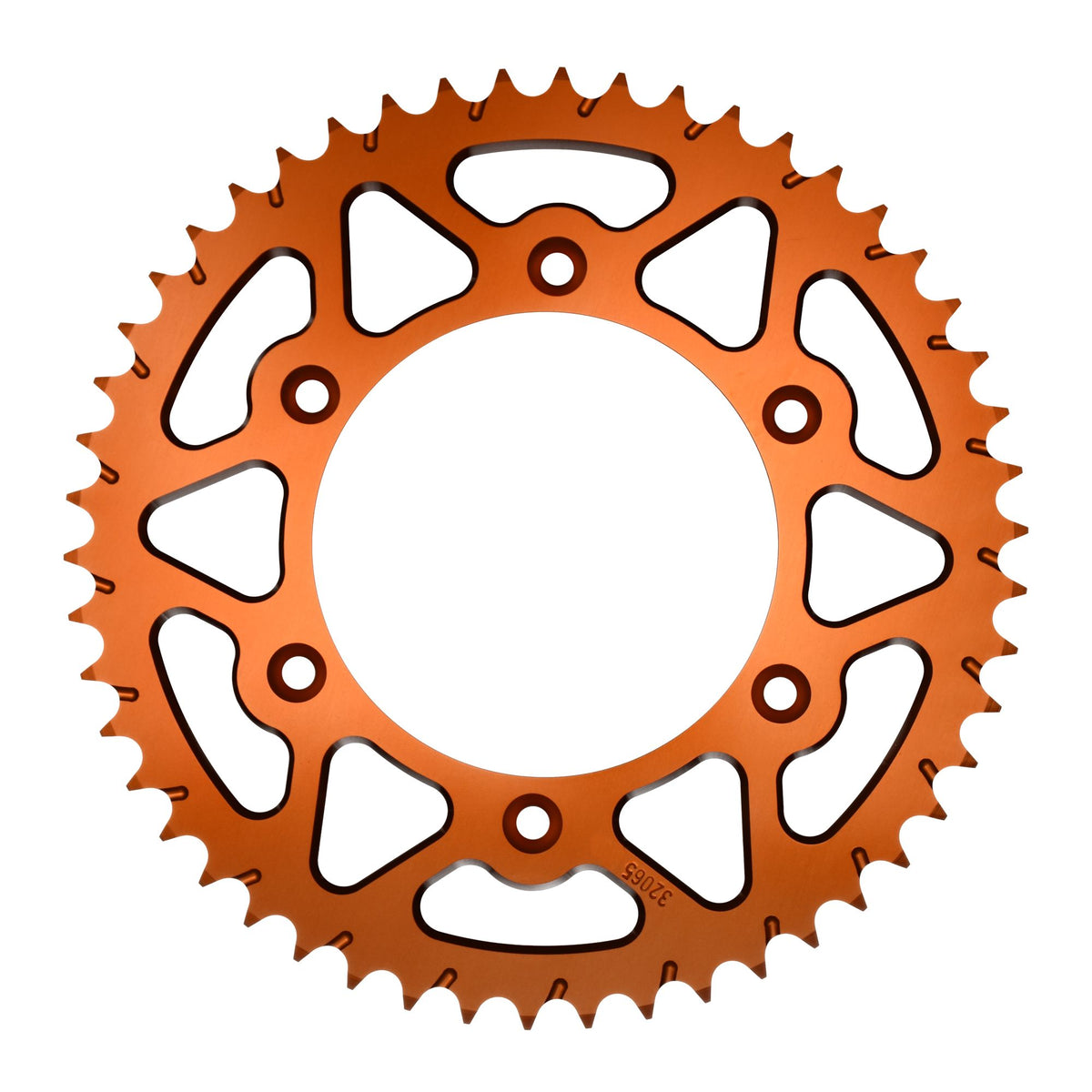

• Rear sprocket: Esjot sprocket 72304-50 ALU #520 50 teeth orange - a72304o.50
• Transmission ratio front sprocket-chain-rear sprocket: 13-116-50

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-67867

Fits

Husqvarna 501 - 750 ccm FE 501 4T 2023
Husqvarna 501 - 750 ccm FE 501 4T 2024
