DID chain set for Husqvarna TC 125 2T 18-19 520 VX3 chain kit

DID chain kit for Husqvarna TC 125 2T 18-19 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Husqvarna TC 125 2T 2018-2019

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 VX3 G&B 116 with rivet link - d520vx3-116
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a72304n.50
• Gear ratio front sprocket-chain-rear sprocket: 13-116-50

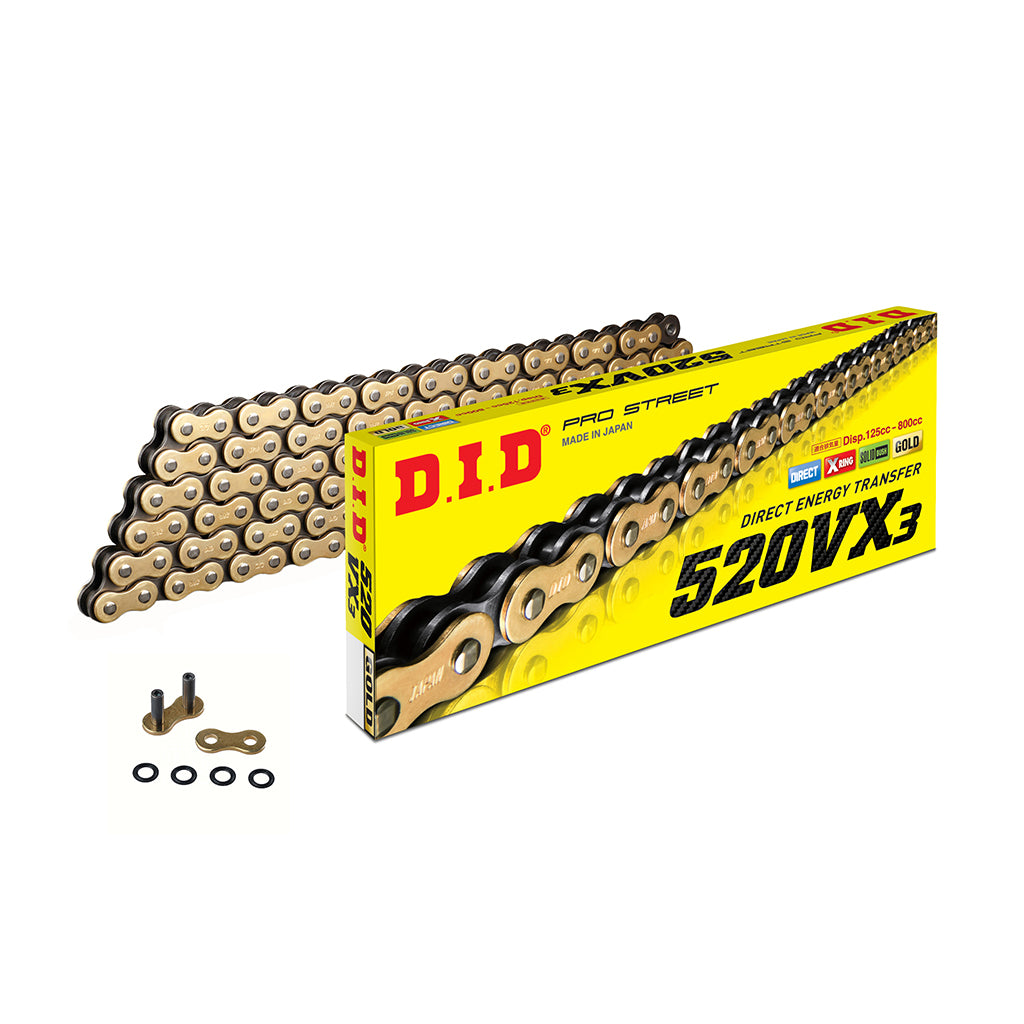

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-69887

Suitable for

Husqvarna 101 - 125 cc TC 125 2T 2018
Husqvarna 101 - 125 cc TC 125 2T 2019
