DID chain kit for Husqvarna TC 125 2T 18-19 520 ZVMX chain kit

DID Chain Kit for Husqvarna TC 125 2T 18-19 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit for Husqvarna TC 125 2T 2018-2019

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ZVM-X G&G 116 with rivet link - d6252029116

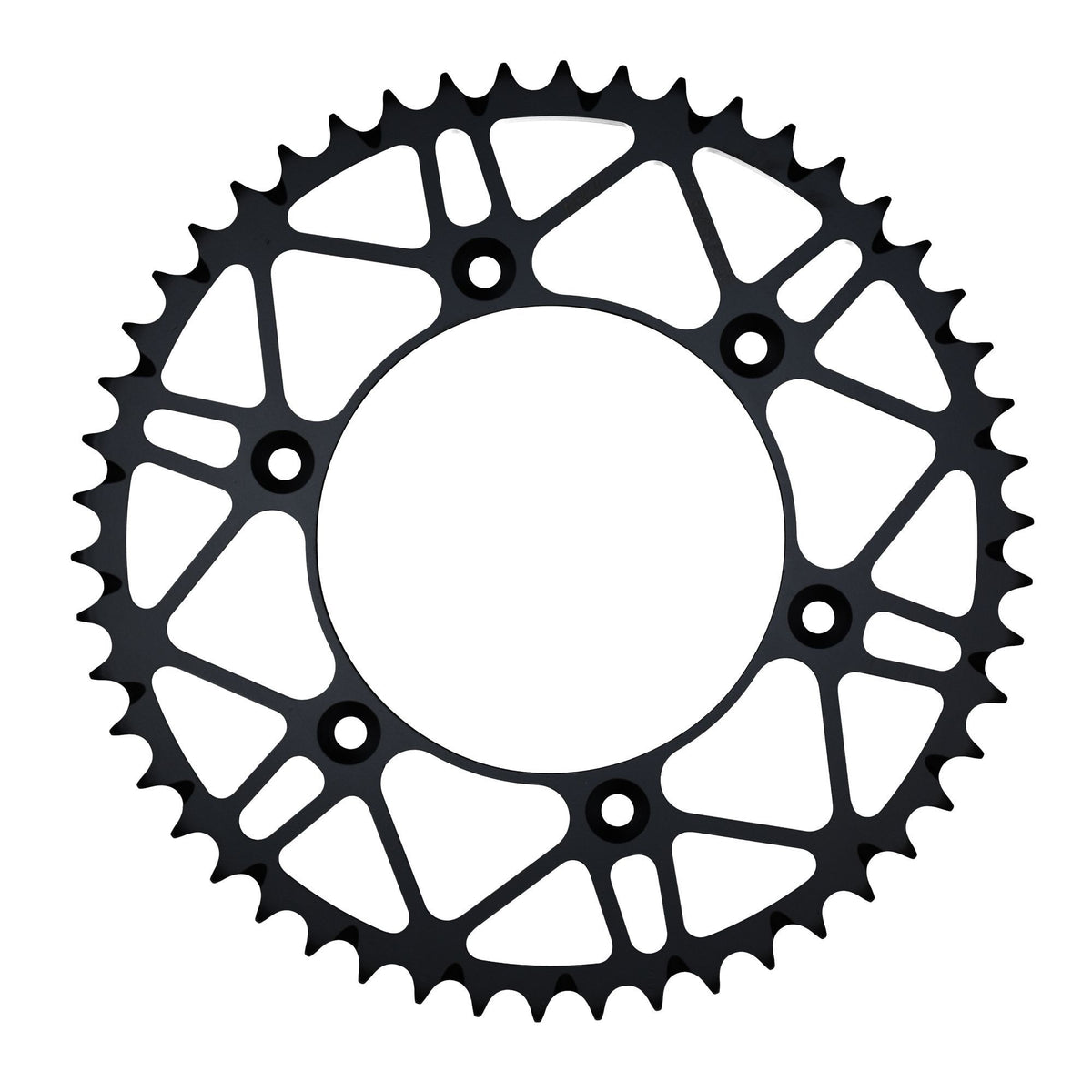

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio sprocket-chain-rear sprocket: 13-116-50

DID 520 ZVM-X

Extra reinforced chain, versatile application area
X-Ring chain
Color: Gold/Gold
Application by engine displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the authorization of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-69632

Suitable for

Husqvarna 101 - 125 cc TC 125 2T 2018
Husqvarna 101 - 125 cc TC 125 2T 2019
