DID chain kit for Husqvarna TC 85 (19/16 inch) 18-21 428 D chain kit

DID chain kit for Husqvarna TC 85 (19/16 inch) 18-21 428 D chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Husqvarna TC 85 (19/16 inch) 2018-2021 chain kit

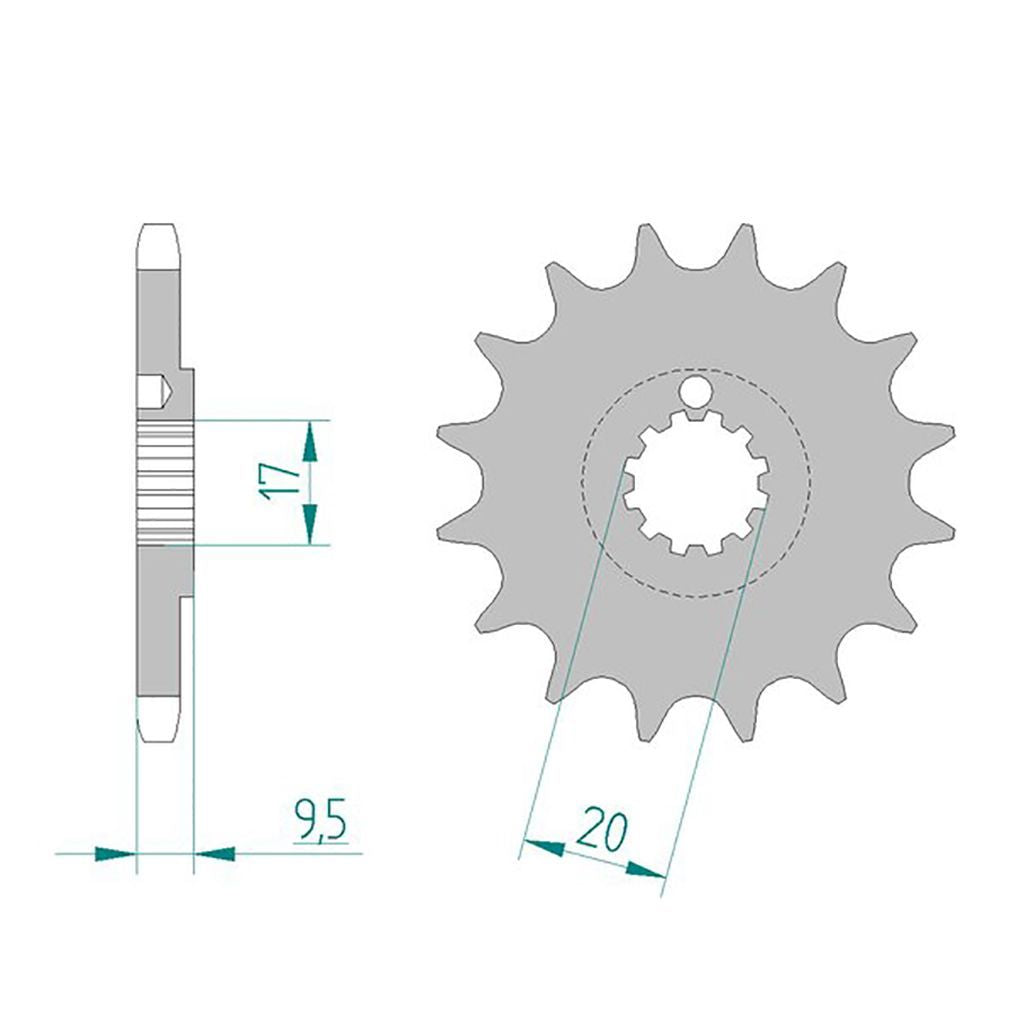

• Sprocket: AFAM sprocket #428 13 teeth - a94202.13
• Chain: DID chain 428 D 124 with clip link - d6242800124
• Rear sprocket: AFAM rear sprocket 49 teeth - a72102n.49
• Gear ratio sprocket-chain-rear sprocket: 13-124-49

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-69853

Fits

Husqvarna 0 - 100 cc TC 85 (19/16 inch) 2018
Husqvarna 0 - 100 cc TC 85 (19/16 inch) 2019
Husqvarna 0 - 100 cc TC 85 (19/16 inch) 2020
Husqvarna 0 - 100 cc TC 85 (19/16 inch) 2021
