DID chain set for Husqvarna TE 300 2T 2023 520 VX3 chain kit

DID chain set for Husqvarna TE 300 2T 2023 520 VX3 chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

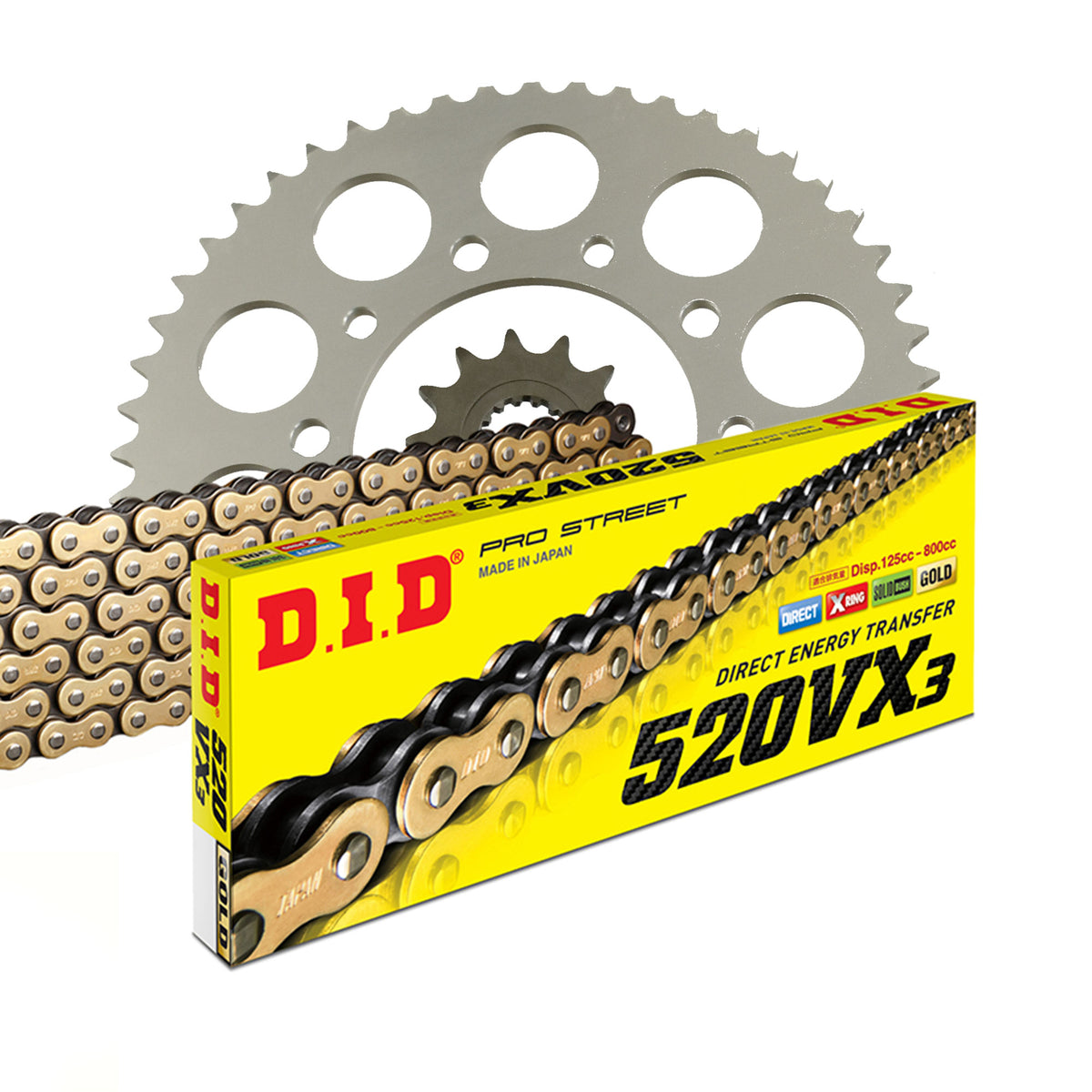

Components of the Husqvarna TE 300 2T 2023-2023 chain kit

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 VX3 G&B 116 with rivet link - d520vx3-116
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a72304n.50
• Transmission ratio front sprocket-chain-rear sprocket: 13-116-50

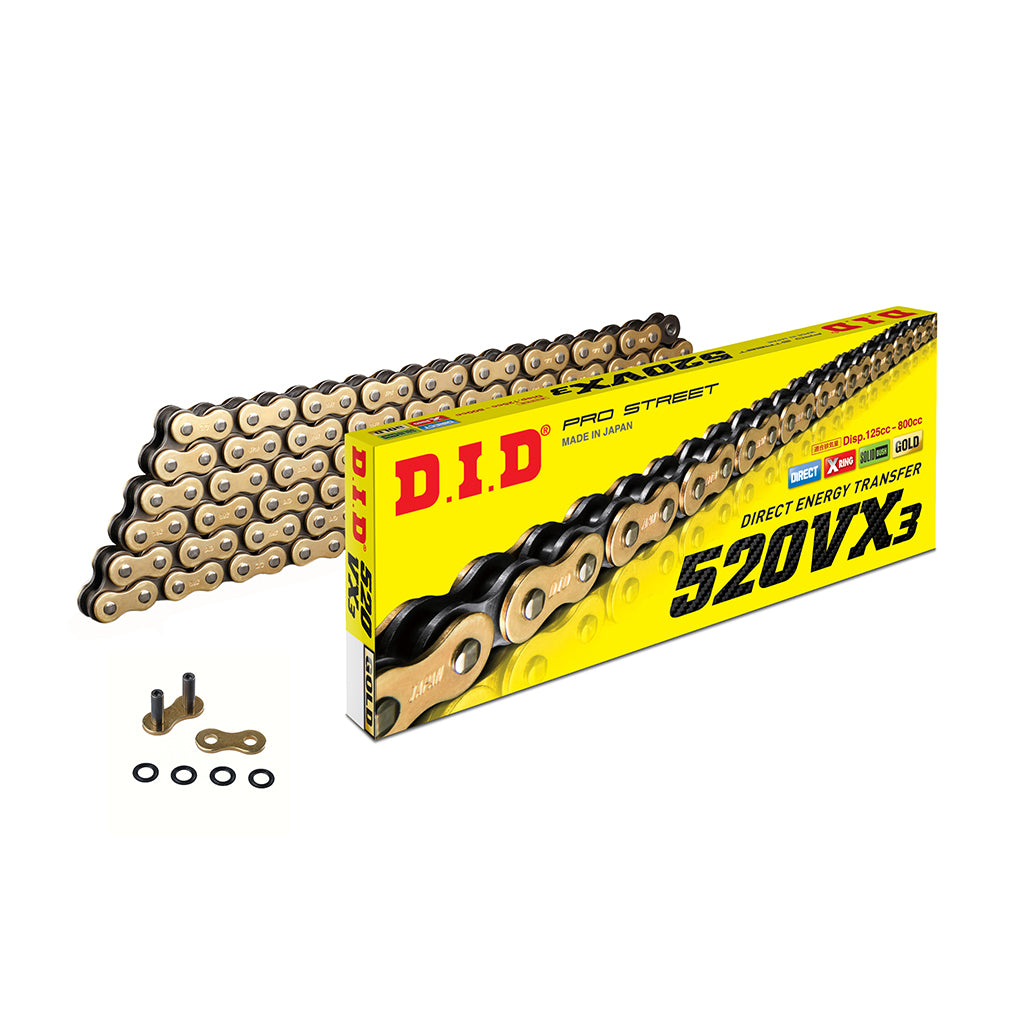

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-69946

Suitable for

Husqvarna 251 - 500 cc TE 300 2T 2023
