DID chain set for Hyosung XRX 125 Enduro AC 07-12 428 D chain kit

DID chain kit for Hyosung XRX 125 Enduro AC 07-12 428 D chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to demonstrate compatibility!

Components of the chain kit for Hyosung XRX 125 Enduro AC KM4PF42A 2007-2012

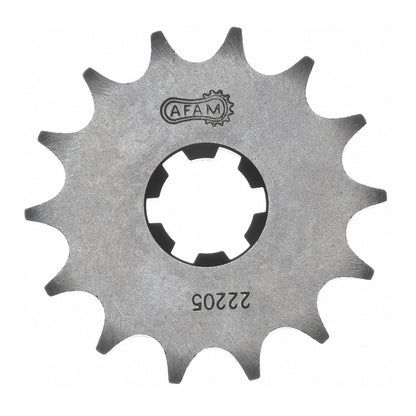

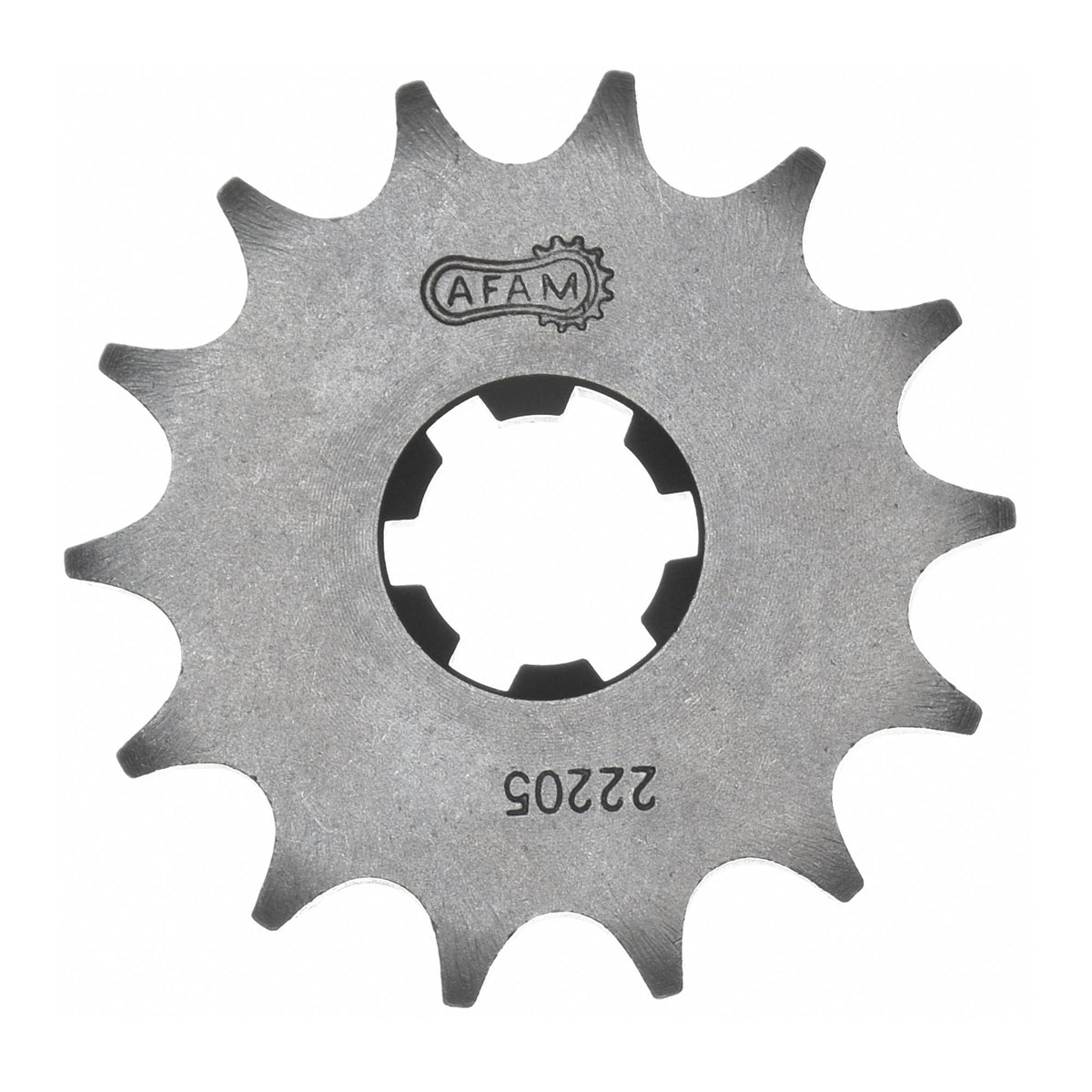

• Sprocket: AFAM sprocket #428 13 teeth - a22205.13

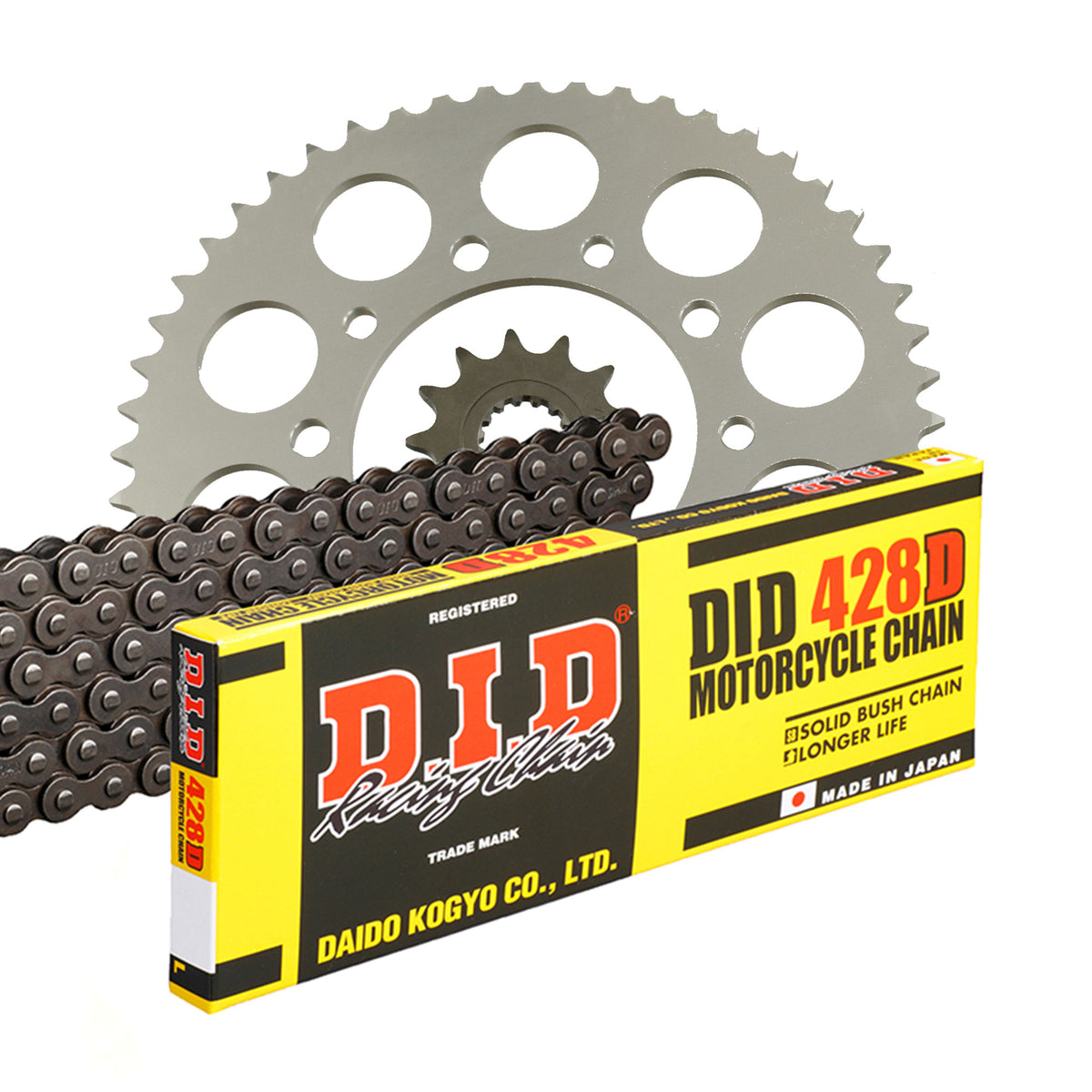

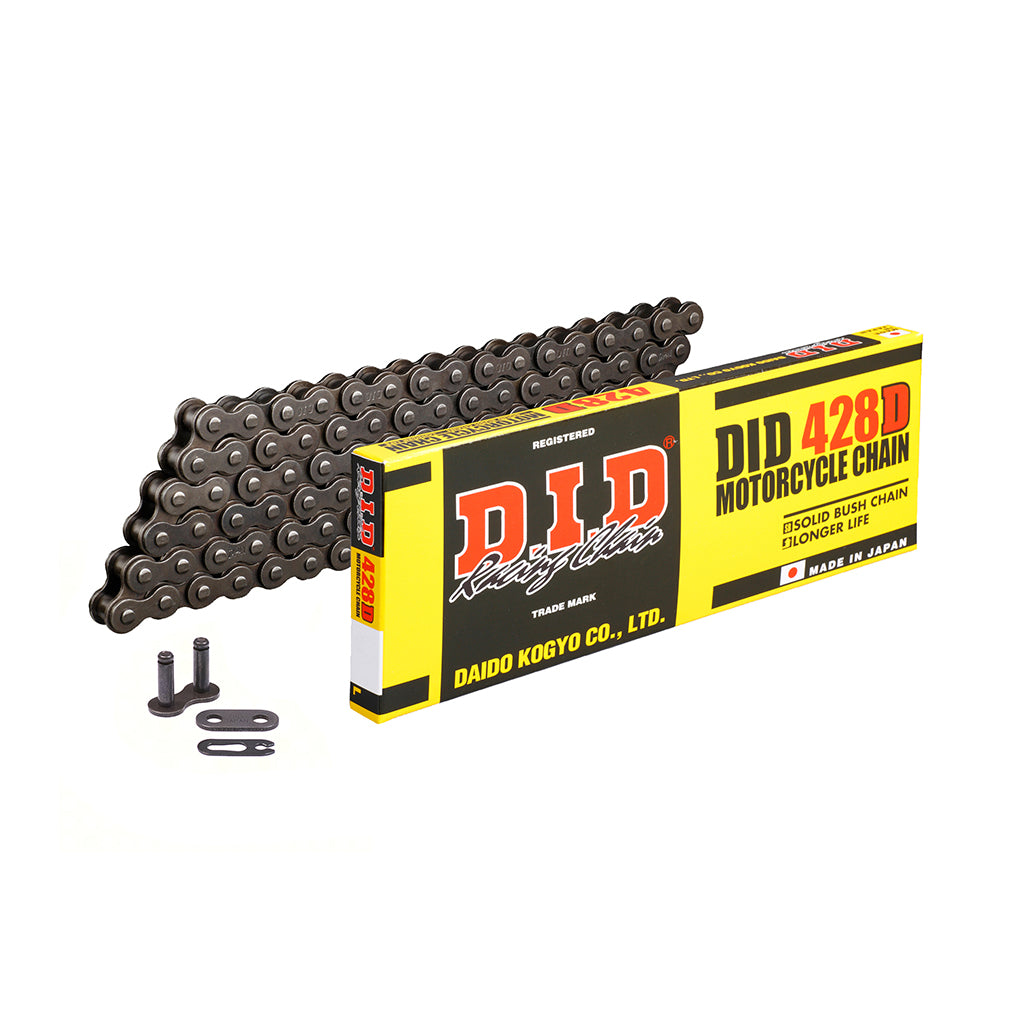

• Chain: DID chain 428 D 132 with clip-type connecting link - d6242800132

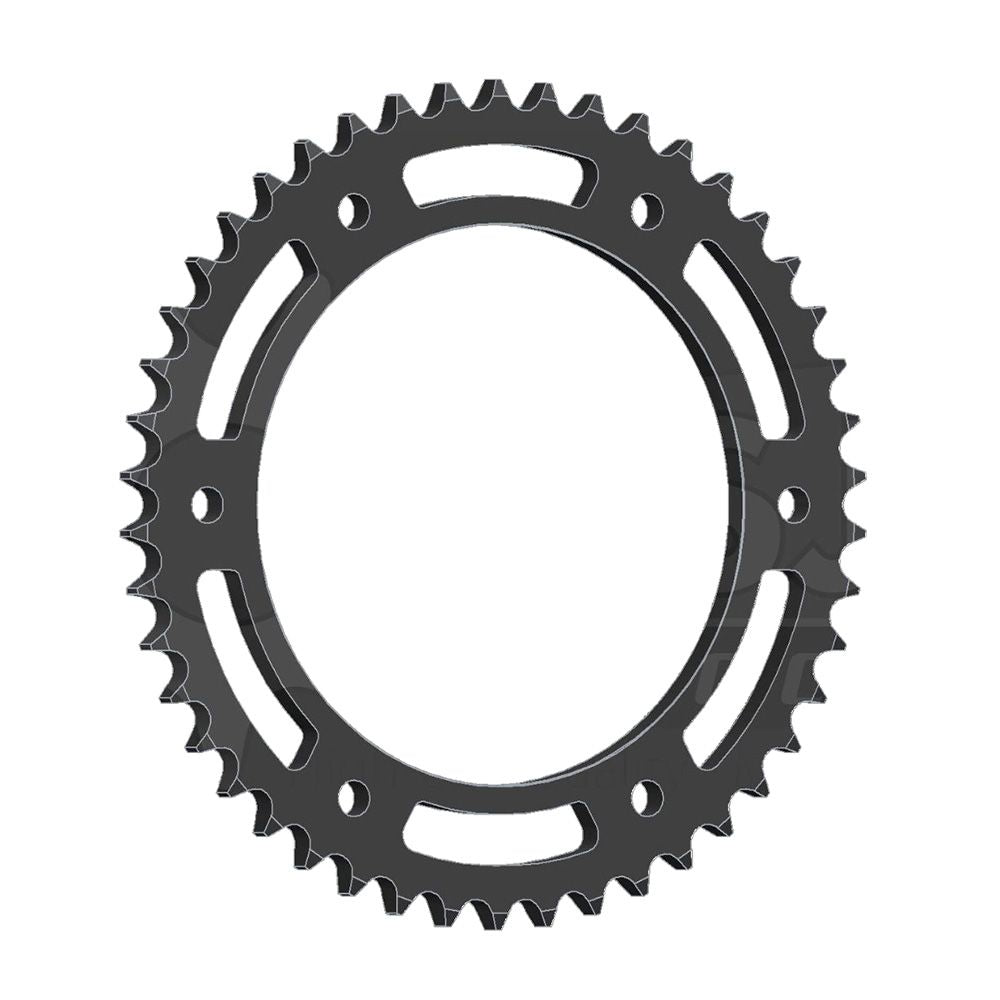

• Chainwheel: Esjot STEEL chainwheel #428 46 teeth - e5015085.46
• Gear ratio sprocket-chain-chainwheel: 13-132-46

DID 428 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 16.7 mm
Roller Ø: 8.50 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 18.80 kN
Weight per 100 links: 0.84 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78853

Suitable for

Hyosung 101 - 125 ccm XRX 125 Enduro AC KM4PF42A 2007
Hyosung 101 - 125 ccm XRX 125 Enduro AC KM4PF42A 2008
Hyosung 101 - 125 ccm XRX 125 Enduro AC KM4PF42A 2009
Hyosung 101 - 125 ccm XRX 125 Enduro AC KM4PF42A 2010
Hyosung 101 - 125 ccm XRX 125 Enduro AC KM4PF42A 2011
Hyosung 101 - 125 ccm XRX 125 Enduro AC KM4PF42A 2012
