DID chain kit for Hyosung XRX 125 Enduro AC 07-12 428 VX chain kit

DID chain kit for Hyosung XRX 125 Enduro AC 07-12 428 VX chain set

Chain set or chain kit for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

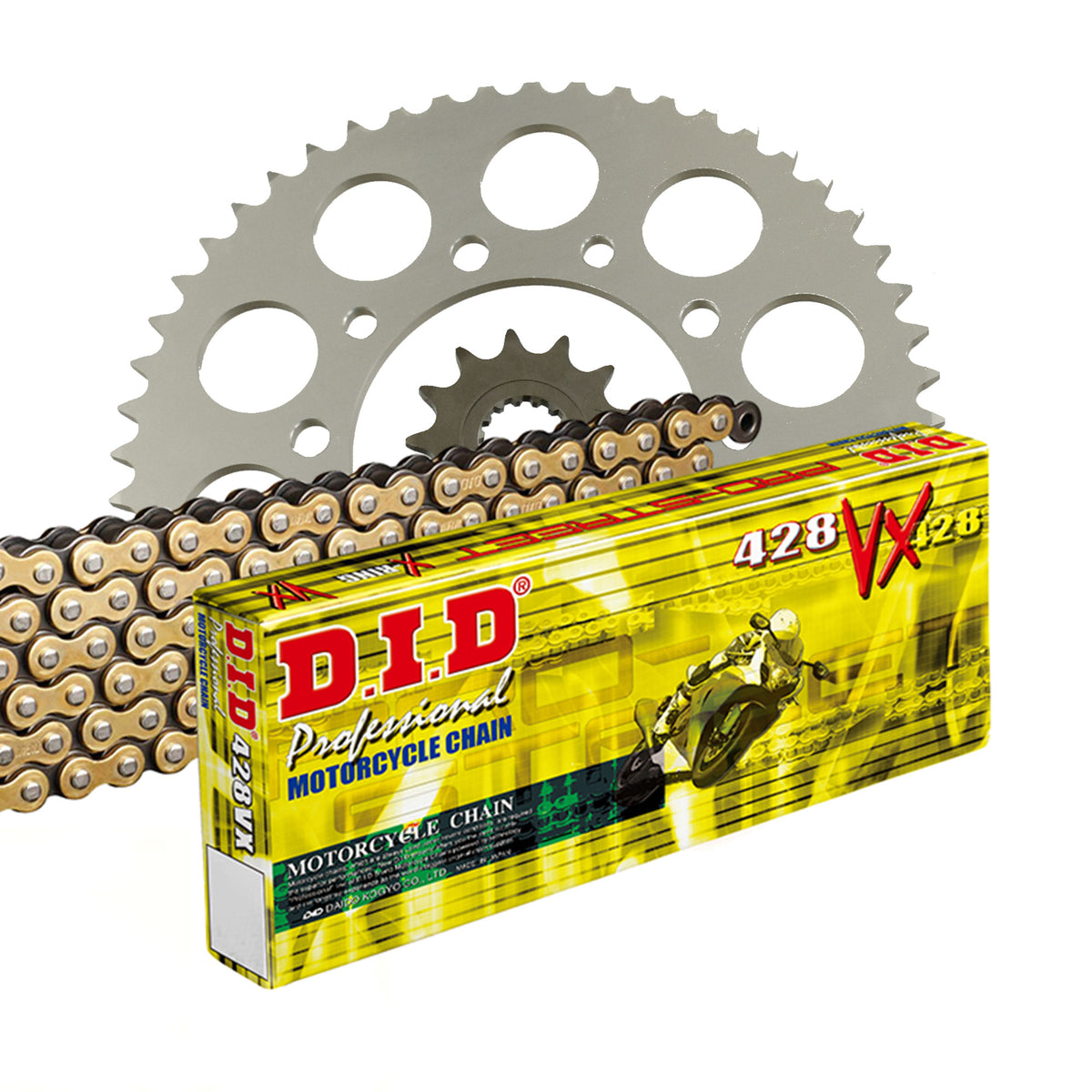

Components of the chain kit Hyosung XRX 125 Enduro AC KM4PF42A 2007-2012

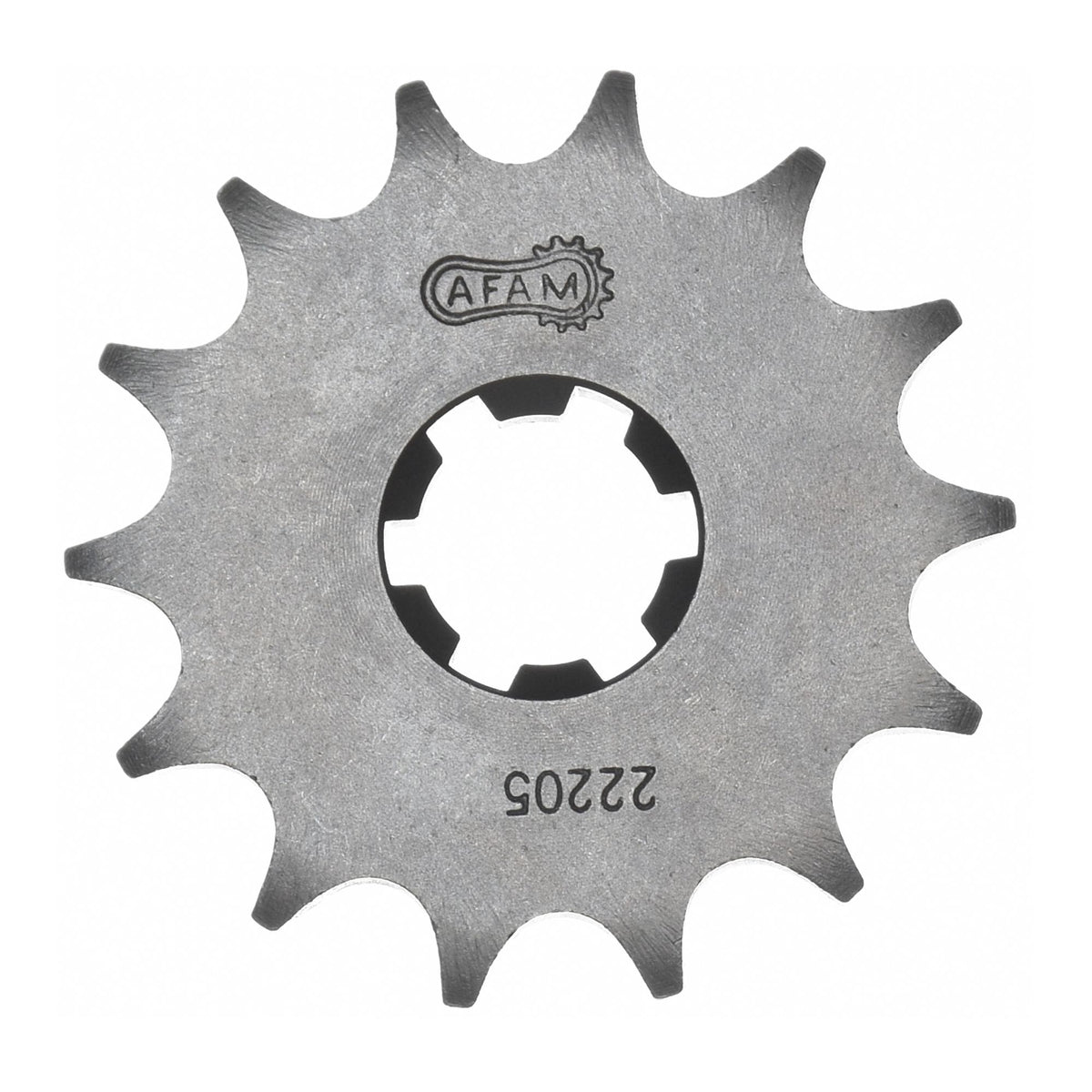

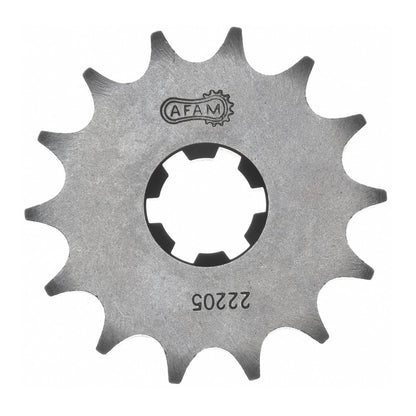

• Sprocket: AFAM sprocket #428 13 teeth - a22205.13

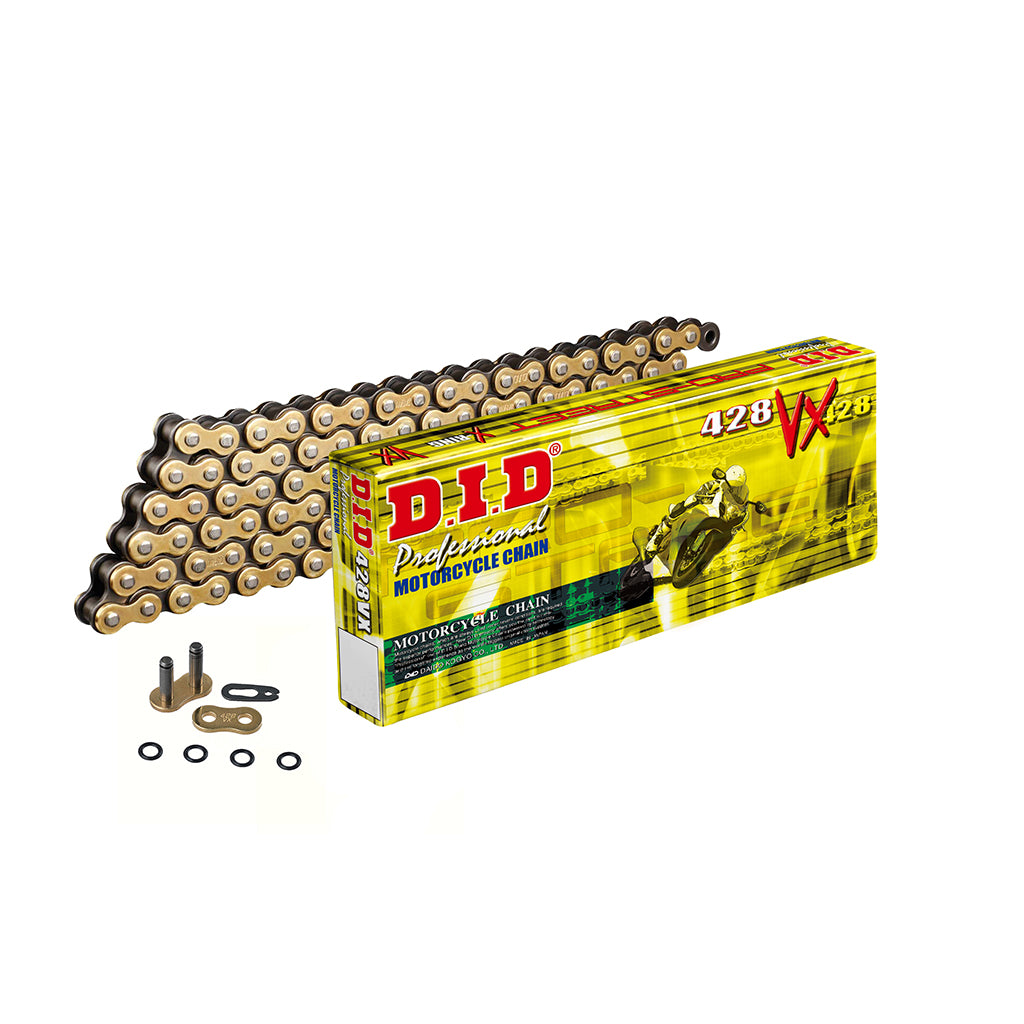

• Chain: DID chain 428 VX G&B 132 with clip link - d6242825132

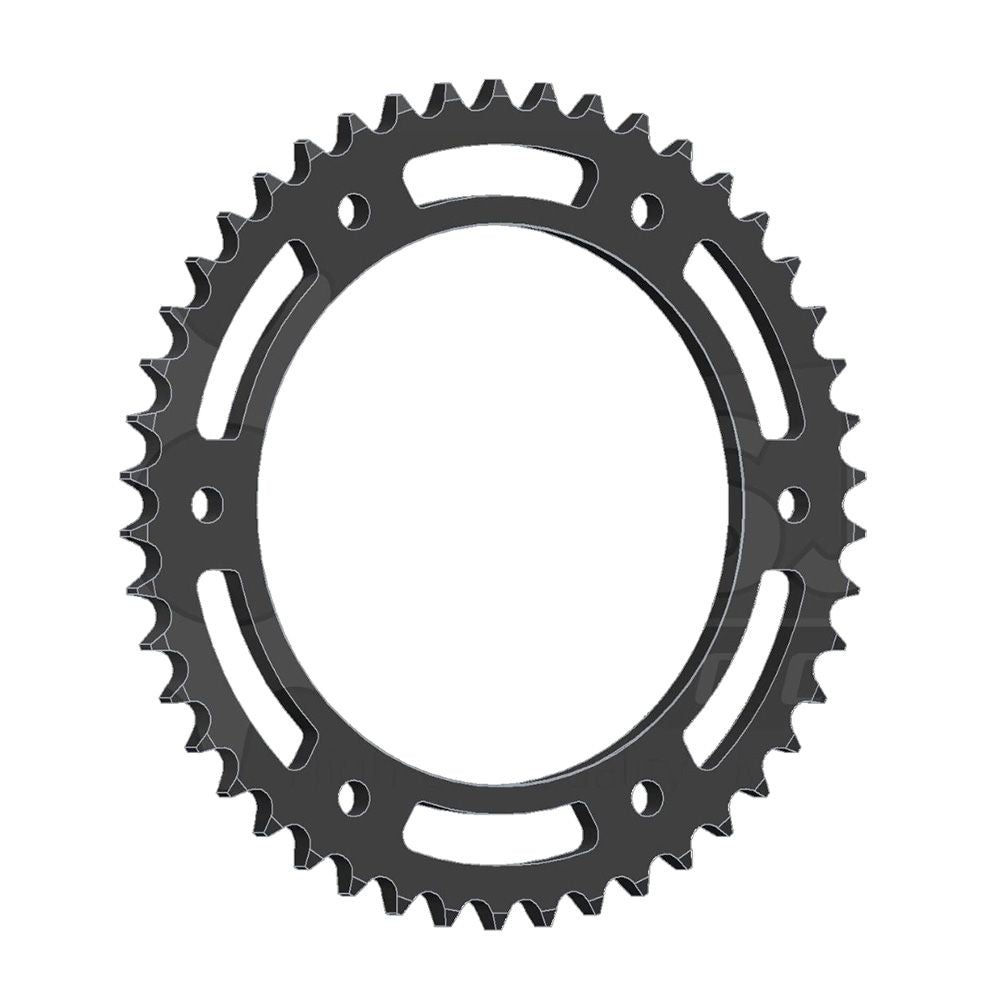

• Chain wheel: Esjot chain wheel STEEL #428 46 teeth - e5015085.46
• Gear ratio sprocket-chain-chain wheel: 13-132-46

DID 428 VX

Very good quality in the 428 range
X-Ring chain
Color: Gold/Black

Technical specifications:
Pitch: 428
Pin length: 20.65 mm
Roller Ø: 8.6 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 2700
Tensile strength: 33.00 kN
Weight per 100 links: 1.21 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-78904

Suitable for

Hyosung 101 - 125 cc XRX 125 Enduro AC KM4PF42A 2007
Hyosung 101 - 125 cc XRX 125 Enduro AC KM4PF42A 2008
Hyosung 101 - 125 cc XRX 125 Enduro AC KM4PF42A 2009
Hyosung 101 - 125 cc XRX 125 Enduro AC KM4PF42A 2010
Hyosung 101 - 125 cc XRX 125 Enduro AC KM4PF42A 2011
Hyosung 101 - 125 cc XRX 125 Enduro AC KM4PF42A 2012
