DID chain set for Kawasaki KX 250 4T 21-22 520 ERT3 chain kit

DID chain kit for Kawasaki KX 250 4T 21-22 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

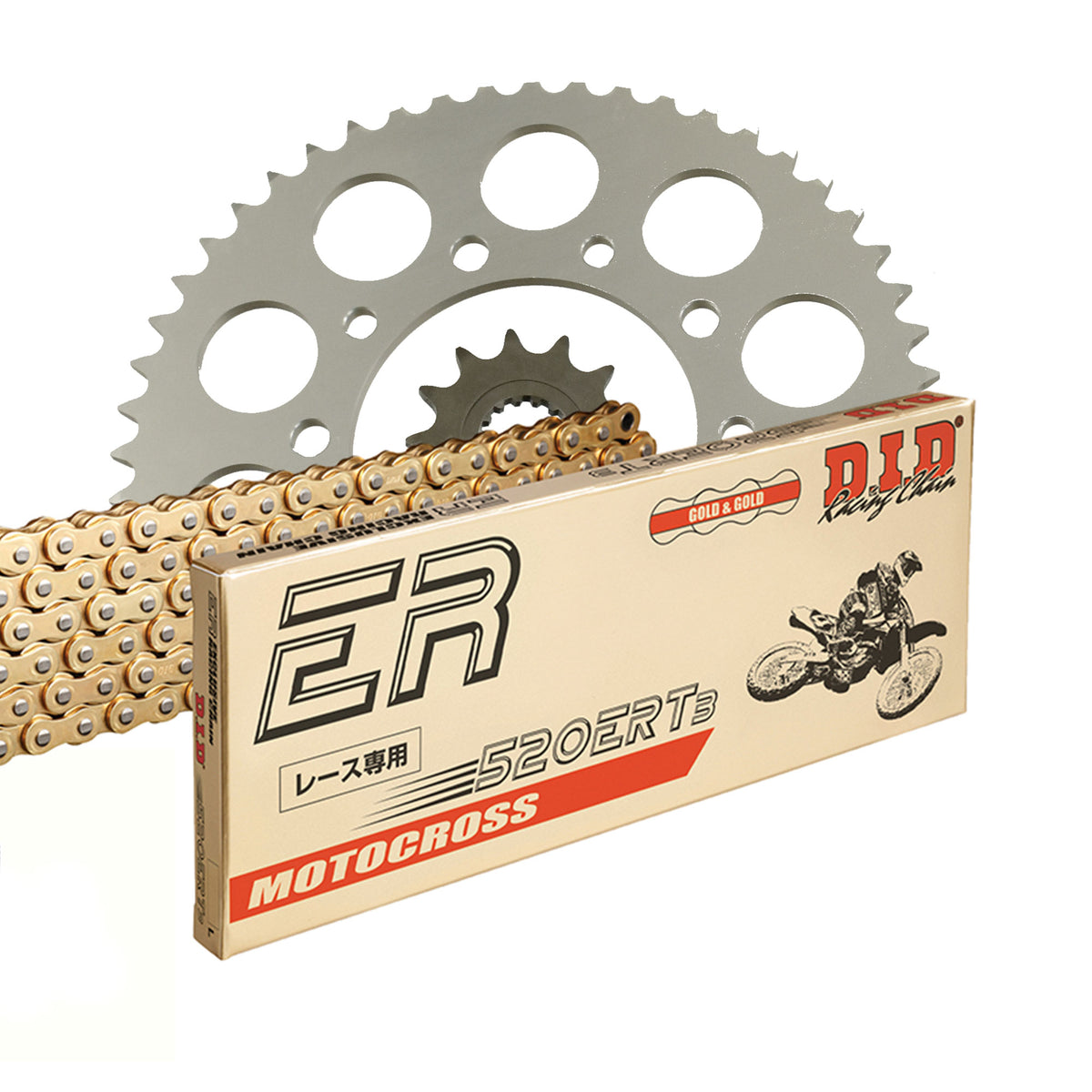

Components of the chain kit for Kawasaki KX 250 4T KX252C 2021-2022

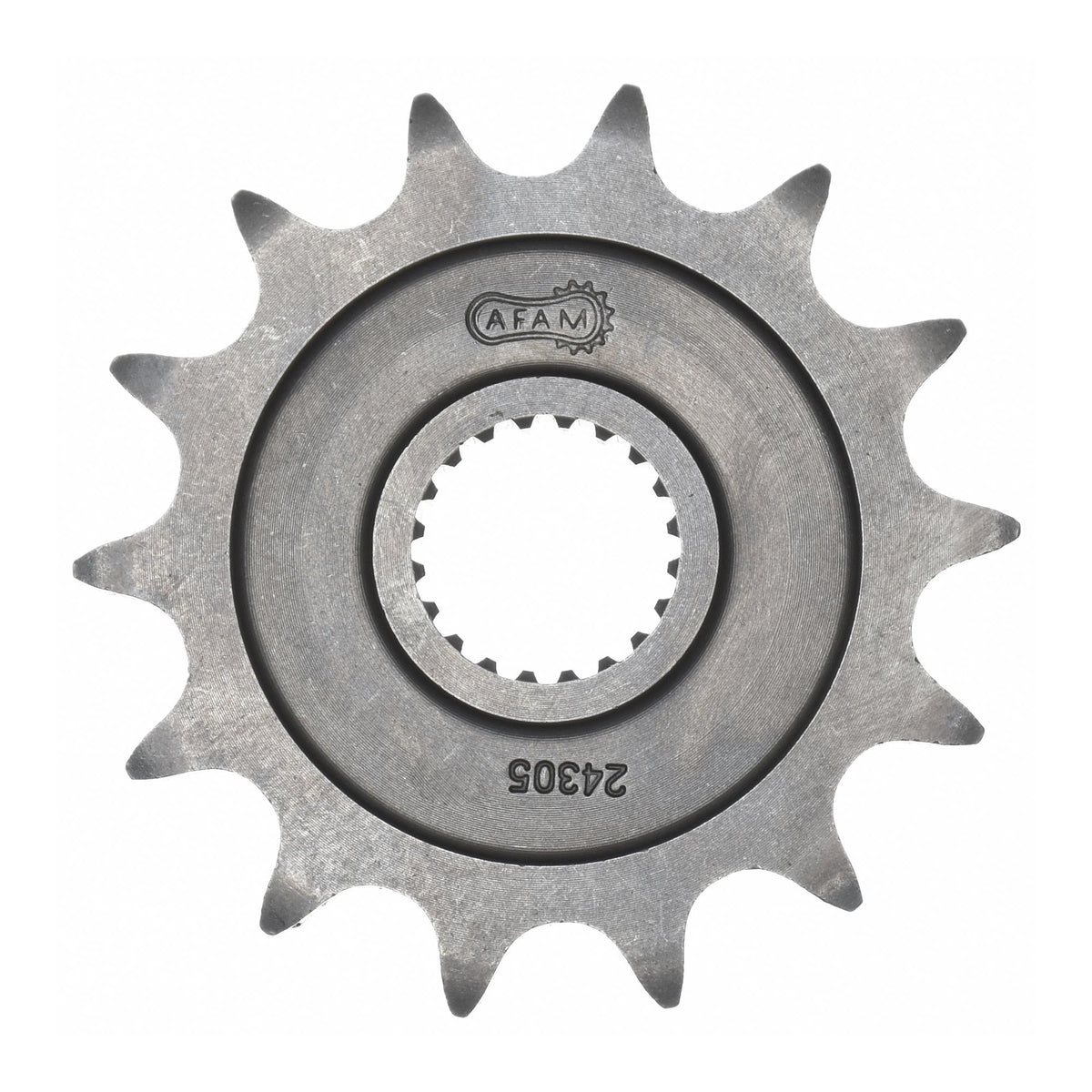

• Sprocket: AFAM sprocket #520 13 teeth - a24305.13
• Chain: DID chain 520 ERT3 G&G 114 with clip-type connecting link - d520ert3-114

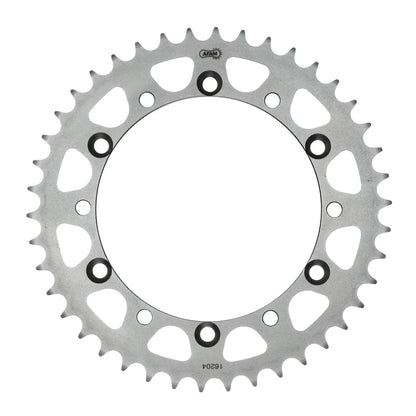

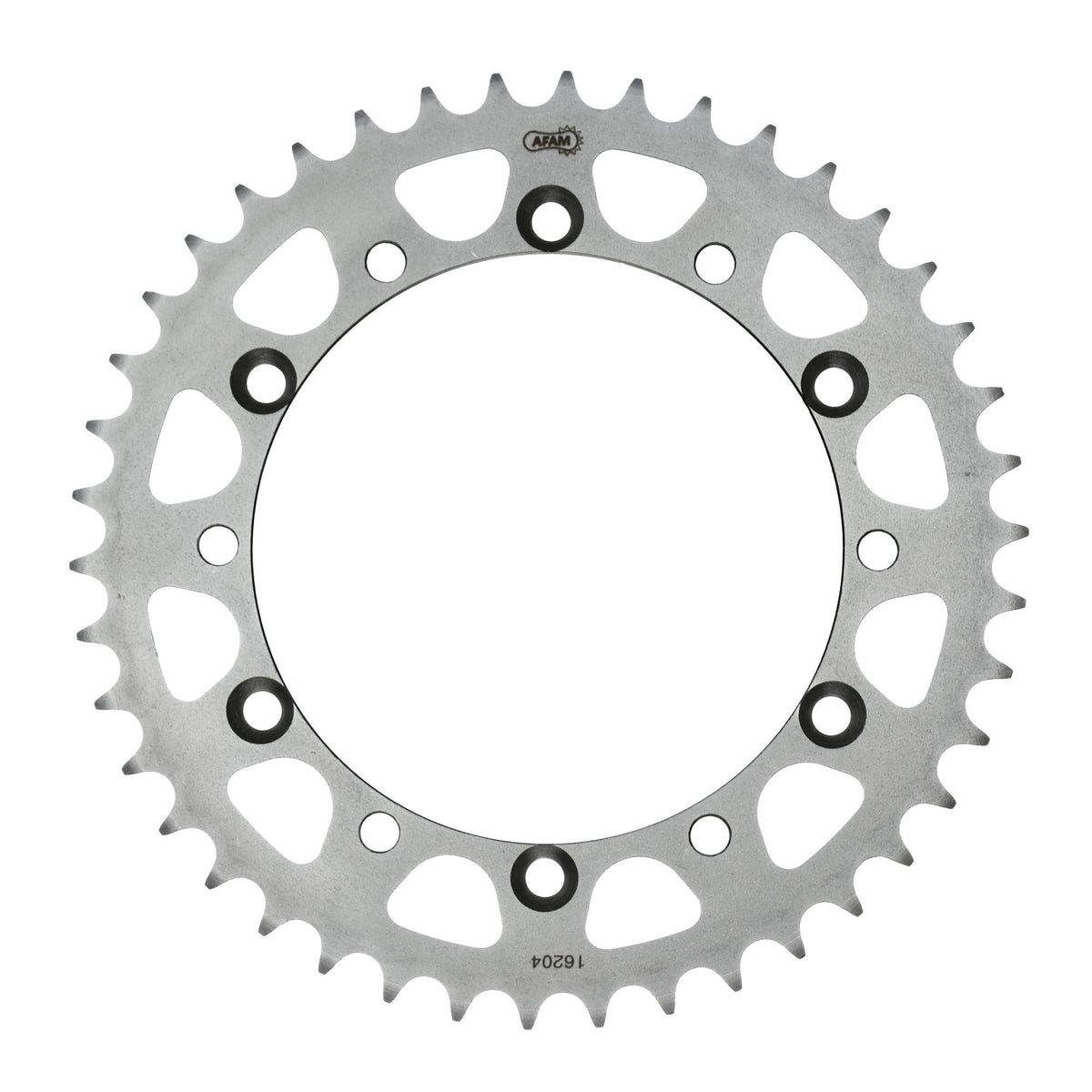

• Rear sprocket: AFAM steel rear sprocket #520 50 teeth - a16204.50
• Transmission ratio sprocket-chain-rear sprocket: 13-114-50

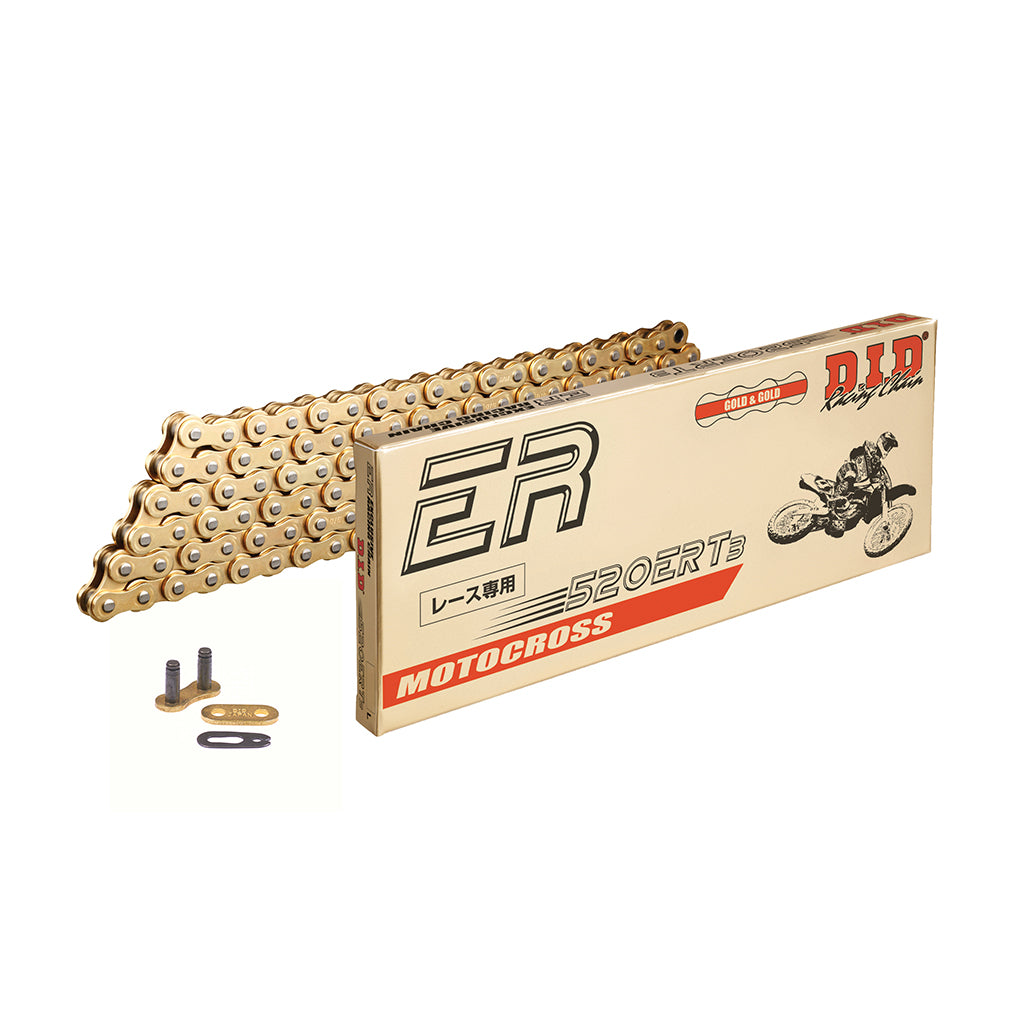

DID 520 ERT3

Extra reinforced pure moto-cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / moto-cross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-71618

Fits the following

Kawasaki 126 - 250 cc KX 250 4T KX252C 2021
Kawasaki 126 - 250 cc KX 250 4T KX252C 2022
