DID chain kit for Kawasaki KX 250 X 4T 23-24 520 ERT3 chain kit

DID Chain kit for Kawasaki KX 250 X 4T 23-24 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are only for compatibility purposes!

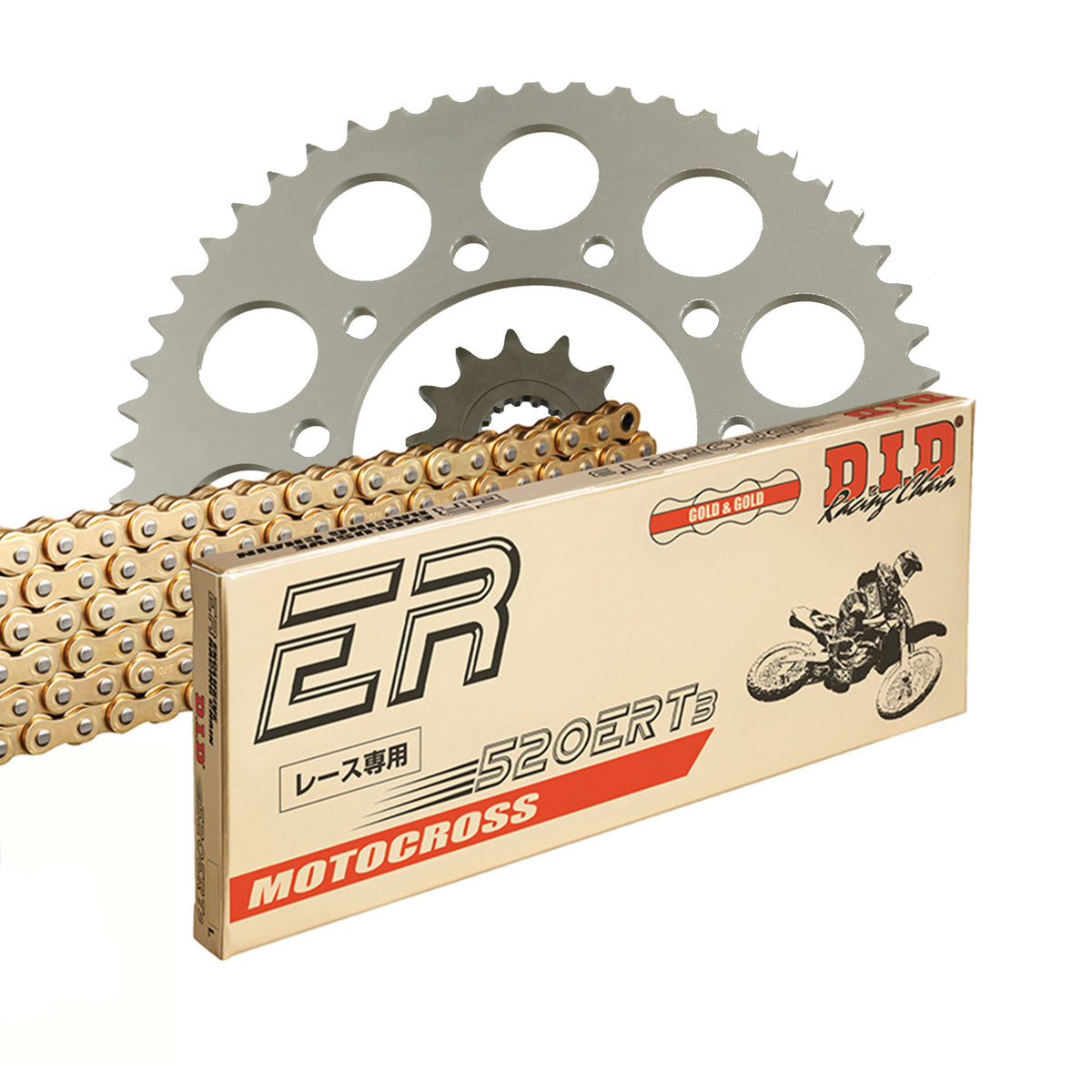

Components of the chain kit Kawasaki KX 250 X 4T KX252C 2023-2024

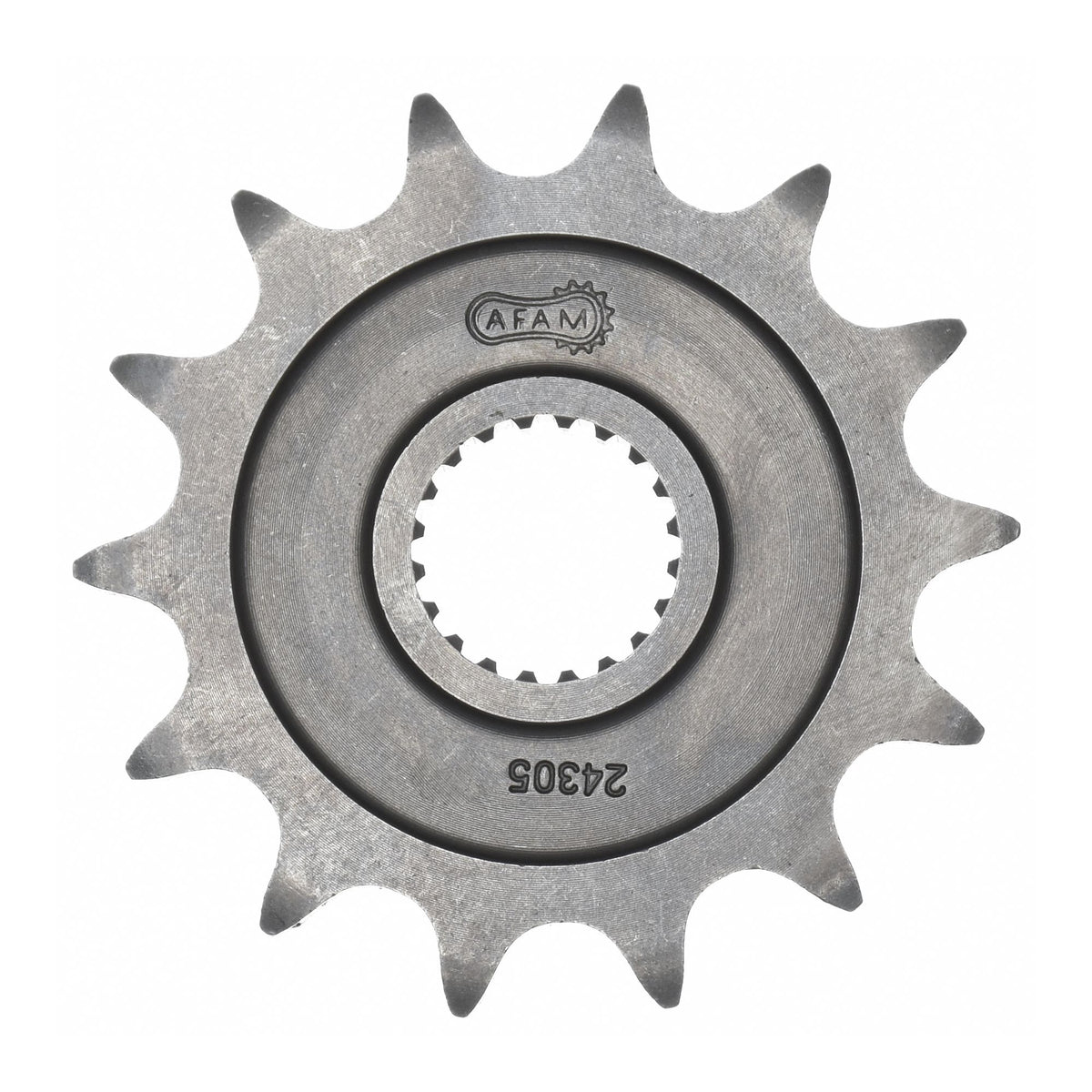

• Front sprocket: AFAM sprocket #520 13 teeth - a24305.13

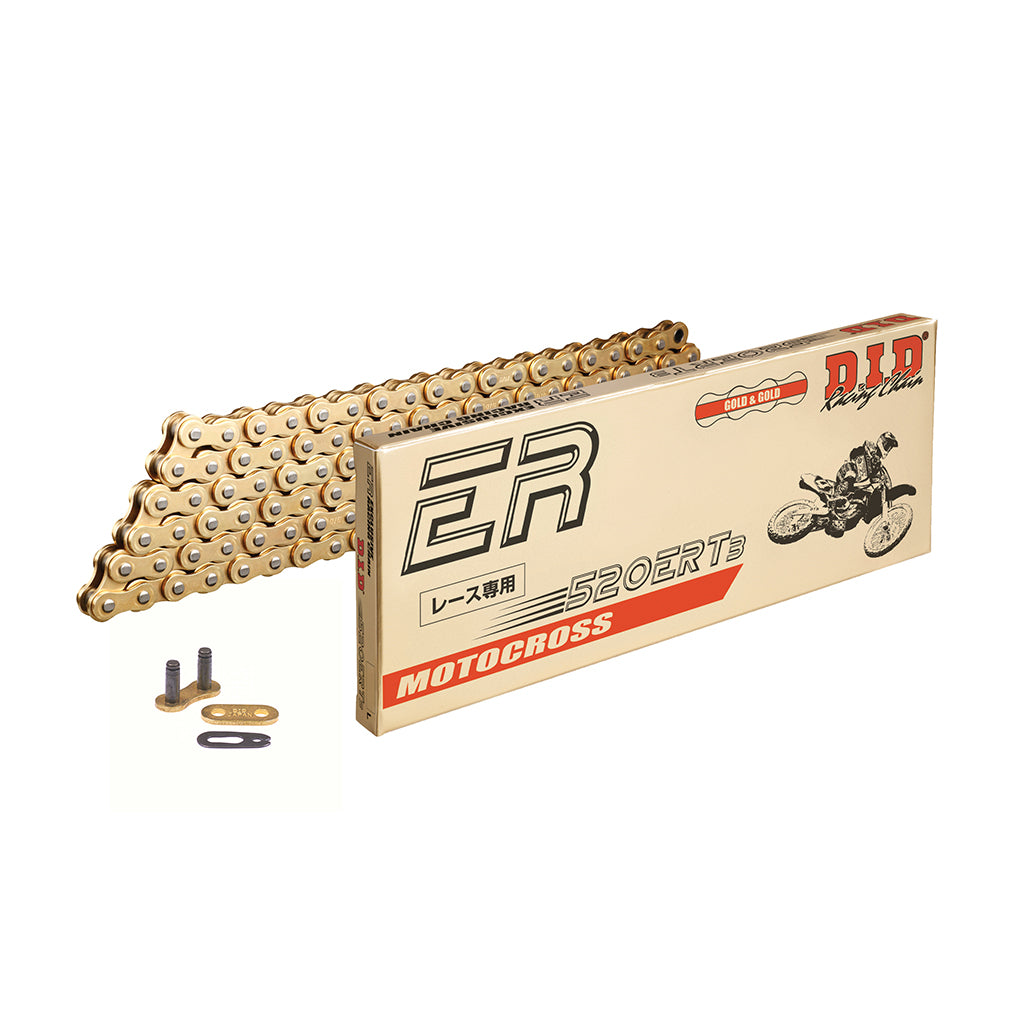

• Chain: DID chain 520 ERT3 G&G 114 with clip master link - d520ert3-114

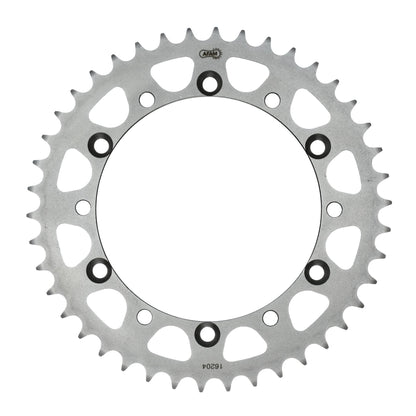

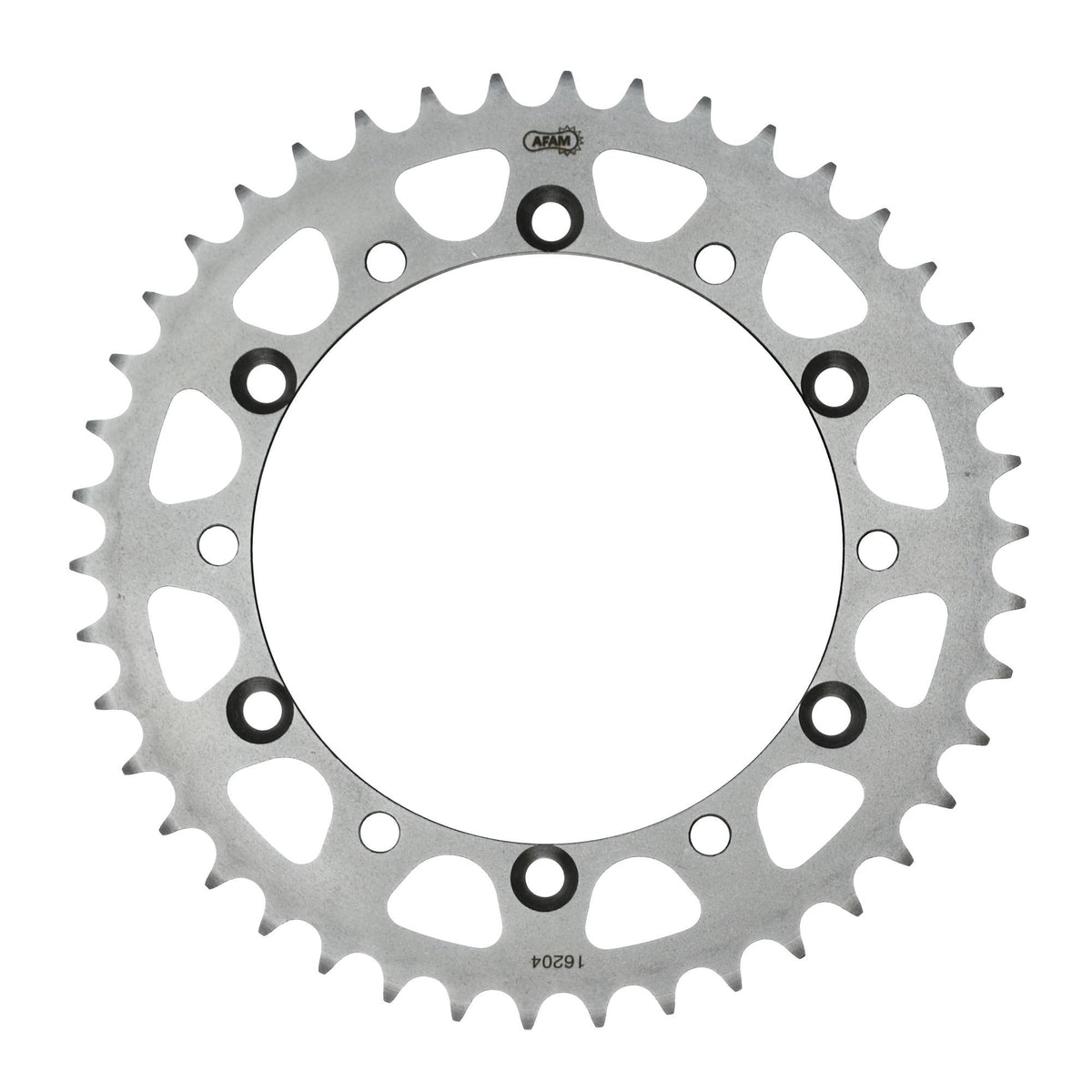

• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a16204.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

DID 520 ERT3

Extra reinforced pure Moto-Cross chain
Without seal rings
Color: Gold/Gold
Application by displacement: up to 450 cc / Moto-Cross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-73128

Suitable for

Kawasaki 126 - 250 cc KX 250 X 4T KX252C 2023
Kawasaki 126 - 250 cc KX 250 X 4T KX252C 2024
