DID chain kit for Kawasaki KX 250 X 4T 23-24 520 NZ chain kit

DID Chain kit for Kawasaki KX 250 X 4T 23-24 520 NZ chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

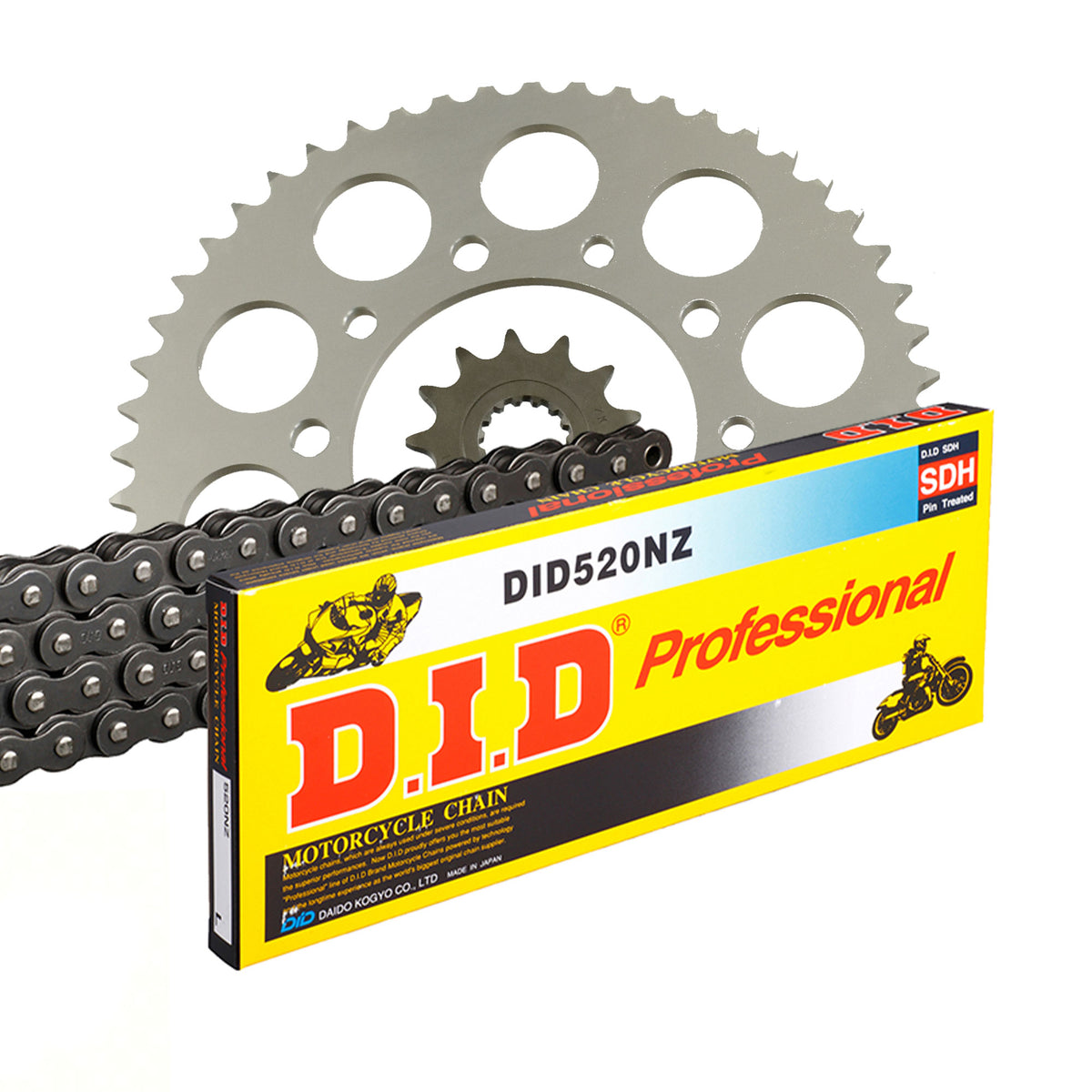

Components of the chain kit Kawasaki KX 250 X 4T KX252C 2023-2024

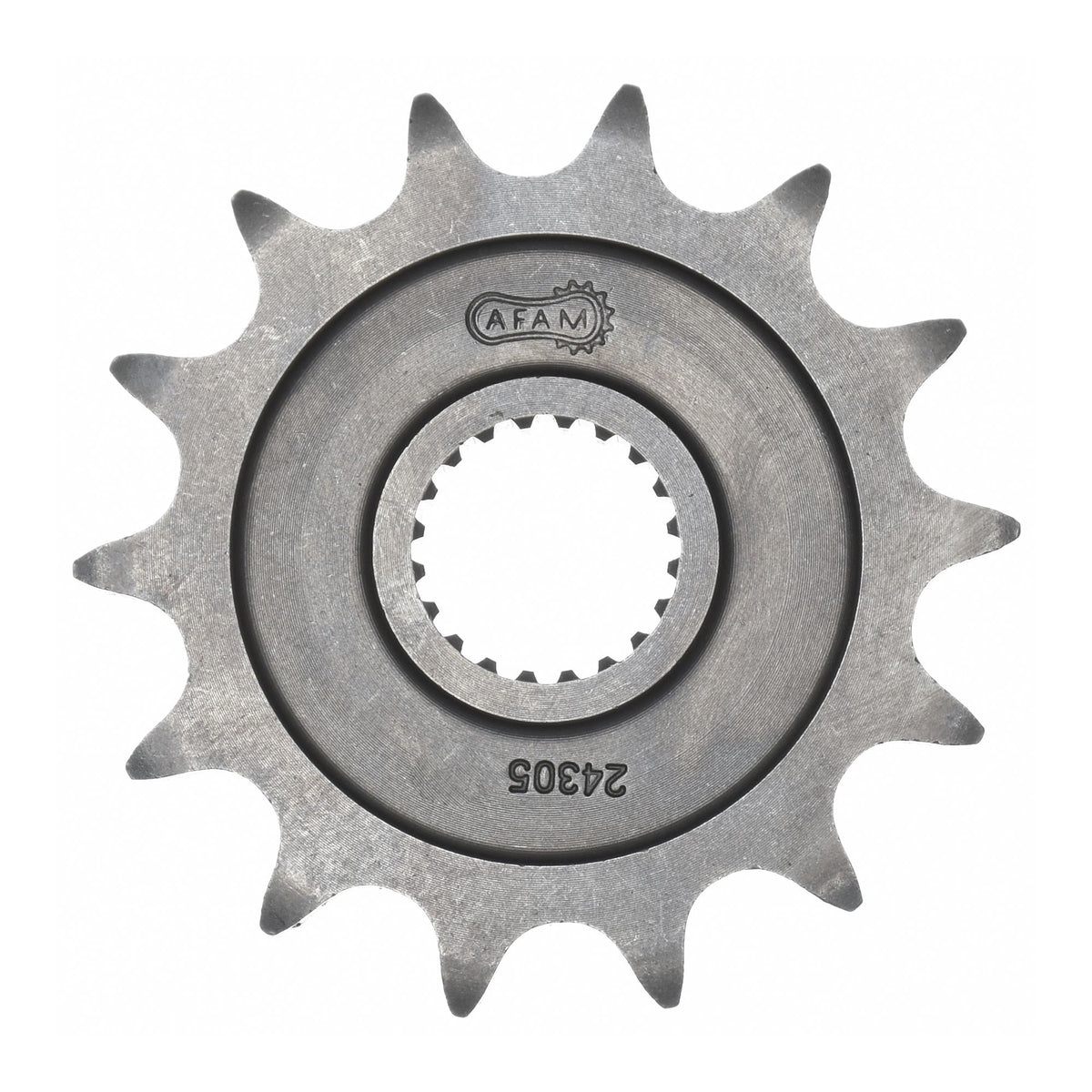

• Front sprocket: AFAM front sprocket #520 13 teeth - a24305.13

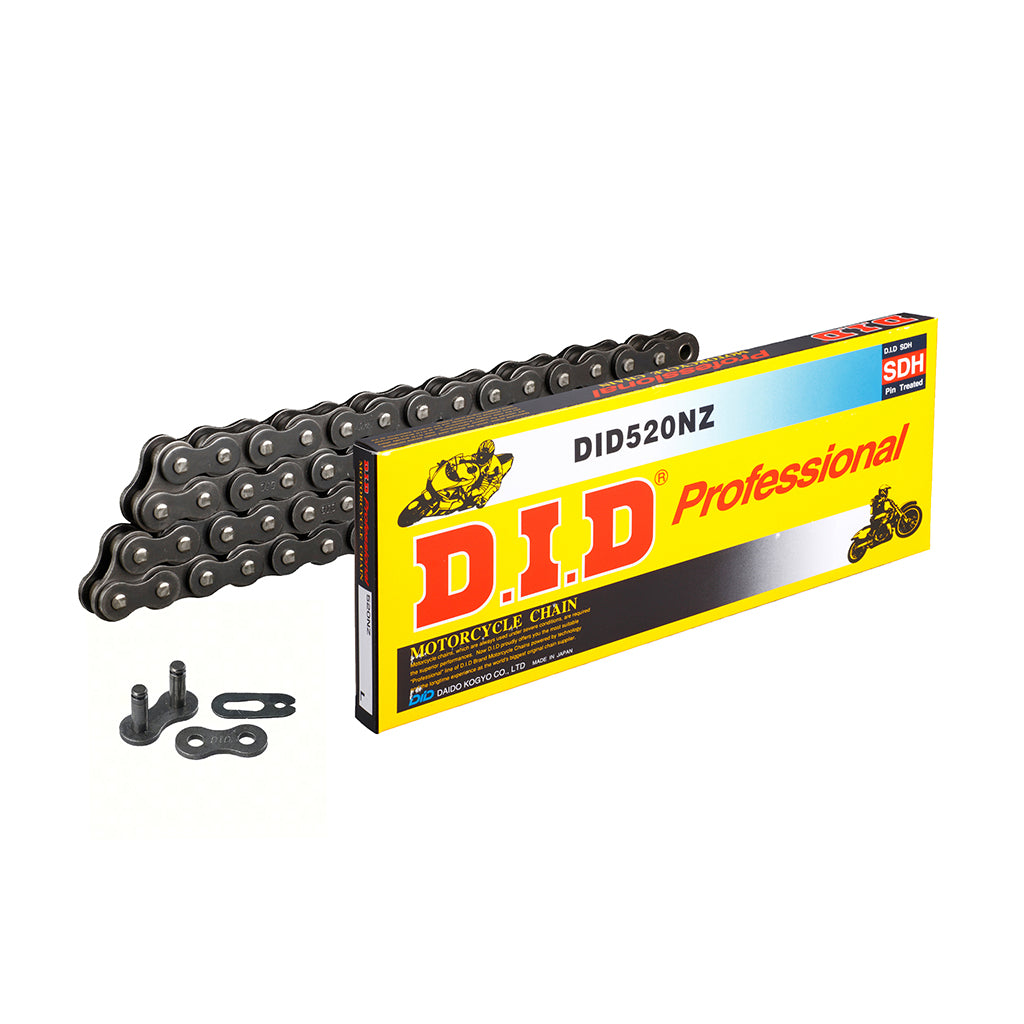

• Chain: DID chain 520 NZ 114 with clip connecting link - d6252001114

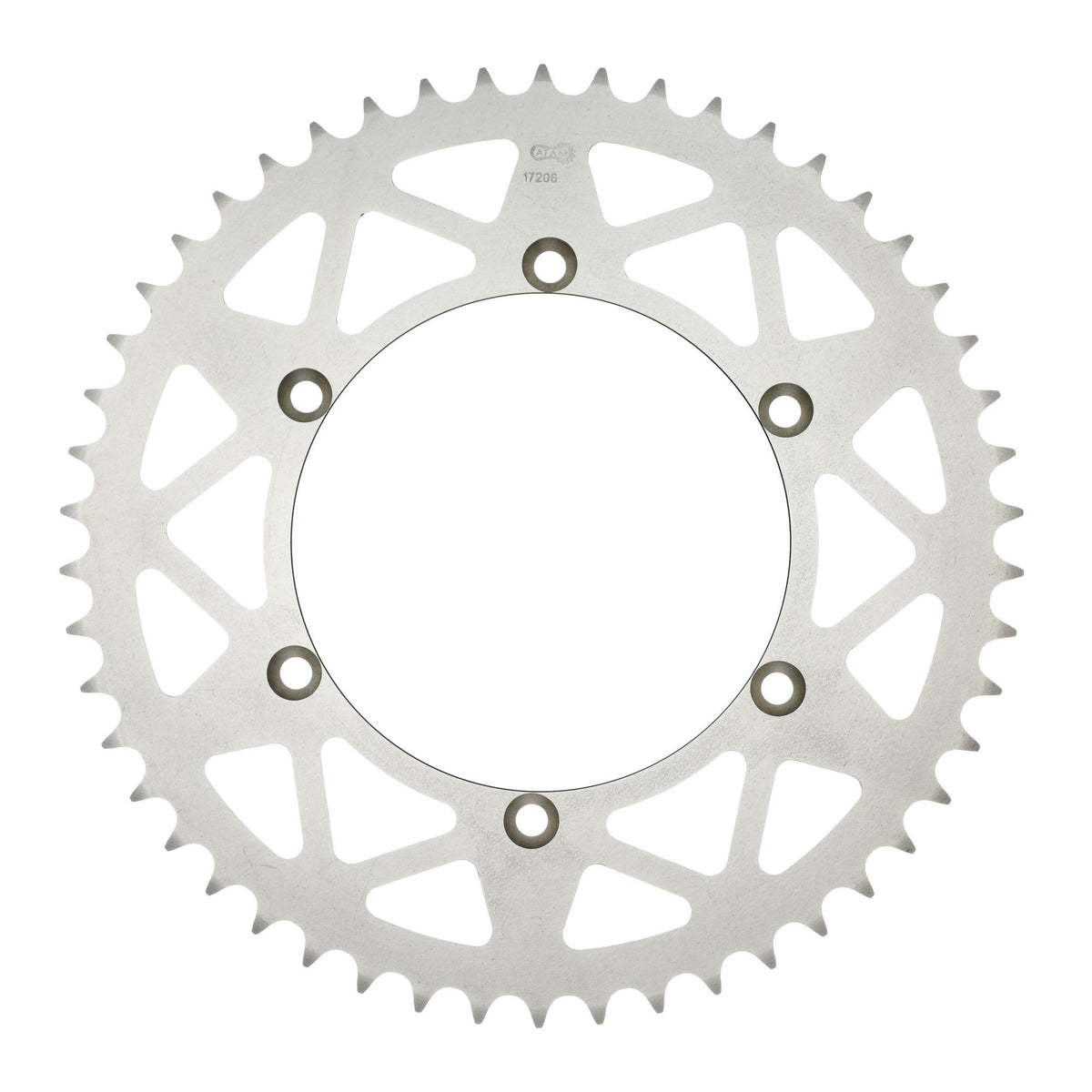

• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a17206n.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-73117

Suitable for

Kawasaki 126 - 250 cc KX 250 X 4T KX252C 2023
Kawasaki 126 - 250 cc KX 250 X 4T KX252C 2024
