DID chain set for KTM 1190 RC8 08-11 525 VX3 chain kit

DID chain set for KTM 1190 RC8 08-11 525 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless stated otherwise: Not an original part - manufacturer names are for compatibility identification purposes only!

Components of the KTM 1190 RC8 KTM RC8 2008-2011 chain kit

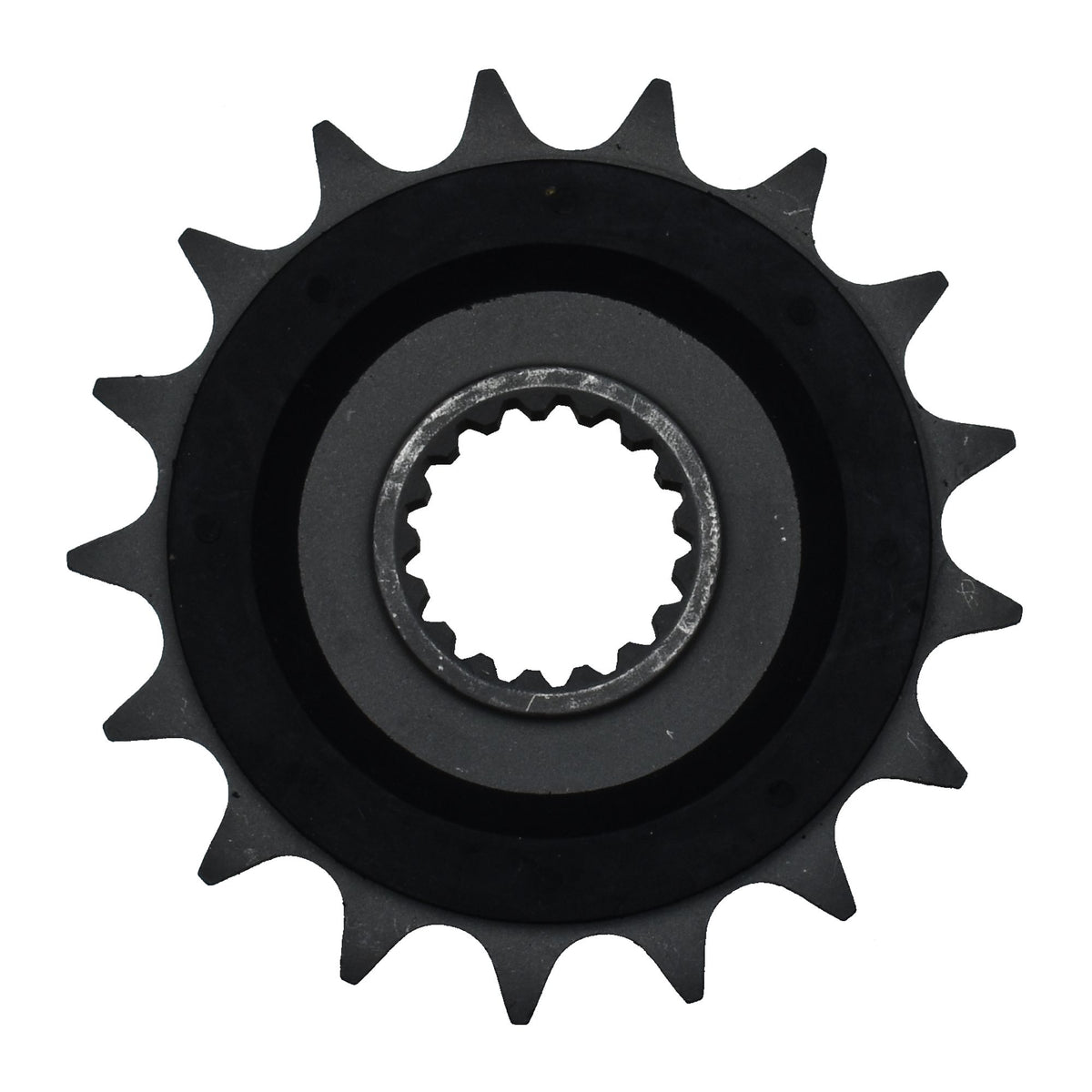

• Front sprocket: AFAM front sprocket rubber #525 Silent Sprocket 17 teeth - a61800nr.17
• Chain: DID chain 525 VX3 G&B 108 with rivet link - d525vx3.g-108

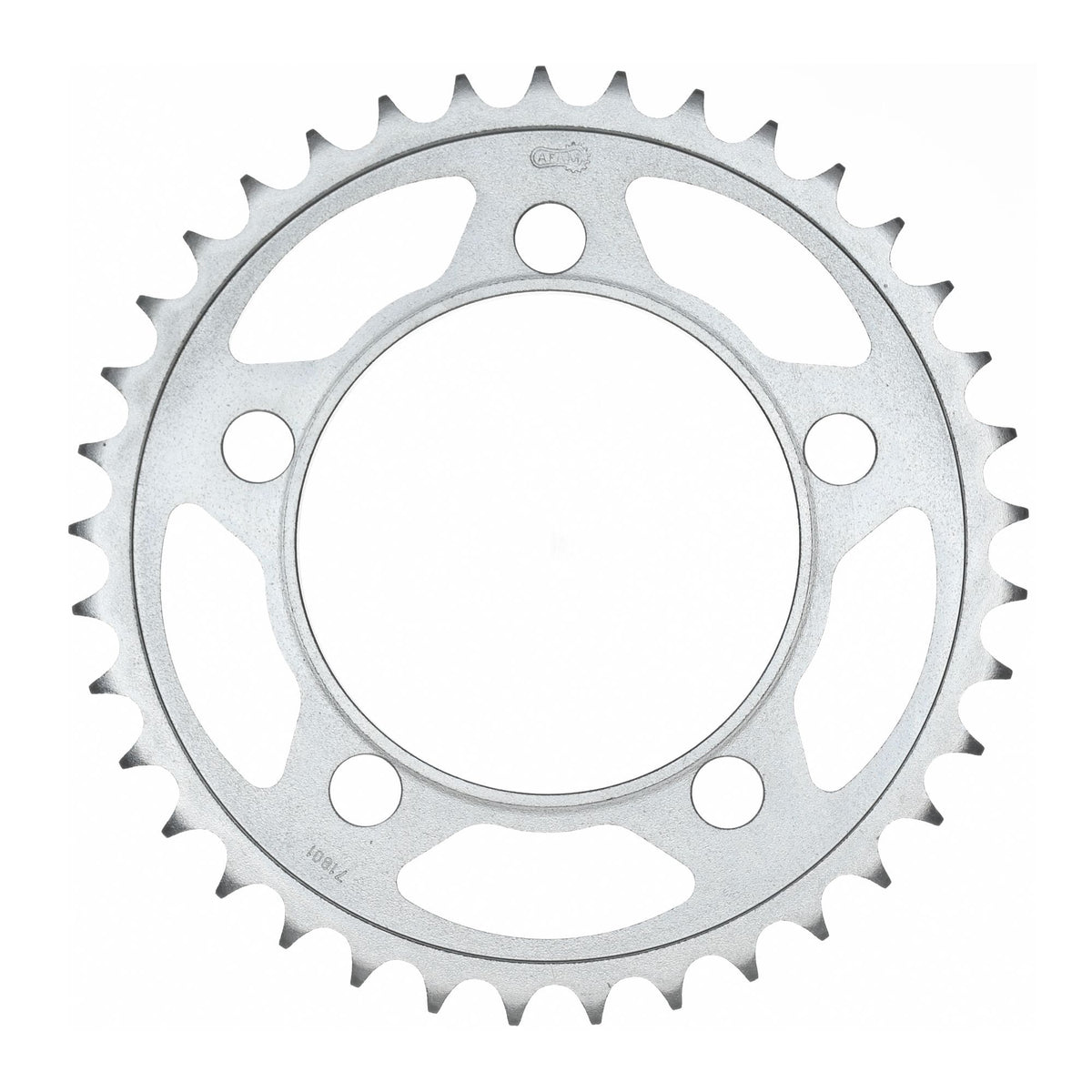

• Rear sprocket: AFAM rear sprocket STEEL #525 37 teeth - a71801.37
• Gear ratio front sprocket-chain-rear sprocket: 17-108-37

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear life index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-72974

Fits

KTM over 1001 cc 1190 RC8 KTM RC8 2008
KTM over 1001 cc 1190 RC8 KTM RC8 2009
KTM over 1001 cc 1190 RC8 KTM RC8 2010
KTM over 1001 cc 1190 RC8 KTM RC8 2011
