DID chain set for KTM 1190 RC8 R 09-15 525 VX3 chain kit

DID chain kit for KTM 1190 RC8 R 09-15 525 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

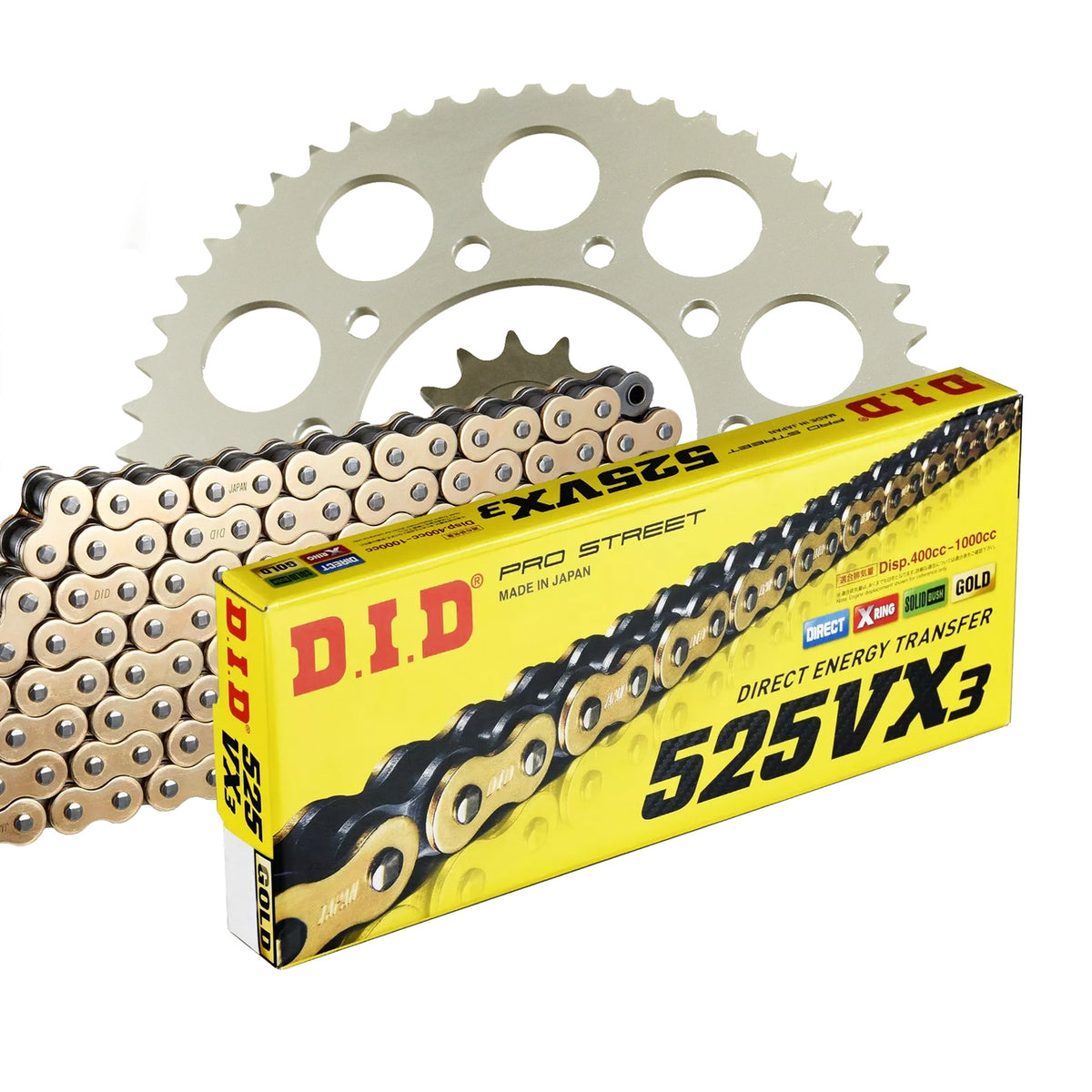

Components of the chain kit KTM 1190 RC8 R KTM RC8 2009-2015

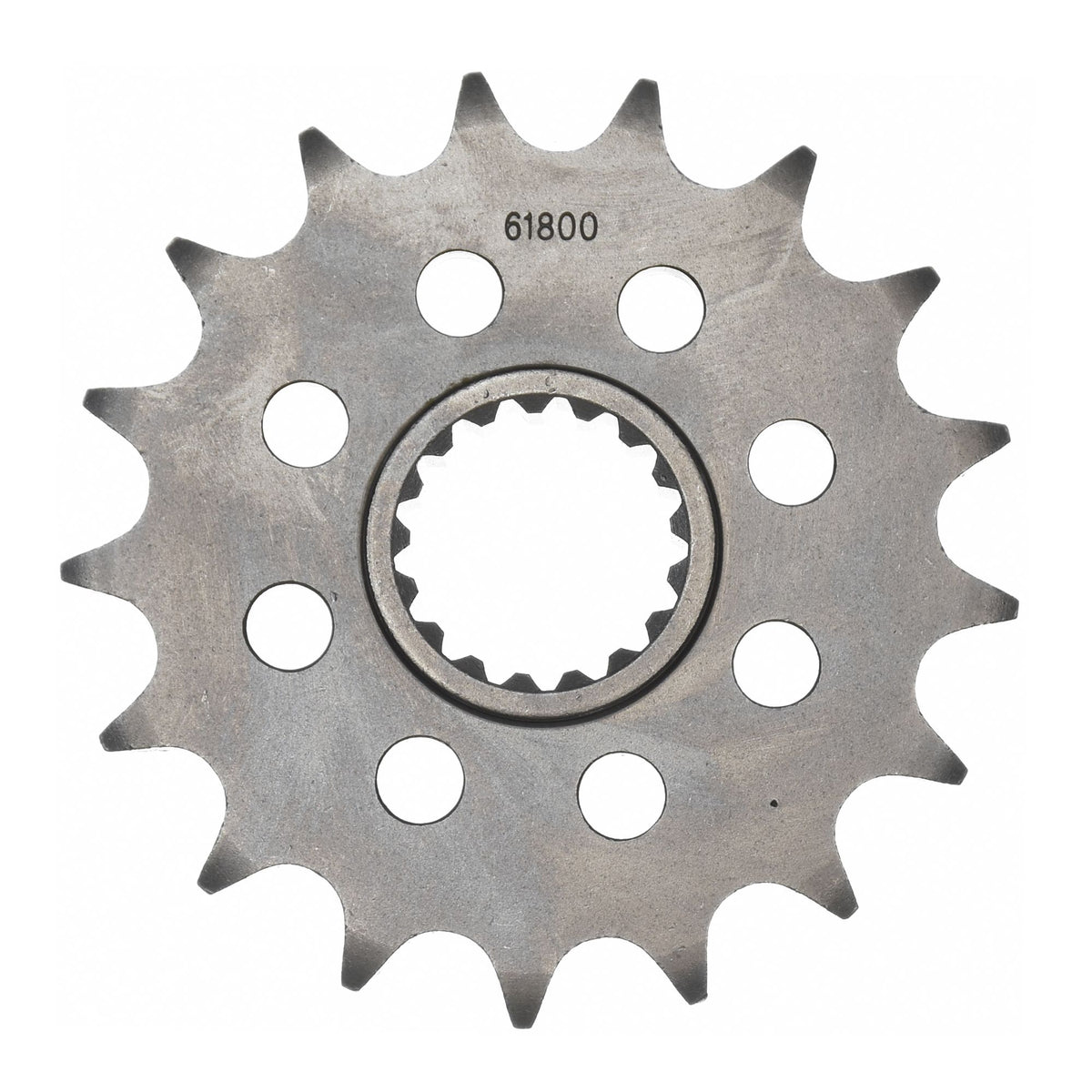

• Sprocket: AFAM sprocket #525 17 teeth - a61800.17

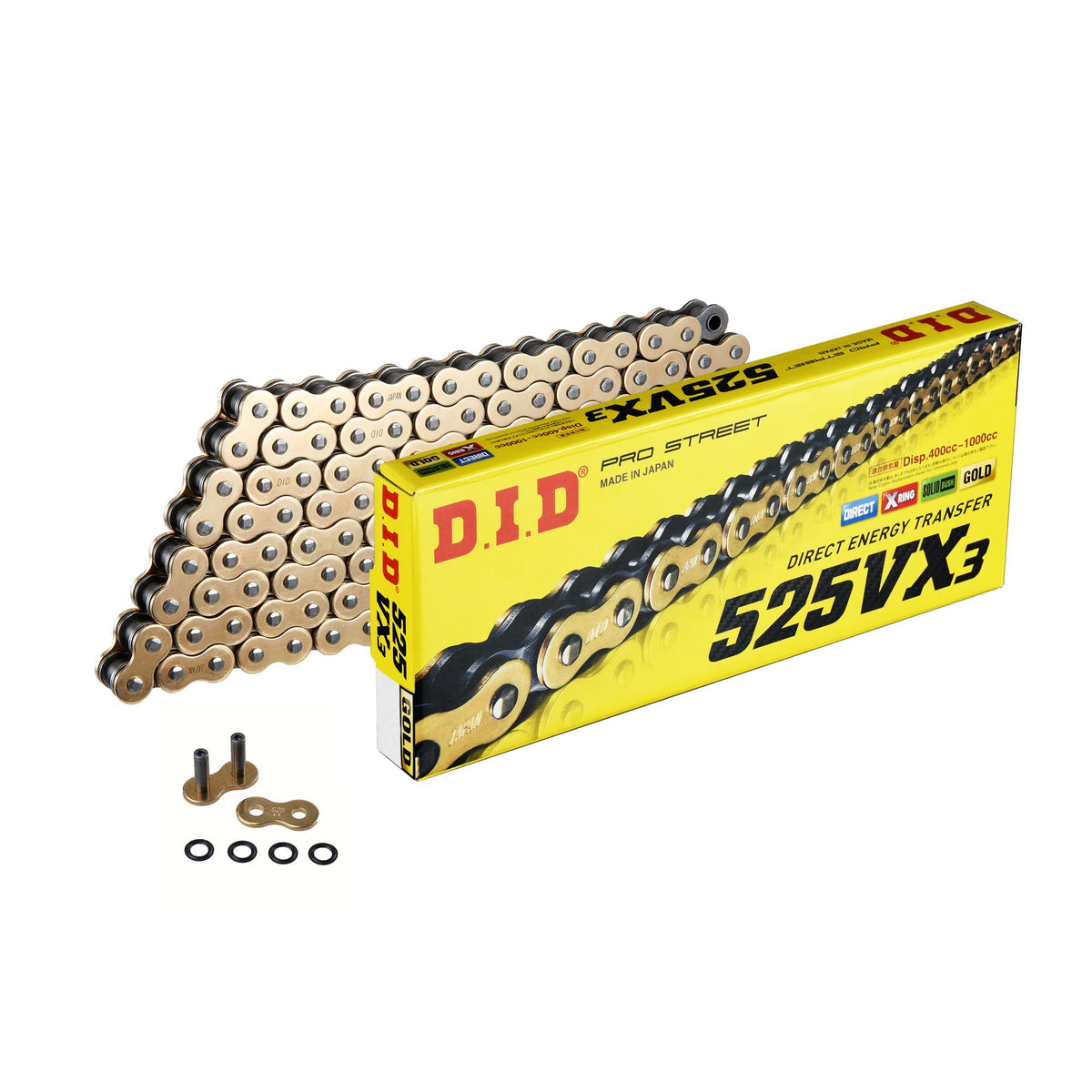

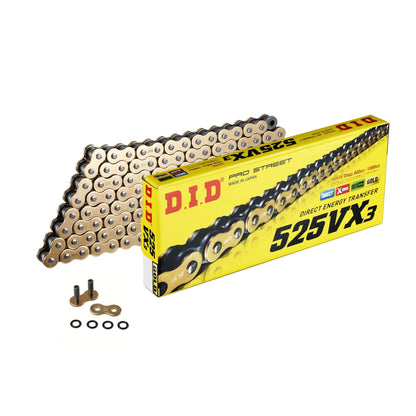

• Chain: DID chain 525 VX3 G&B 108 with rivet link - d525vx3.g-108

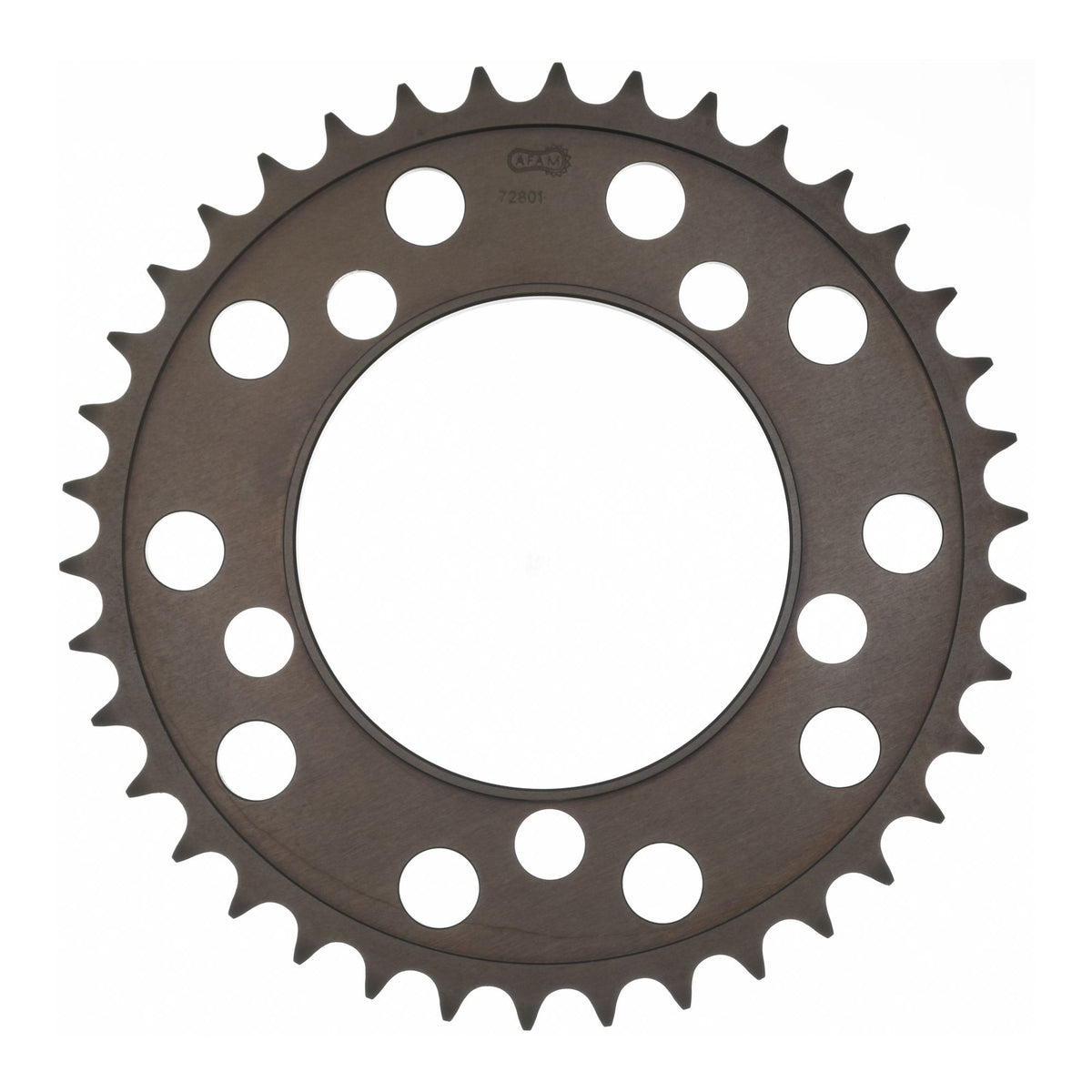

• Rear sprocket: AFAM rear sprocket ALU #525 38 teeth - a72801.38
• Gear ratio sprocket-chain-rear sprocket: 17-108-38

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-17714

Fits

KTM over 1001 cc 1190 RC8 R KTM RC8 2009
KTM over 1001 cc 1190 RC8 R KTM RC8 2010
KTM over 1001 cc 1190 RC8 R KTM RC8 2011
KTM over 1001 cc 1190 RC8 R KTM RC8 2012
KTM over 1001 cc 1190 RC8 R KTM RC8 2013
KTM over 1001 cc 1190 RC8 R KTM RC8 2014
KTM over 1001 cc 1190 RC8 R KTM RC8 2015
