DID chain set for KTM 1290 Super Duke GT ABS 2018 525 VX3 chain kit

DID chain kit for KTM 1290 Super Duke GT ABS 2018 525 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM 1290 Super Duke GT ABS KTM Superduke 2018-2018

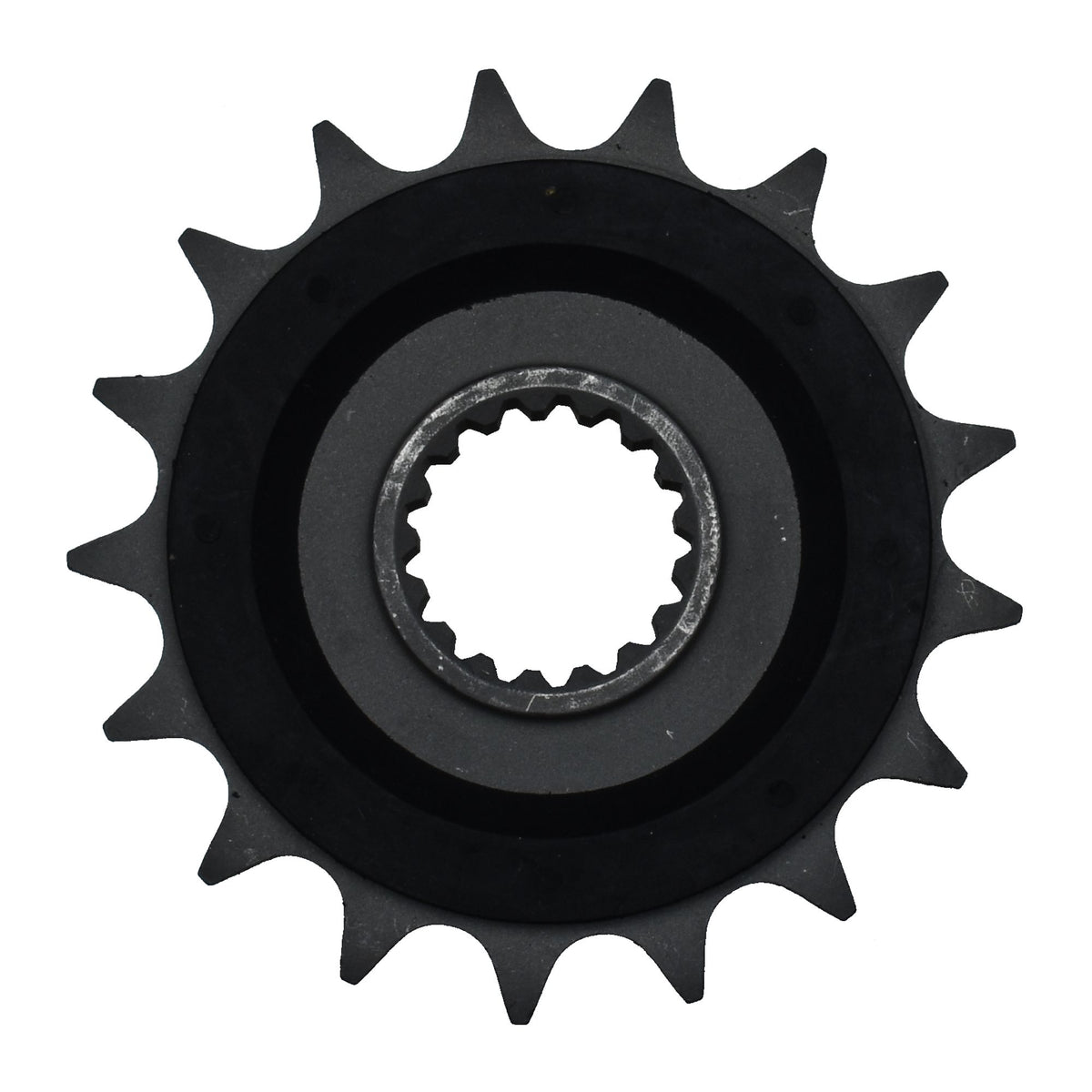

• Front sprocket: AFAM front sprocket rubber #525 Silent Sprocket 17 teeth - a61800nr.17
• Chain: DID chain 525 VX3 G&B 112 with rivet link - d525vx3.g-112
• Rear sprocket: AFAM rear sprocket 29050-38 STEEL #525 38 teeth - a29050.38
• Transmission ratio front sprocket-chain-rear sprocket: 17-112-38

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical specifications:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-72986

Suitable for

KTM over 1001 cc 1290 Super Duke GT ABS KTM Superduke 2018
