DID chain kit for KTM 1290 Super Duke GT ABS 2018 525 ZVM-X2 chain kit

DID chain kit for KTM 1290 Super Duke GT ABS 2018 525 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit KTM 1290 Super Duke GT ABS KTM Superduke 2018-2018

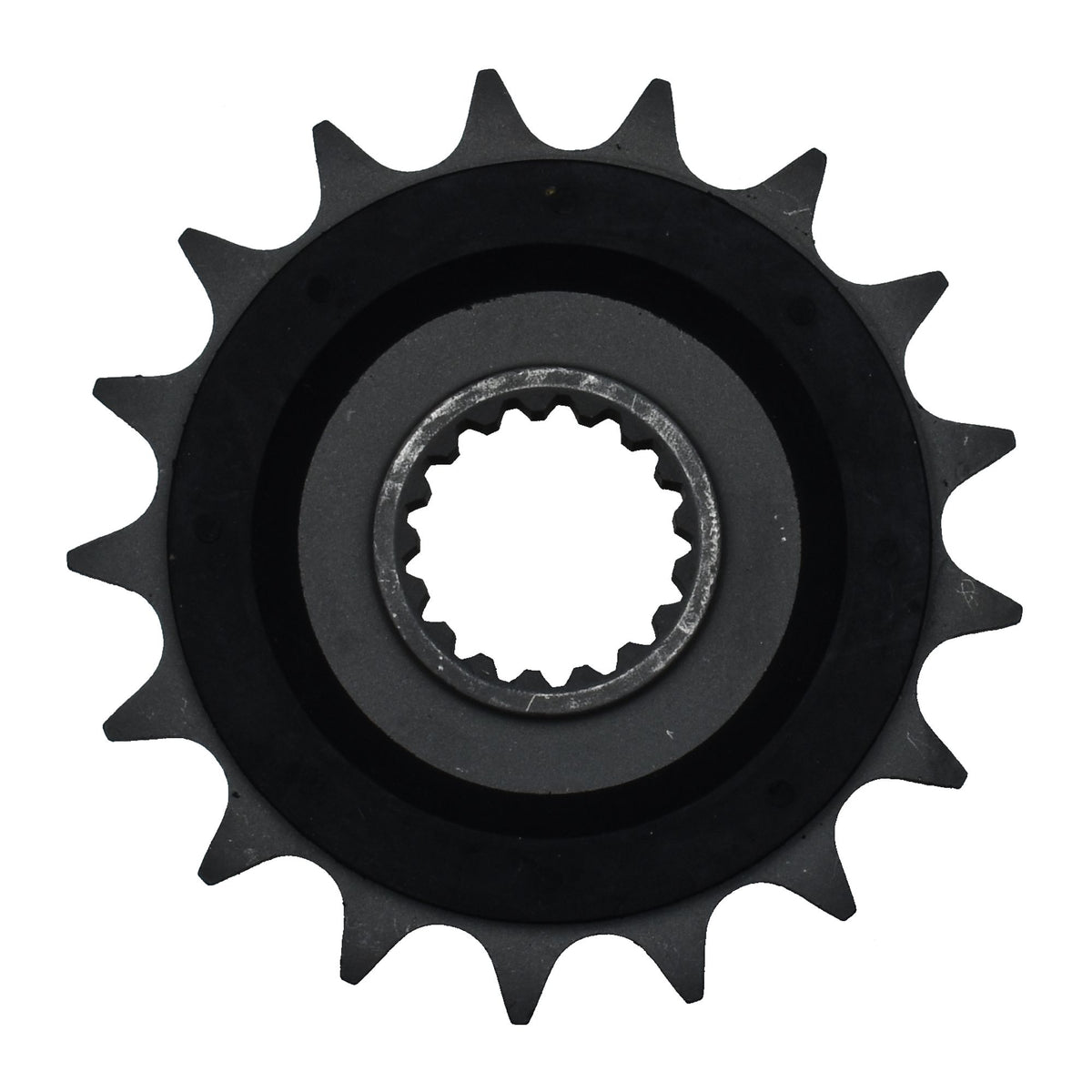

• Sprocket: AFAM sprocket rubber #525 Silent Sprocket 17 teeth - a61800nr.17
• Chain: DID chain 525 ZVM-X2 G&G 112 w. rivet connecting link - d525zvmx2.gg.112
• Rear sprocket: AFAM rear sprocket 29050-38 STEEL #525 38 teeth - a29050.38
• Gear ratio sprocket-chain-rear sprocket: 17-112-38

DID 525 ZVM-X2

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-72961

Suitable for

KTM over 1001 cc 1290 Super Duke GT ABS KTM Superduke 2018
