DID chain kit for KTM 1290 Super Duke R EVO ABS 22-23 525 ZVM-X2 chain kit

DID Chain Kit for KTM 1290 Super Duke R EVO ABS 22-23 525 ZVM-X2 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

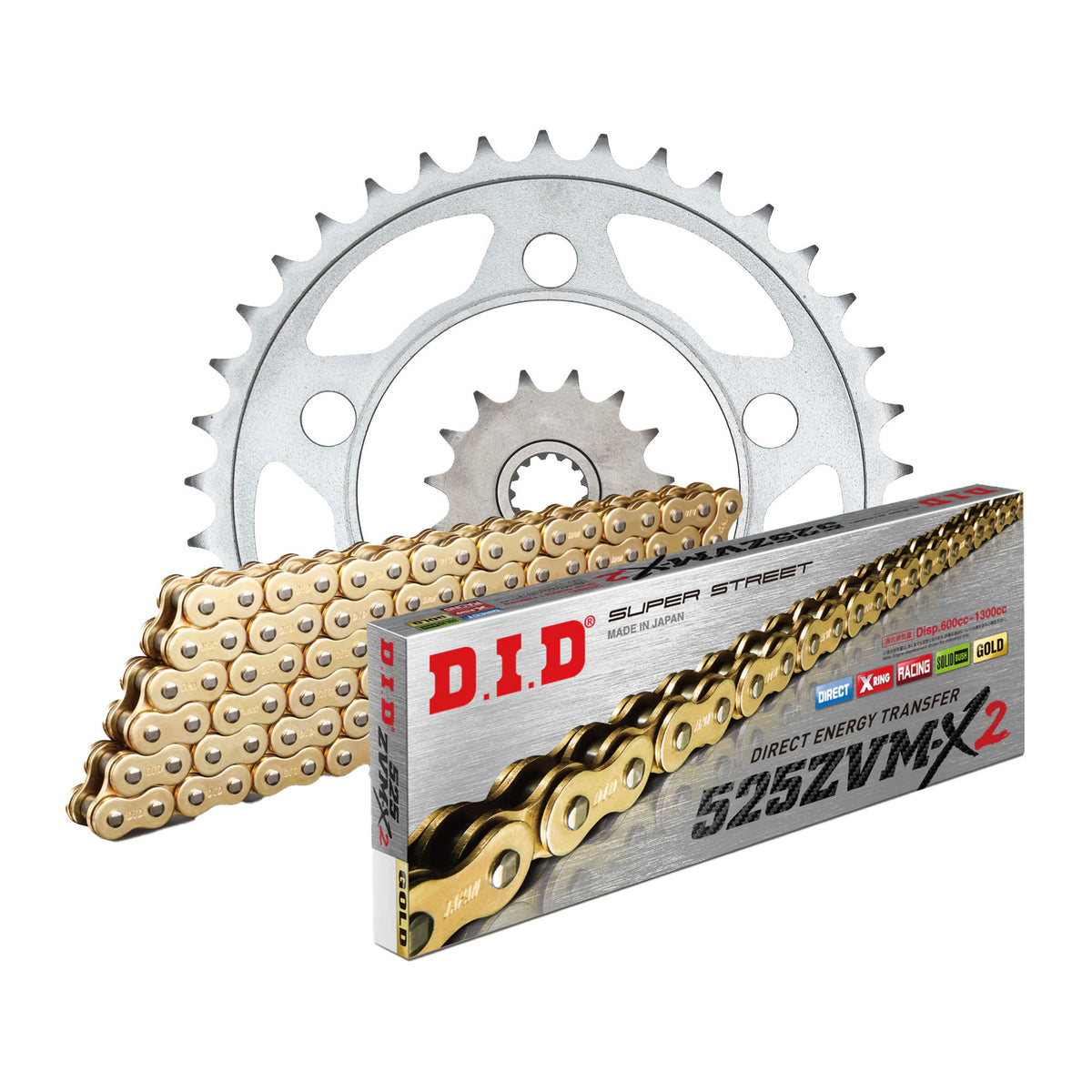

Components of the chain kit KTM 1290 Super Duke R EVO ABS 2022-2023

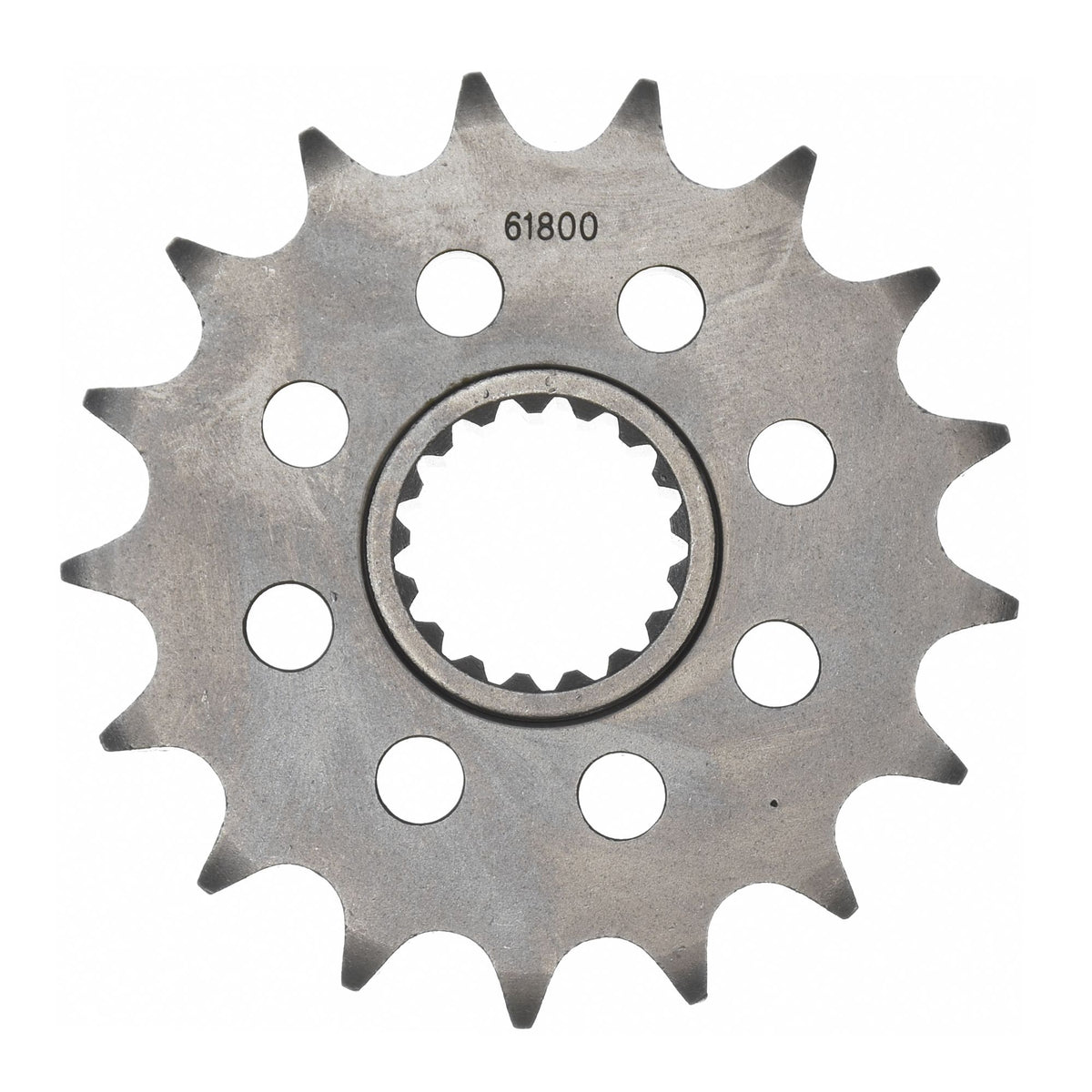

• Front sprocket: AFAM front sprocket #525 17 teeth - a61800.17
• Chain: DID chain 525 ZVM-X2 G&G 112 with rivet link - d525zvmx2.gg.112
• Rear sprocket: AFAM rear sprocket 29050-38 STEEL #525 38 teeth - a29050.38
• Transmission ratio front sprocket-chain-rear sprocket: 17-112-38

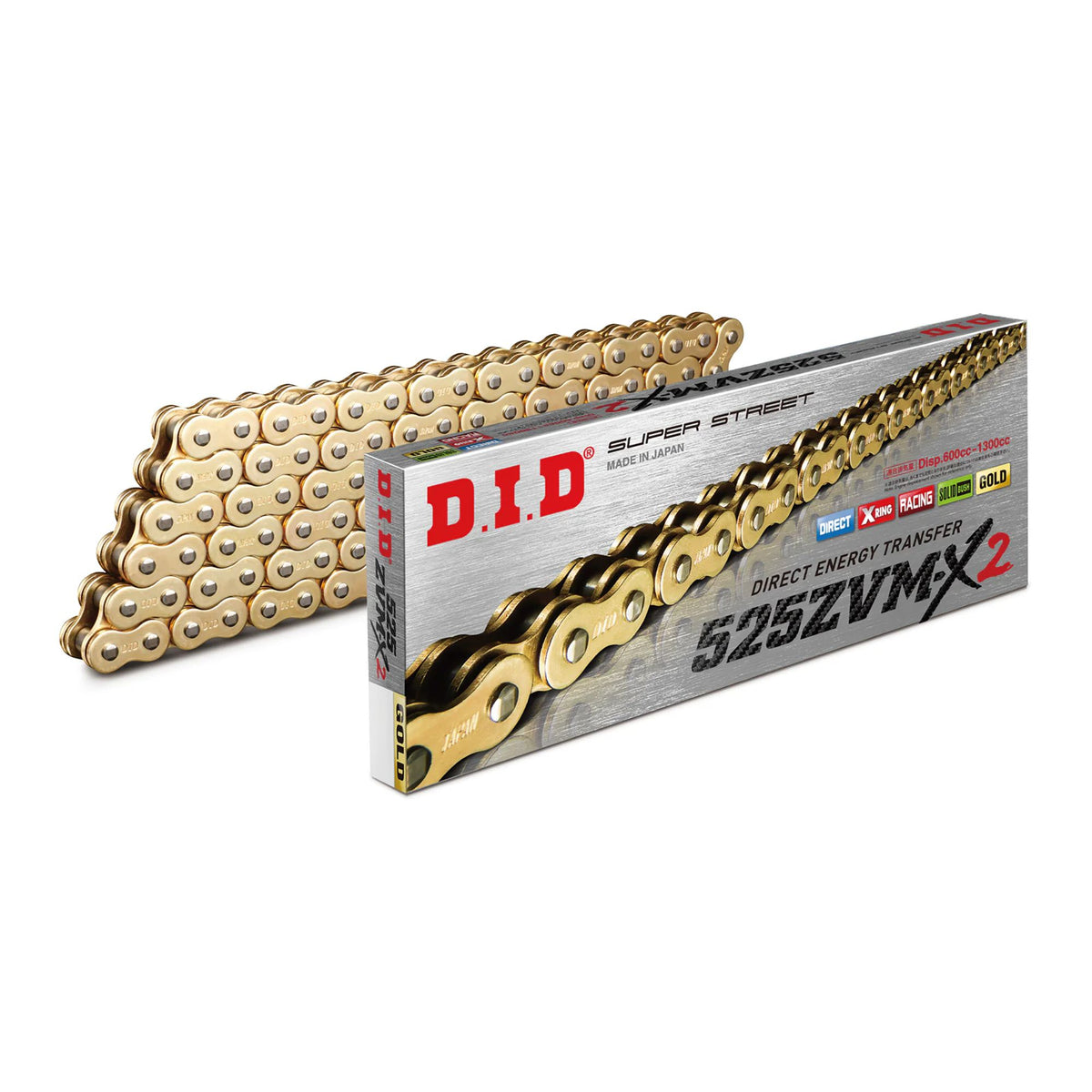

DID 525 ZVM-X2

Extra reinforced chain, versatile range of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1300 cc

Technical data:
Pitch: 525
Pin length: 23.2 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.11 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-70723

Suitable for

KTM over 1001 cc 1290 Super Duke R EVO ABS 2022
KTM over 1001 cc 1290 Super Duke R EVO ABS 2023
