DID chain kit for KTM 250 Freeride R 14-17 520 NZ chain kit

DID chain kit for KTM 250 Freeride R 14-17 520 NZ chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM 250 Freeride R 2T 2014-2017

• Front sprocket: AFAM front sprocket #520 16 teeth - a73301.16
• Chain: DID chain 520 NZ 118 with clip link - d6252001118

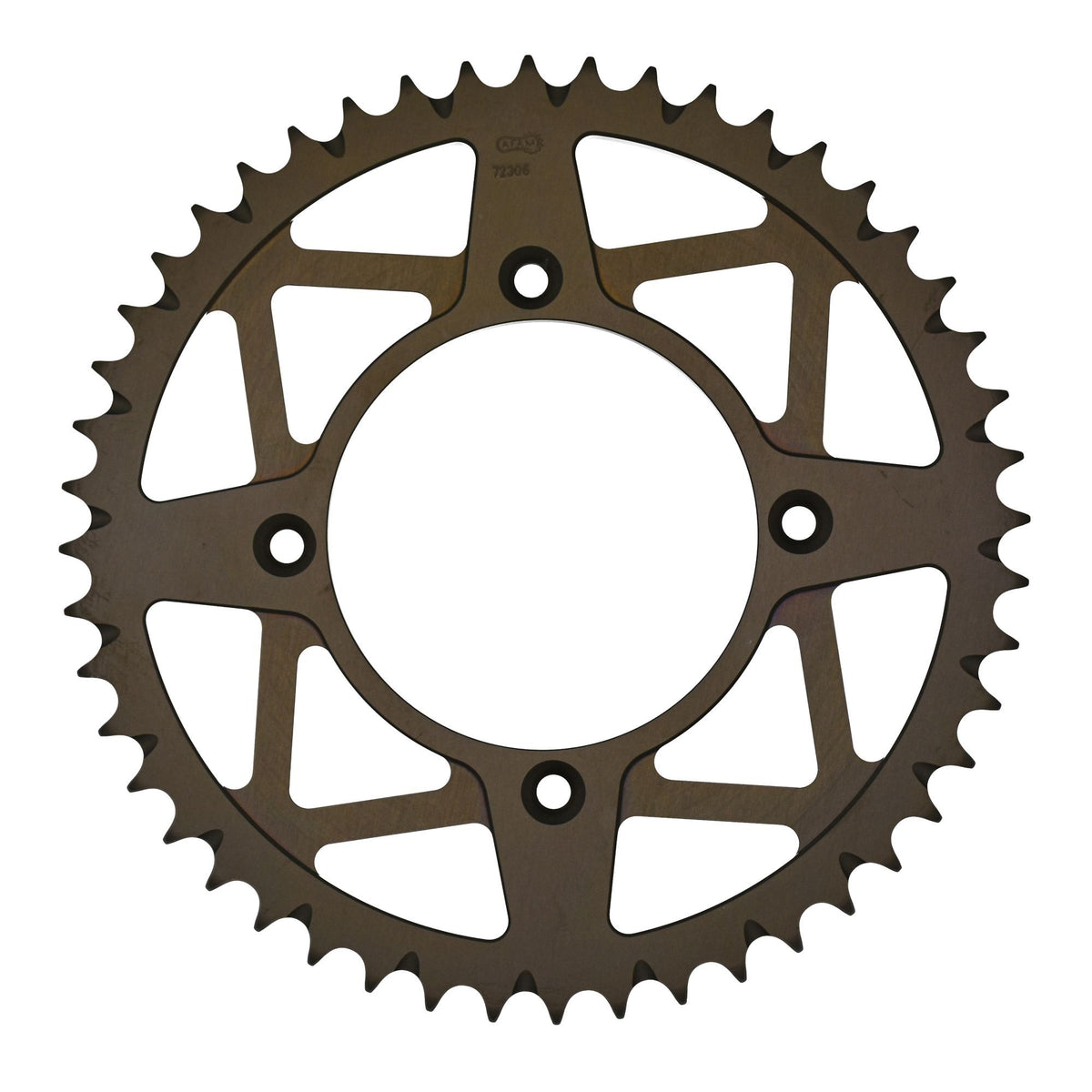

• Rear sprocket: AFAM rear sprocket ALU #520 S/C 46 teeth - a72306.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-25297

Suitable for

KTM 126 - 250 cc 250 Freeride R 2T 2014
KTM 126 - 250 cc 250 Freeride R 2T 2015
KTM 126 - 250 cc 250 Freeride R 2T 2016
KTM 126 - 250 cc 250 Freeride R 2T 2017
