DID chain set for KTM 640 Duke II E 2000 520 VX3 chain kit

DID chain kit for KTM 640 Duke II E 2000 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

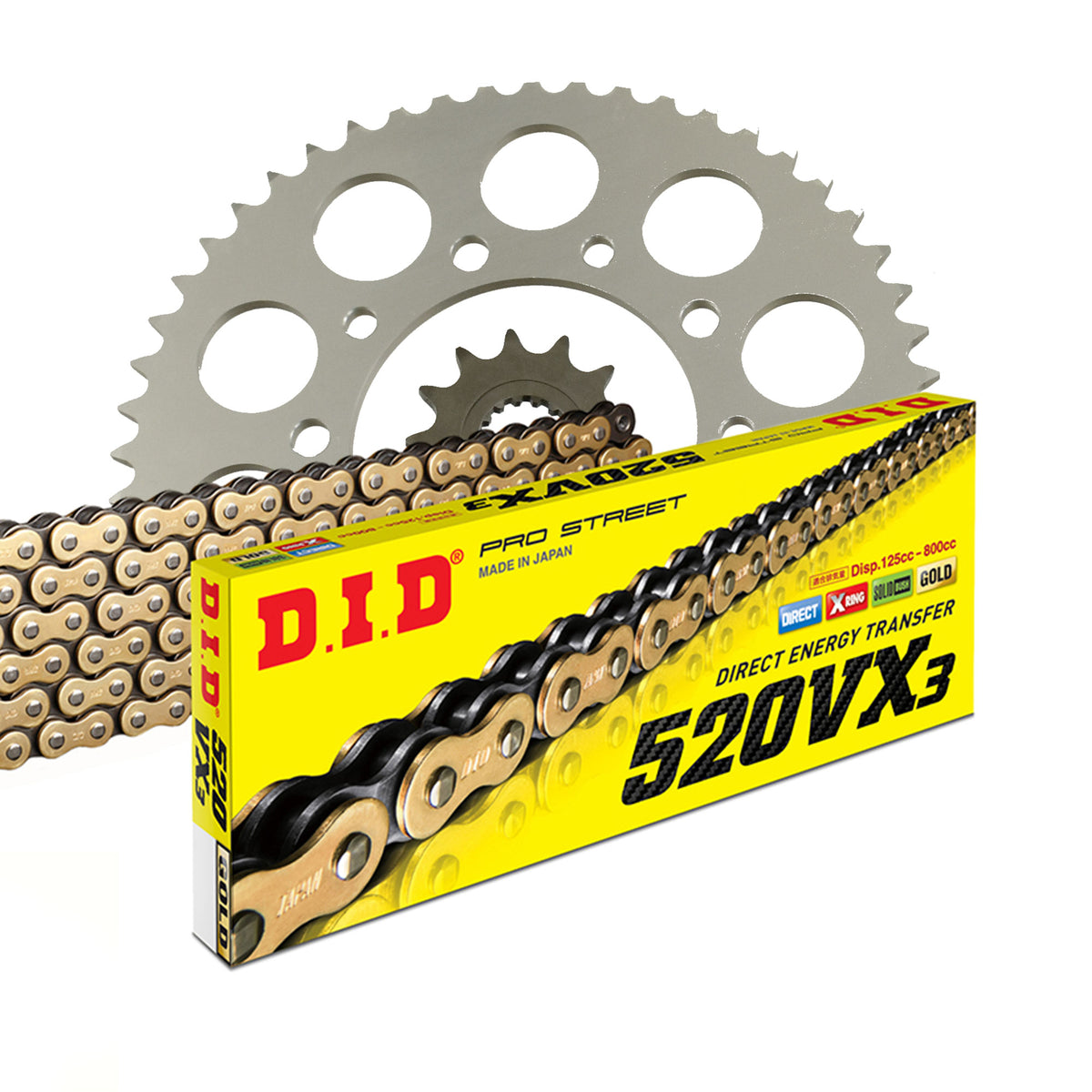

Components of the chain kit KTM 640 Duke II E KTM DK II 2000-2000

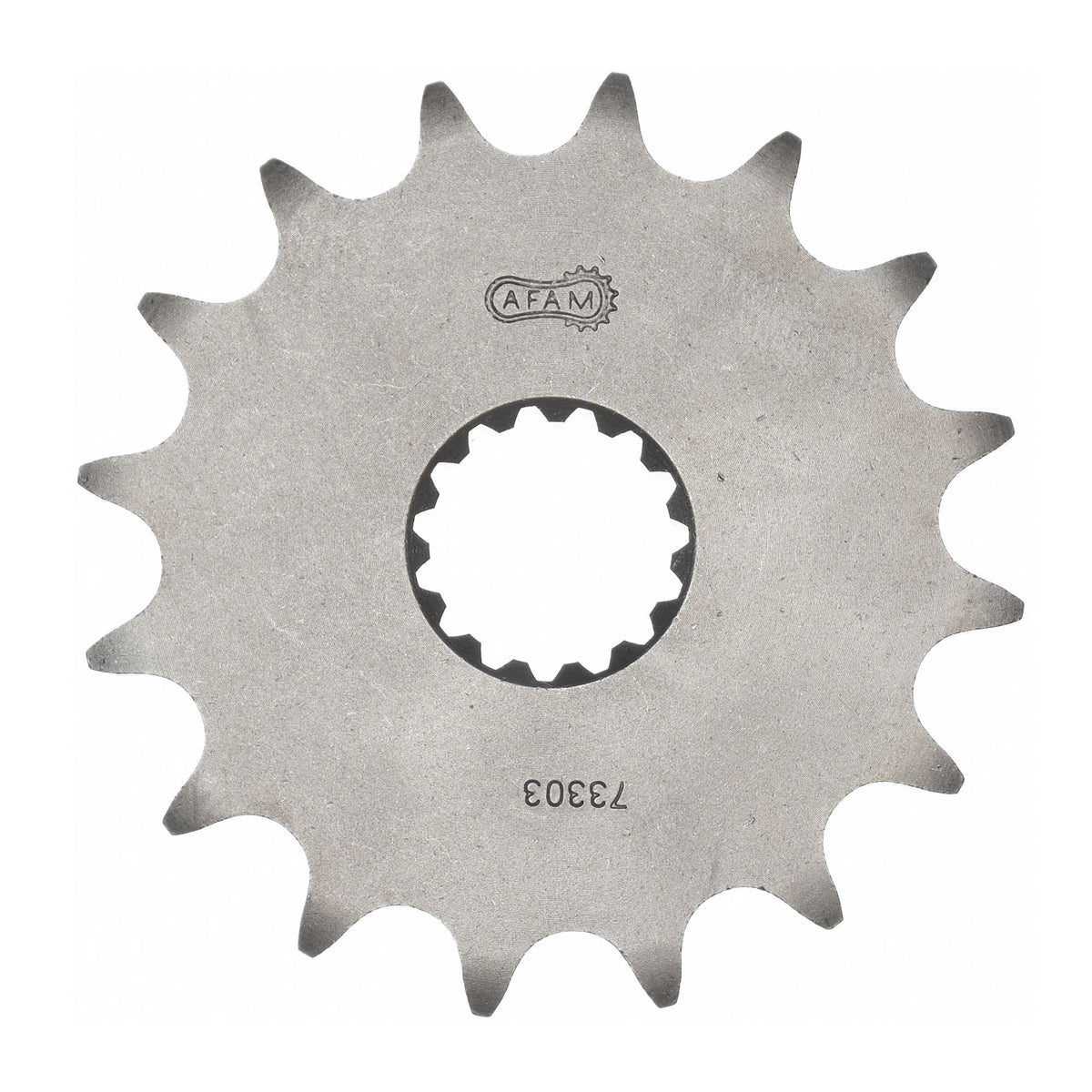

• Front sprocket: AFAM front sprocket #520 16 teeth - a73303.16

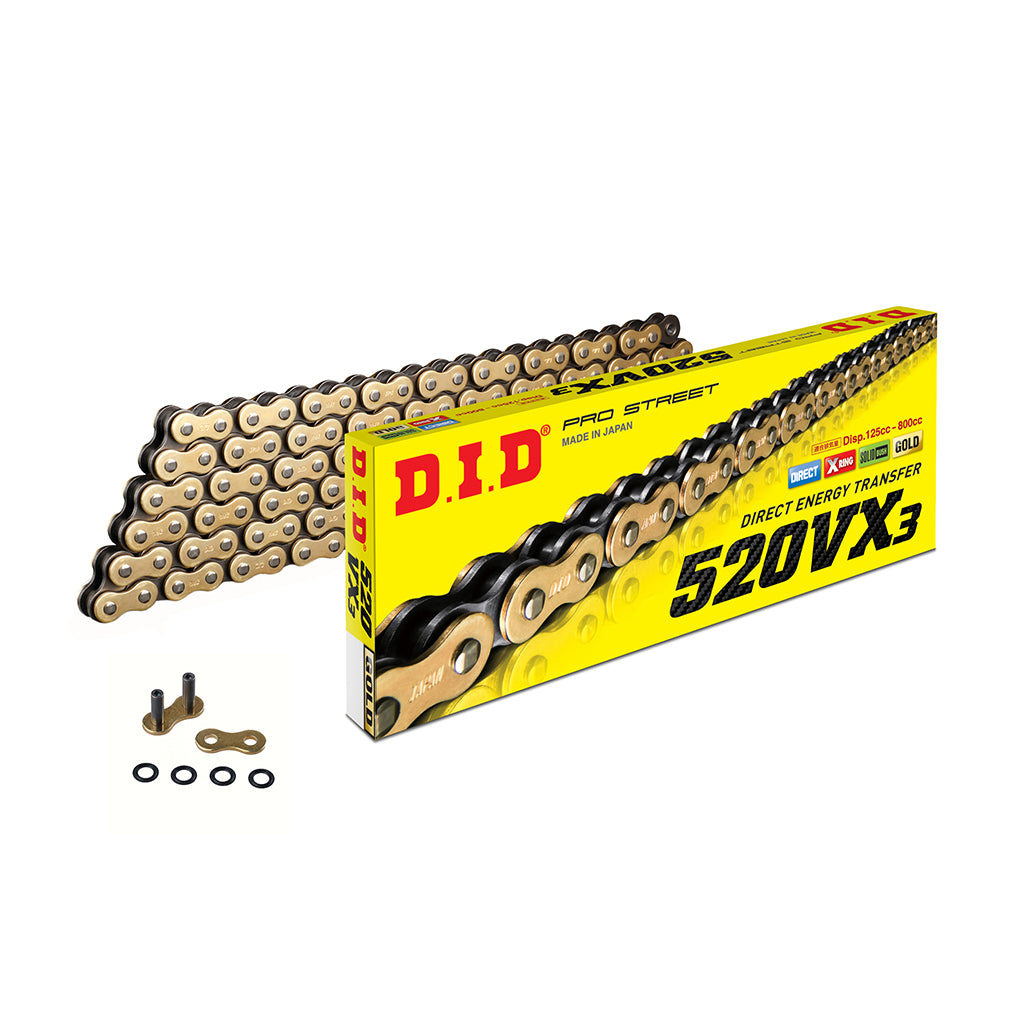

• Chain: DID chain 520 VX3 G&B 106 with rivet link - d520vx3-106
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a72304n.50
• Gear ratio front sprocket-chain-rear sprocket: 16-106-50

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-26925

Suitable for

KTM 501 - 750 cc 640 Duke II E KTM DK II 2000
