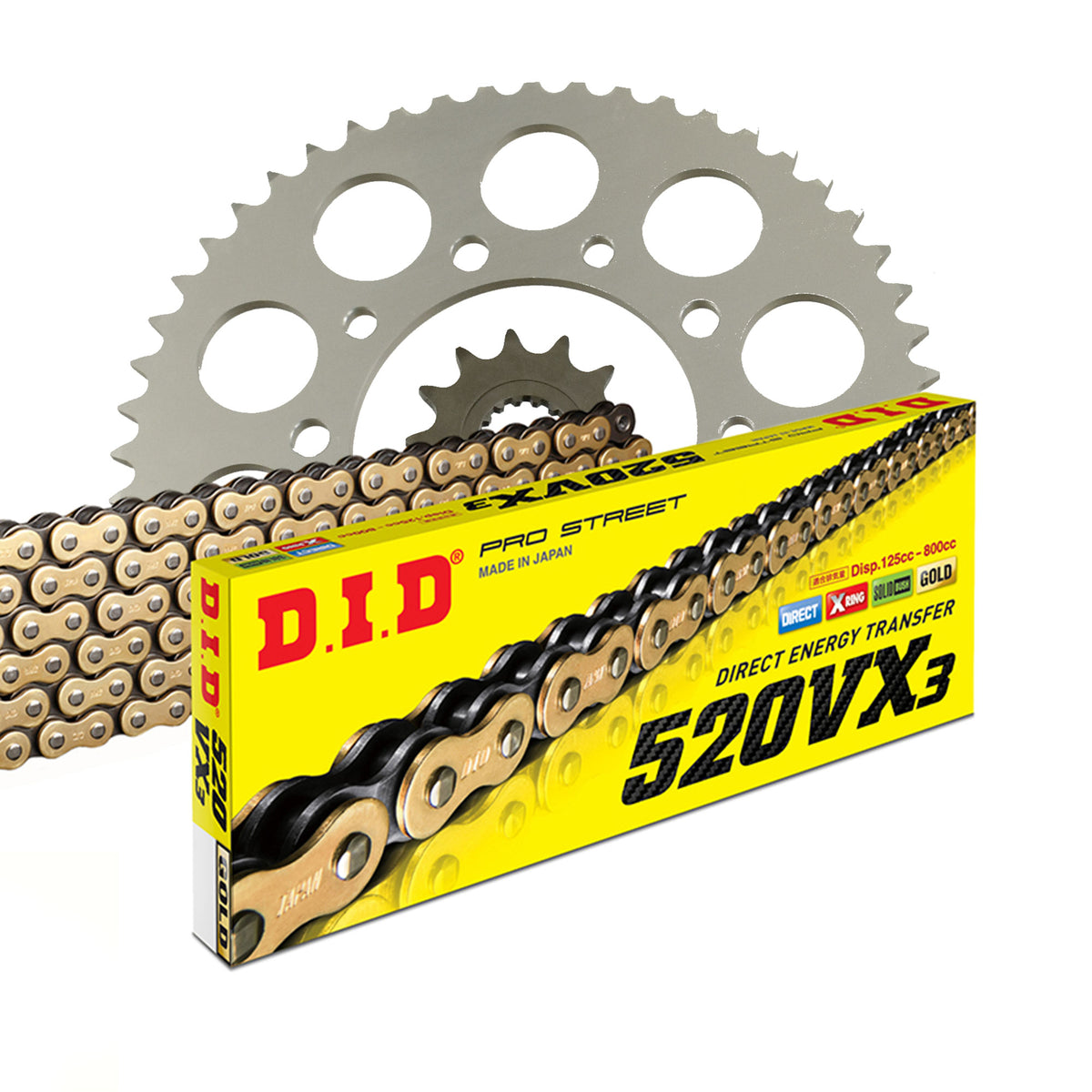

DID chain set for KTM 690 Duke ABS 17-19 520 VX3 chain kit

DID Chain Kit for KTM 690 Duke ABS 17-19 520 VX3 Chain Set

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit KTM 690 Duke ABS KTM 690 Duke 2017-2019

• Front sprocket: AFAM front sprocket #520 16 teeth - a73303.16
• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118
• Rear sprocket: AFAM sprocket ALU #520 40 teeth - a72304n.40
• Gear ratio front sprocket-chain-rear sprocket: 16-118-40

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name is exclusively for identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-28423

Suitable for

KTM 501 - 750 cc 690 Duke ABS KTM 690 Duke 2017
KTM 501 - 750 cc 690 Duke ABS KTM 690 Duke 2018
KTM 501 - 750 cc 690 Duke ABS KTM 690 Duke 2019
