DID chain set for KTM 690 Duke R 13-14 520 VX3 chain kit

DID chain kit for KTM 690 Duke R 13-14 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

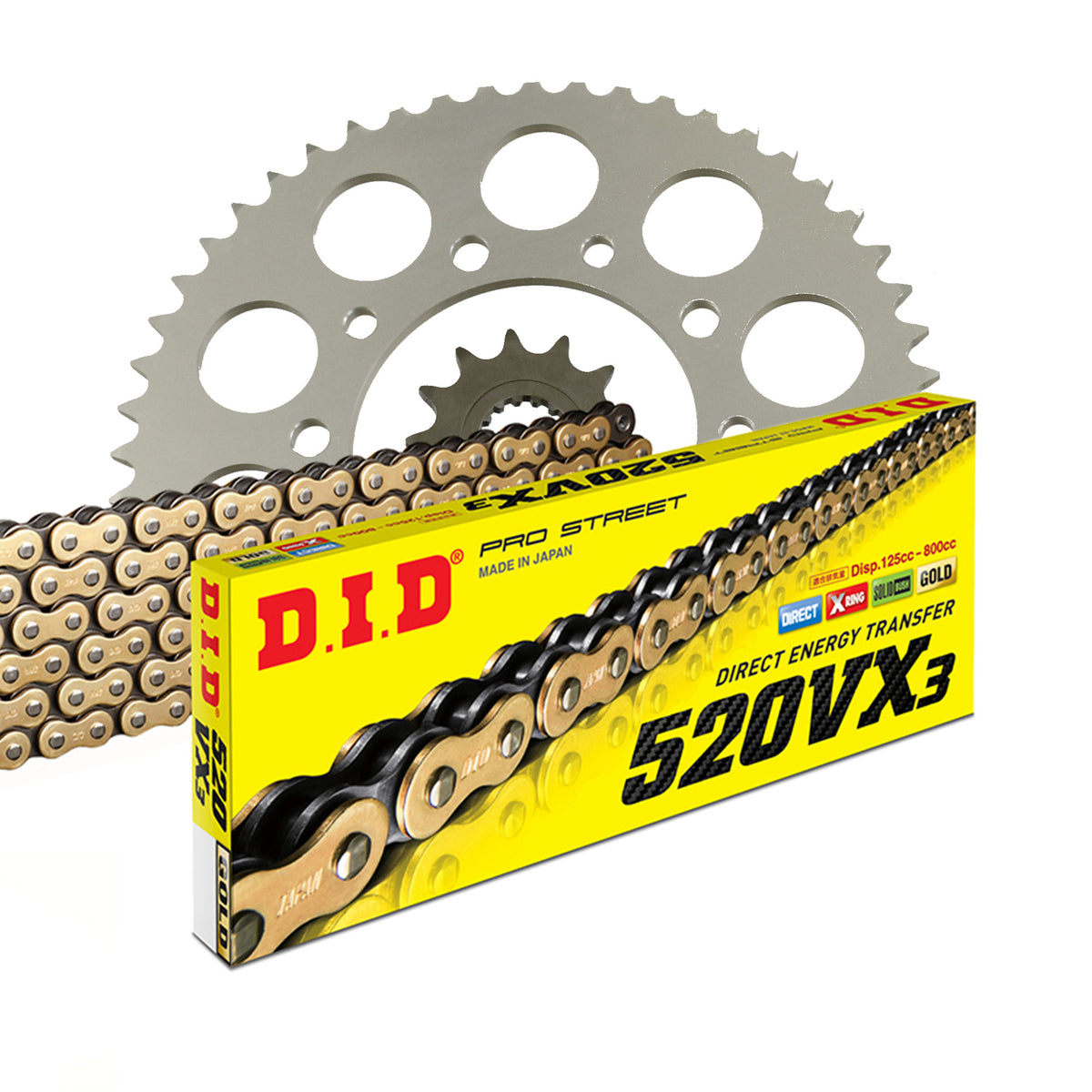

Components of the chain kit KTM 690 Duke R KTM 690 Duke 2013-2014

• Front sprocket: AFAM front sprocket #520 16 teeth - a73303.16
• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118
• Rear sprocket: AFAM sprocket ALU #520 40 teeth - a72304n.40
• Gear ratio front sprocket-chain-rear sprocket: 16-118-40

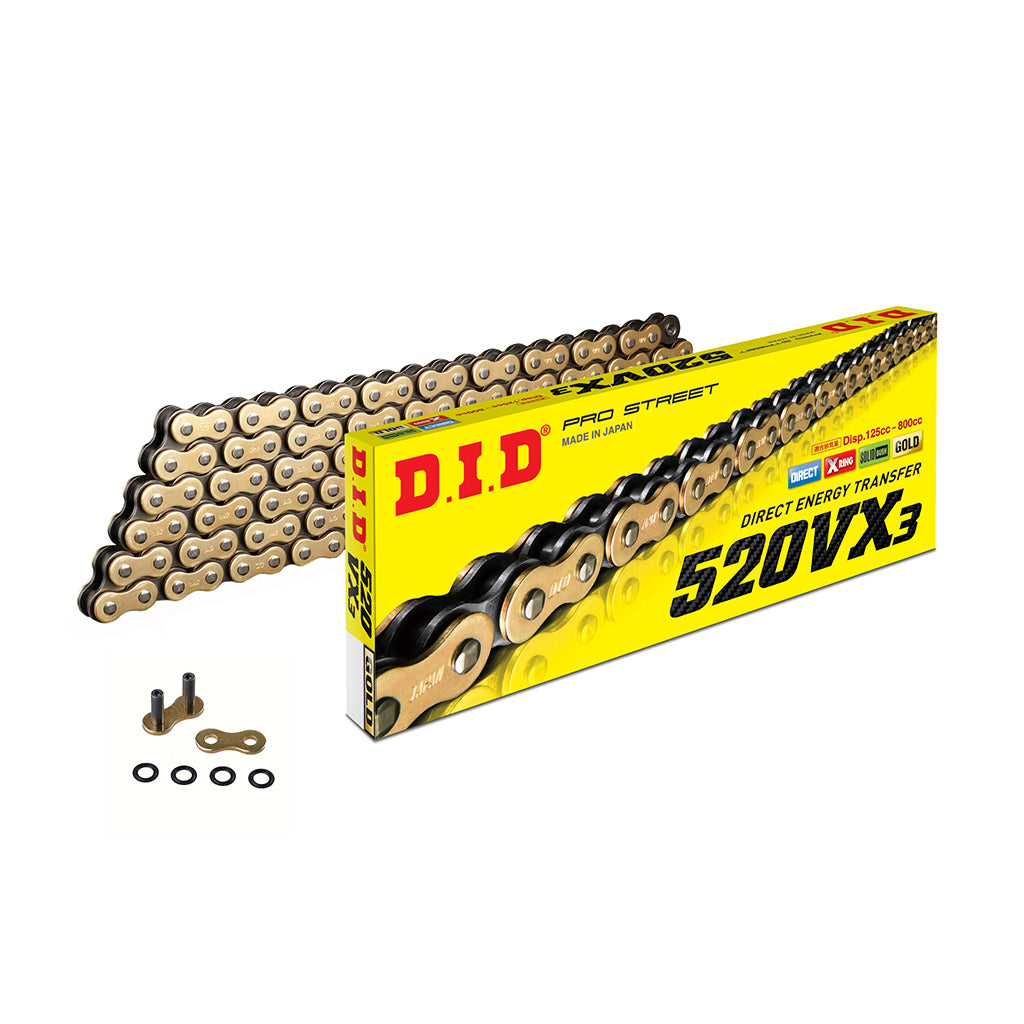

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by engine capacity: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-26258

Suitable for

KTM 501 - 750 cc 690 Duke R KTM 690 Duke 2013
KTM 501 - 750 cc 690 Duke R KTM 690 Duke 2014
