DID chain kit for KTM 690 Enduro 08-11 520 ZVMX chain kit

DID chain kit for KTM 690 Enduro 08-11 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit KTM 690 Enduro KTM 690 LC4 2008-2011

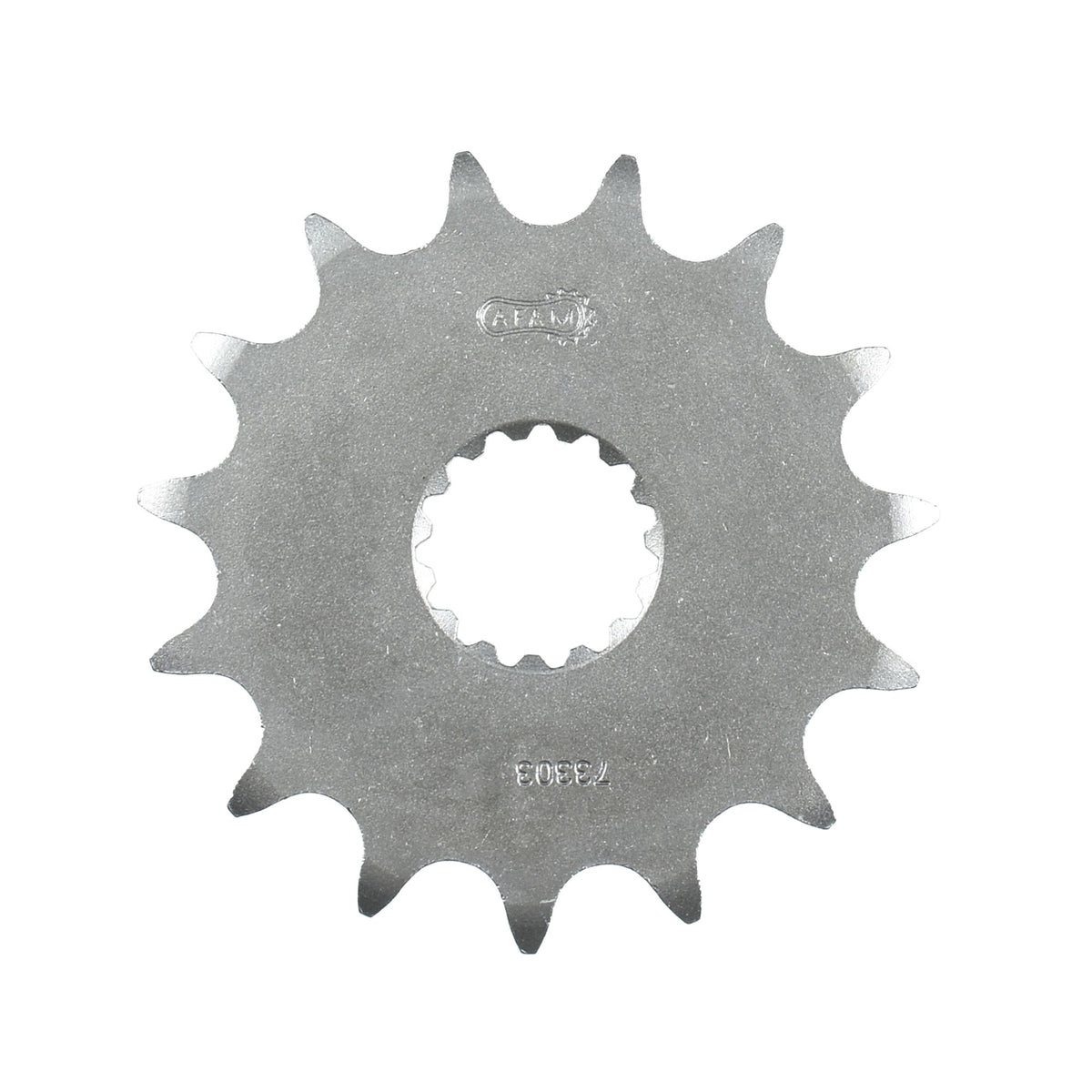

• Front sprocket: AFAM front sprocket #520 15 teeth - a73303.15
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118
• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a71304.45
• Gear ratio front sprocket-chain-rear sprocket: 15-118-45

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-27094

Suitable for

KTM 501 - 750 cc 690 Enduro KTM 690 LC4 2008
KTM 501 - 750 cc 690 Enduro KTM 690 LC4 2009
KTM 501 - 750 cc 690 Enduro KTM 690 LC4 2010
KTM 501 - 750 cc 690 Enduro KTM 690 LC4 2011
