DID chain kit for KTM 690 Enduro R 09-14 520 ZVMX chain kit

DID chain kit for KTM 690 Enduro R 09-14 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM 690 Enduro R KTM 690 LC4 2009-2014

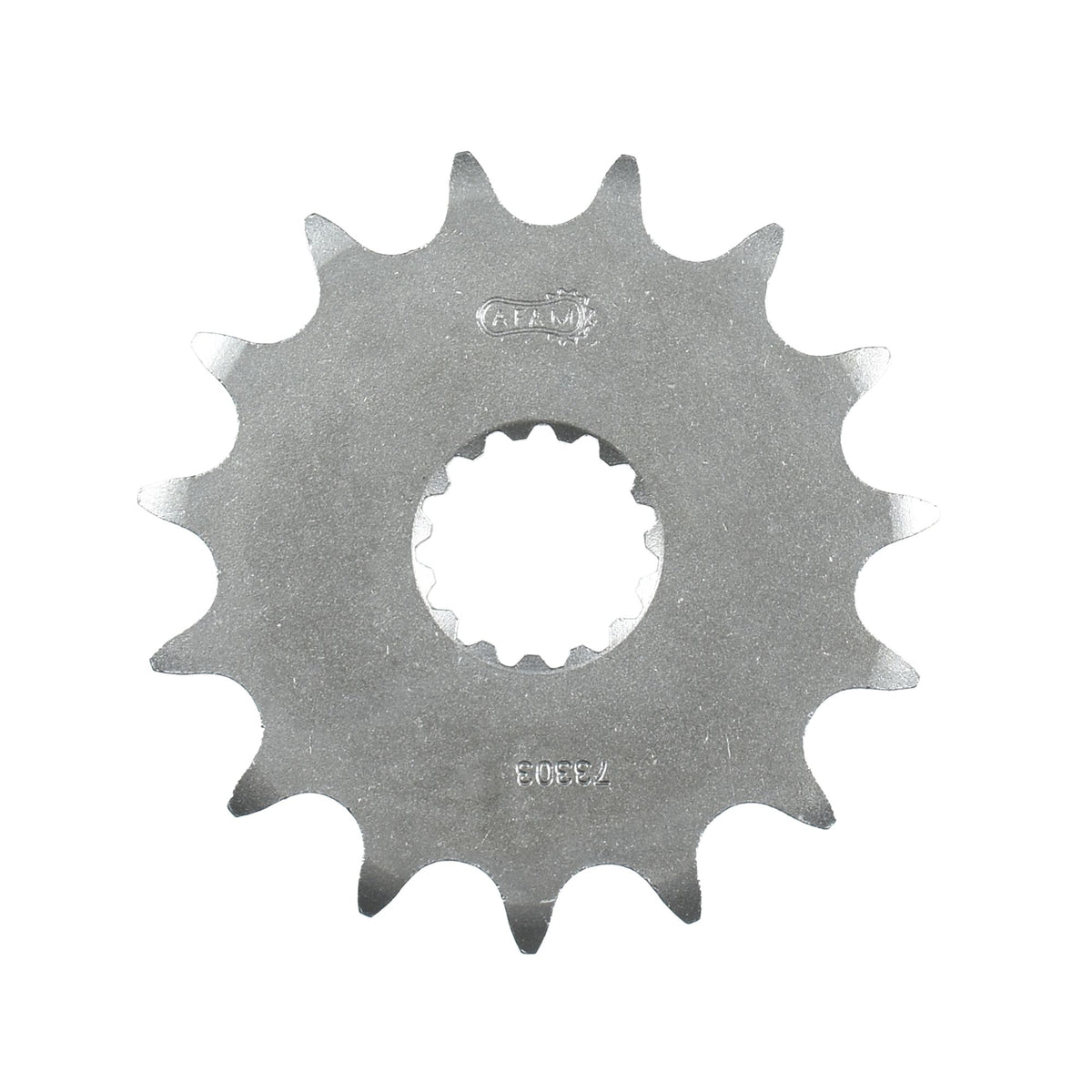

• Sprocket: AFAM sprocket #520 15 teeth - a73303.15
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118
• Rear sprocket: AFAM rear sprocket STEEL #520 45 teeth - a71304.45
• Gear ratio sprocket-chain-rear sprocket: 15-118-45

DID 520 ZVM-X

Extra reinforced chain, versatile area of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-26262

Suitable for

KTM 501 - 750 cc 690 Enduro R KTM 690 LC4 2009
KTM 501 - 750 cc 690 Enduro R KTM 690 LC4 2010
KTM 501 - 750 cc 690 Enduro R KTM 690 LC4 2011
KTM 501 - 750 cc 690 Enduro R KTM 690 LC4 2012
KTM 501 - 750 cc 690 Enduro R KTM 690 LC4 2013
KTM 501 - 750 cc 690 Enduro R KTM 690 LC4 2014
