DID chain kit for KTM 890 Duke L ABS 2021 520 ZVMX chain kit

DID Chain Kit for KTM 890 Duke L ABS 2021 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

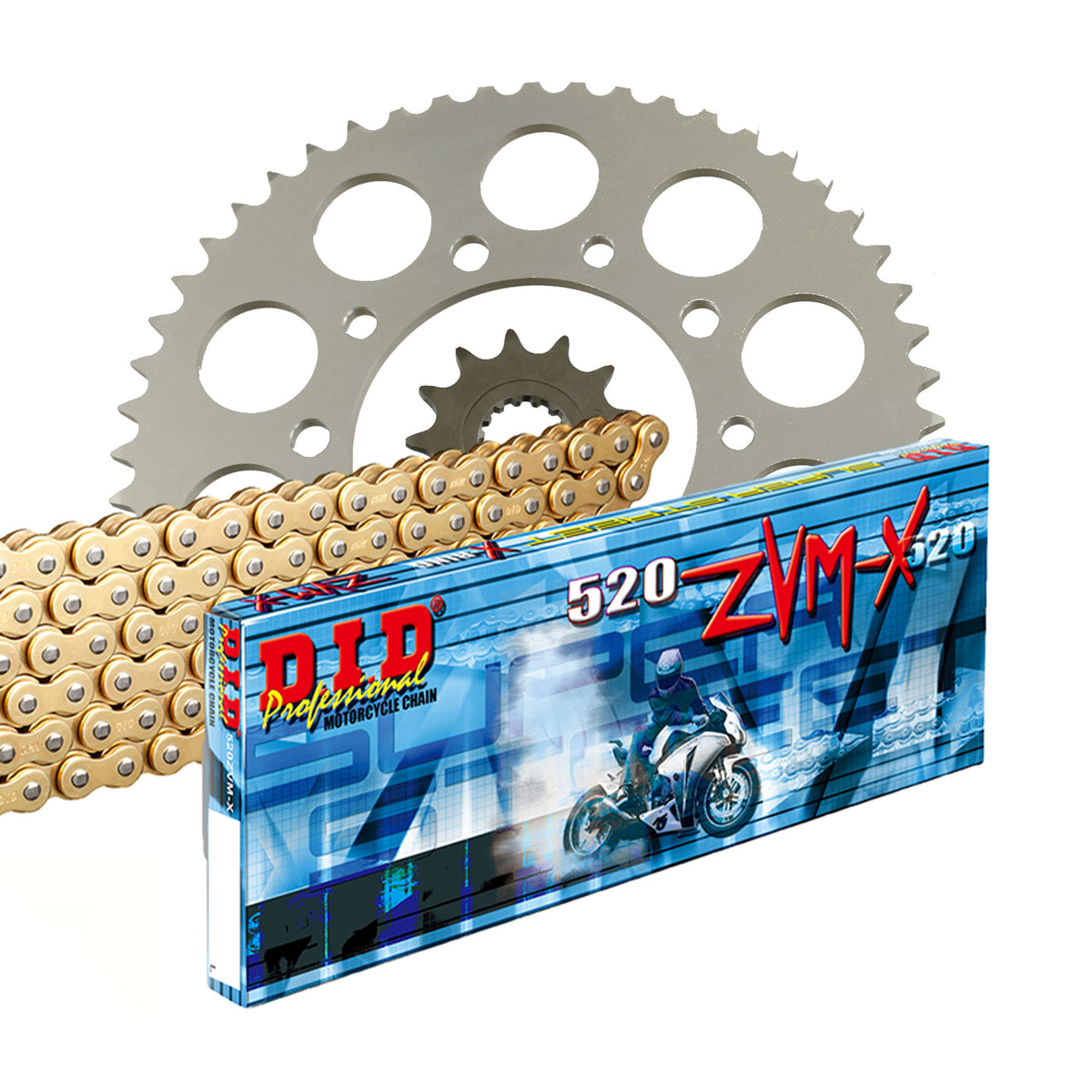

Components of the chain kit KTM 890 Duke L ABS 2021-2021

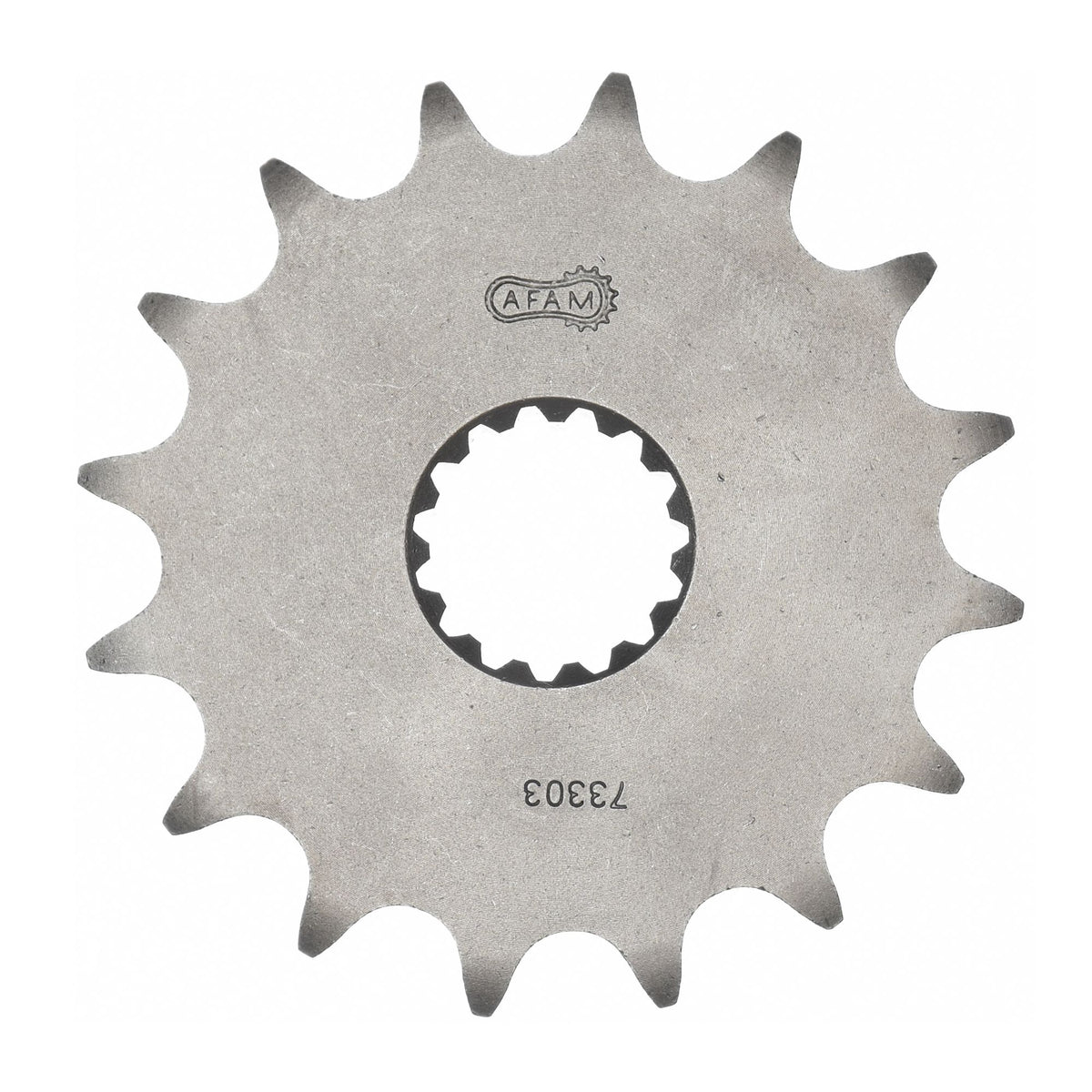

• Front sprocket: AFAM sprocket #520 16 teeth - a73303.16

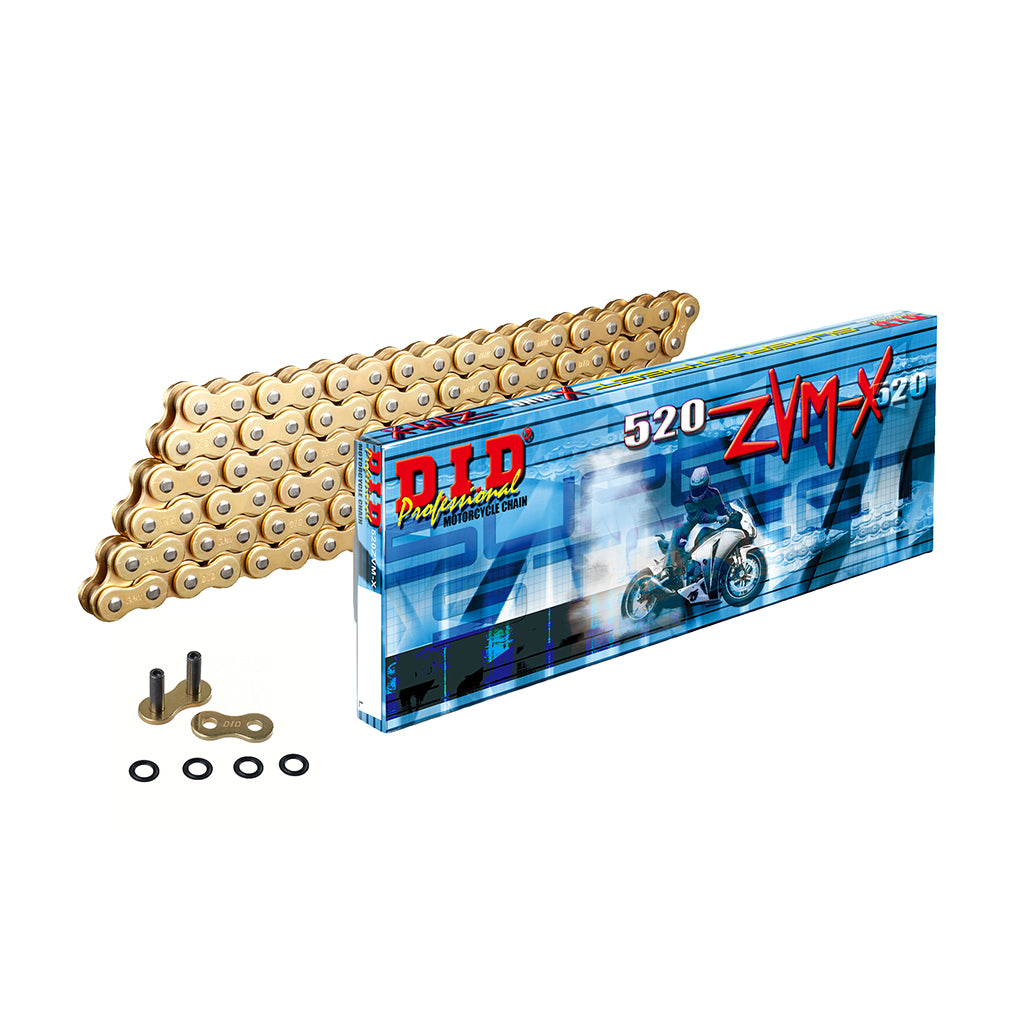

• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118
• Rear sprocket: AFAM sprocket ALU #520 41 teeth - a72304n.41
• Gear ratio sprocket-chain-rear sprocket: 16-118-41

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-Ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-27343

Fits

KTM 751 - 1000 cc 890 Duke L ABS 2021
