DID chain kit for KTM 890 Duke R ABS 20-21 520 VX3 chain kit

DID Chain Kit for KTM 890 Duke R ABS 20-21 520 VX3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

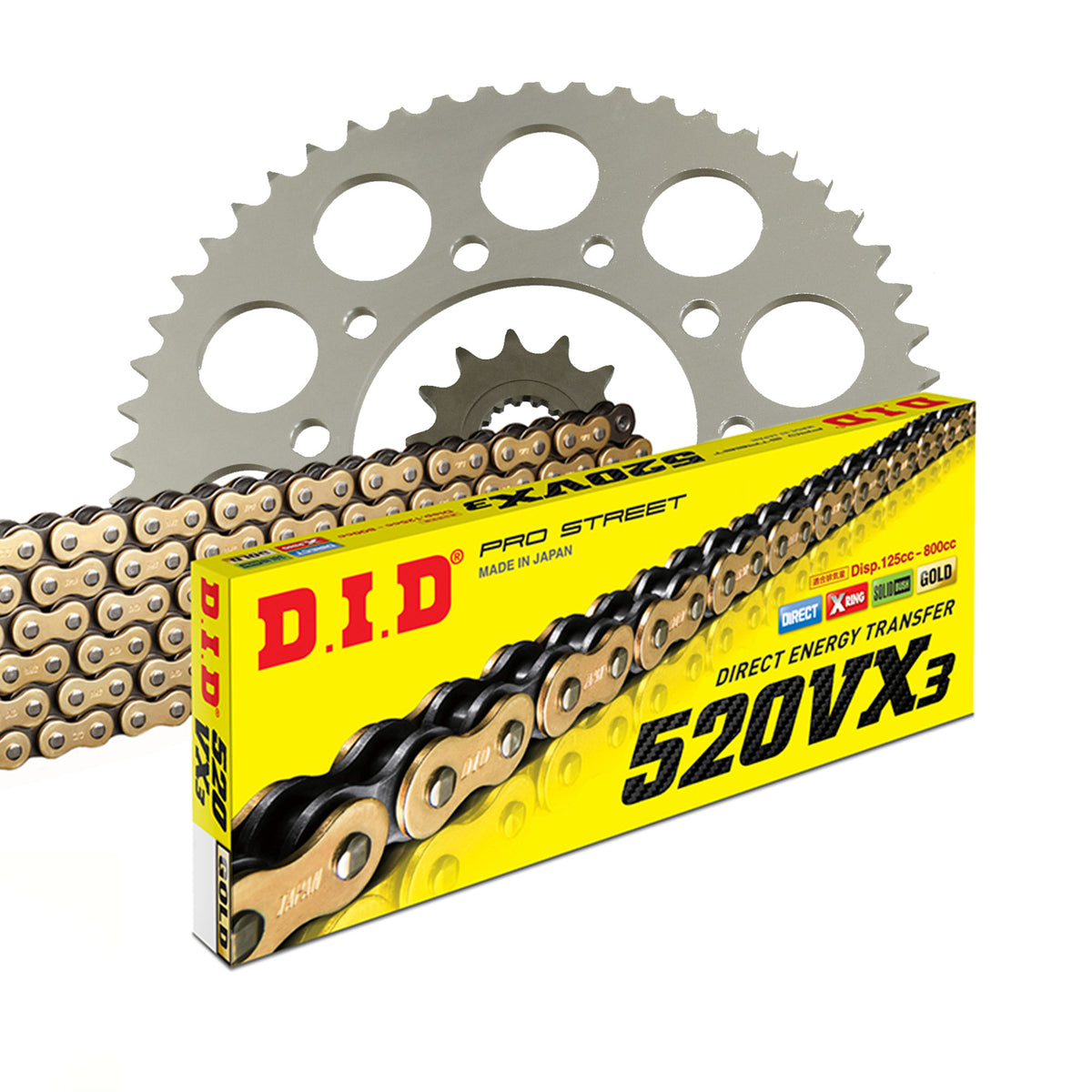

Components of the chain kit KTM 890 Duke R ABS 2020-2021

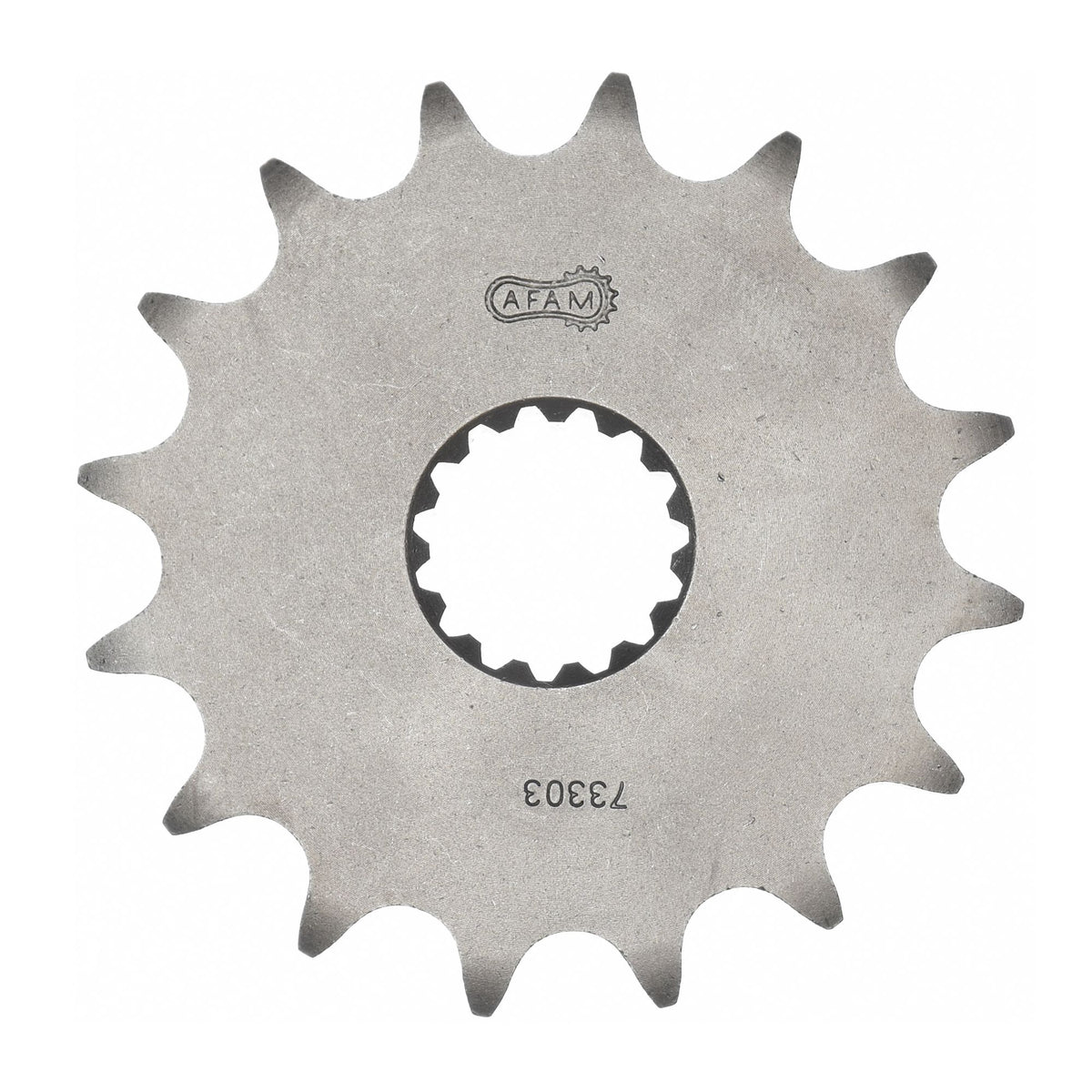

• Sprocket: AFAM sprocket #520 16 teeth - a73303.16

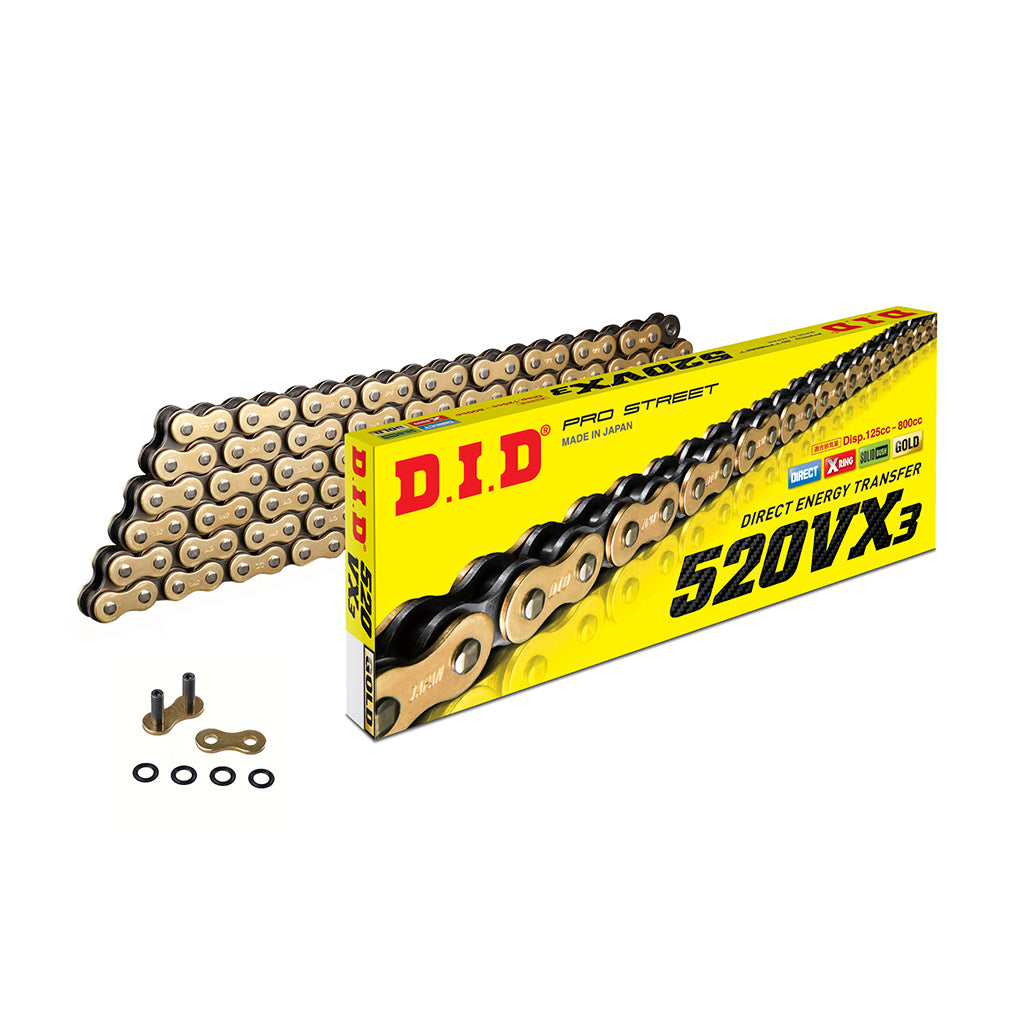

• Chain: DID chain 520 VX3 G&B 116 with rivet link - d520vx3-116
• Rear sprocket: AFAM aluminum rear sprocket #520 41 teeth - a72304n.41
• Gear ratio sprocket-chain-rear sprocket: 16-116-41

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-73604

Fits

KTM 751 - 1000 cc 890 Duke R ABS 2020
KTM 751 - 1000 cc 890 Duke R ABS 2021
