DID chain set for KTM 990 Super Duke 05-06 525 VX3 chain kit

DID chain kit for KTM 990 Super Duke 05-06 525 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit KTM 990 Super Duke KTM LC8 EF 2005-2006

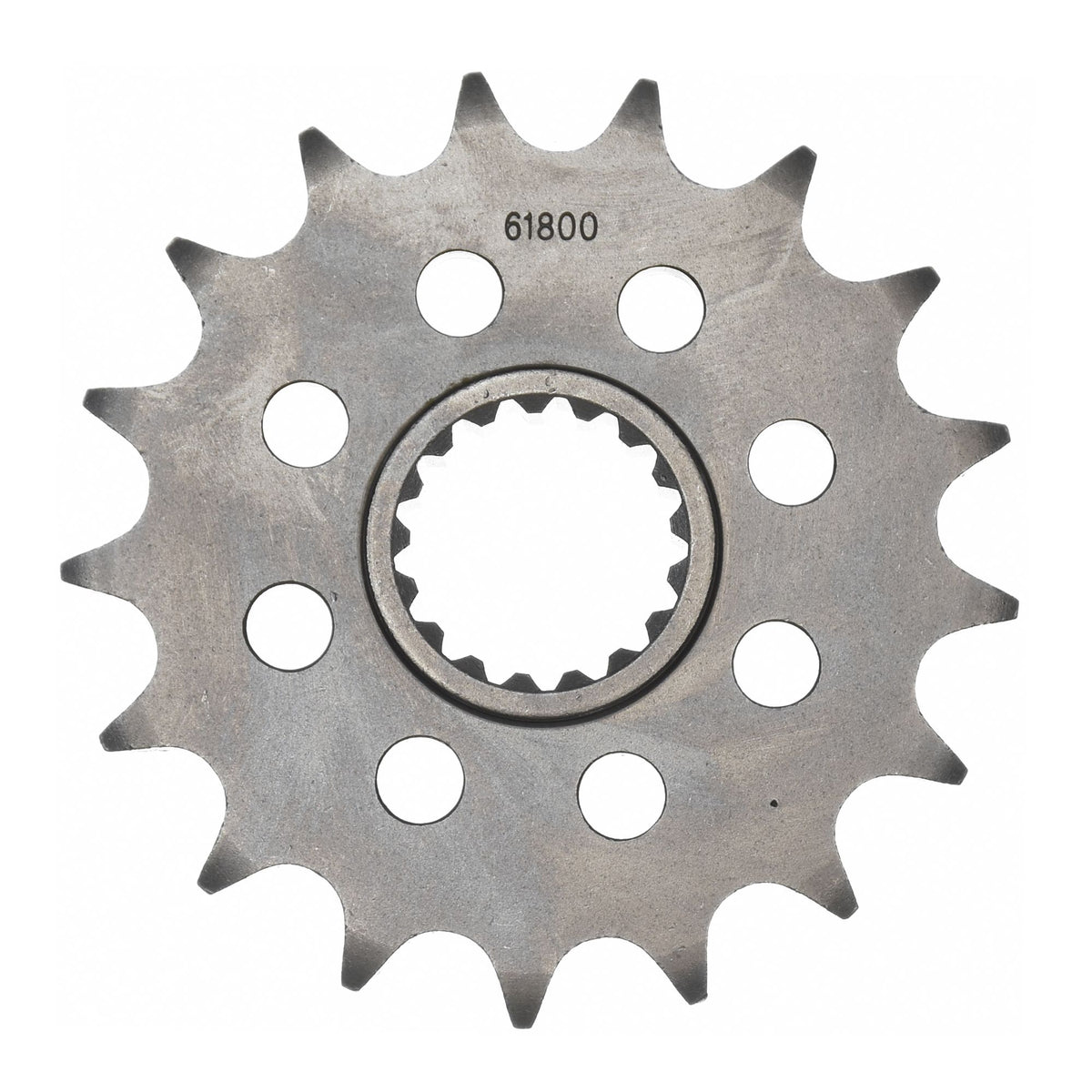

• Front sprocket: AFAM sprocket #525 17 teeth - a61800.17
• Chain: DID chain 525 VX3 G&B 110 with rivet master link - d525vx3.g-110
• Rear sprocket: AFAM rear sprocket STEEL #525 38 teeth - a71801.38
• Gear ratio sprocket-chain-rear sprocket: 17-110-38

DID 525 VX3

Successor to the proven 525 VX
X-ring chain
Color: Gold/Black
Application by displacement: up to 1000 cc

Technical data:
Pitch: 525
Pin length: 21.7 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 4000
Tensile strength: 45.24 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-27351

Suitable for

KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2005
KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2006
