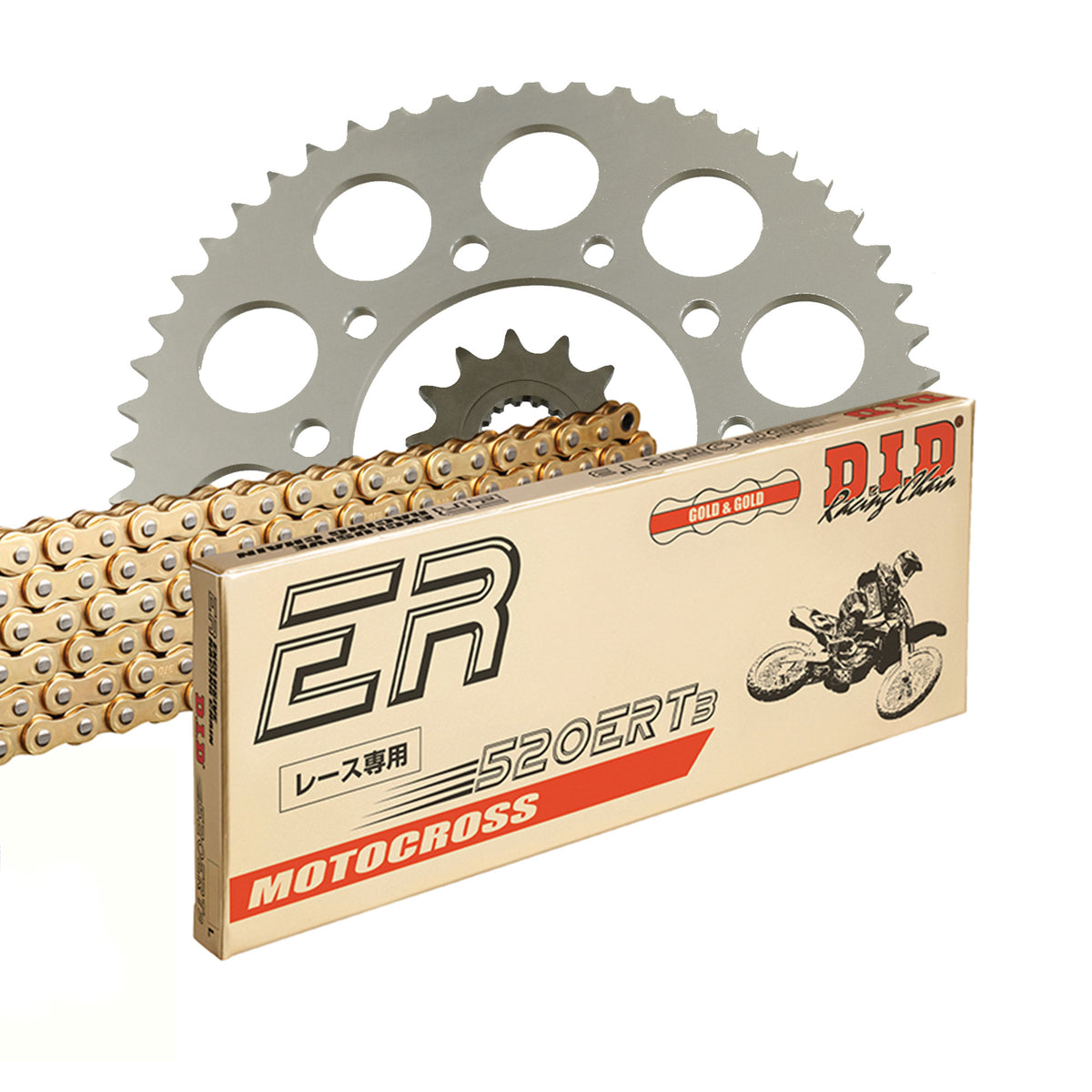

DID chain kit for KTM EGS 125 1999 520 ERT3 chain set

DID chain kit for KTM EGS 125 1999 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM EGS 125 2T 1999-1999

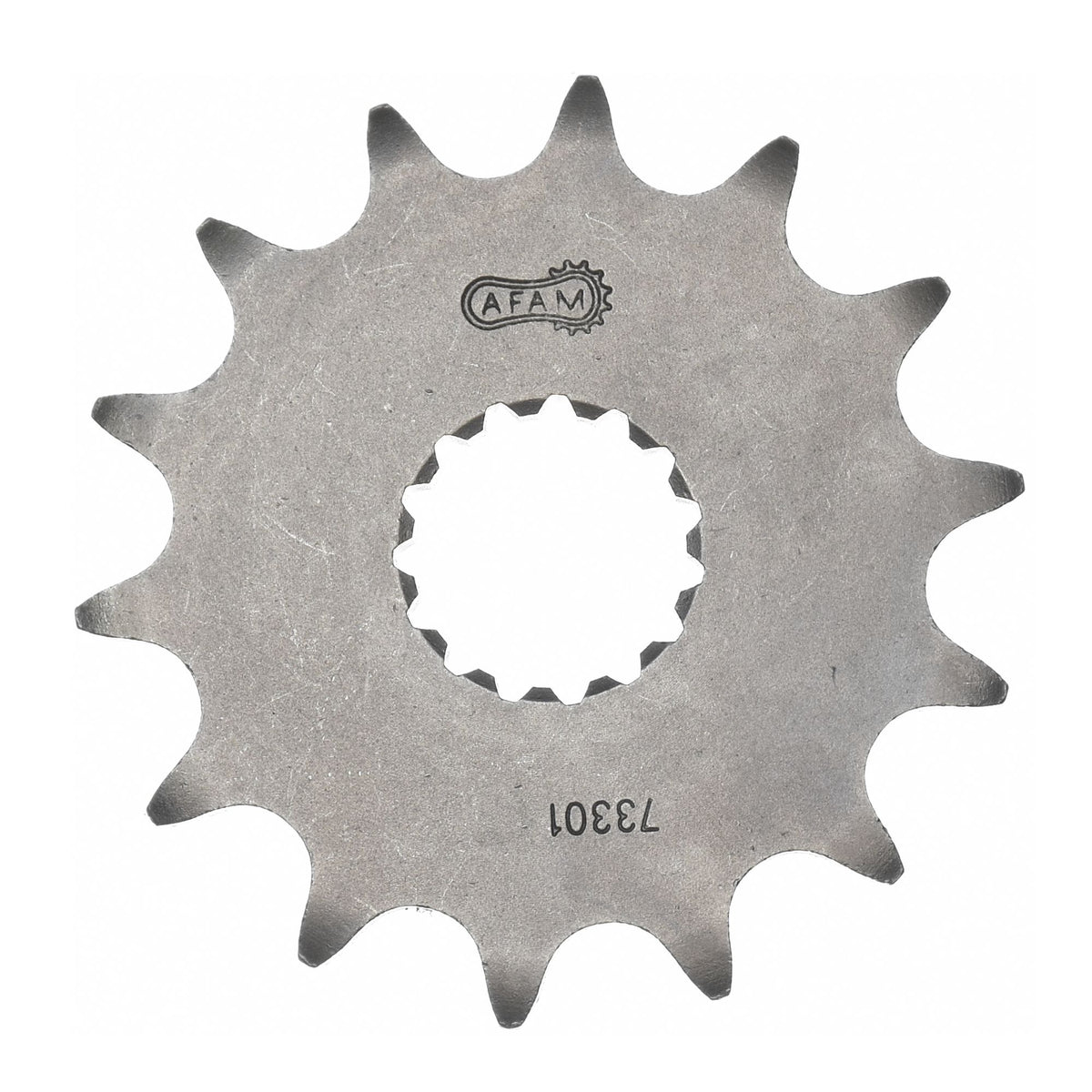

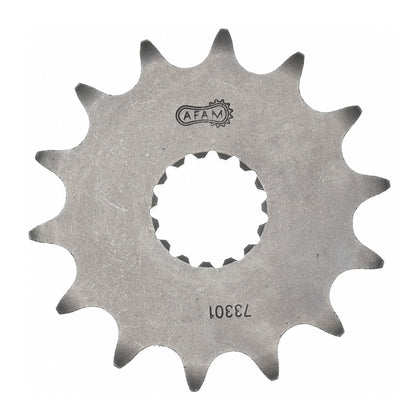

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14

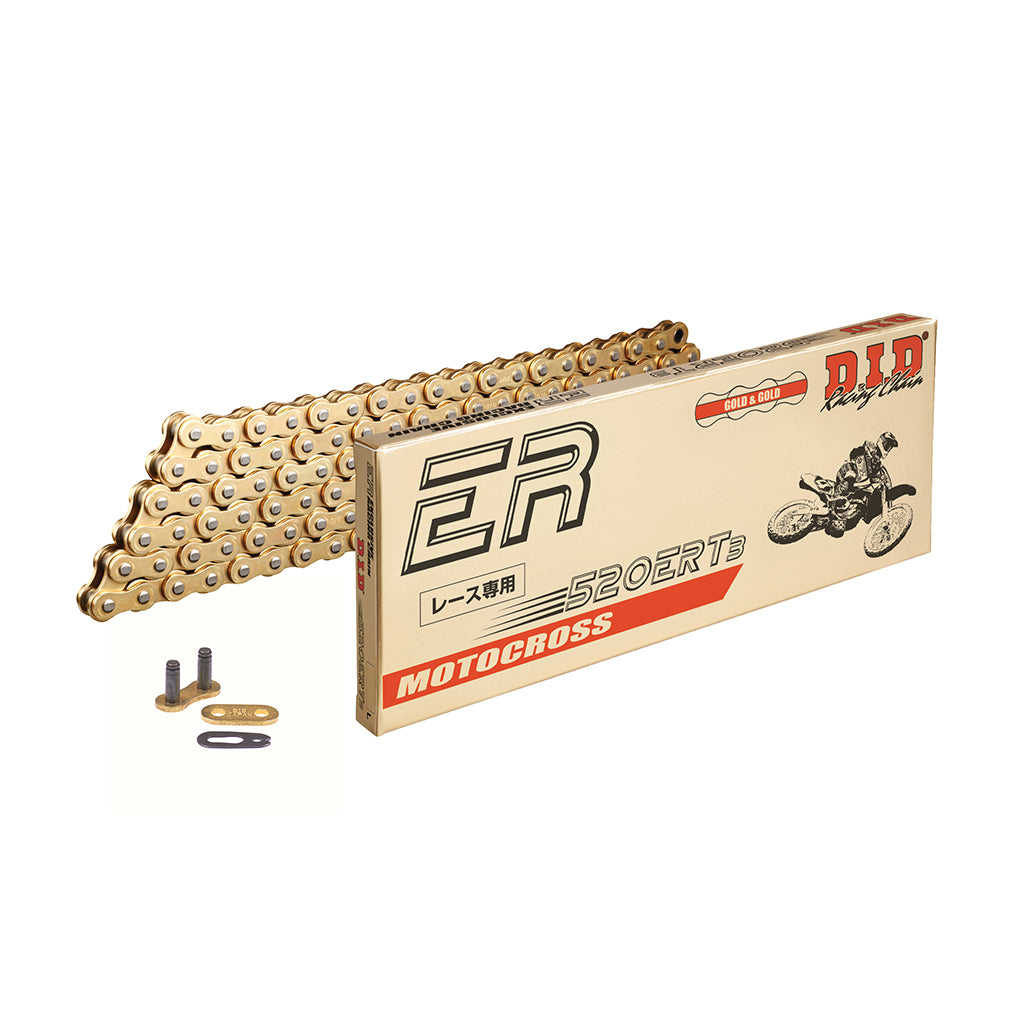

• Chain: DID chain 520 ERT3 G&G 114 with clip connecting link - d520ert3-114
• Rear sprocket: AFAM sprocket ALU #520 48 teeth - a72304n.48
• Gear ratio sprocket-chain-rear sprocket: 14-114-48

DID 520 ERT3

Extra reinforced pure moto-cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / moto-cross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-24650

Fits

KTM 101 - 125 cc EGS 125 2T 1999
