DID chain kit for KTM EGS 620 LC4 94-98 520 ZVMX chain kit

DID chain kit for KTM EGS 620 LC4 94-98 520 ZVMX chain set

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM EGS 620 LC4 1994-1998 chain kit

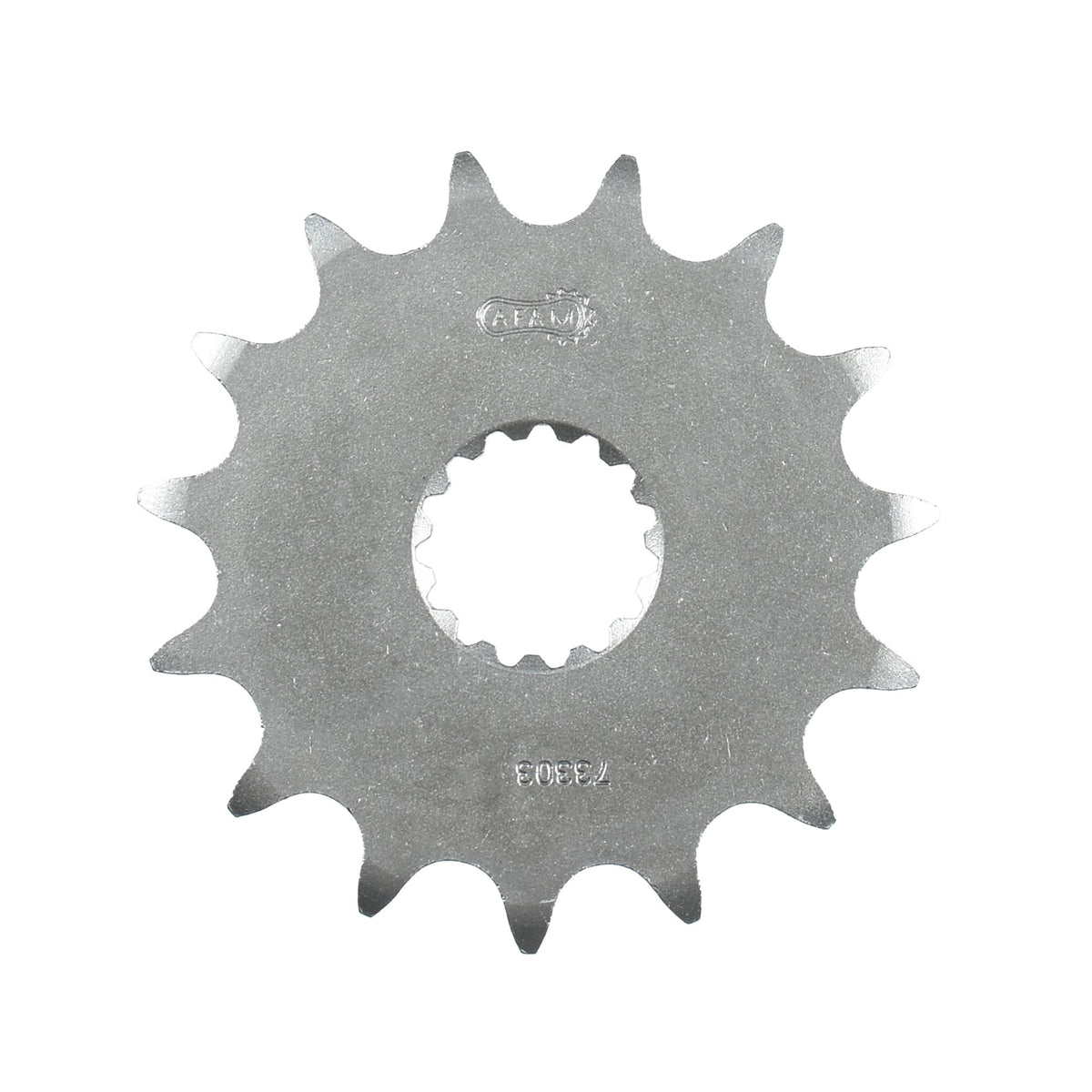

• Front sprocket: AFAM front sprocket #520 15 teeth - a73303.15
• Chain: DID chain 520 ZVM-X G&G 114 with rivet link - d6252029114
• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a71304.50
• Gear ratio front sprocket-chain-rear sprocket: 15-114-50

DID 520 ZVM-X

Extra reinforced chain, versatile range of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-25874

Suitable for

KTM 501 - 750 cc EGS 620 LC4 1994
KTM 501 - 750 cc EGS 620 LC4 1995
KTM 501 - 750 cc EGS 620 LC4 1996
KTM 501 - 750 cc EGS 620 LC4 1997
KTM 501 - 750 cc EGS 620 LC4 1998
