DID chain kit for KTM EXC 125 1998 520 ERT3 chain set

DID chain kit for KTM EXC 125 1998 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the KTM EXC 125 2T 1998-1998 chain kit

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ERT3 G&G 112 with clip connecting link - d520ert3-112

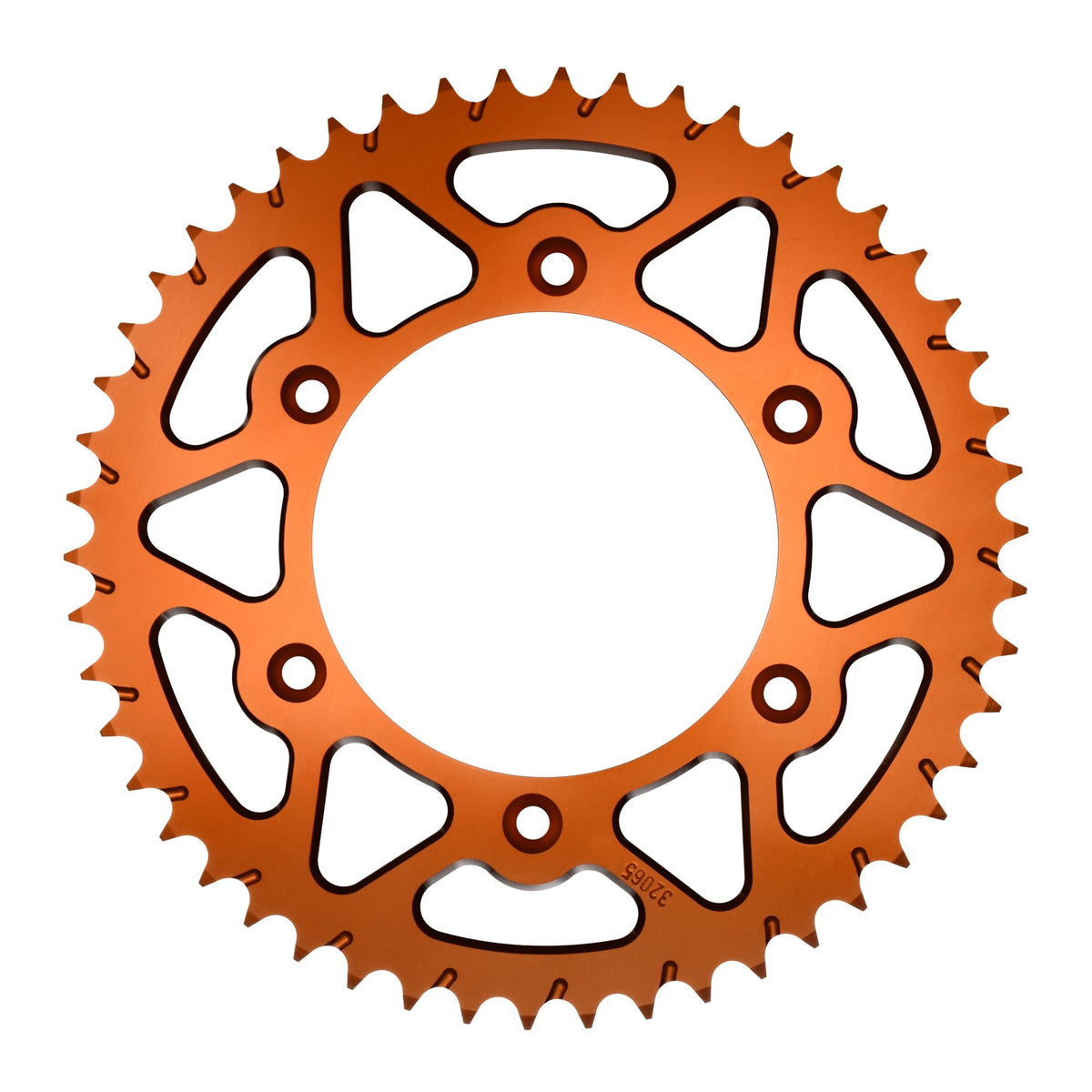

• Rear sprocket: Esjot sprocket 72304-50 ALU #520 50 teeth orange - a72304o.50
• Transmission ratio front sprocket-chain-rear sprocket: 13-112-50

DID 520 ERT3

Extra reinforced pure moto-cross chain
Without seal rings
Color: Gold/Gold
Application by displacement: up to 450 cc / moto-cross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-24655

Fits

KTM 101 - 125 cc EXC 125 2T 1998
