DID chain kit for KTM EXC 125 1998 520 VX3 chain kit

DID chain kit for KTM EXC 125 1998 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

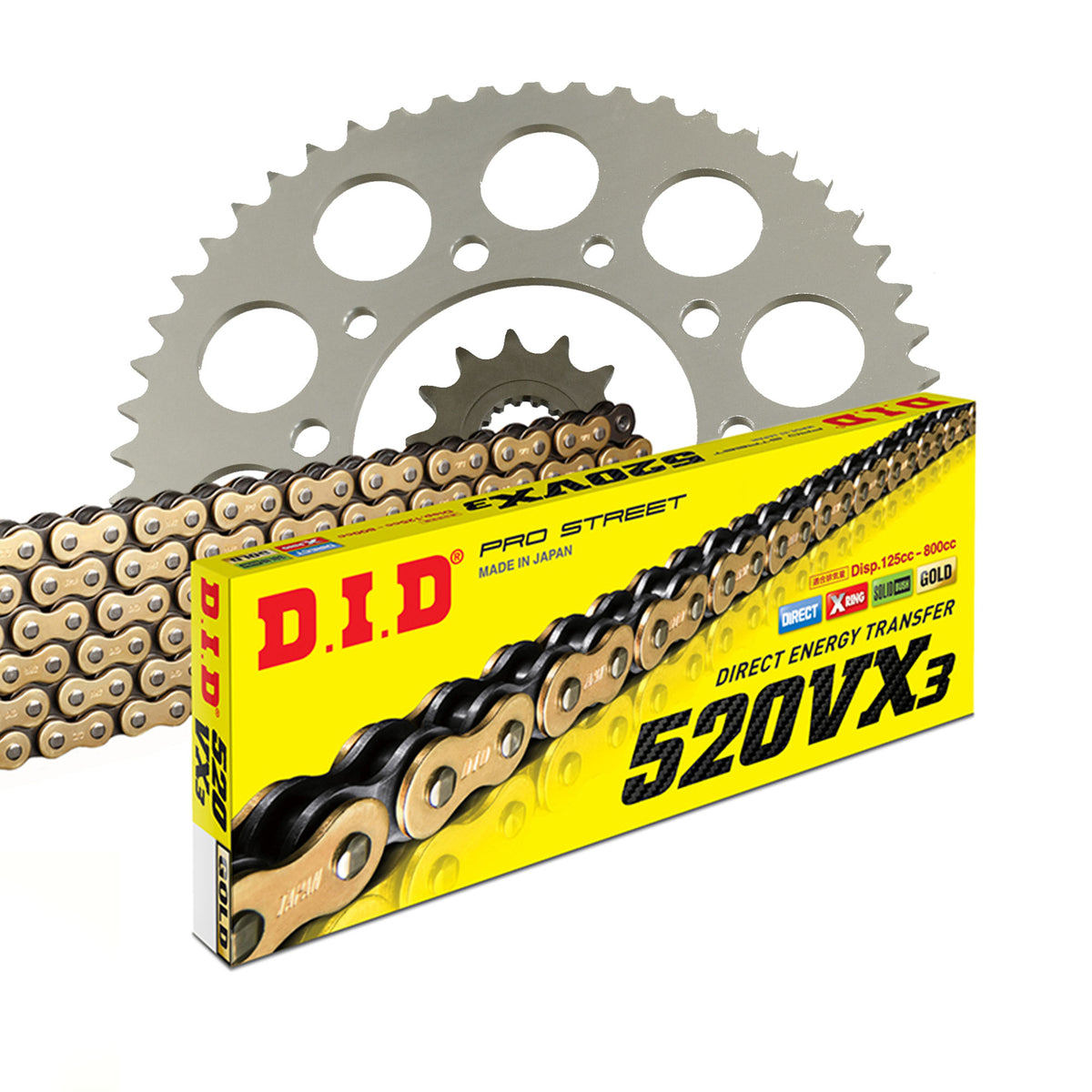

Components of the chain kit KTM EXC 125 2T 1998-1998

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 VX3 G&B 112 with rivet link - d520vx3-112
• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a71304.50
• Transmission ratio sprocket-chain-rear sprocket: 13-112-50

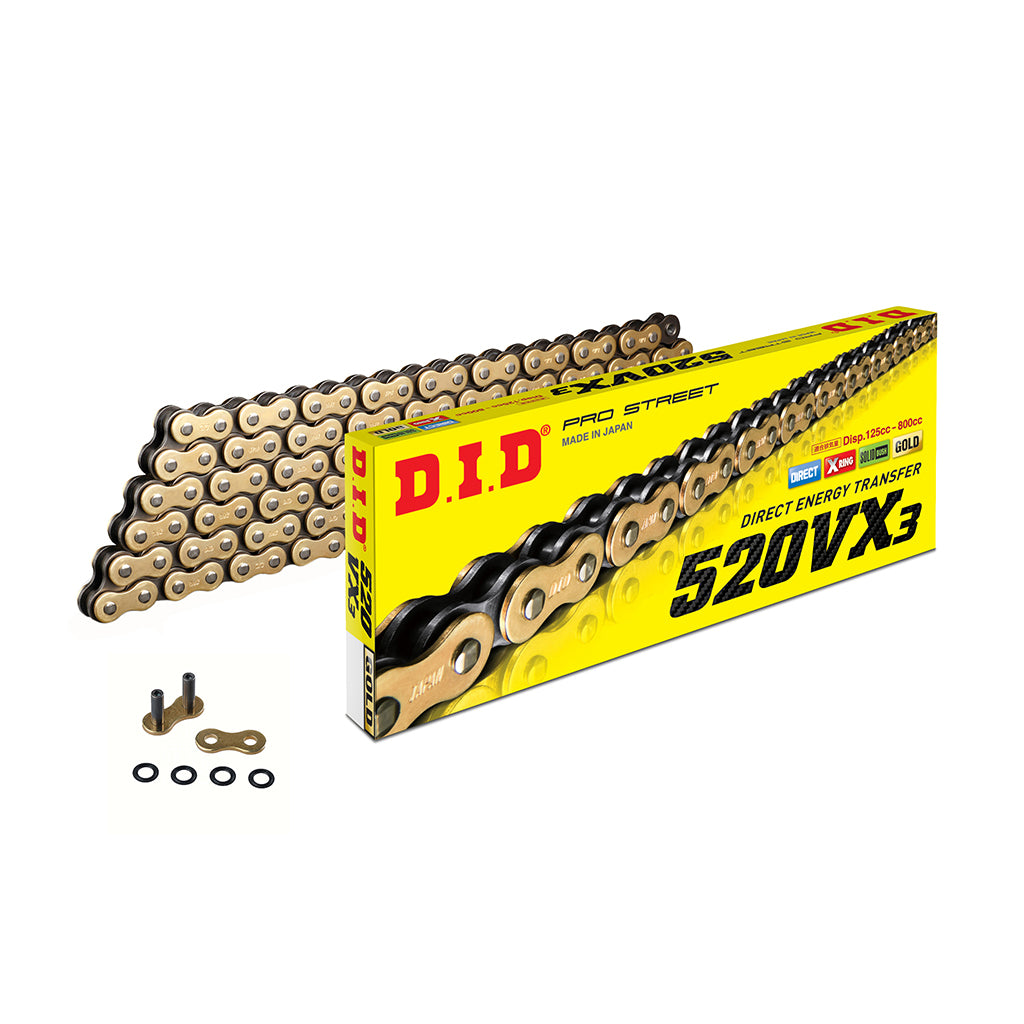

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Article number	KKF-24656

Suitable for

KTM 101 - 125 ccm EXC 125 2T 1998
